City Theatrical SHoW DMX Neo D2 Quick Start Manual

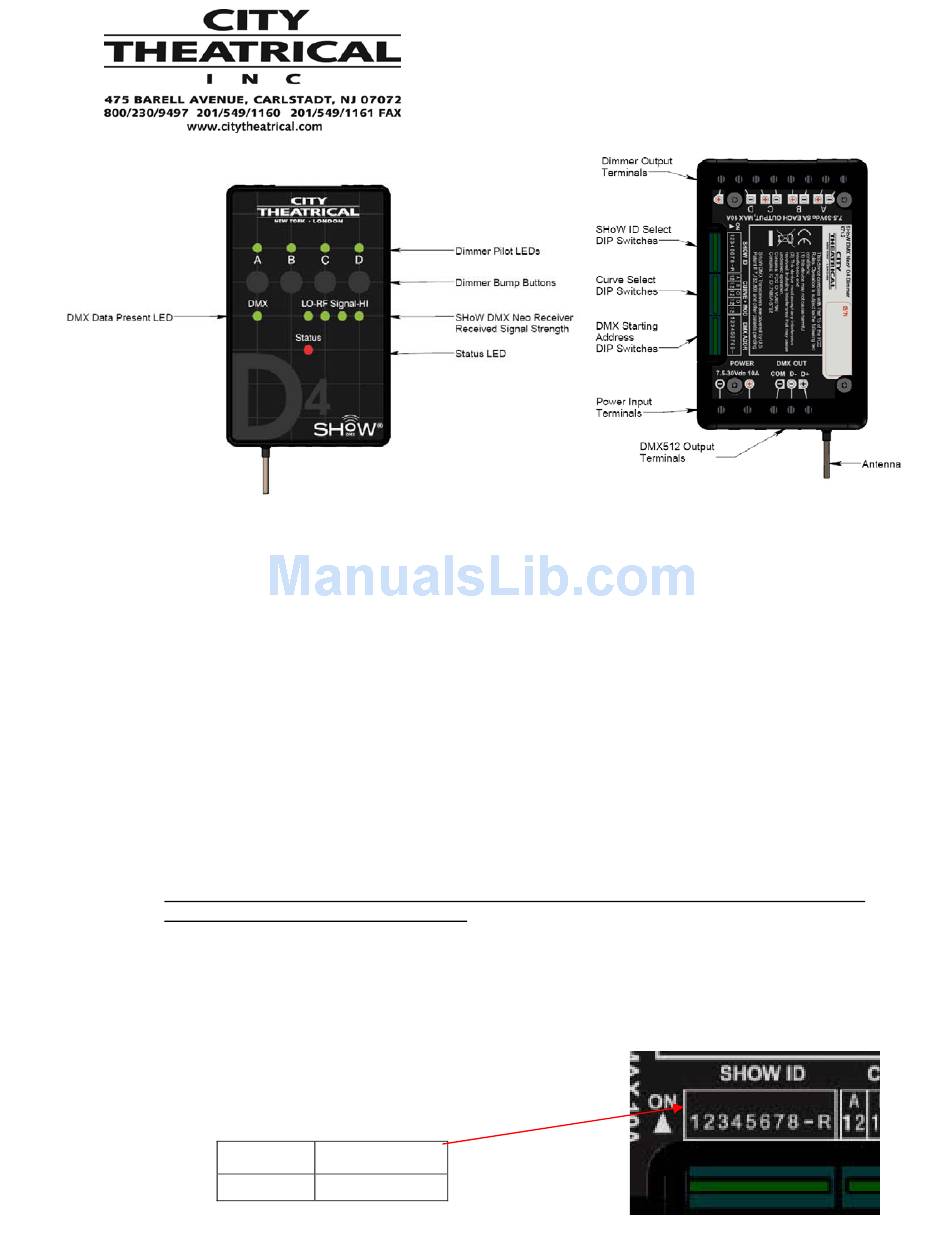

Wireless SHoW DMX Neo Dimmers

The wireless SHoW DMX Neo D2 and D4 Dimmers have all the same features, except that the SHoW
DMX Neo D4 has four dimmer channels (A, B, C & D) while the SHoW DMX Neo D2 has two dimmer
channels (A & B).
The SHoW DMX Neo D2 and D4 Dimmers can be setup quickly with a SHoW DMX SHoW Baby®:
1. Connect your SHoW Baby to your DMX controller as a transmitter (if you're using a different
SHoW DMX Neo unit as a transmitter, set the SHoW ID to 201 and proceed as below)
2. Power up the SHoW Baby and confirm it is receiving DMX (Data LED lit)
3. Set up your SHoW Baby and SHoW DMX Neo D4 Dimmer with clear line of sight between the
SHoW Baby antenna and the SHoW DMX Neo D4 Dimmer's antenna
4. Orient the antennas of both units in parallel, either vertically or horizontally (do not point the
antennas at each other)
5. Connect +7.5 ~ 30VDC DC Power to the Dimmer using the two provided screw terminals.
Connect +VDC to the + (plus) Terminal and – (minus) VDC to the – Terminal. These terminals
will accommodate up to 14 AWG / 1.5mm
Be aware that the power supply voltage must match the rated voltage of the load. If you are
using 12V LED tape, use 12VDC power.
6. Confirm that at least two of the Received Signal Strength LEDs are lit and the Data LED is lit (if
few Received Signal Strength LEDs are lit, adjust the antenna positions so they are parallel and
check for radio barriers)
7. SHoW ID: Your new SHoW DMX Neo D4 Dimmer was factory preset at SHoW ID 201. If your
unit is no longer in factory default, set the SHoW ID DIP
Switch to 11001001 (SHoW ID 201). Note that the SHoW
ID DIP switches read left to right, while the binary number
in the SHoW ID chart below reads right to left.
SHoW ID
201
Wireless and Wired DMX
2
wire. This DC power input is rated for 10A.
DIP Setting
87654321
11001001
SHoW DMX Neo®
D2 and D4 Dimmers
Quick Start Guide
