AntennaTek Signal commander II Mod 3000 Owner's Manual page 2

SECTION I INSTALLATION INSTRUCTIONS
This manual contains information on the following Signal Commander® models; the model you have purchased
is clearly marked on the front of this manual.
MODEL 3000
MODEL 3500
MOD 3000 PARTS LIST
Qty. Description
1 Omni Antenna Assembly
9 # 6X3/4" PPH SS Screws
2 Coaxial Cable Boots
1 Roof Mounting Bracket
1 Clamp bracket
MOD 3500 PARTS LIST
Qty. Description
1 Omni Antenna Assembly
1 15' Coaxial Cable with boots
1 6' Coaxial Cable
10 #8x1" PPH Screws
9 # 6X3/4" PPH SS Screws
2 Coaxial Cable Boots
1 Roof Mounting Bracket
1 Clamp bracket
1 Power Supply
1. Installation Planning
Follow the instructions in this manual in conjuction
with the RV manufacture's recommendations to lo-
cate and install the Signal Commander Antenna and
power supply.
Locating the antenna close to the television receiver
and the 12 Volt DC power source will simplify the
installation. For best reception, stay as far as you can
from other roof mounted equipment to avoid any
interference.

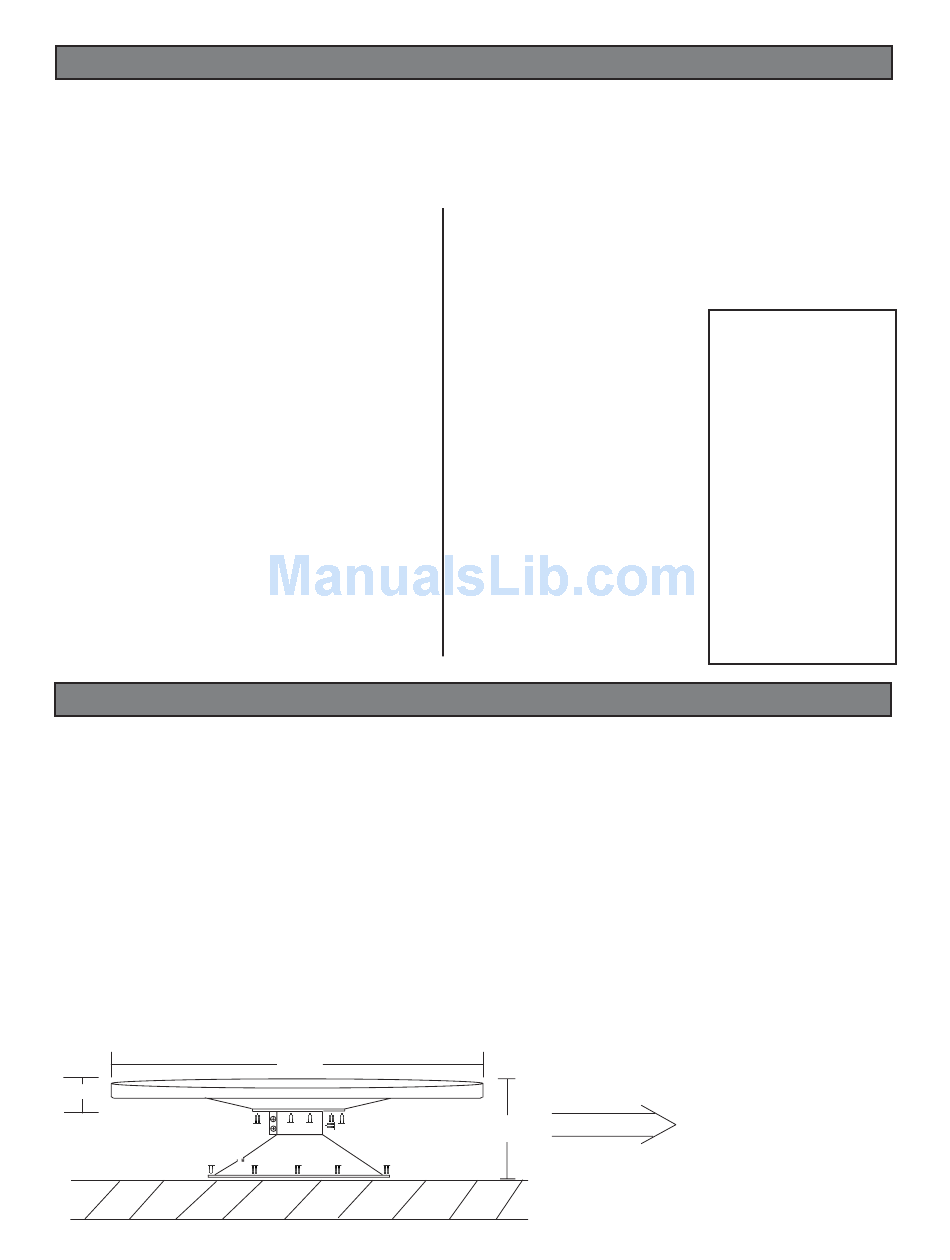

2 1/4"
2
Amplified Antenna, no Power Supply
Amplified, 2nd TV & Cable TV Ready
TOOLS AND SUPPLIES
REQUIRED:
P/N
062200
Mechanical Installation
030212
- Electric Drill
040102
- Drill bit: 1/16" Dia.
062206
- Phillips screwdriver # 2
062208
- Tape Measure
- 3/8" Wrench
- 5/32" Allen Wrench
Electrical Installation
P/N
- Multimeter
062200
- Sabre Saw
065580
- Crimping tool
065543
Supplies
065581
- Caulking Compound
030212
- Electrical Tape
040102
- Electrical Wire 14 AWG
062206
- Electrical Box
062208
065840
21 1/2"
Power supplies should not be connected to existing
circuits with fans or motors as this may cause interfer-
ence to the television, damage the antenna amplifier,
and void the warranty.
Power supplies should be flush mounted in standard
electrical boxes. Assure that the 12 Volt DC source is
limited by a 7.5A fuse maximum.
WARNING !
Electricity Kills!
Power lines may be overhead.
Care must be taken when installing the
antenna.
Vehicle Front
8 1/4"
DISTRIBUTORS:
AUSTRALIA
Coast Connection
(02)9684-1434
CANADA
Danzy Distributors
(877)326-9962
NEW ZEALAND
RV Wholesale
64-7-825-2044
USA
Arrow (800) 228-1001
Coast (800) 495-5858
DTI (800)289-0919
Keller Marine (570)374-8169
Pantera Sales (800) 456-0123
AntennaTek (888) 349-8303
