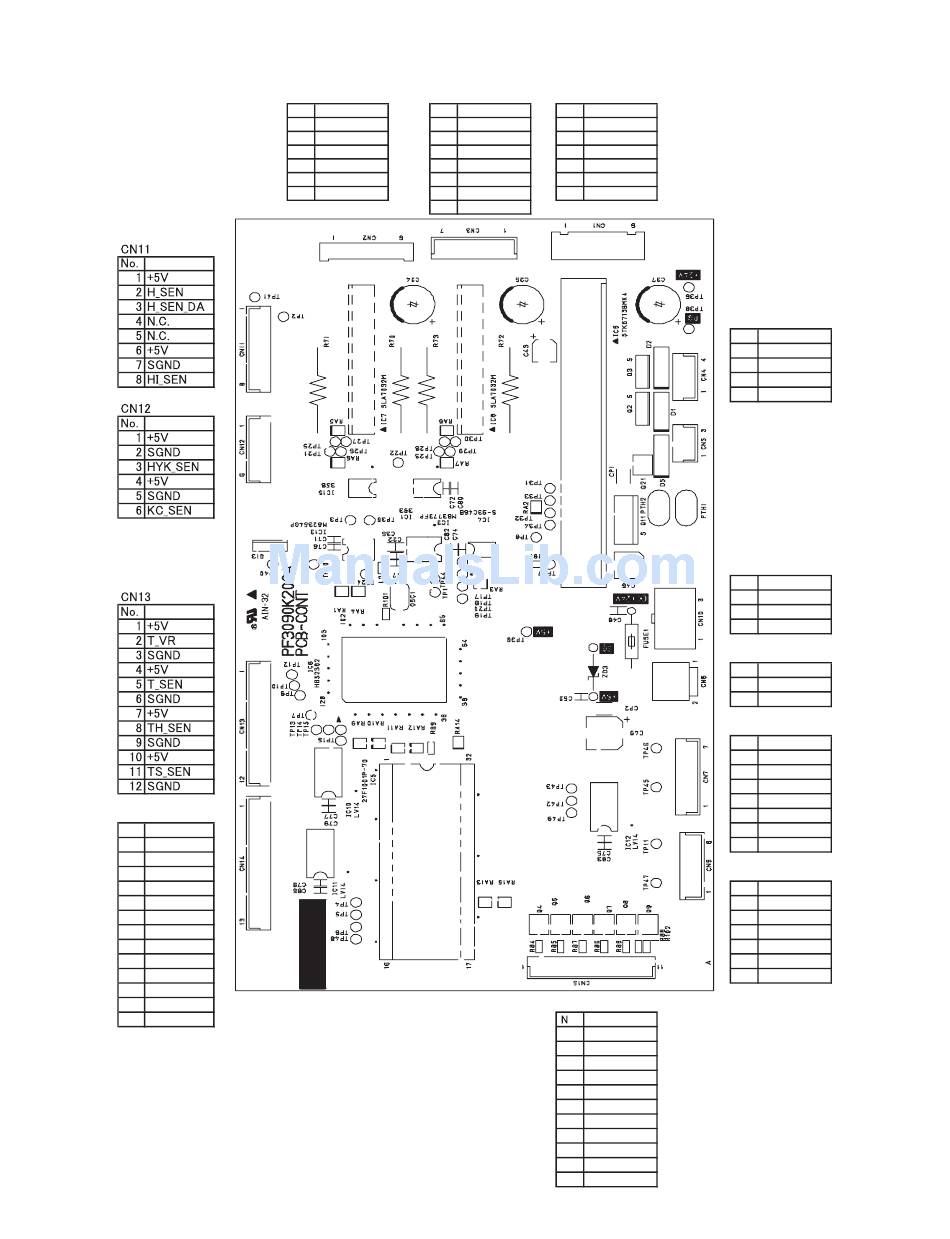

2. PARTS LAYOUT
A. PARTS SURFACE
Signal Name
Signal Name
Signal Name
CN14
No.
Signal Name
1 +5V
2 SGND
3 S_SEN
4 +5V
5 SGND
6 EMP_SEN
7 +5V
8 SGND
9 REG_SEN
10 +5V
11 SGND
12 TIM_SEN
13 N.C.
CN2
No.
Signal Name
1 H_MOT_*B
2 H_MOT_B
3 H_MOT_*A
4 H_MOT_A
5 +24V
6 +24V
AR-CF2 CIRCUIT DIAGRAM AND PARTS LAYOUT / 回路図と部品配置図 3 - 3
CN3
CN1
No.
Signal Name
No.
Signal Name
1 N.C.
1 K_MOT_A
2 +24V
2 +24V
3 +24V
3 K_MOT_*A
4 Y_MOT_A
4 K_MOT_B
5 Y_MOT_*A
5 +24V
6 Y_MOT_B
6 K_MOT_*B
7 Y_MOT_*B
CN15
o.
Signal Name
1 P_ST_SW
2 P_MO_SW
3 P_PN_SW
4 P_PN_LED
5 SGND
6 P_MO_LED1
7 P_MO_LED2
8 P_MO_LED3
9 P_MO_LED4
10 P_ST_LED1
11 P_ST_LED2
CN4
Signal Name
No.
4 R_CL
3 +24V
2 F_SOL
1 +24V
CN10
No.
Signal Name
3 *J_PTH
2 JCK_SW
1 +24V
CN6
Signal Name
No.
1 +24V
2 PGND
CN7
No.
Signal Name
7 SGND
6 +5V
5 RESET
4 DSR0
3 DTR0
2 RxD0
1 TxD0
CN9
No.
Signal Name
6 SGND
5 RESET
4 DTR1
3 DSR1
2 RxD1
1 TxD1
