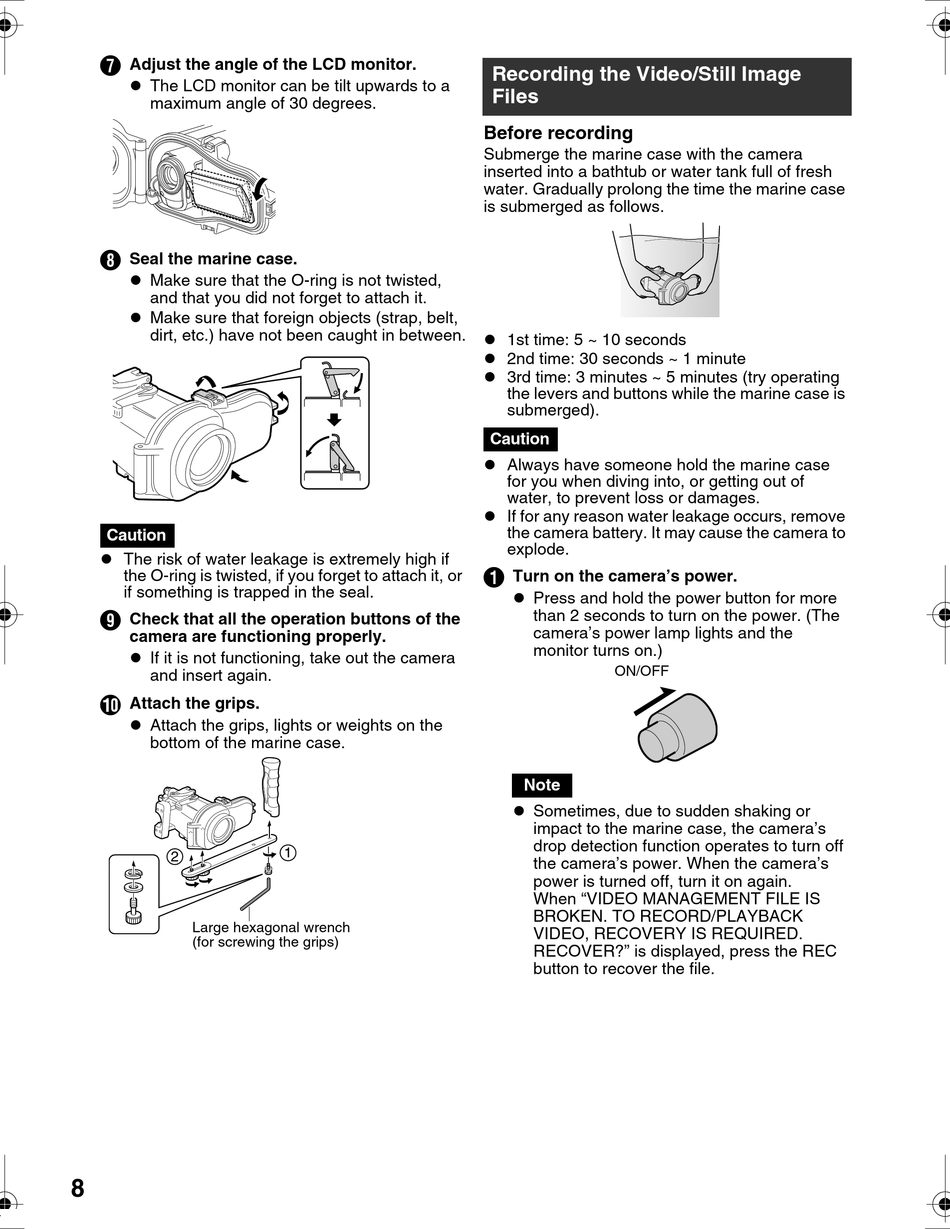

Before Recording - JVC LYT2112-003A Instructions Manual

G
Adjust the angle of the LCD monitor.
The LCD monitor can be tilt upwards to a
maximum angle of 30 degrees.
H
Seal the marine case.
Make sure that the O-ring is not twisted,
and that you did not forget to attach it.
Make sure that foreign objects (strap, belt,
dirt, etc.) have not been caught in between.
Caution
The risk of water leakage is extremely high if
the O-ring is twisted, if you forget to attach it, or
if something is trapped in the seal.
I
Check that all the operation buttons of the
camera are functioning properly.
If it is not functioning, take out the camera
and insert again.
J
Attach the grips.
Attach the grips, lights or weights on the
bottom of the marine case.
2
Large hexagonal wrench
(for screwing the grips)
8
1
Recording the Video/Still Image
Files

Before recording

Submerge the marine case with the camera
inserted into a bathtub or water tank full of fresh
water. Gradually prolong the time the marine case
is submerged as follows.
1st time: 5 ~ 10 seconds
2nd time: 30 seconds ~ 1 minute
3rd time: 3 minutes ~ 5 minutes (try operating
the levers and buttons while the marine case is
submerged).
Caution
Always have someone hold the marine case
for you when diving into, or getting out of
water, to prevent loss or damages.
If for any reason water leakage occurs, remove
the camera battery. It may cause the camera to
explode.
A
Turn on the camera's power.
Press and hold the power button for more
than 2 seconds to turn on the power. (The
camera's power lamp lights and the
monitor turns on.)
ON/OFF
Note
Sometimes, due to sudden shaking or
impact to the marine case, the camera's
drop detection function operates to turn off
the camera's power. When the camera's
power is turned off, turn it on again.
When "VIDEO MANAGEMENT FILE IS
BROKEN. TO RECORD/PLAYBACK
VIDEO, RECOVERY IS REQUIRED.
RECOVER?" is displayed, press the REC
button to recover the file.
