Quick Start Guide
Vpacket 5100/6100 Voice/Data Router
SDSL WAN model
Release 2.1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5100 and is the answer not in the manual?

Questions and answers

Related Manuals for vpacket 5100

Summary of Contents for vpacket 5100

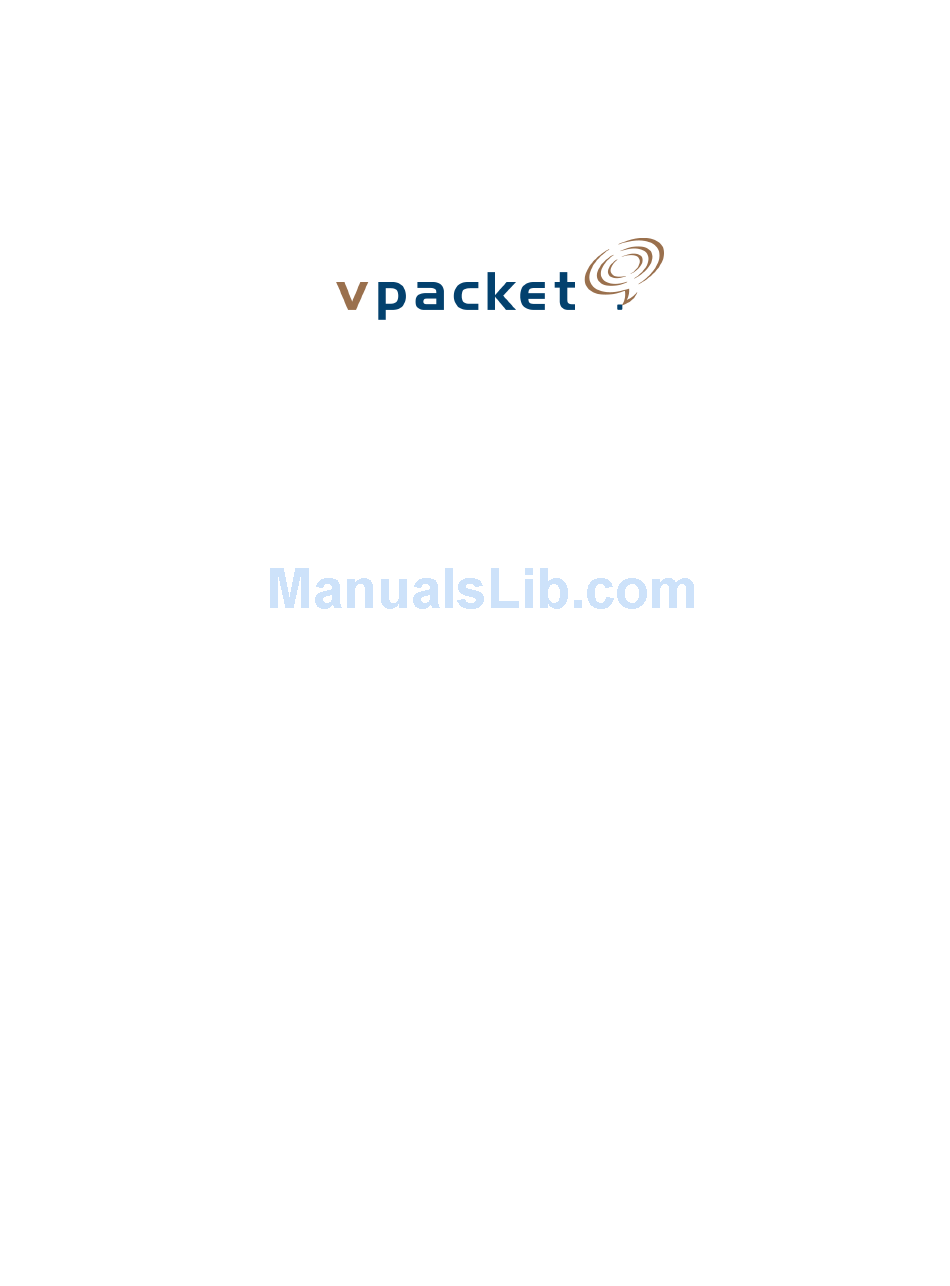

  • Page 1 Quick Start Guide Vpacket 5100/6100 Voice/Data Router SDSL WAN model Release 2.1.1...

  • Page 2: Trademarks And Copyrights

    Vpacket Communications, Inc. Copyright © 2002 by Vpacket Communications, Inc.™ U.S. Patents Pending. All Rights Reserved. Reproduction or media conversion by any means is protected by copyright and may only occur with prior written permission of Vpacket cations Communi , Inc.

  • Page 3: About This Guide

    ❑ Quick Start Guide 2.1.0 (SDSL WAN) ❑ rack mount brackets (2) ❑ Product documentation CD-ROM If any of the items listed above are missing or defective, contact Vpacket Communications, Inc. at (866) 872-2538. Additional tools, materials, and cables The following additional tools are required to install the 5100/6100 VDR: •...

  • Page 4: Installation Site

    • grounding wire Installation site Vpacket 5100/6100 VDRs are designed to be installed on a wall, within a standard 19-inch (48.26 cm) rack, or on a desktop. You should observe these guidelines: • Ensure that the side of the unit with the fans (right-hand side panel if you are facing the unit from head-on) is not placed in the top-most position;...

  • Page 5: User Interface

    After making the physical port connections, you can connect the power supply cord into the Power receptacle on the back panel of the 5100/6100 VDR and connect the 3-pronged end of the power cord into an AC power outlet. The unit powers on automatically when enough power is available.

  • Page 6: Initial Configuration

    Reenter the new password : seashell User name writedata Access Level : Setting unit information set systemInfo systemname Seahorse_north VPacket# Seahorse_north# Setting the time set time 15:48:30 VPacket# Setting the date set date 06/13/2002 VPacket# Vpacket 5100/6100 Series QuickStart Guide SDSL...

  • Page 7: Interface Configuration

    WAN: 205.176.94.11 LAN: 15.15.15.254 Switch PC host PC host PC host 15.15.15.1 15.15.15.2 15.15.15.3 Ethernet LAN interface configuration set ip lan 15.15.15.254 255.255.255.0 NAT VPacket# set ip gateway 205.176.94.12 VPacket# commit ip VPacket# save VPacket# Vpacket 5100/6100 Series QuickStart Guide SDSL...

  • Page 8: Wan Interface Configuration

    Note. The encapsulation protocol can be set to 1483Bridged, 1490Bridged, or 1490Routed. set wan baudrate autobaud VPacket# set wan dataformat serial VPacket# Voice interface configuration set ip voice 205.176.94.11 VPacket# commit ip VPacket# save VPacket# reset VPacket# Vpacket 5100/6100 Series QuickStart Guide SDSL...

  • Page 9: Mgcp Configuration

    “Preconfiguration steps for SIP and H.323” on page 11. MGCP configuration To configure the 5100/6100 VDR to support MGCP, you need to set each voice port, set the ports to point to a softswitch (or group of softswitches), set the coding type for each TCID, and set the coding profile usage for each coding profile.
  • Page 10 Note. Vpacket recommends that you assign them sequentially (see Example). When this command is executed, the endpoint attempts to register with the softswitch. The naming convention (a001...a024) is an example; it is not a VDR standard. The name of the endpoint_id must match that configured in the Call Agent's database.
  • Page 11 Preconfiguration steps for SIP and H.323 The 5100/6100 VDR automatically generates a default dial plan upon boot up. This dial plan needs to be removed along with any existing telephony configuration. Next, you need to create a custom dial plan and add a hunt group (for H.323 or SIP). View commands for hunt groups and the dial plan are included in this section.
  • Page 12 <hunt_group_id> <hunt_type> <member1_id> <member2_id>..telephony# atpm hadd 25 1 25 Ending an ATPM session telephony# atpm done telephony# 01/25/2002:13:18:19 - NMM: ATPM Update database done Saving the configuration changes to Flash telephony# atpm store Vpacket 5100/6100 Series QuickStart Guide SDSL...
  • Page 13 1, Member ids = 23 Hunt group id: 24, Hunt type = 1, Num members = 1, Member ids = 24 Hunt group id: 25, Hunt type = 1, Num members = 1, Member ids = 25 Vpacket 5100/6100 Series QuickStart Guide SDSL...

  • Page 14: Sip Configuration

    Dest id = 2, Mode = TSGM, TCID = 2 (continues listing destination IDs) Dest id = 24, Mode = TSGM, TCID = 24 Dest id = 25, Mode = SSMU, Ctl dst = +&@2.1.1.1 call_opt=0x0000 Vpacket 5100/6100 Series QuickStart Guide SDSL...
  • Page 15 H.323 configuration To configure the 5100/6100 VDR to support H.323, you need to set the H.323 gatekeeper mode, set the gatekeeper, set gatekeeper alias, set the coding type for each TCID, and set the coding profile usage for each TCID.
  • Page 16 VPacket# set coding 1 usage voice on telephony# set coding 0 usage fax on telephony# (continue to set the usage for TCIDs 2-22) set coding 23 usage voice on telephony# activate telephony# commit telephony# Vpacket 5100/6100 Series QuickStart Guide SDSL...

  • Page 17: Saving Configuration Changes

    For telephony changes first you need to issue the activate command and then commit command (from within the telephony shell). LEDs The 5100/6100 VDR has LEDs that indicate real-time conditions. The following table lists the front panel LED status and management functions Status...
  • Page 18 Set the FTP password by issuing the set ftp password command and entering the password after the command. Example: VPacket# set ftp password vpacket VPacket# d. Set the FTP path by issuing the set ftp path command and entering the path. Example: VPacket# set ftp path C:\ VPacket# Vpacket 5100/6100 Series QuickStart Guide SDSL...
  • Page 19 Note. You can request that the file be used and active during the next reset by issuing the download image <filename> requestactive command. 7. Issue dir to verify that the code is now downloaded in \maincode. 8. Reboot the VDR by issuing the reset command from the CLI. Vpacket 5100/6100 Series QuickStart Guide SDSL...
  • Page 20 Upgrading the software image Vpacket 5100/6100 Series QuickStart Guide SDSL...
