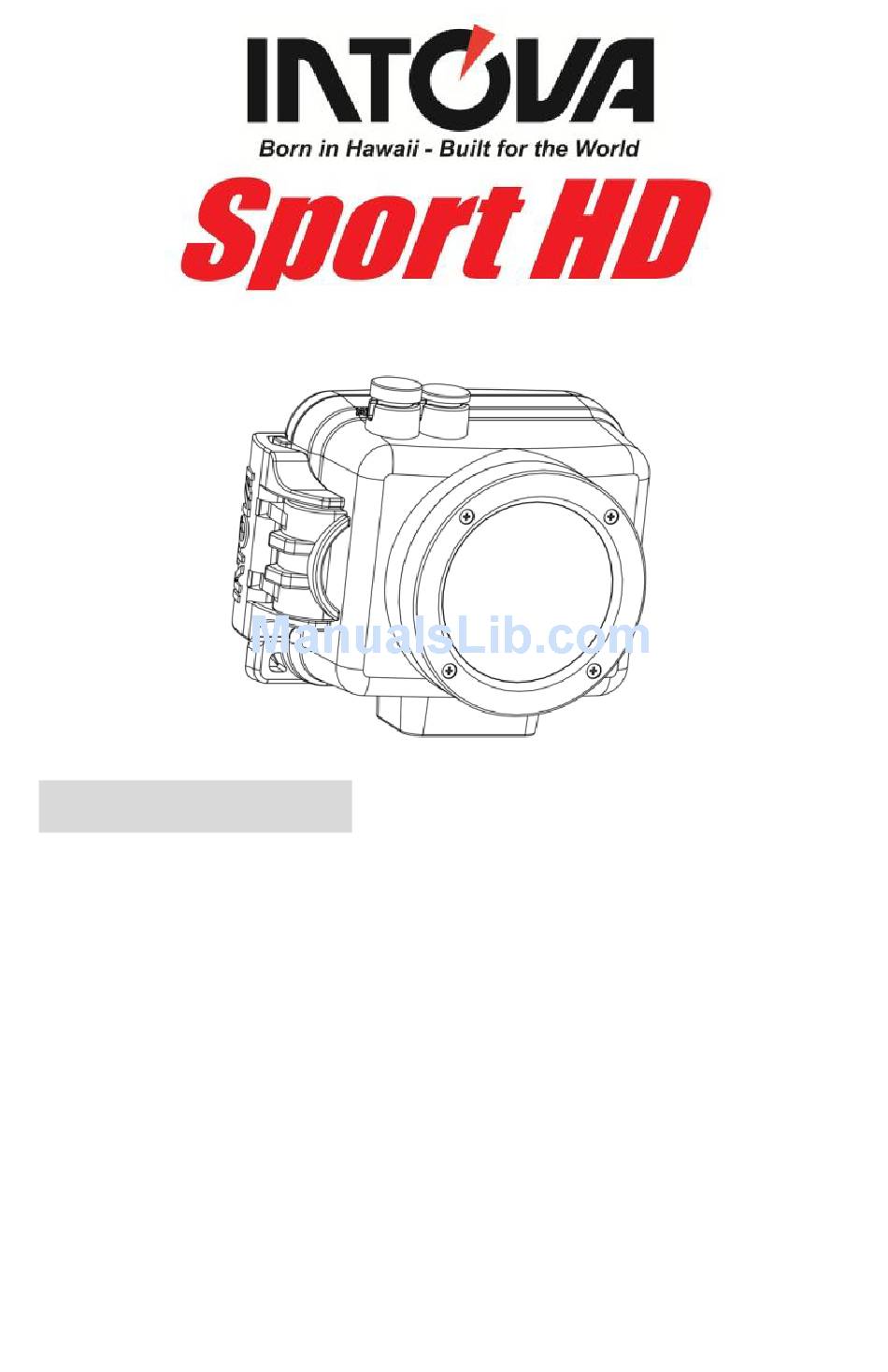

Intova Sport HD User Instruction

Xtreme imaging
Hide thumbs Also See for Sport HD:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual, Quick Manual
Xtreme Imaging

Table of Contents：

Preface...............................................................1
Main features .........................................................1
Prestart Guide..................................................3
Basic installation....................................................3
Video mode...........................................................6
Settings.........................................................13
Photo mode..........................................................17
Settings.........................................................24
Playback mode.....................................................28
Specifications......................................................29
Notes: This manual contains important safety and operating information. Please read all
the information carefully before you use the device to avoid accidents and keep it for
future reference.
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sport HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intova Sport HD

Summary of Contents for Intova Sport HD

  • Page 1: Table Of Contents

    Xtreme Imaging Table of Contents： Preface………………………………………………………1 Main features ……………………………………………..1 Computer operating system requirements..……………..1 Prestart Guide…………………………………...3 Basic installation…………………………………………….3 Video mode………………………………………………..6 Settings…………………………………………………13 Photo mode...……………………………………………..17 Settings…………………………………………………24 Playback mode..…………………………………………...28 Specifications………………………………………………29 Notes: This manual contains important safety and operating information. Please read all the information carefully before you use the device to avoid accidents and keep it for future reference.

  • Page 2: Preface

    SP1 include: 1080P Full HD, built in LCD screen, full menu control buttons for easy operation, a rugged, ergonomic and compact outer casing that is waterproof to 60 meters/200 feet and floats. Sport HD will help you enjoy high quality video and photos for all your recreational activities.
  • Page 3 Macintosh computer operating system requirements for playback of 1080p and 720p video:  Mac OSX (version 10.4.11 or later)  1 GB of system RAM minimum  2.0 GHz Intel Core Duo or faster  Video card with 256MB of RAM minimum ...

  • Page 4: Prestart Guide

    Product Structure： Basic： Open the housing： Follow the indicated directions in the figure below to open the housing. Sometimes a vacuum seal may occur, use thumb press system to open.
  • Page 5 1. Format the memory card before use 2. If the Sport HD does not work with the memory card, please try a new card. 3. The Sport HD can’t record video or take photos without a properly inserted memory card.

  • Page 6: Basic Operations

    When in either video or picture mode, press “UP” button to turn off LCD to save the battery power. RESET： If Sport HD shuts down and/or is unresponsive, use a tooth pick or sharp tool to insert into “RESET” hole to restart the camera...

  • Page 7: Video Mode

    Video mode： The default setting of Sport HD is video mode. Press “Shutter” button to begin recording and press again to stop recording. Digital zoom： Use the “Down” button to zoom in on the scene while selecting targets. The zoom factor...
  • Page 8 ： Settings In the Video mode, press “MENU Button”, and use the “UP / DOWN” buttons to select the option of the desired adjustment setting. The following screens show the adjustable settings in the Video mode. They include QUALITY / RESOLUTION / MOTION DETECTION / VIDEO DURATION/ LOOP VIDEO / UPSIDE DOWN / MUTE / IMAGE EFFECT / SCENE MODE / FLICKER / CONTRAST / SHARPNESS / ISO / WHITE BALANCE / EXPOSURE VALUE / AF MODE.
  • Page 9 1. VIDEO *QUALITY: This option adjusts the quality of the picture between normal and super fine. Use the “UP / DOWN” buttons to select “QUALITY”, and press “OK” button to enter into the setting. There are SUPER FINE/FINE/NORMAL/. After selection, press “OK button” to confirm, then press “MENU”...
  • Page 10 *VIDEO DURATION: This option adjusts the duration of each video file recorded. Use the “UP / DOWN” buttons to select “VIDEO DURATION”, and press “OK” button to enter the setting. There are ANY DURATION / 3MIN / 5MIN / 10MIN / 15MIN. After selection, press “OK button”...
  • Page 11 * MUTE: In the setting list, use the “UP / DOWN” buttons to select “MUTE, and press “OK button” to enter into the setting. There are YES and NO to turn on / off audio recording. After selection, press “OK button” to confirm, then press “MENU” button twice to return to main screen.
  • Page 12 *FLICKER: This option adjusts the video between 60 Hz and 50 Hz. use the “UP / DOWN” buttons to select “Flicker”, and press “OK” button to enter into the setting. There are 50Hz/60Hz. After selection, press “OK button” to confirm, then press “MENU” button twice to return to main screen.
  • Page 13 *ISO: This option adjusts the sensitivity of the sensor. The higher the value the brighter and grainier the video. In the setting list, use the “UP / DOWN” buttons to select “ISO”, and press “OK” button to enter into the setting. There are AUTO/100/200/400/800. After selection, press “OK button”...

  • Page 14: Settings

    *AF MODE: use the “UP / DOWN” buttons to select “AF MODE”, and press “OK” button to enter into the setting. There are CENTER/AVERAGE/SPOT. After selection, press “OK button” to confirm, then press “MENU” button twice to return to main screen. SETTINGS: In the Video mode, press “MENU”...
  • Page 15 *TIME SETUP: This option lets you set up the time and date. In the setting list, use the “UP / DOWN” buttons to select “TIME SETUP”, and press “OK” button to enter into the setting. Use UP/DOWN buttons to change, and “MENU” button to go to next selection. Press “OK” to confirm, then press “MENU”...
  • Page 16 *RESET SYSTEM SETTINGS: This option resets all options back to default. In the setting list, use the “UP / DOWN” buttons to select “RESET SYSTEM SETTINGS”, and press “OK” button to enter into the setting. There are YES and NO . After selection, press “OK button”...
  • Page 17 *TV SYSTEM: use the UP / DOWN buttons to select “TV SYSTEM”, and press “OK” button to enter into the setting. There are NTSC and PAL. After selection, press “OK button” to confirm, then press “MENU” button twice to return to main screen. *STAMP: This option turns on or off the time stamp while recording the video.

  • Page 18: Photo Mode

    *FIRMWARE VERSION: This option checks the firmware version of the camera. Photo mode： Press the MODE button to enter the Photo mode. Adjust the SP1 to take photos of the objects (viewed from the LCD), press the Shutter button to take photos. Digital zoom：...
  • Page 19 Settings： In the Photo mode, press the “MENU Button”, and use the UP / DOWN buttons to select the option of the desired adjustment setting. The following icons represent all of the functional settings in the Photo mode. They include QUALITY / SIZE / SELF CAPTURE / CONTINUOUS / TIME LAPSE / UPSIDE DOWN / IMAGE EFFECT / SCENE MODE / FLICKER / CONTRAST / SHARPNESS / ISO / WHITE BALANCE / EXPOSURE VALUE / AF MODE.
  • Page 20 *QUALITY: This option adjusts the compression of the JPEG picture. Use the “UP / DOWN” buttons to select “QUALITY”, and press “OK” button to enter into the setting. There are SUPER FINE/FINE/NORMAL/. After selection, press “OK button” to confirm, then press “MENU” button twice to return to main screen. *SIZE: This option adjusts the resolution of the picture between 3-12 megapixel.
  • Page 21 *CONTINUOUS: use the “UP / DOWN” buttons to select “CONTINUOUS”, and press “OK button” ” to enter into the setting. There are OFF and ON. Press “OK button” to confirm, then press “MENU” button twice to return to main screen. *TIME LAPSE: use the “UP / DOWN”...
  • Page 22 *IMAGE EFFECT: use the UP / DOWN buttons to select “DIGITAL EFFECT”, and press “OK button” to enter into the setting. There are OFF/ VIVID / BLACK-WHITE / NEGATIVE / SEPIA / ART. After selection, press “OK button” to confirm, then press MENU button twice to return to main screen.
  • Page 23 * CONTRAST: This option adjusts the contrast of the picture. use the UP / DOWN buttons to select “CONTRAST”, and press “OK button” to enter into the setting. There are STANDARD / ENHANCE / SOFT /. After selection, press “OK button” to confirm, then press MENU button twice to return to main screen.
  • Page 24 *WHITE BALANCE: This option adjusts the white balance of the picture. Use the “UP / DOWN” buttons to select “White Balance”, and press “OK” button to enter into the setting. There are AUTO / SUNNY/ CLOUDY / FLUORESCENT / INCANDESCENT / MANUAL.

  • Page 25: Settings

    SETTINGS: use the UP / DOWN buttons to select “setting”, and press “OK” button to enter into the setting. *LCD OFF: This option adjusts the time it takes for the LCD to automatically turn off. In the setting list, use the “UP / DOWN” buttons to select “LCD OFF”, and press “OK” button to enter into the setting.
  • Page 26 *AUTO POWER OFF: This option adjusts the time it takes for the DV to automatically turn off. In the setting list, use the “UP / DOWN” buttons to select “AUTO POWER OFF”, and press “OK” button to enter into the setting. There are OFF / 30 sec / 1min / 3 min . After selection, press “OK button”...
  • Page 27 *FORMAT: This option formats the Micro SD card, thereby erasing all data. In the setting list, use the “UP / DOWN” buttons to select “FORMAT”, and press “OK” button to enter into the setting. There are YES and NO. After selection, press “OK button” to confirm, then press “MENU”...
  • Page 28 *STAMP: This option turns on or off the time stamp when taking pictures. In the setting list, use the “UP / DOWN” buttons to select “STAMP”, and press “OK” button to enter into the setting. There are DATE/TIME or OFF. After selection, press “OK button” to confirm, then press “MENU”...

  • Page 29: Playback Mode

    Playback mode： *VIDEO PLAYBACK： Under video mode, press “OK” button to enter into playback mode. Use “UP/DOWN” buttons to scroll and press “OK” button to select the video to be viewed. Press “OK” button to play it. Also, press “OK” button once again to stop the video, or press “DOWN” button to fast forward and “UP”...

  • Page 30: Specifications

    Specifications: Effective Sensor 1/ 2.5＂ 5.0MP CMOS SENSOR LCD Screen 1.5＂ TFT-LCD 480*240 12M 4000*3000 about 1000pcs /4GB Photo Resolution 3200*2400 about 1300pcs/4GB & Possible number of 2592*1944 about 1800pcs/4GB shots 2048*1536 about 3100pcs/4GB Mode of QUALITY： QUALITY QUALITY：Normal ：Fine Video Super Fine 1920*1080P...
  • Page 31 Power consumption 1.6W Continuous recording About 2.5 hrs (LCD on), 3 hrs (LCD off) Charging spec. DC5V 1A or above Charging time About 5 hrs USB port USB2.0 High Speed Type of Memory Micro SD card (class 6 or above) Capacity of Memory 2GB-32GB Depth rating...
