Intova duo Product Manual

Hide thumbs Also See for duo:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

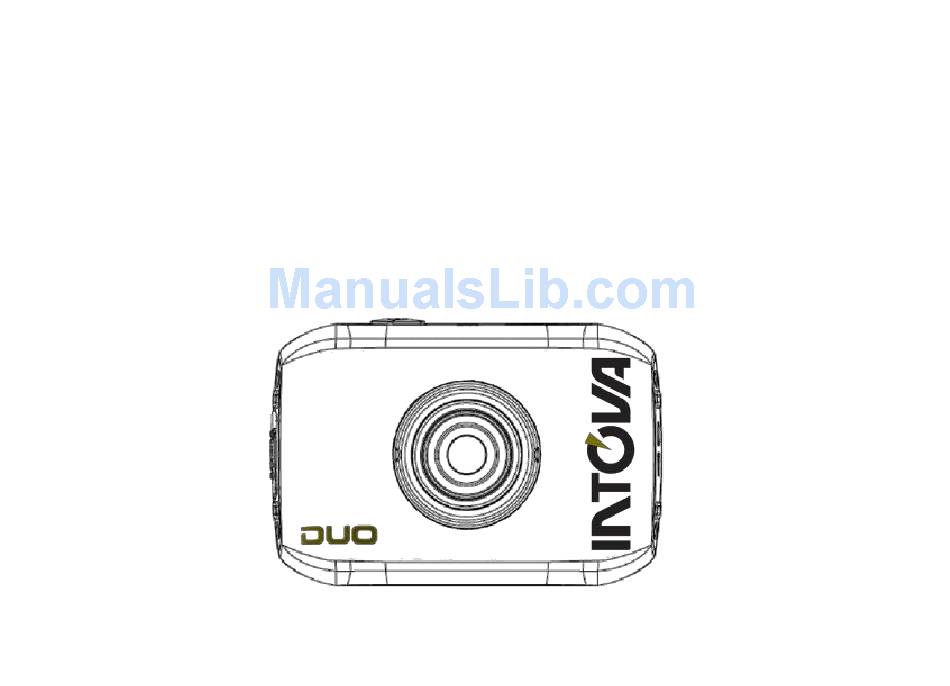

Product Manual
Intova Duo
1

Advertisement

Table of Contents
loading

Related Manuals for Intova duo

Summary of Contents for Intova duo

  • Page 1 Product Manual Intova Duo...
  • Page 2 Thank you for purchasing an Intova Duo. Your Duo is a tough and robust Sports Camera with a wide range of features. Please read this manual carefully for usage instructions and care tips. ENJOY!!! Before using the camera, read the precautions to ensure correct use, the best performance and longer lifespan.
  • Page 3 System Requirements Operation system Microsoft Windows2000, XP, Vista, 7 Intel Pentium III 800MHz or equivalent CPU Memory Minimum 512MB Sound card, video card Sound card and video card should support DirectX8 or higher Hard disk Over 500MB free space Others 1 standard USB1.1 or USB2.0 interface...
  • Page 4 Mode switch: Photograph Lens Video Replay Power On/Off Shutter Operation indicator Charging indicator Up key LCD TFT OK key Down key...
  • Page 5 Key/Indicator Function 1) Power the camera on or off. 2) In menu, switch between normal and Power On/Off setup. 1) Video mode, start/stop recording. 2) Photo mode, shutter button. 3) Shutter Replay mode, start/stop video. 4) Menu Mode, confirmation 1)Video/Photo Mode, Digital zoom in. 2) Menu, selection scroll up 3) Up key Replay Mode, pause, continue playing OK key...
  • Page 6 1. Charge built-in lithium battery Charger indicator lights USB 线 With power-off, connect camera to computer USB port or USB power adapter and begin charging. Charger indicator light will turn on while charging and turn off when fully charged. Generally, 2-4 hours for full charge.

  • Page 7: Memory Card

    2. Memory card 1. To install, fully insert FT card in the card slot until it clicks into place. 2. To remove, press card to release. Note: The camera is not equipped with built-in memory, a memory card is required.

  • Page 8: Power On/Off

    3. Power On/Off: 3.1 Power-on: press and hold POWER key for 3 seconds, the screen starts up and the camera enters startup mode. 3.2. Power-off: click POWER key, the camera turns off; Note: Automatic power-off will occur if no usage for 5 minutes 3.3.
  • Page 9 The camera is equipped with three modes: photo, video and replay. After power-on, the modes can be switched with MODE switch. Photo mode: Take pictures; Video mode: Record video Playback mode: Picture and video file playback 5. Indicators Operation indicator: Shows when camera is in use Charger indicator: Indicates charging mode when illuminated.
  • Page 10 6 Video mode video mode, click shutter button to start/stop video recording, repeat as needed. Camera will automatically stop recording when the memory card is full or the battery is extremely low: 1 00:00:01: time-meter, indicating time of recording mode icon: indicates the current mode ：...

  • Page 11: Video Menu

    Video menu setup In video mode, press OK key to open menu, press Up or Down key to select menu. When selecting menu, background of the selected item will be highlighted. Press Shutter to enter sub-menu. In sub-menu, press Up or Down key for selection, press Shutter for confirmation and return to main menu.
  • Page 12 Central metering Metering subject in the central frame area Metering Multi-point Metering subject to multi-points mode metering Point metering Metering subject to one point Automatic Automatic white balance, suitable for most cases; Daylight Suitable for daylight environment White Cloudy Suitable for cloudy environment balance Fluorescent light Suitable for fluorescent light source environment...
  • Page 13 7 Loop video recording: Select Video mode, open the menu, press Down key to select “Recording Int” menu, press Shutter key to enter sub-menu, “1min, 3min, 5min” recording loop mode are options. After pressing OK key for confirmation, press OK key again to exit the menu. When Shutter is pressed, video recording starts. During video recording, the camera will automatically stop recording video based on 1min, 3min, 5min selected, and immediately start next section of video recording (e.g.

  • Page 14: Photo Mode

    8 Photo mode: Select Photo Mode. Push Shutter once to take photo. 1 9999: Counter: indicates quantity of pictures taken or available to be taken; mode icon movie size indicates a memory card is inserted; magnification of digital zoom: press Up and down key to adjust zoom among 1x-4x; battery icon: indicates current battery level;...

  • Page 15: Capture Menu

    Capture menu setup In capture mode, press OK key to open menu, then press Up and Down key to select menu. When selecting menu, background of the selected item will be highlighted. Press Shutter to enter sub-menu. In sub-menu, press Up and Down key for selection, press Shutter for confirmation and return to main menu. In the main menu, press OK key to exit the menu.
  • Page 16 Excellent Best quality image Image quality Good Good image quality Normal General quality image Central metering Metering in central frame area Metering mode megapixel resolution Metering multi-point Point metering Metering one point Automatic Automatic white balance, suitable for most cases Daylight Suitable for daylight environment White balance...
  • Page 17 Antique Retro effect Negative film Negative film effect Reddish effect Green Greenish effect Blue Bluish effect Turn off printing date/time on the file During capturing/recording video, print date on Date Date stamp right bottom corner of the file During capturing/recording video, print date and Date and time time on right bottom corner of the file 9 Playback mode:...

  • Page 18: Playback Menu Options

    9.2 Playback menu setup In playback mode, press OK key to open menu, and then press Up and Down key to select menu. When selecting menu, background of the selected item will be highlighted. Press Shutter to enter sub-menu. In sub-menu, press Up and Down key for selection, press Shutter for confirmation and back to main menu.
  • Page 19 Start Start playing slide show Slide show Interval 1sec.~10sec. Repeat Yes/No 9.3 Play movie clips: Press Shutter key to play, press Up key for pause, press Shutter key to stop playing. 9.4 Delete file: After selecting the file to be deleted, open the menu, press Up and Down key to select “Delete…”.
  • Page 20 Press Shutter key to enter, after selecting “One”, press Shutter key for confirmation). “All” means to delete all 2） files.) After selecting “Yes”, press Shutter key to delete the file. When the file is deleted, press OK key to exit from the menu.

  • Page 21: System Setup Menu

    ▲System setup menu System setup menu options Main menu Sub-menu Description No playback performed after capture Automatic 1 second Playback performed 1 second after capture playback 3 seconds Playback performed 3 seconds later after capture 50Hz Set to 50Hz light source frequency Power frequency 60Hz Set to 60Hz Playback performed 1 second later after capture...

  • Page 22: Setting Date And Time

    Setting date and time: Press OK key to open the menu, and then press Power key to enter setup menu. Press Down key to select “Date&Time” item, and press Shutter key to enter setup window. In setup window, press Power key to elect the item to be adjusted (Date, time). The selected item will be highlighted in yellow.
  • Page 23 Image sensor 1.3 megapixel (CMOS) Function mode Video, capture, car mode, portable disk, PC cam Lens F3.1 f=6.5mm Digital zoom Shutter Electronic shutter LCD display 1.77”TFT screen Image resolution 5M(2592×1944), 3M(2048×1536), 1M(1280×960) Video resolution VGA: 640x480 (60 frame/second); 720P:1280x720 (30 frame/second) Automatic /Sunny / Cloudy / Fluorescent light / Tungsten light White balance Exposure...
  • Page 24 Camera User Manual USB cable Industrial Revolution, Inc. 5835 Segale Park Dr. C. Tukwila, WA 98188 www.industrialrev.com www.intova.com...
