Operating Instructions
GB
English, 1
KD6G25SAIR
KD6G25SXIR
KD6G25SWIR

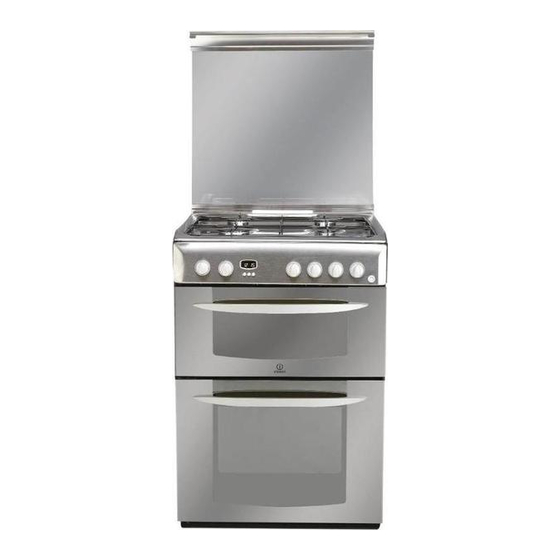

Free Standing Gas Cooker
Contents
Introduction, 2
Hotplate, 6
Grill, 7
Main Oven, 8
Main Oven Cooking Charts, 9-10
Top Oven, 11
Top Oven Cooking Charts, 12-13
Installation Instructions, 16-18
GB
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Indesit KD6G25SXIR
Summary of Contents for Indesit KD6G25SXIR
-
Page 1: Table Of Contents
Main Oven, 8 Main Oven Cooking Charts, 9-10 Top Oven, 11 Top Oven Cooking Charts, 12-13 KD6G25SAIR Care and Cleaning, 14 KD6G25SXIR Something Wrong with your cooker?, 15 KD6G25SWIR Installation Instructions, 16-18 If it still Won't Work, 21 Guarantee Information, 22... -
Page 2: Introduction
Introduction To help you make the best use of your cooker, Our policy is one of continual improvement in design PLEASE READ THIS BOOKLET CAREFULLY. and development, therefore strict accuracy of Your new cooker is guaranteed and will give lasting illustrations and descriptions cannot be guaranteed. -
Page 3: For Your Safety
For your Safety Please read the precautions below before using your cooker. ALWAYS . . . NEVER . . . ALWAYS make sure you understand the controls NEVER leave children unsupervised where the before using the cooker. cooker is installed as all surfaces will get ALWAYS check that all controls on the cooker are hot during and after use. -
Page 4: Clock And Minute Minder Operation
Clock and Minute Minder CLOCK OPERATION To Set Time of Day 00.00 Step 1 Check that the electricity supply to the cooker is turned on. Step 2 When switched on the display will show 0.00 flashing intermittently. Step 3 Press the " "... - Page 5 Clock and Minute Minder MINUTE MINDER OPERATION 00 . 20 To Set the Minute Minder Step 1 Press the "+" button until the required time is set. A "Bell" symbol will light up. During setting the time adjusts in 10 second intervals up to a maximum of 99mins 50secs.
-
Page 6: Hotplate
Hotplate The hotplate lid is fitted with a safety device which If aluminium based pans are used, a silvery deposit cuts off the gas supply to the hotplate burners may appear on the top edge of the pan support unless the lid is fully open. Do not use the safety fingers. -
Page 7: Grill
Grill use the grill with the door closed. CAUTION - ACCESSIBLE PARTS MAY BECOME DO NOT cover the grill pan or grid with aluminium HOT WHEN THE GRILL IS USED. DO NOT foil as this can hold fat, intensify the heat YOUNG CHILDREN SHOULD BE KEPT AWAY. -
Page 8: Main Oven
Main Oven The main oven is fitted with a safety device that will COLD START COOKING cut off the gas supply to the burner if the flame has Anything requiring long slow cooking such as been extinguished for any reason. Each time the casseroles and rich fruit cakes can be put into a main oven is used, the safety device has to be cold oven. -
Page 9: Main Oven Cooking Chart
Main Oven Cooking Chart The following times and setting are for guidance Allow 15 minutes preheat for best results. only. You may wish to alter the setting to give a Always turn the thermostat knob to Mark 9 first, result more to your satisfaction. When a different before turning back to the required Gas Mark. - Page 10 Main Oven Cooking Chart Shelf Food Approx. Cooking Time and Comments Mark Positions CAKES, PASTRIES AND BISCUITS Small cakes - 2 trays 1 & 3 17 - 25 mins 2 or 3 - 1 tray " only Victoria sandwich 2x8" (205mm) 1 &...
-
Page 11: Top Oven
Top Oven GUIDANCE ON USING THE TOP OVEN The top oven can be used to cook small quantities 1. Best results are obtained by pre-heating the oven of food or used in conjunction with the main oven to for about 15 minutes. provide additional cooking space. -
Page 12: Top Oven Cooking Chart
Top Oven Cooking Chart The following times and setting are for guidance Allow 15 minutes preheat for best results. Always only. You may wish to alter the setting to give a turn the thermostat knob to Mark 8 first, before result more to your satisfaction. - Page 13 Top Oven Cooking Chart Shelf Food Approx. Cooking Time and Comments Mark Positions CAKES, PASTRIES AND BISCUITS Small Cakes (16 per tray) 20 - 25 mins Victoria sandwich (2x180mm / 7 ") 25 - 30 mins. Swiss Roll (3 egg quantity) 10 - 12 mins.
-
Page 14: Care And Cleaning
Care and Cleaning ! Never use steam cleaners or pressure cleaners ! To move the cooker forward, open the top oven/grill on the appliance. door and with both hands positioned under the roof of the compartment, lift and pull forward. Replace by Clean the glass part of the oven door using a pushing the cooker backwards. -
Page 15: Something Wrong With Your Cooker
Something Wrong with your Cooker Before contacting your Service Centre or Installer, check the problem guide below, there may be nothing wrong with your cooker. PROBLEM CHECK Burner will not light: If all burners fail to ignite: Check that sparks appear at the burners; a clicking noise should be heard. -
Page 16: Installation Instructions
The room containing the cooker should have an air MODEL NUMBERS KD6G25SAIR, supply in accordance with BS 5440: Part 2. KD6G25SXIR, KD6G25SWIR The room must have an opening window or Category II2H3+ (GB) These models are set to burn NATURAL GAS (G20) equivalent;... - Page 17 Installation SPACE FOR FIXING UNPACKING THE COOKER The cooker can be close fitted below hotplate level. Unpack the components from inside the grill and This requires a minimum distance of 600mm oven. between cupboard units of hotplate height. Check that the following parts are present: When installing next to a tall cupboard, partition or wall, for a minimum distance of 400mm above Grill pan and grid Top oven/grill shelf heat shield...
-
Page 18: Stability Chain
Installation STABILITY CHAIN A hole in the gas inlet valve bracket can be used to engage a stability chain. CONNECTING TO GAS SUPPLY Connection to the cooker should be made with an approved appliance flexible connection to BS 669. A length of 0.9 to 1.25m is recommended. -
Page 19: Electrical Connection
Electrical Connection WARNING - THIS APPLIANCE MUST BE EARTHED. As the colours of the wires in the mains lead of this CONNECT TO A 230-240V A.C. SUPPLY ONLY. appliance may not correspond with the coloured markings identifying the terminals in your plug, Connection to the electricity supply should be made proceed as follows: via a properly earthed, readily accessible wall... - Page 20 Installation INSTALLATION AND OPERATIONAL CHECKS After installation, check for gas soundness. The supply pressure can be checked at the front left hotplate burner injector. Fit the hotplate burner bodies and caps, pan supports and shelf shield(s). Referring to the instructions for use where necessary, 1.
-
Page 21: If It Still Won't Work
If it Still Won't Work Contact the Service Office Disposal of your product To minimise the risk of injury to children please If something is still wrong with your appliance after dispose of your product carefully and safely. you have been through the 'Something Wrong' list: Remove all doors and lids. -
Page 22: Guarantee Information
We have a dedicated team who can provide free advice and assistance with your appliance if you experience any technical difficulties within the first 90 days of ownership. Simply call our Indesit Service Hotline on 08448 224 224 (ROI 0818 313 413) for telephone assistance, or, where necessary, to arrange for an engineer to call. -
Page 23: Service Information
After Sales Service No one is better placed to care for your Indesit appliance during the course of its working life than us - the manufacturer. Essential Contact Information Indesit Service We are the largest service team in the country offering you access to 400 skilled telephone advisors and 1100 fully qualified engineers on call to ensure you receive fast, reliable, local service. - Page 24 01/2011 - 195067140.04 XEROX FABRIANO...
