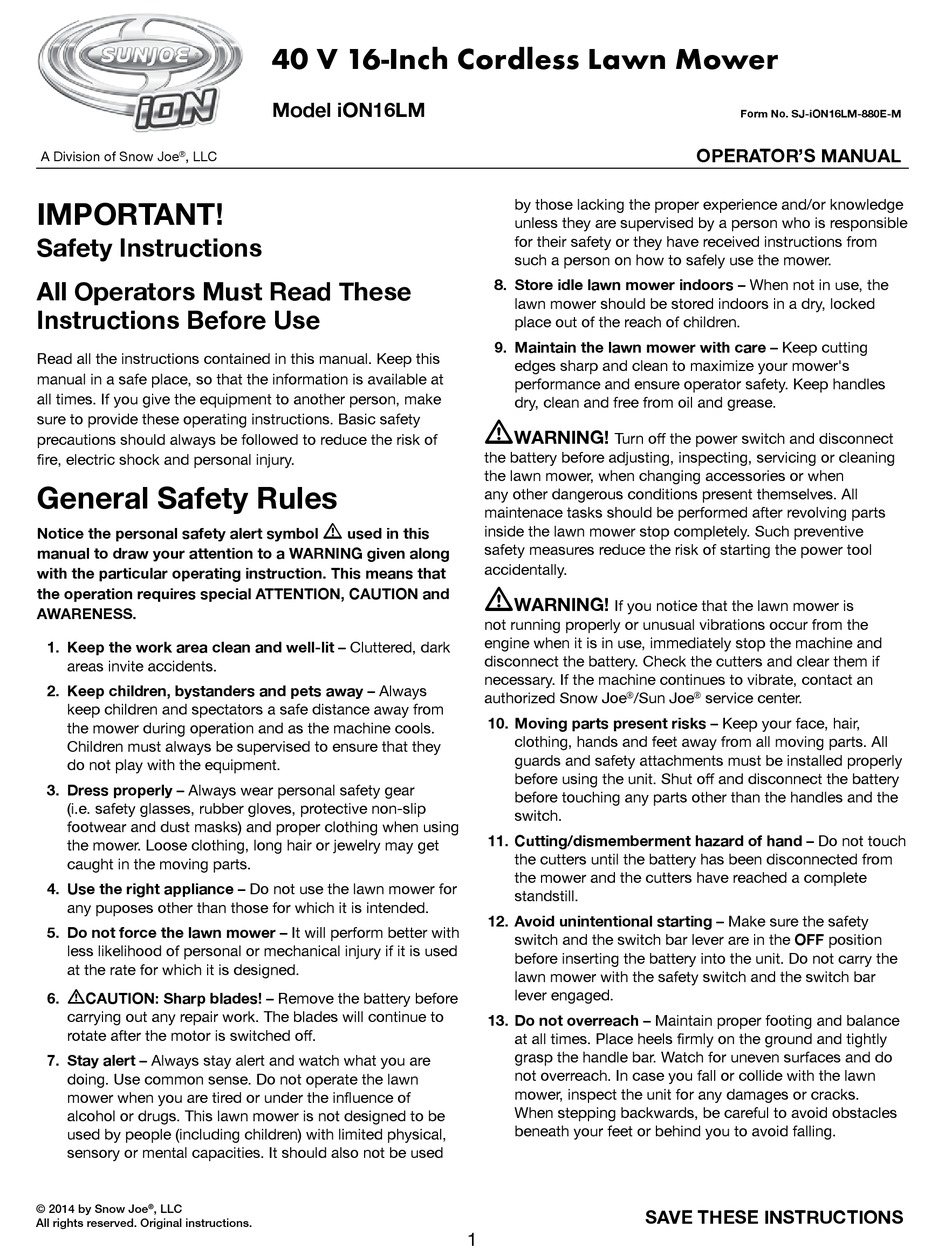

sunjoe iON16LM Operator's Manual

sunjoe iON16LM Operator's Manual

40 v 16-inch cordless lawn mower

Advertisement

A Division of Snow Joe
, LLC
®
IMPORTANT!

Safety Instructions

All Operators Must Read These
Instructions Before Use
Read all the instructions contained in this manual. Keep this
manual in a safe place, so that the information is available at
all times. If you give the equipment to another person, make
sure to provide these operating instructions. Basic safety
precautions should always be followed to reduce the risk of
fire, electric shock and personal injury.

General Safety Rules

Notice the personal safety alert symbol
manual to draw your attention to a WARNING given along
with the particular operating instruction. This means that
the operation requires special ATTENTION, CAUTION and
AWARENESS.
1. Keep the work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Keep children, bystanders and pets away – Always
keep children and spectators a safe distance away from
the mower during operation and as the machine cools.
Children must always be supervised to ensure that they
do not play with the equipment.
3. Dress properly – Always wear personal safety gear
(i.e. safety glasses, rubber gloves, protective non-slip
footwear and dust masks) and proper clothing when using
the mower. Loose clothing, long hair or jewelry may get
caught in the moving parts.
4. Use the right appliance – Do not use the lawn mower for
any puposes other than those for which it is intended.
5. Do not force the lawn mower – It will perform better with
less likelihood of personal or mechanical injury if it is used
at the rate for which it is designed.
m
6.
CAUTION: Sharp blades! – Remove the battery before
carrying out any repair work. The blades will continue to
rotate after the motor is switched off.
7. Stay alert – Always stay alert and watch what you are
doing. Use common sense. Do not operate the lawn
mower when you are tired or under the influence of
alcohol or drugs. This lawn mower is not designed to be
used by people (including children) with limited physical,
sensory or mental capacities. It should also not be used
© 2014 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
40 V 16-Inch Cordless Lawn Mower
Model iON16LM
m
used in this
by those lacking the proper experience and/or knowledge
unless they are supervised by a person who is responsible
for their safety or they have received instructions from
such a person on how to safely use the mower.
8. Store idle lawn mower indoors – When not in use, the
lawn mower should be stored indoors in a dry, locked
place out of the reach of children.
9. Maintain the lawn mower with care – Keep cutting
edges sharp and clean to maximize your mower's
performance and ensure operator safety. Keep handles
dry, clean and free from oil and grease.
m
WARNING!
Turn off the power switch and disconnect
the battery before adjusting, inspecting, servicing or cleaning
the lawn mower, when changing accessories or when
any other dangerous conditions present themselves. All
maintenace tasks should be performed after revolving parts
inside the lawn mower stop completely. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
m
WARNING!
If you notice that the lawn mower is
not running properly or unusual vibrations occur from the
engine when it is in use, immediately stop the machine and
disconnect the battery. Check the cutters and clear them if
necessary. If the machine continues to vibrate, contact an
authorized Snow Joe
/Sun Joe
®
10. Moving parts present risks – Keep your face, hair,
clothing, hands and feet away from all moving parts. All
guards and safety attachments must be installed properly
before using the unit. Shut off and disconnect the battery
before touching any parts other than the handles and the
switch.
11. Cutting/dismemberment hazard of hand – Do not touch
the cutters until the battery has been disconnected from
the mower and the cutters have reached a complete
standstill.
12. Avoid unintentional starting – Make sure the safety
switch and the switch bar lever are in the OFF position
before inserting the battery into the unit. Do not carry the
lawn mower with the safety switch and the switch bar
lever engaged.
13. Do not overreach – Maintain proper footing and balance
at all times. Place heels firmly on the ground and tightly
grasp the handle bar. Watch for uneven surfaces and do
not overreach. In case you fall or collide with the lawn
mower, inspect the unit for any damages or cracks.
When stepping backwards, be careful to avoid obstacles
beneath your feet or behind you to avoid falling.
SAVE THESE INSTRUCTIONS
1
Form No. SJ-iON16LM-880E-M
OPERATOR'S MANUAL
service center.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iON16LM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for sunjoe iON16LM

  • Page 1: Safety Instructions

    40 V 16-Inch Cordless Lawn Mower Model iON16LM Form No. SJ-iON16LM-880E-M OPERATOR’S MANUAL A Division of Snow Joe , LLC ® IMPORTANT! by those lacking the proper experience and/or knowledge unless they are supervised by a person who is responsible...
  • Page 2: General Operation

    • Always maintain good footing on inclines. WARNING! If the lawn mower strikes any object, follow these steps: • Only operate the mower at a walking pace. i) Stop the lawn mower. Remove the battery. • Always mow across hills (i.e. never straight up or straight down).
  • Page 3: Battery & Charger Safety Instructions

    • For your own safety, have worn or damaged parts the charger by its cord or yank it by the cord to disconnect immediately replaced. it from the receptacle. Keep the cord away from heat, oil and sharp edges. Make sure the cord will not be stepped •...
  • Page 4: Information About The Battery

    Information about the charger and the metallic objects. A shortcircuited battery pack poses a risk of fire and severe personal injury. charging process • Store your battery pack and charger in a cool, dry 1. Please check the data marked on the rating plate of the place –...
  • Page 5 Protection from environmental infuences 1. Wear suitable work clothes. Wear safety goggles. 2. Protect your cordless tool and the battery charger from moisture and rain. Moisture and rain can cause dangerous cell damage. 3. Do not use the cordless tool or the battery charger near vapors and flammable liquids.
  • Page 6: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions WARNING! To reduce the Keep bystanders and children risk of injury, user must read a safe distance away.
  • Page 7: Technical Data

    Know Your Cordless Lawn Mower Read the owner’s manual and safety rules carefully before operating the lawn mower. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
  • Page 8: Carton Contents

    Unpacking IMPORTANT! Due to the high risk of bodily injury to the user, the lawn mower may not be used to trim bushes, hedges or shrubs, to cut scaling vegetation, planted roofs, or balcony- Carton Contents grown grass, to clean (suck up) dirt and debris off walkways, or to chop up tree or hedge clippings.
  • Page 9: Setting The Cutting Height

    2. Next, release the quick-lock wheel for the lower handle by turning it counterclockwise. This will allow you to move Fig. 4 the handle to the required position. Secure the handle by turning the wheel in the opposite direction (Fig. 2). Fig.
  • Page 10: Battery Pack Operation

    Battery Pack Operation • Use the battery charge indicator lights to determine when to charge your EcoSharp iBAT40 lithium-ion battery pack. ™ • You can "top-off" your battery pack's charge before starting The equipment is fitted with a lithium-ion battery. The battery a big job or after a long day of use.
  • Page 11 3. Check that the mains voltage is the same as that marked NOTE: An alternately flashing red and green light indicates a on the rating plate of the battery charger. Then, insert the temperature abnormality (i.e. that the battery pack is either charger's plug into the electrical wall outlet.
  • Page 12: Charging A Hot Or Cold Battery Pack

    Charging a Hot or Cold Battery Pack Powering On and Off 1. Open the battery compartment cover and slide the battery A red and green flashing indicator light on the charger indicates down to lock it into position (Fig. 12). that the battery pack temperature is outside the charging range.
  • Page 13: Grass Bag Filling Level Indicator

    Grass Bag Filling Level Indicator Fig. 14 1. The grass bag is equipped with a filling level indicator window that is opened by the airflow that the lawn mower generates during operation (Fig. 16). Battery cover 2. If the flap closes during mowing, this indicates that the grass bag is full and must be emptied (Fig.
  • Page 14: Replacing The Mower Blade

    Servicing • When crossing any graveled surfaces, release the switch bar lever to turn off the mower. The stones can be picked • Ensure that all mounting components (i.e. screws, bolts, up and thrown by the rotating blade. nuts etc.) are always tightened so that the equipment can •...
  • Page 15: Disposal And Recycling

    When burned, toxic fumes and materials are emitted into the surrounding atmosphere. Upper handle Support If your Sun Joe iON16LM cordless lawn mower requires ® Upper handle knob service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance.
  • Page 16: Troubleshooting

    Troubleshooting Fault Possible Cause Remedy a) Capacitor defective a) Contact an authorized service center Motor does not start b) Battery pack empty b) Charge battery pack c) Cable defective c) Check the cable d) Switch/plug block defective d) Contact an authorized service center e) Motor terminals or capacitor e) Contact an authorized service center disconnected...
  • Page 17 /Sun Joe customer service department at 1-866-SNOWJOE ® ® (1-866-766-9563) Accessories Item Model EcoSharp™ 40 V Lithium-Ion Battery iBAT40 EcoSharp™ 40 V Lithium-Ion Battery Charger iCHRG40 Safety Key iON16LM-KEY 15-Inch Mower Blade iON16LM-BLD 9.25 gal (35 l) Grass Bag iON16LM-BAG...
  • Page 18 NOTES...
  • Page 19 A Two-Year Full Warranty for residential use in the United States and Canada General Conditions: Snow Joe , LLC warrants this product to the original purchaser for two years against defects in material or workmanship when used ® for normal residential purposes. Snow Joe , LLC will repair any defect in material or workmanship, and repair or replace any defective ®...
  • Page 20 snowjoe.com...
