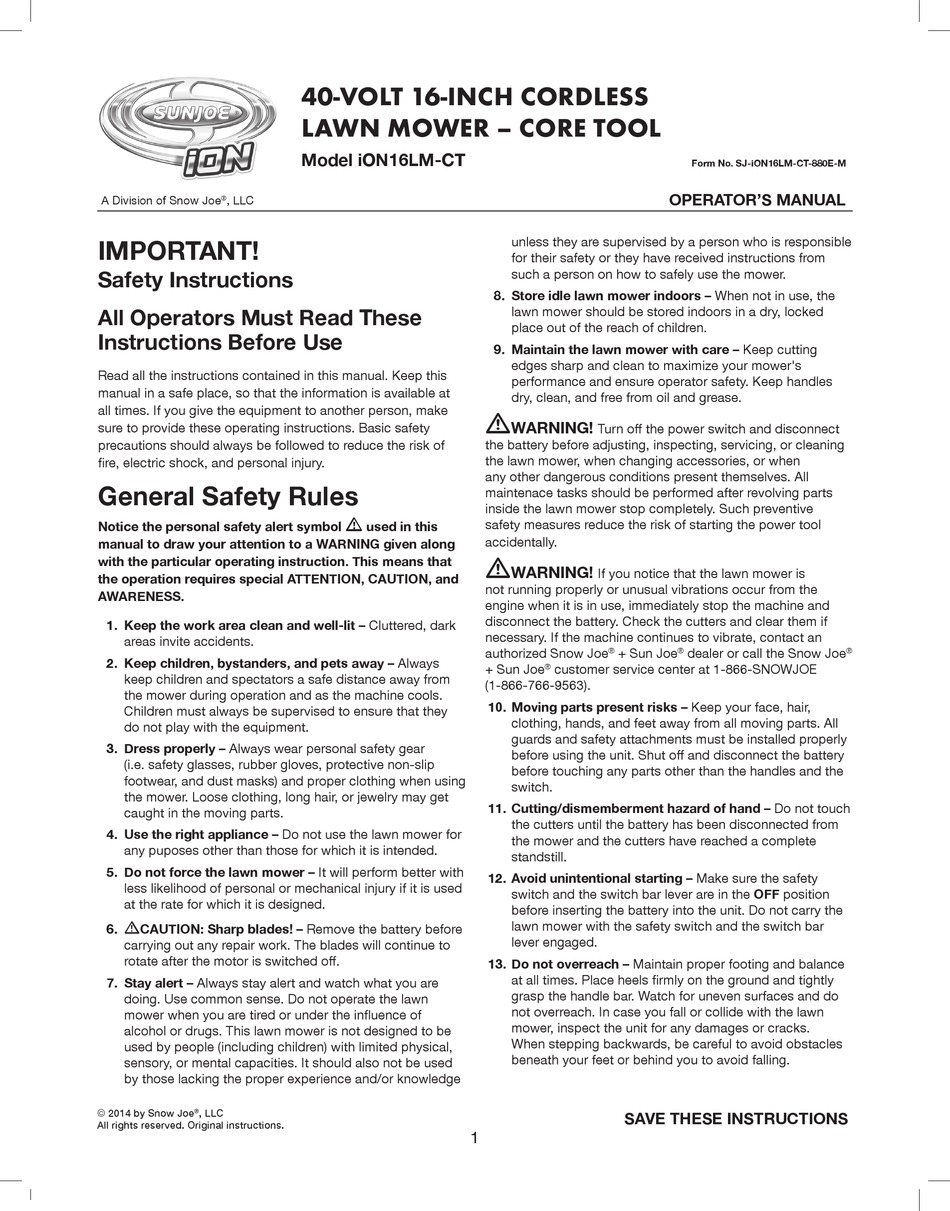

IMPORTANT!

Safety Instructions

All Operators Must Read These
Instructions Before Use
Read all the instructions contained in this manual. Keep this
manual in a safe place, so that the information is available at
all times. If you give the equipment to another person, make
sure to provide these operating instructions. Basic safety
precautions should always be followed to reduce the risk of
fire, electric shock, and personal injury.

General Safety Rules

Notice the personal safety alert symbol
manual to draw your attention to a WARNING given along
with the particular operating instruction. This means that
the operation requires special ATTENTION, CAUTION, and
AWARENESS.
1. Keep the work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Keep children, bystanders, and pets away – Always
keep children and spectators a safe distance away from
the mower during operation and as the machine cools.
Children must always be supervised to ensure that they
do not play with the equipment.
3. Dress properly – Always wear personal safety gear
(i.e. safety glasses, rubber gloves, protective non-slip
footwear, and dust masks) and proper clothing when using
the mower. Loose clothing, long hair, or jewelry may get
caught in the moving parts.
4. Use the right appliance – Do not use the lawn mower for
any puposes other than those for which it is intended.
5. Do not force the lawn mower – It will perform better with
less likelihood of personal or mechanical injury if it is used
at the rate for which it is designed.
m
6.
CAUTION: Sharp blades! – Remove the battery before
carrying out any repair work. The blades will continue to
rotate after the motor is switched off.
7. Stay alert – Always stay alert and watch what you are
doing. Use common sense. Do not operate the lawn
mower when you are tired or under the influence of
alcohol or drugs. This lawn mower is not designed to be
used by people (including children) with limited physical,
sensory, or mental capacities. It should also not be used
by those lacking the proper experience and/or knowledge
© 2014 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
40-VOLT 16-INCH CORDLESS
LAWN MOWER – CORE TOOL
Model iON16LM-CT
m
used in this
1
unless they are supervised by a person who is responsible
for their safety or they have received instructions from
such a person on how to safely use the mower.
8. Store idle lawn mower indoors – When not in use, the
lawn mower should be stored indoors in a dry, locked
place out of the reach of children.
9. Maintain the lawn mower with care – Keep cutting
edges sharp and clean to maximize your mower's
performance and ensure operator safety. Keep handles
dry, clean, and free from oil and grease.
m
WARNING!
Turn off the power switch and disconnect
the battery before adjusting, inspecting, servicing, or cleaning
the lawn mower, when changing accessories, or when
any other dangerous conditions present themselves. All
maintenace tasks should be performed after revolving parts
inside the lawn mower stop completely. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
m
WARNING!
If you notice that the lawn mower is
not running properly or unusual vibrations occur from the
engine when it is in use, immediately stop the machine and
disconnect the battery. Check the cutters and clear them if
necessary. If the machine continues to vibrate, contact an
authorized Snow Joe
+ Sun Joe
®
+ Sun Joe
customer service center at 1-866-SNOWJOE
®
(1-866-766-9563).
10. Moving parts present risks – Keep your face, hair,
clothing, hands, and feet away from all moving parts. All
guards and safety attachments must be installed properly
before using the unit. Shut off and disconnect the battery
before touching any parts other than the handles and the
switch.
11. Cutting/dismemberment hazard of hand – Do not touch
the cutters until the battery has been disconnected from
the mower and the cutters have reached a complete
standstill.
12. Avoid unintentional starting – Make sure the safety
switch and the switch bar lever are in the OFF position
before inserting the battery into the unit. Do not carry the
lawn mower with the safety switch and the switch bar
lever engaged.
13. Do not overreach – Maintain proper footing and balance
at all times. Place heels firmly on the ground and tightly
grasp the handle bar. Watch for uneven surfaces and do
not overreach. In case you fall or collide with the lawn
mower, inspect the unit for any damages or cracks.
When stepping backwards, be careful to avoid obstacles
beneath your feet or behind you to avoid falling.
SAVE THESE INSTRUCTIONS
Form No. SJ-iON16LM-CT-880E-M
OPERATOR'S MANUAL
