junger C8305 User Manual

Digital audio modular processing system 64ch bnc madi i/o
Hide thumbs

Advertisement

Quick Links

Download this manual
digital audio
modular
processing system
64ch BNC MADI I/O
features
• Interface for MADI encoded digital audio signals
• Optical receiver and transmitter
• Redundant connections
• Word length 24bit
• Extended mode (64ch)
• High sampling mode (32 channels @ 96kHz)
• MASTER mode: C8000 frame maybe clocked via MADI input

block diagram

MADI IN
RECV
MADI OUT
TRNS
Jünger Audio‐Studiotechnik GmbH
Justus‐von‐Liebig‐Straße 7
D – 12489 Berlin
GERMANY
C8000
PLL
MASTER
S/P
CAN
CTRL
P/S
C8305
Audio Bus
SYSTEM
S01...S32
CLOCK
to C8000
bus routing
from C800
bus routing
phone :  +49‐30‐677721‐0
fax :
+49‐30‐677721‐46
info@junger‐audio.com
www.junger‐audio.com
CAN
BUS
1/11

Advertisement

loading
Need help?

Need help?

Do you have a question about the C8305 and is the answer not in the manual?

Questions and answers

Related Manuals for junger C8305

Summary of Contents for junger C8305

  • Page 1: Block Diagram

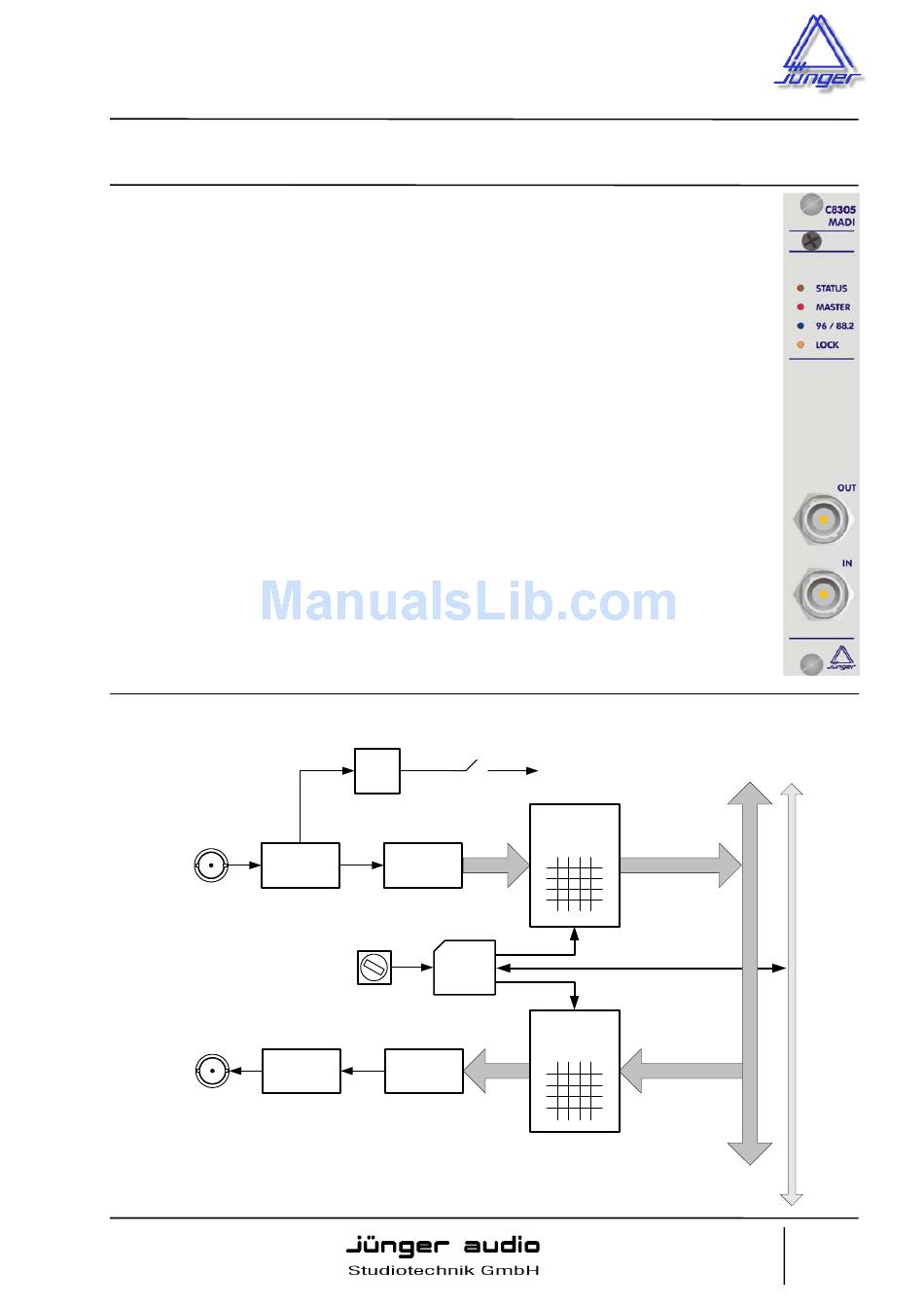

    C8000 modular  processing system C8305 64ch BNC MADI I/O features • Interface for MADI encoded digital audio signals • Optical receiver and transmitter • Redundant connections • Word length 24bit • Extended mode (64ch) • High sampling mode (32 channels @ 96kHz) • MASTER mode: C8000 frame maybe clocked via MADI input...

  • Page 2: Technical Specifications

    C8000 modular  processing system C8305 64ch BNC MADI I/O technical specifications MADI interface: standard: AES 10 (2003) connection: BNC 75Ω signal level: 800mV ±10% data format: 24bit transparent for C- and U-bits according to AES3 sample rate: 48kHz (24bit = max. 64 channels) 96kHz (24bit = max.

  • Page 3: Installation

    SW2 = ON enables the CAN “+16” address schema to handle up to 32 modules. Important Note! In case of MASTER mode, the C8305 must be installed into one of the red colored fitting rails at the rear of the frame.

  • Page 4: Fields Of Application

    Live recording (music, TV, radio) multiple C8234s mounted in stage boxes (i.e. short distance from mics) multi channel signal transmission of analog signals via C8306 optical or C8305 BNC MADI interface Multi channel budget audio production multiple C8234 may replace cheap converters of budget digital mixing desks...
  • Page 5 C8000 modular  processing system C8305 64ch BNC MADI I/O remote configuration via web interface Set up of all configurations, parameters and functions via web browser. See also C8702 frame controller manual and respective firmware release notes. Layout and functionality are related to firmware version 1.1.x of the C8702.
  • Page 6 C8000 modular  processing system C8305 64ch BNC MADI I/O Display of device specific information DEVICE: Functions: Set up of a device name Restart module (warm start) Initialize module (to factory default!) Display of firmware versions Backup and Restore (all settings to / from file) Jünger Audio‐Studiotechnik GmbH ...
  • Page 7 C8000 modular  processing system C8305 64ch BNC MADI I/O Set up of device parameters SETUP: Function: MADI Bypass Off / Active will bypass the MADI processing MADI Input Auto / Input 1 / Input 2 will allow for automatic switch over from Input 1 to input 2...
  • Page 8 C8000 modular  processing system C8305 64ch BNC MADI I/O Routing of MADI input signals to the C8000 audio buses RECEIVER: Function: 8 Channel Mode groups of 8 adjacent MADI channels may be multiplexed on one C800 audio bus from MADI reception 2 Channel Mode...
  • Page 9 TRANSMITTER: Routing of inputs to the C8000 audio buses Function: Number of channels 56 / 64 Junger Audio MADI interfaces benefit from the extended MADI mode. It allows for transportation of 64 audio channels over a MADI interface 8 Channel Mode...
  • Page 10 Great care must be taken to avoid same numbers assigned to different functions! Because it will activate multiple functions, causing great confusion in bigger installations, e.g. where Junger HW remote controller is in place or GPIs are connected with automation systems.
  • Page 11 Great care must be taken to avoid same numbers assigned to different functions! Because it will fire same GPO (Tally) by different functions, causing great confusion in bigger installations, e.g. where Junger HW remote controller is in place or GPOs are connected with other management systems. There is no mechanism implemented to check for doublets Jünger Audio‐Studiotechnik GmbH ...
