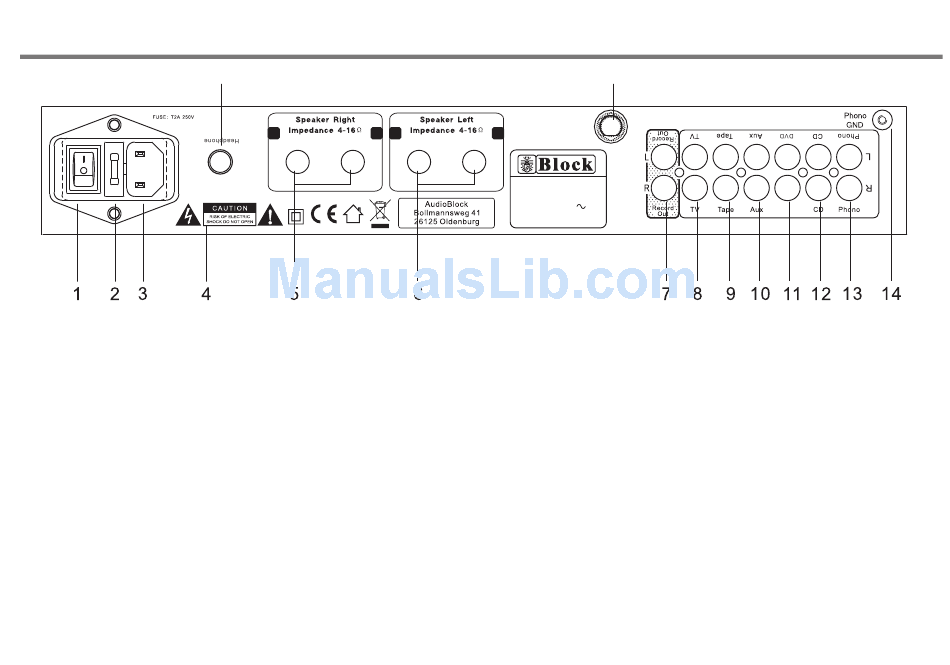

REAR PANEL CONNECTIONS

16
Headphone
1. POWER SWITCH: Switches mains power on/off to internal
components, however please note that mains power is still
applied to this unit even though this switch may be off.
2. FUSE HOLDER: fitted with 20mm T 2A fuse inside.
" IMPORTANT:"
Remove the mains plug from the mains socket before attempting
to check/ replace the fuse located on this fuse holder.
3. MAINS CABLE INLET JACK: Please ensure that the input cable strain relief
bush is intact and has not been damaged.
4. WARNING ICONS: Please be aware that this unit contains high voltages,
and should not be opened, please refer to page 2 of this manual.
5/6. LOUDSPEAKER OUTPUTS. Please ensure that +/- connections are made
properly between rear of the amplifier and loudspeakers. Ensure wires are
not frayed or touching.
7. LINE OUTPUT SOCKETS: This is for connection to external amplification or
recording equipement.
+ - -
15
DAB/FM Antenna
+
Model: VR 100+
Hi-Fi Stereo DAB+ Receiver
Power Rating: AC 230V 50Hz
Max Power Consumption: 250W
8. TV INPUT SOCKET.
9. TAPE INPUT SOCKET.
10. AUX INPUT SOCKET.
11. DVD INPUT SOCKET.
12. CD INPUT SOCKET.
13. PHONO INPUT SOCKET. (For the connection of a turntable)
14. PHONO TERMINAL EARTH POST. It is necessary to provide a chassis
earth connection between the turntable and the amplifier. Failure to do
this will result in a buzzing or humming noise from the loudspeakers.
15. DAB/FM radio antenna.
16. 6.35mm Headphone output jack.
