- Page 1 Instruction Manual 13--23 1--12 Hi-Fi Stereo Receiver VR 100+ Hi-Fi Stereo Receiver VR 100+ VR 100+ Hi-Fi Stereo DAB+ Receiver FUNCTION INPUT DAB/FM INFO AUTO PRESET- PRESET+ MANU/MEM (STANDBY)
- Page 2 Receiver VR 100+...
- Page 5 Halten Sie das Gerät fern von Feuchtigkeit Achten Sie darauf, dass keine Gegenstände ins Gerät fallen Bitte halten Sie das Gerät fern von Hitze- quellen. Sorgen Sie für genügend Luftzirkulation bei dem Einbau in einem Rack Nehmen Sie das Gerät vom Netz, wenn es Achten Sie darauf, dass keine Sprays oder lange Zeit nicht genutzt wird Chemie an Ihr Gerät kommen...
- Page 6 Sie können Ihren VR 100+ über die Systemfernbedienung (optional) fern bedienen. Richten Sie von Ihrer Sitzposition aus die Fernbedienung in Richtung Ihres Gerätes. 1. Nehmen Sie die Batterien aus ihrer Verpackung Achtung: 2. Legen Sie die 2 „AAA“ Batterien unter Beachtung der Polarität seitenrichtig ein.
- Page 7 1. Funktionstaste Mit dieser Taste können Sie Standby: AMP STANDBY SPK A/B SPK A+B - Um das Gerät an und aus zu schalten, drücken Sie diese Taste. Einstellungen wie Bass, Hochton, Balance und Reset (FUNCTION) (INPUT) Tune +/-: vornehmen. - Manuelle Frequenzeinstellung in 0.05 MHz Schritten im UKW Betrieb. 2.
- Page 8 Bedienung am Gerät VR 100+ Hi-Fi Stereo DAB+ Receiver FUNCTION INPUT DAB/FM INFO AUTO PRESET- PRESET+ MANU/MEM (STANDBY) Power Um das Gerät in den Betrieb zu nehmen, muss auf der Rückseite des Gerätes der Power Schalter auf „on“ stehen. 1. VFD Display: In der Anzeige sehen Sie Informationen wie 6.
- Page 9 Model: VR 100 Hi-Fi Stereo Receiver Power Rating:AC 230V 50Hz Max Power Consumption: 150W Eingangswahltaste 11. DVD 15. DAB/FM: Antennenanschluss. 16. 6,35 mm Kopfhörerbuchse. S-8-...
- Page 10 DAB/FM Antenna Headphone Model: VR 100+ Hi-Fi Stereo DAB+ Receiver Power Rating: AC 230V 50Hz Max Power Consumption: 250W DVD Spieler VR100+ S-9-...
- Page 11 R e c e i v e r R e c e i v e r R e c e i v e r R e c e i v e r R e c e i v e r R e c e i v e r S-10-...
- Page 12 S-11-...
- Page 13 Radio Frequenzband DAB Band 3: 5A 174.928 MHz – 13F 239.200 MHZ FM: 87,5 – 108 MHz Senderspeicher: DAB 10, FM 10 S-12-...
-
Page 14: Table Of Contents
INTRODUCTION & CONTENTS Introduction Contents Introduction & Contents Congratulations on purchasing this VR 100+ Receiver. It has been developed following an extensive research and development program 14,15 that has culminated in what we regard as an exceptional mid-range Safety instructions hi-fi product. -
Page 15: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions CAUTION: To reduce the risk of electric shock, do not remove any cover. N O U S E R - S E R V I C E A B L E PA R T S I N S I D E , R E F E R A N Y SERVICING TO QUALIFIED SERVICE PERSONNEL. - Page 16 SAFETY INSTRUCTIONS Notes On Use...
-
Page 17: Remote Control
REMOTE CONTROL BATTERY INSTALLATION By using the provided remote control unit the VR 100+ can be controlled from your listening position. To use the remote control unit, point it at the REMOTE SENSOR window of the 1. Remove the battery compartment cover. receiver. - Page 18 REMOTE CONTROL 1.FUNCTION BUTTON. Allows access to menu features such STANDBY: AMP STANDBY SPK A/B SPK A+B Press this button to turn the unit into standby mode, press as bass, treble, balance, reset. again to turn on the unit. Use vol+/- button to adjust the level. (FUNCTION) (INPUT) 2.
-
Page 19: Front Panel Controls

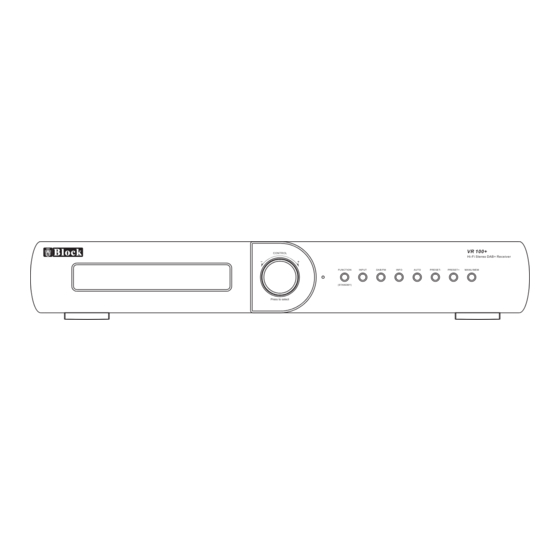

FRONT PANEL CONTROLS VR 100+ Hi-Fi Stereo DAB+ Receiver FUNCTION INPUT DAB/FM INFO AUTO PRESET- PRESET+ MANU/MEM (STANDBY) POWER SWITCH ON REAR PANEL, TURN IT ON BEFORE USE THE UNIT. 1. VFD DISPLAY. Will give the indication of level control, input 6. -
Page 20: Rear Panel Connections
REAR PANEL CONNECTIONS DAB/FM Antenna Headphone Model: VR 100+ Hi-Fi Stereo DAB+ Receiver Power Rating: AC 230V 50Hz Max Power Consumption: 250W 1. POWER SWITCH: Switches mains power on/off to internal 8. TV INPUT SOCKET. components, however please note that mains power is still applied to this unit even though this switch may be off. -
Page 21: Making The Connections
MAKING THE CONNECTIONS TURNTABLE DAB/FM Antenna Headphone Model: VR 100+ Hi-Fi Stereo DAB+ Receiver Power Rating: AC 230V 50Hz Max Power Consumption: 250W CD PLAYER SPEAKER CONNECTIONS DVD PLAYER OTHER AUDIO SOURCE AUDIO RECORDER Protect ! CASSETTE DECK If the speaker cable is shorted during working, V 100+ will automatically come to protection mode, and VFD will display "... -
Page 22: Installation And Position
INSTALLATION AND POSITION receiver receiver receiver receiver V 100+ receiver receiver VR 100+ receiver receiver... -
Page 23: Trouble Shooting
TROUBLE AND SHOOTING Noise is excessive in both Poor location and/or direction of the stereo and monaural antenna. Transmitted station is too far broadcasts. away. An unusual hissing noise is A slight noise may be heard because the heard when listening to the method used for modulation of FM broadcast in stereo, but not heard when listening... -
Page 24: Specifications
SPECIFICATIONS TUNER FREQUENCY RANGE DAB BAND 3: 5A 174.928MHz - 13F 239.200MHz FM 87.5MHz - 108MHz Preset Stations : DAB 10, FM 10. 300mV (CD, DVD, AUX, TAPE, TV) RECOR OUT CARE AND MAINTENANCE 480mV RECOR OUT +/- 14dB @ 10K Hz (+0, -3dB) +/- 14dB @ 100 Hz (+0, -3dB) 2 x 40 watts RMS @ 8 ohms 10Hz to 50KHz...
