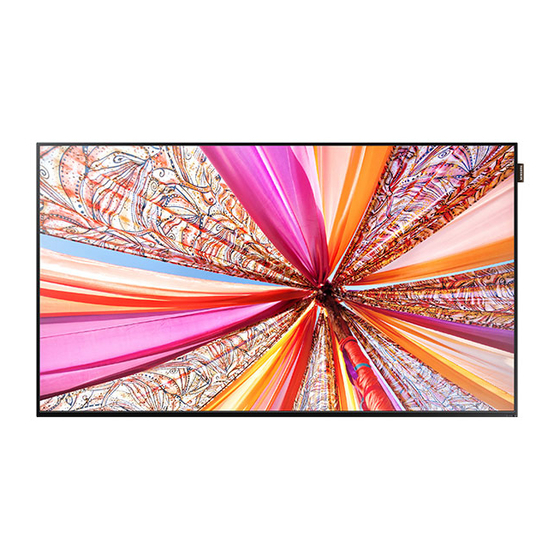

Samsung DH40D User Manual

Lfd display
Hide thumbs

Advertisement

Table of Contents
LFD DISPLAY
User Manual
DH40D DH48D DH55D
The color and the appearance may differ depending on the product,
and the specifications are subject to change without prior notice to
improve the performance.

Advertisement

Table of Contents
loading

  Also See for Samsung DH40D

  Summary of Contents for Samsung DH40D

  • Page 1 LFD DISPLAY User Manual DH40D DH48D DH55D The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.
  • Page 2 Table of contents Before Using the Product Using MDC Screen Adjustment » Copyright » MDC Program Installation/Uninstallation » Picture Mode » Safety Precautions » Connecting to MDC » Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R) »...
  • Page 3 Support » Sound Mode » Network Status » Software Update » Sound Effect » Network Settings » Contact Samsung » HDMI Sound » Wi-Fi Direct » Go to Home » Sound on Video Call » Multimedia Device Settings » Reset All »...
  • Page 4 Table of contents Troubleshooting Guide » Requirements Before Contacting Samsung Customer Service Center » Q & A Specifications » General » PowerSaver » Preset Timing Modes Appendix » Responsibility for the Pay Service (Cost to Customers) » Optimum Picture Quality and Afterimage Burn-in Prevention »...
  • Page 5: Before Using The Product

    © 2014 Samsung Electronics Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Microsoft, Windows are registered trademarks of Microsoft Corporation. VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
  • Page 6: Safety Precautions

    Safety Precautions Cleaning ― Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. ― Take the following steps when cleaning. Caution ― The following images are for reference only. Real-life situations may differ from what is shown in the images.
  • Page 7: Electricity And Safety

    Storage Connect the power plug to a grounded power socket (type 1 insulated devices only). Due to the characteristics of high-glossy products, using a UV humidifier nearby may create white- • An electric shock or injury may result. colored stains on the product. ―...
  • Page 8: Installation

    THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES. • A fire may result. Only use the power cord provided with your product by Samsung. Do not use the power cord with other products. • A fire or electric shock may result.
  • Page 9 Bend and keep part of the outdoor TV antenna cable hanging downwards Edible oil, such as soybean oil, can damage or deform the product. Do not (the part inside the room) to prevent rainwater from entering the product. install the product in a kitchen or near a kitchen counter. •...
  • Page 10: Operation

    If the product is dropped or the outer case is damaged, turn off the power SAMSUNG switch and disconnect the power cord. Then contact Samsung Customer • Be sure to consult Samsung Customer Service Center if you want to Service Center. install the product at such a place.
  • Page 11 • Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Center. Do not move the product by pulling the power cord or any cable.
  • Page 12 Caution Rest your eyes for more than 5 minutes for every 1 hour of product use. • Eye fatigue will be relieved. Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels. •...
  • Page 13 Be careful that children do not place the battery in their mouths when removed from the remote control. Place the battery in a location that children or infants cannot reach. • If children have had the battery in their mouths, consult your doctor immediately.
  • Page 14: Checking The Components

    Preparations Checking the Components Components ― Components may differ in different locations. - Contact the vendor where you purchased the product if any components are missing. - The appearance of the components and items sold separately may differ from the Warranty card image shown.
  • Page 15: Items Sold Separately

    Items sold separately - The following items can be purchased at your nearest retailer. Wall-mount Kit Stand RS232C-Stereo cable DVI cable HDMI-DVI cable DP cable HDMI cable Video cable Stereo cable Component cable - The RS232C adapter can be used to connect to another monitor using the D-SUB (9-pin) type RS232C cable.
  • Page 16: Panel Key

    Parts ― The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Panel Key Control Panel Buttons Description Power on the product. If you press the button when the product is turned on, the control menu will be displayed.
  • Page 17 Buttons Description ― If you press the button on the panel key when the product is turned on, the control menu will be displayed. Select the connected input source. Control menu Move the panel key right to select Source in the control menu. When the list of Source input sources is displayed, move the panel key left or right to select the desired input source.
  • Page 18: Reverse Side

    Port Description Reverse Side RS232C IN Connects to MDC using an RS232C adapter. ― The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. RS232C OUT IR / AMBIENT SENSOR IN Supplies power to the external sensor board or receives the light sensor signal.
  • Page 19: Anti-Theft Lock

    Anti-theft Lock Spacer logo ― An anti-theft lock allows you to use the product securely even in public places. Do not pull on the spacer logo using force. The logo may tear or break off. ― The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.
  • Page 20: Remote Control

    Remote Control ― Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled. ― A button without a description in the image below is not supported on the product. POWER Power off the product.
  • Page 21 Display information about the current input TOOLS INFO Quickly select frequently used functions. source. Move to the upper, lower, left or right menu, or adjust an option's setting. Confirm a menu selection. Exit the current menu. RETURN EXIT Return to the previous menu. mode, configure settings such as the HDMI program guide for digital channels.
  • Page 22: Connection Using An Ir Stereo Cable (Sold Separately)

    Connection Using an IR Stereo Cable (sold separately) Make sure to connect the External ambient sensor while the product is powered off. Then, power on the product. IR OUT IR / AMBIENT Controlling more than one display product using SENSOR IN your remote control •...
  • Page 23: Tilting Angle And Rotation

    Tilting Angle and Rotation 15 ˚ ― Contact Samsung Customer Service Center for further details. • The product can be tilted at a maximum angle of 15 from a perpendicular wall surface. • To use the product vertically (portrait), turn it clockwise so that the LED is pointing down.
  • Page 24 Figure 1.3 Side view Installation on an Indented Wall ― Contact Samsung Customer Service Center for further details. Plane view Minimum 40 mm Minimum 70 mm Minimum 50 mm Minimum 50 mm Ambient temperature: Under 35 C ― When installing the product on an indented wall, allow at least the space specified above between the product and wall for ventilation and ensure that the ambient temperature is kept below 35 C.
  • Page 25: Using The Cover-Jack

    Using the COVER-JACK To prevent theft of the SD memory card or any other USB device, install the COVER-JACK. ― The following images are for reference only. Real-life situations may differ from what is shown in the images. ― When using a DVI cable, make sure to cut off the side of the COVER-JACK first. ―...
  • Page 26: Installing The Wall Mount Kit

    • Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. • Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
  • Page 27 Model name VESA screw hole Standard Screw Quantity specs (A * B) in millimeters DH40D 200 × 200 (7.9 × 7.9) DH48D M8 / L 14~16 400 × 400 (15.7 × 15.7) DH55D ― Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric shock.
  • Page 28: Remote Control (Rs232C)

    Remote Control (RS232C) • Pin assignment 1 2 3 4 5 Cable Connection RS232C Cable Interface RS232C (9 pins) 6 7 8 9 TxD (No.2), RxD (No.3), GND (No.5) Signal Bit rate 9600 bps Detect data carrier Data bits 8 bit Received data Parity None...
  • Page 29: Lan Cable

    LAN Cable • RS232C cable Connector: 9-Pin D-Sub to Stereo Cable • Pin assignment 1 2 3 4 5 6 7 8 -P1- -P1- -P2- -P2- Female --------> STEREO <-------- PLUG Pin No Standard Color Signal ---------- (3.5ø) White and orange Orange White and green Blue...
  • Page 30 Cross LAN cable (PC to PC) • Connector : RJ45 Direct LAN cable (PC to HUB) RJ45 RJ45 RJ45 MDC Signal Signal <--------> <--------> Signal Signal <--------> <--------> <--------> <--------> <--------> <-------->...
  • Page 31 Connection • Connection 2 • Connection 1 RJ45 RJ45 RS232C RS232C RS232C RS232C • Connection 3 RJ45 RS232C RS232C RS232C RS232C...
  • Page 32: Control Codes

    Command type Command Value range Control Codes Video Wall On 0x84 Viewing control state (Get control command) Video Wall User Control 0x89 Header Command Data length Checksum • All communications take place in hexadecimals. The checksum is calculated by adding up all 0xAA Command type values except the header.
  • Page 33: Volume Control

    Power control Volume control • Function • Function A product can be powered on and off using a PC. The volume of a product can be adjusted using a PC. • Viewing power state (Get Power ON / OFF Status) •...
  • Page 34 Input source control 0x24 HDMI2_PC • Function 0x25 DisplayPort The input source of a product can be changed using a PC. ― DVI_video, HDMI1_PC and HDMI2_PC cannot be used with the Set command. They only respond to • Viewing input source state (Get Input Source Status) "Get"...
  • Page 35 Screen mode control • Nak Header Command Data length Ack/Nak r-CMD Val1 Checksum • Function The screen mode of a product can be changed using a PC. 0xAA 0xFF 0x18 "ERR" Video Wall Screen mode cannot be controlled when the function is enabled.
  • Page 36 PIP On/Off control Auto adjustment control (PC and BNC only) • Function • Function The PIP mode of a product can be turned on or off using a PC. Automatically adjust the PC system screen using a PC. ― Only available on models that have the PIP function. •...
  • Page 37: Safety Lock

    Video Wall Mode Control Safety Lock • Function • Function Video Wall mode can be activated on a product using a PC. PC can be used to turn the Safety Lock function on or off on a product. Video Wall This control is only available on a product whose is enabled.
  • Page 38 Video Wall On • Nak Header Command Data length Ack/Nak r-CMD Val1 Checksum • Function Turn Video Wall on or off on the product from your computer. 0xAA 0xFF 0x84 • Get Video Wall On/Off Status "ERR": A code showing what error has occurred Header Command Data length...
  • Page 39 10x10 Video Wall Model 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x1F 0x11 0x12 0x13 0x14 0x15 0x16 0x17 0x18 0x19 0x1A 0x1B 0x1C 0x1D 0x1E 0x2F 0x21 0x22 0x23 0x24 0x25 0x26 0x27 0x28...
  • Page 40 Wall_SNo: Product Number code assigned to the product 10x10 Video Wall Model : ( 1 ~ 100) Set Number Data 0x01 0x02 0x63 0x64 • Ack Header Command Data length Ack/Nak r-CMD Val1 Val2 Checksum 0xAA 0xFF 0x89 Wall_Div Wall_SNo •...
  • Page 41: Connecting And Using A Source Device

    Connecting and Using a Source Device Before Connecting Connecting to a PC • Do not connect the power cable before connecting all other cables. Pre-connection Checkpoints Ensure you connect a source device first before connecting the power cable. • A PC can be connected to the product in a variety of ways. ―...
  • Page 42: Connection Using A Dvi Cable (Digital Type)

    Connection using a DVI cable (Digital type) Connection Using an HDMI-DVI Cable ― When you connect a PC to the product using an HDMI-DVI cable, set Edit Name DVI PC to access video and audio content stored on the PC. DVI IN / MAGICINFO IN HDMI IN...
  • Page 43: Connection Using An Hdmi Cable

    ― The DisplayPort interface (DP IN) on the product and the provided DP cable are designed based on the VESA standards. Using a DP cable that is not VESA compliant may cause the product to function improperly. Samsung Electronics shall not be held responsible for any issues from using a cable that is not VESA compliant.
  • Page 44: Connecting To A Video Device

    Connecting to a Video Device • Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. • You can connect a video device to the product using a cable. ―...
  • Page 45 Connection Using an HDMI-DVI Cable Connection Using an HDMI Cable ― Audio will not be enabled if the product is connected to a video device using an HDMI-DVI cable. To Using an HDMI cable or HDMI to DVI Cable (up to 1080p) resolve this, additionally connect an audio cable to the audio ports on the product and video device.
  • Page 46: Connecting To An Audio System

    Connecting to an Audio System Connecting the antenna ― Connecting parts may differ in different products. ― Connecting parts may differ in different products. ― When the product is powered on for the first time, basic settings are configured automatically. Take extra care to ensure the wires inside the antenna cable are not bent.
  • Page 47: Connecting The Lan Cable

    Connecting the LAN Cable ― Connecting parts may differ in different products. RJ45 • Use Cat7(*STP Type) cable for the connection. *Shielded Twist Pair...
  • Page 48: Connecting The Network Box (Sold Separately)

    Connecting the network box (Sold separately) ― For details on how to connect to a network box, refer to the user's manual provided with the network box upon purchase. MagicInfo To use MagicInfo, a network box (sold separately) must be connected to the product. ―...
  • Page 49 Enter the IP information. Select a display mode. MagicInfo Setup Wizard - v.1.12 MagicInfo Setup Wizard - v.1.12 Select TCP/IP - step 2 Select Screen Type - step 4 Obtain an IP address automatically Use the following IP address: Landscape IP address: 192 .
  • Page 50: Plug In Module

    To use Plug In Module, make sure you connect a Samsung PIM (sold separately). To connect a device made by another manufacturer, ensure the device is compatible with Open Pluggable Specification (OPS) standards. ― For details on how to connect a device, refer to the user manual provided with the PIM upon purchase.
  • Page 51: Changing The Input Source

    Changing the Input source Source allows you to select a variety of sources and change source device names. You can display the screen of a source device connected to the product. Select a source from source list to display the screen of the selected source.
  • Page 52: Using Mdc

    Using MDC Multiple display control "MDC" is an application that allows you to easily control multiple display devices simultaneously using a PC. For details on how to use the MDC program, refer to Help after installing the program. The MDC program can be downloaded from the website. MDC Program Installation/Uninstallation In the displayed "Ready to Install the...
  • Page 53: Connecting To Mdc

    Connecting to MDC Using MDC via RS-232C (serial data communications standards) An RS-232C serial cable must be connected to the serial ports on the PC and monitor. Monitor 1 RS232C IN RS232C OUT Monitor 2 Computer...
  • Page 54: Using Mdc Via Ethernet

    Using MDC via Ethernet Enter the IP for the primary display device and connect the device to the PC. Display devices can be connected to each other using a LAN cable. Connection using a direct LAN cable ― Multiple products can be connected using the RJ45 port on the product and the LAN ports on the HUB. Monitor 1 RJ45 Monitor 2...
  • Page 55 Connection using a cross LAN cable ― Multiple products can be connected using the RS232C IN / OUT port on the product. Monitor 1 RJ45 RS232C OUT Monitor 2 Computer...
  • Page 56: Home Feature

    Home feature → This feature is provided in Support Go to Home. Accessible using the HOME button on the remote control. Player ― To use the Player feature, set Play via MagicInfo in System. Play a range of content such as channels with schedules assigned, templates or files. Play channels or content using any of the following methods.
  • Page 57: Approving A Connected Device From The Server

    Approving a connected device from the server Select Device from the top menu bar. • Set MagicInfo Mode MagicInfo Server Network Settings. Approve and use the MagicInfo server now. ― First configure the server Network Settings before device approval. Access the server you have assigned to your device. Select MagicInfo from the menus on the left.
  • Page 58: Setting The Current Time

    Enter the information required to approve the device. When the device is approved by the server, the schedule registered in the selected group will be downloaded to the device. The schedule will run after it is downloaded. ― For further details on how to configure a schedule, refer to the <MagicInfo Server user's manual>.
  • Page 59: Network Channel

    Network Channel Device:Internal Contents: All Sort by: File Name Options Player 1 / 2 item(s) Browse and play content stored in the selected device. Play content, templates and schedules configured on the server. Player • You can view whether the server is connected (approval) in the menu screen.
  • Page 60: Available Features In The Player Page

    Available features in the Player page Player list page provides the following features. Device • Select either Internal to search for a desired device list. Internal Contents • Select a content type as criterion to search for a desired content list. Video Image Flash...
  • Page 61: Player Page Settings Menu

    Player page Settings menu Aspect Ratio Aspect Ratio Original or Full. to either Settings Full Original • ― This feature is only available for Videos, Images, Office files. Settings Display Duration Set whether to display content in the original aspect ratio or full screen Set the duration for each page in a slideshow.
  • Page 62: When Content Is Running

    When Content is Running Press the INFO button on the remote control. • Type: Type of channel currently playing ― Only applicable during Network Channel Local Channel playback. Viewing the details of the content that is running Number: Number assigned to the channel currently playing •...
  • Page 63 Changing the settings for the content that is running Press the TOOLS button on the remote control during content playback to configure settings such as Picture Mode Sound Mode. Playlist • View a list of content items currently playing. Music •...
  • Page 64: File Formats Compatible With Player

    File Formats Compatible with Player Template files and LFD(.lfd) files • Supported file systems include FAT32 and NTFS. Restrictions • A file with a vertical and horizontal resolution larger than the maximum resolution cannot be • Ensure a distributed folder (content / schedules) exists in Internal memory.
  • Page 65 Contents File Extension Container Video Codec Resolution Frame rate Bit rate Audio Codec (fps) (Mbps) *.avi DivX 3.11 / 4.x / 5.x / 6.x 1920 x 1080 6~30 *.mkv LPCM *.asf MPEG4 SP / ASP *.wmv HE-AAC *.mp4 *.mov H.264 BP / MP / HP *.3gp MPEG(MP3) *.vro...
  • Page 66 Video Audio Image • 3D video is not supported. • Audio content with a Bit rate or Frame rate • Compatible image file format: Jpeg larger than the rate specified in the table above • Content with a resolution larger than the •...
  • Page 67 Flash Power Point • Compatible with Flash 10.1 • Compatible document file formats • Compatible document file formats • Flash Animation - Extension: ppt, pptx - Extension: pdf - Compatible file format: SWF - Version: Office 97 ~ Office 2007 •...
  • Page 68: Template Files

    WORD Template files Network Channel Local • Compatible document file formats • Creation/editing/playback are only available in • Supported in Template. Channel - Extension: .doc, .docx - Version: Office 97 ~ Office 2007 • Compatible document file formats - Extension: .lfd •...
  • Page 69: File Formats Compatible With Video Wall

    File Formats Compatible with Video Wall ― Refer to the <MagicInfo Server user's manual> for further details. Video Image • 3D video is not supported. • Compatible image file format: Jpeg, png, bmp • Content with a resolution larger than the resolution specified in the table •...
  • Page 70 Restrictions • Only one video (Videos) file can be played per client. ― Different content files can be played on the displays of a video wall. Two video (Videos) files cannot be played on a single display of a video wall. Available Not available Available...
  • Page 71: Available Features In The Schedule Page

    Schedule Available features in the Schedule page Schedule page provides the following features. HOME → Schedule → ENTER E Type • - Local: Add or edit schedules. - Network: View the network schedule configured on the server. Schedule Type: Local Device: Internal Options Device...
  • Page 72: Configuring Channel Schedules

    Configuring channel schedules Play media content such as videos, photos and music at a desired time. Select a channel to configure. Select video, music and photo content you want to apply to the channel schedule. Set the time to play the schedule. (Start Time Stop Time)
  • Page 73 Template Available features in the Template page Create unique content using templates. It is easy to create content. Simply change images and text in a template. HOME → Template → ENTER E Sort the template list using the following criteria. Market •...
  • Page 74: Entering Text

    Inserting content such as videos, photos and PDF files Organize a template by inserting text, video, photo, or PDF files as desired. Entering text Template Select in the editable zone to add content or edit the existing text. Edit Item(s) selected Template Select in the editable zone to add content or edit the existing text.
  • Page 75 Preview Configure Template Name and Storage. Save Duration 23:59:59 Template Name Template1 Template preview is running. It will Storage Internal disappear after 20 seconds. Save Cancel New town interior design Save Press the button to finish creating the content. Sustainble evolution unfolods tomorrw’s design Preview the created template using the Preview feature.
  • Page 76: Clone Product

    Clone Product Export the product settings to a USB device or load the settings via a USB device. This option is useful when assigning the same settings to several products. When USB does not contain a duplicate file HOME → Clone Product →...
  • Page 77: Pc Connection Cable

    ID Settings Assign an ID to a set. Press u/d to select a number, and press E. HOME → ID Settings → ENTER E Device ID Enter the ID number of the product connected to the input cable for input signal reception. (Range: 0~224) ―...
  • Page 78: Video Wall

    Customize the layout of multiple displays that are connected to form a video wall. Video Wall In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays. To display multiple images, refer to MDC Help or the MagicInfo user guide. Some models may not support the MagicInfo function.
  • Page 79: Screen Position

    Video Wall Video Wall. You can activate or deactivate To organize a video wall, select On. • Horizontal x Vertical This feature automatically splits a videowall display based on a videowall matrix configuration. Enter the videowall matrix. The videowall display is split based on the configured matrix. The number of vertical or horizontal display devices can be set within the range 1 and 15. ―...
  • Page 80: Network Status

    Network Status Check the current network and Internet connection. HOME → Network Status → ENTER E Network Status - The displayed image may differ depending on the model.
  • Page 81: Picture Mode

    - To apply the Calibration mode properly, make sure you configure the picture quality settings, such as brightness, color, gamma and uniformity, using the color calibration program Advanced Color Management. - To download the Advanced Color Management program, visit www.samsung.com/displaysolutions.
  • Page 82: On/Off Timer

    On/Off Timer ― You must set the clock before you can use On/Off Timer. On Timer HOME → On/Off Timer → ENTER E On Timer so that your product turns on automatically at a time and on a day of your choosing. The power is turned on with the specified volume or input source.
  • Page 83: Off Timer

    Off Timer Set the off timer (Off Timer) by making a selection from one of the seven options. (Off Timer 1 Off Timer • Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual. If you select Manual, you can choose the days you want Off Timer to turn off your product.
  • Page 84: More Settings

    Ticker Input text while a video or image is displayed and display the text on the screen. • • Message: Enter a message to display on the screen. → → ENTER E HOME Ticker • Time: Set the Start Time End Time to display a Message.
  • Page 85: Url Launcher

    URL Launcher For details on how to use the URL Launcher feature, contact the dealer the product was purchased from. ― To use the URL Launcher Play via URL Launcher in System. feature, set HOME → URL Launcher → ENTER E Change URL 12:00 URL Launcher...
  • Page 86: Screen Adjustment

    Advanced Color Management. · Tint (G/R) - To download the Advanced Color Management program, visit www.samsung.com/displaysolutions. - The displayed image may differ depending on the model.
  • Page 87: Backlight / Contrast / Brightness / Sharpness / Color / Tint (G/R)

    Backlight / Contrast / Brightness / Your product has several options for adjusting picture quality. Picture Mode Picture Mode settings Adjustable options Sharpness / Color / Tint (G/R) Shop & Mall, Office & School, Video/Image Backlight Contrast Brightness Sharpness Terminal & Station, Video Wall Color...
  • Page 88: Color Temperature

    Color Temperature Adjust the color temperature (Red / Green / Blue). (Range: 2800K–16000K) ― If Color Tone is set to Off, Color Temperature is disabled. ― If Picture Mode is set to Calibration, Color Temperature is disabled. MENU m → Picture →...
  • Page 89: White Balance

    White Balance 2 Point Adjust the color temperature for a more natural picture. MENU m → Picture → White Balance → ENTER E R-Offset G-Offset / B-Offset: Adjust each color’s (red, green, blue) darkness. • R-Gain G-Gain / B-Gain: Adjust each color’s (red, green, blue) brightness. •...
  • Page 90: Calibrated Value

    Advanced Color Management to the Information and Advertisement modes. Don't Apply Apply • MENU m → → → ENTER E ― To download the Advanced Color Management program, visit www.samsung.com/displaysolutions. Picture Calibrated Value ― If Picture Mode is set to Calibration, Calibrated Value is disabled.
  • Page 91: Advanced Settings

    Advanced Settings Picture Mode Picture Mode settings Adjustable options Shop & Mall, Office & School, Video/Image Dynamic Contrast Black Tone Flesh Tone Video Wall RGB Only Mode Color Space MENU m → Picture → Advanced Settings → ENTER E Text Dynamic Contrast Black Tone Advanced Settings...
  • Page 92: Dynamic Contrast

    Dynamic Contrast Advanced Settings Adjust the screen contrast. Dynamic Contrast Medium Medium High • Black Tone Darker Black Tone Flesh Tone Select the black level to adjust the screen depth. RGB Only Mode Dark Darker Darkest • Color Space Native Flesh Tone Motion Lighting Flesh...
  • Page 93: Picture Options

    Picture Options Picture Mode Picture Mode settings Adjustable options Shop & Mall, Office & School, Video/Image Color Tone Digital Clean View MPEG Terminal & Station, Video Wall Noise Filter HDMI Black Level Film Mode MENU m → Picture → Picture Options →...
  • Page 94: Color Tone

    Color Tone Picture Options If the input source is PC, HDMI (PC connection), DisplayPort. Color Tone Cool Standard Warm • If the input source is AV, Component, HDMI or TV. Digital Clean View Cool Standard Warm1 Warm2 • MPEG Noise Filter ―...
  • Page 95: Hdmi Black Level

    HDMI Black Level Picture Options Selects the black level on the screen to adjust the screen depth. Color Tone Normal • ― Available only in HDMI mode (AV Timing : 480p, 576p, 720p, 1080i, 1080p). Digital Clean View MPEG Noise Filter Film Mode HDMI Black Level Normal...
  • Page 96: Picture Size

    Picture Size choose size and aspect ratio picture displayed on screen. Picture Size MENU m → Picture → Picture Size → ENTER E ― Different screen adjustment options are displayed depending on the current input source. • 16:9: Sets the picture to 16:9 wide mode.
  • Page 97 Position Adjusts the picture position. Position is only available if Picture Size is set to Zoom1, Zoom2, Wide Fit, Screen Fit or Custom. ― To use the Position function after selecting Zoom1, Zoom2, Wide Fit, Screen Fit or Custom, follow these steps. Press the d button to select Position.
  • Page 98 Resolution If the picture is not normal even when the resolution of the graphics card is one of the following, you can optimize the picture quality by selecting the same resolution for the product as the PC using this menu. 1024x768 1280x768 1360x768...
  • Page 99: Auto Adjustment

    Auto Adjustment Adjust frequency values/positions and fine tune the settings automatically. MENU m → Picture → Auto Adjustment → ENTER E Picture Auto Adjustment - Available in mode only. - The displayed image may differ depending on the model. PC Screen Adjustment Coarse Fine •...
  • Page 100: Picture Off

    Picture Off Picture Off Selecting switches off the screen. The volume is not disabled. To switch the screen on, press any button other than the volume button. MENU m → Picture → Picture Off → ENTER E Picture Picture Off - The displayed image may differ depending on the model.
  • Page 101: On-Screen Display

    OnScreen Display PIP Settings The picture from the external video source will be in the main screen and the picture from the product will be in the PIP sub- picture screen. MENUm → OnScreen Display → → ENTERE Main picture Sub picture OnScreen Display HDMI...
  • Page 102 PIP (Off / On): Activate or deactivate the PIP function. • • Source: You can select a source of the sub picture. Antenna (Air / Cable): Select either Cable as the input source for the sub-screen. • ― This option is enabled if the secondary display is set to TV. Source •...
  • Page 103: Rotate Menu

    Rotation Rotate Menu Configure the menu screen. MENUm → OnScreen Display → Rotation → ENTERE • Landscape: Display the menu in landscape mode (default). • Portrait: Display the menu in portrait mode on the right side of the product screen. Rotation ―...
  • Page 104: Auto Protection Time

    Screen Protection Auto Protection Time If the screen displays a still image for a certain period of time you define, the product activates the screen saver to prevent the formation of burnt in ghost images on the screen. MENUm → OnScreen Display →...
  • Page 105 Timer Screen Burn Protection Screen Burn Protection. You can set the timer for Pixel Shift Screen Burn Protection feature stops automatically after a specified period of time. Timer Timer Immediate Display Repeat: Display the image retention-preventive pattern set in Mode at specified time intervals(Period).
  • Page 106: Message Display

    Immediate Display Screen Burn Protection Select the screen saver you want to display immediately. Pixel Shift Pixel Rolling Bar Fading Screen • Timer Side Gray Immediate Display When the screen is set to 4:3 aspect ratio, adjust the brightness of white margins on sides to protect the screen. Light Dark •...
  • Page 107: Menu Transparency

    Menu Transparency Adjust transparency of menu box. High Medium • MENU m → OnScreen Display → Menu Transparency → ENTER E OnScreen Display Menu Transparency Medium - The displayed image may differ depending on the model. Menu Language Set the menu language. ―...
  • Page 108: Caption Mode

    Caption Caption You can switch the caption function on or off. MENUm → OnScreen Display → Caption → ENTERE If captions are not available, they will not be displayed on the screen. • Caption ― The Caption feature does not work with devices connected to the product through the Component, HDMI, input jacks.
  • Page 109: Digital Caption Options

    Digital Caption Options Caption (digital channels only) Caption Configure the subtitle settings such as size and color. Adjusts the each option. When done, select Close. Caption Mode Default • Size: Options include Default, Small, Standard and Large. The default is Standard. Digital Caption Options Font Color: You can change the color of the letters.
  • Page 110: Reset Onscreen Display

    Reset OnScreen Display This option returns the current settings under OnScreen Display to the default factory settings. MENU m → OnScreen Display → Reset OnScreen Display → ENTER E OnScreen Display Reset OnScreen Display - The displayed image may differ depending on the model.
  • Page 111: Sound Adjustment

    Sound Adjustment Sound Configure the sound ( ) settings for the product. Sound Mode You can select a sound mode to suit your personal preferences. • Standard: Selects the normal sound mode. • Music: Emphasizes music over voices. MENU m → Sound →...
  • Page 112: Sound Effect

    Sound Effect Configure your preferred sound effect for output sound. ― If Speaker Settings is set to External, Sound Effect is disabled. ― Available only when Sound Mode is set to Standard. MENUm → Sound → Sound Effect → ENTERE Virtual Surround Sound Effect This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF(Head Related...
  • Page 113: Hdmi Sound

    HDMI Sound Select whether to hear from AV(HDMI) or PC(DVI). AV(HDMI) PC(DVI) • MENU m → Sound → HDMI Sound → ENTER E Sound HDMI Sound AV(HDMI) - The displayed image may differ depending on the model. Sound on Video Call Select sound output to listen to during a video call.
  • Page 114: Speaker Settings

    Speaker Settings TV Sound Output If you are listening to the sound track of a broadcast or movie through an external receiver, you may hear a sound echo caused by the difference in decoding speed between the products speakers and the speakers attached to your audio receiver. If this MENU m →...
  • Page 115: Reset Sound

    Reset Sound The displayed image may differ depending on the model. Reset all sound settings to the factory defaults. MENU m → Sound → Reset Sound → ENTER E Sound Reset Sound - The displayed image may differ depending on the model.
  • Page 116: Auto Program

    Channel Channel Configure the settings for the product. Available in mode only. Auto Program This feature automatically searches and saves all received channels. Auto Program takes about 6–7 minutes. • Auto Program Go to the menu. MENU m → Channel →...
  • Page 117 Antenna Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the LED display. Cable • MENU m → Channel → Antenna → ENTER E Channel Antenna - The displayed image may differ depending on the model. - Available in mode only.
  • Page 118: Channel List

    Channel List Register or delete channels. Add favorite channels or rename analog channels. Channel List Select a desired channel from to view the channel instantly. ― To navigate Channel List faster, press the channel buttons. The channel list changes page by page. MENU m →...
  • Page 119: Edit Channel

    Edit Channel Manage channels saved on your TV. Delete channels, re-register deleted channels or rename analog channels. Icons found in the edit channel page MENU m → → → ENTER E Channel Edit Channel : Analog channel • : A channel that is selected •...
  • Page 120 Editing registered channels Locking/unlocking channels using a password Options Select from the edit channel page. The following functions are provided in the page. Provided Lock specific channels to prevent children from accessing inappropriate content. functions may vary depending on the broadcast signal. ―...
  • Page 121: Edit Favorites

    Edit Favorites Creating a favorite channel list Edit Channel Set frequently viewed channels as favorite channels. Favorite channels are indicated by a symbol in the Channel List page. A maximum of five favorite channel lists are allowed. Create different favorite channel lists for each family MENU m →...
  • Page 122 Viewing channels saved under a favorite channel list Deleting channels from a favorite channel list ― Favorite channel lists are only displayed if they have been created previously. Delete channels from a favorite channel list, if required. When changing the channel using the channel buttons, channels saved in favorite channel lists can only Select Change Fav.
  • Page 123 Renaming a favorite channel list Change the name of a favorite channel list, if required. Select Change Fav. from the screen to change the favorite channel list on the right to another desired favorite channel list. Select Options from the screen. Sub-menu items are displayed. Select Rename Favorites from the sub-menu items.
  • Page 124: Audio Options

    Audio Options Preferred Language (for digital broadcasts) MENU m → Channel → Audio Options → ENTER E Use the up and down arrow keys to select a language, and then press E. Digital-TV broadcasts can simultaneously transmit many audio tracks (for example, simultaneous translations of the program Channel into foreign languages).
  • Page 125: Program Rating Lock

    Program Rating Lock When turned on, the Program Rating Lock feature can automatically block programs that you deem inappropriate for your children. You must enter a PIN (personal identification number) before you can set or change any of the Program Rating Lock restrictions.
  • Page 126 Canadian English Rating: You can block TV programs based on their Anglophone Canadian rating. • Canadian English Rating displays a column with locks and the following ratings categories. C: Programming intended for children under age 8. / C8+: Programming generally considered acceptable for children 8 years and over to watch on their own. / G: General programming, suitable for all audiences.
  • Page 127: Channel Settings

    Channel Settings Fine Tune (analog channels only) MENU m → Channel → Channel Settings → ENTER E If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store operation.
  • Page 128: Network Status

    Network Network Status Network Settings MENUm → Network → Network Status → ENTERE MENUm → Network → Network Settings → ENTERE You can check the current network and Internet status. Configure network settings to use various smart hub features such as Internet search, content sharing through a home network and feature updates.
  • Page 129: Connecting To A Wired Network

    Network Settings (Wired) • Depending on how your network is configured, you may be able to attach your product to your LAN by connecting the LAN port on the back of your product directly to a network wall outlet using a LAN cable. Connecting to a Wired Network See the diagram below.
  • Page 130: Automatic Network Settings (Wired)

    Set the network connection to use Internet services such as perform software upgrades. In the pop-up menu that appears, click Status. Automatic Network Settings (Wired) On the dialog that appears, click the Support tab. Connect to the network using a LAN cable. On the Support Tab, click the Details button.
  • Page 131: Connecting To A Wireless Network

    ― If the router cannot be found after retrying, select the Stop button. WEP, TKIP or TKIP AES (WPS2Mixed) on your AP or wireless router, Samsung products will not support Add Network button appears. a connection in compliance with new Wi-Fi certification specifications.
  • Page 132 How to set up manually When done, use the right arrow button to move the cursor to Done, and then press E. The network connection screen appears and the verification process starts. Network Type Wireless Network Settings from the page. ―...
  • Page 133 When done, select at the bottom of the page, and then press E. The network test screen appears and the verification process starts. “Your wireless network and Internet connection When the connection has been verified, the are setup and ready to use.”...
  • Page 134: Multimedia Device Settings

    Wi-Fi Direct MENUm → Network → Wi-Fi Direct → ENTERE Set to connect the product to wireless mobile devices. Using this function, you can connect wireless mobile devices with your product directly without a router. To use this function, your mobile device To connect your mobile device with your product using Wi-Fi Direct, follow these steps: Wi-Fi Direct.
  • Page 135: Screen Mirroring

    Screen Mirroring Server Network Settings MENUm → Network → Screen Mirroring → ENTERE MENUm → Network → Server Network Settings → ENTERE Connect a mobile device that supports the mirroring function to the product. This allows the screen and Connect to Server sound from the mobile device to be outputted on the product.
  • Page 136: Device Name

    Device Name MENUm → Network → Device Name → ENTERE Select or enter a device name. This name can be shown on network remote controls over the network.
  • Page 137: Initial Settings (Setup)

    System Setup Initial settings (Setup) After powering on the product for the first time, configure basic settings such as the language, channel and time. Press the button. MENU m → System → Setup → ENTER E ― Initial Setup automatically changes Source to TV.
  • Page 138 Clock Set Set the current date and time, and then select Next. Play via Select the appropriate player mode depending on the environment where you are using the product. ― The Play via setting step only appears when connected to the network. Setup Complete Congratulations! Setup is complete and you're ready to get started.
  • Page 139: Touch Control

    Touch Control Configure touch control related features. Admin Menu Lock MENU m → System → Touch Control → ENTER E Admin Menu Lock Set the to display the administrator settings menu when you tap and hold the finger on the screen. System •...
  • Page 140 Time You can configure Clock Set Sleep Timer. You can also set the product to automatically turn on or off at a specified time using the Timer function. Clock MENU m → → → ENTER E System Time Set the current year, date and time. Time ―...
  • Page 141: Time Offset

    Time Zone Select your time zone. ― This function is only available when the Clock Mode is set to Auto. Time Offset If the current time that has been automatically set is different from the actual time, adjust the hour between the interval -12 hours and +12 hours.
  • Page 142: Sleep Timer

    Time Switches the DST (Daylight Saving Time) function on or off. Clock Auto Manual Start Date: Set the start date of Daylight Saving Time. • Date: Set the end date of Daylight Saving Time. • Sleep Timer Time Offset: Select the correct time offset your timezone. •...
  • Page 143: Auto Source Switching

    Auto Source Switching Turning on the display with Auto Source Switching On, and the previous video source selection is not active, the display will automatically search the different video input sources for active video. Auto Source Switching MENU m → System →...
  • Page 144: Power Control

    Power Control Auto Power On This feature automatically turns on the product as soon as it is plugged in. Pressing the power button is not needed. MENU m → System → Power Control → ENTER E • PC Module Power Power Control The PC module can be turned on/off separately from the LFD.
  • Page 145: Standby Control

    Standby Control Power Control You can set the screen standby mode to be applied when an input signal is received. Auto Power On Auto • Power-saving mode will activate if no input signals are detected even though a source device is connected to the display. PC Module Power The message No Signal...
  • Page 146: Eco Solution

    Eco Solution Energy Saving Reduce the power consumption by adjusting the screen brightness. MENU m → System → Eco Solution → ENTER E Medium High • Eco Sensor Eco Solution To enhance your power savings, the picture settings will automatically adapt to the light in the room. Energy Saving •...
  • Page 147: No Signal Power Off

    No Signal Power Off Eco Solution Save power by turning the device off when no signal is received from any source. Energy Saving 15 min. 30 min. 60 min. • ― Disabled when an attached PC is in power saving mode. Eco Sensor ―...
  • Page 148: Device Manager

    Device Manager Configure options for external input devices connected to the product. Keyboard Settings MENU m → System → Device Manager → ENTER E Keyboard Settings Connecting a keyboard to the product displays the menu. Device Manager Select Keyboard Keyboard Settings Select a keyboard you want to use from the available connected keyboards.
  • Page 149: Mouse Settings

    Mouse Settings Device Manager Connecting a mouse to the product displays the Mouse Settings menu. Keyboard Settings Select Mouse Mouse Settings Configure mouse connection settings or options for connected mouse devices. Pointer Settings ― Among connected mouse devices, only one mouse can be used. Mouse Options ―...
  • Page 150: Pointer Settings

    Pointer Settings Device Manager Specify the pointer size, speed and shape. Keyboard Settings Pointer Size Mouse Settings Specify the pointer size. Pointer Settings Small Medium Large Extra large • Pointer Speed Specify the pointer speed. A higher speed increases the pointer sensitivity. - The displayed image may differ depending on the model.
  • Page 151: Change Pin

    Play via Select the appropriate Play via mode depending on the environment where you are using the product. The home screen may be different depending on the setting. MagicInfo URL Launcher • MENU m → System → Play via → ENTER E System Play via MagicInfo...
  • Page 152: Button Lock

    • - The displayed image may differ depending on the model. BD Wise Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theater products which support Wise. When Wise is turned On, the picture mode is automatically changed to the optimal resolution.
  • Page 153: Anynet+ (Hdmi-Cec)

    Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung BD Wise product remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.
  • Page 154: Auto Turn Off

    Auto Turn Off Anynet+ (HDMI-CEC) Anynet+ Setting an Device to turn automatically when the product is turned off. Anynet+ (HDMI-CEC) • ― If Auto Turn Off is set to Yes, running external devices will turn off at the same time as the product powers off. Auto Turn Off ―...
  • Page 155: Troubleshooting For Anynet

    Troubleshooting for Anynet+ Problem Possible Solution Anynet+ does not work. • Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. • Check if the Anynet+ device power cord is properly connected. • Check the Anynet+ device’s Video/Audio/HDMI cable connections. •...
  • Page 156 Problem Possible Solution The connected device is not • Check whether or not the device supports Anynet+ functions. displayed. • Check whether or not the HDMI cable is properly connected. Anynet+ (HDMI-CEC) System • Check whether is set to in the menu.
  • Page 157: Hdmi Hot Plug

    HDMI Hot Plug General This feature is used to activate the time delay to turn on a DVI/HDMI source device. Security • BD Wise DivX® Video On Demand Anynet+ (HDMI-CEC) Shows the registration code authorized for the product. HDMI Hot Plug If you connect to the DivXⓇ...
  • Page 158: Reset System

    Reset System This option returns the current settings under system to the default factory settings. MENU m → System → Reset System → ENTER E System Reset System - The displayed image may differ depending on the model.
  • Page 159: Software Update

    Version: This is the software version already installed in the product. Update the software to the latest version. Auto Update This feature automatically updates the product when not in use. • Contact Samsung MENU m → Support → Contact Samsung → ENTER E View this information when your product does not work properly or when you want to upgrade the software.
  • Page 160: Clone Product

    Go to Home Go to Home to play a variety of content from a memory device or a connected network. Player Accessible using the HOME button on the remote control. Search or play channels or content saved on devices. MENU m → →...
  • Page 161: Network Status

    Video Wall Customize the layout of multiple displays that are connected to form a video wall. In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays. To display multiple images, refer to MDC Help or the MagicInfo user guide. Some models may not support the MagicInfo function. Network Status Check the current network and Internet connection.
  • Page 162: Reset All

    Reset All This option returns all the current settings for a display to the default factory settings. MENU m → Support → Reset All → ENTER E Support Reset All - The displayed image may differ depending on the model.
  • Page 163: Playing Photos, Videos And Music (Media Play)

    • Before connecting a USB device to the product, back up files to ensure your data is not damaged or lost. Samsung Electronics is not liable for any damage or loss of data. • Do not remove a USB device while it is loading.
  • Page 164: Compatible Devices With Media Play

    Compatible devices with media play • Some USB digital cameras, smartphones and audio devices may not be compatible with the product. • Media play is only compatible with USB MSC devices. • MSC device refers to a Mass Storage Class Bulk-Only Transport device. Examples of MSC devices include Thumb drives, Flash card readers and USB HDDs.
  • Page 165: Using A Usb Device

    Using a USB device Connecting a USB device Turn on your product. Connect a USB device containing photo, music and/or movie files to the USB port on the back or side panel of the product. Player page automatically appears as soon as a USB device connects to the product. ―...
  • Page 166 Playing media content from a PC/mobile device Approving a PC/mobile device connection Play photos, videos or music saved on a PC or mobile device. To play media content from a PC or mobile device on the product, the connection with the PC or mobile device must be approved. ―...
  • Page 167: Features Provided In The Media Content List Page

    Play content saved on a device connected to a home network. ― Playing media content using a non-Samsung DLNA server may result in a compatibility issue. ― Playback of some media content shared with a PC or mobile device may not be possible depending on the content encoding type or the content file format. Some functions may not be available.
  • Page 168: Menu Items In The Media Content List Page

    Menu items in the media content list page Option Name Operations Photos Videos Music Slide Show Start a slideshow. ― This menu item is not available if Sort by is set to Folder. Encoding Select an encoding language if the title of media content appears corrupted. Rename Playlist Rename a playlist.
  • Page 169: Available Buttons And Features During Photo Playback

    Available buttons and features during photo playback Pressing the E or TOOLS button displays the following buttons. The RETURN button makes the buttons disappear. Pause Play • Start or stop a slideshow. Using a slideshow, it is possible to play all photos in a folder. Previous Next •...
  • Page 170: Available Buttons And Features During Video Playback

    Available buttons and features Option Name Operations during video playback Select Scene Thumbnails: Select a scene and play the video from the scene. ― Thumbnails is not available if 1) the thumbnail of the video is not extracted yet, 2) the video contains audio only or 3) the video play time is shorter than 60 seconds.
  • Page 171: Available Buttons And Features During Music Playback

    Available buttons and features during music playback Pressing the E or TOOLS button displays the following buttons. The RETURN button makes the buttons disappear. Pause Play • Pause or play music. Rewind Fast forward • Rewind or fast forward music. Speed up playback up to 3x, if required. To play the previous music file, select ∂ twice. Previous Next •...
  • Page 172: Supported Subtitle And Media Play File Formats

    Supported Subtitle and Media play file formats Subtitle External Internal • MPEG-4 timed text (.ttxt) • Xsub Container: AVI • SAMI (.smi) • SubStation Alpha • SubRip (.srt) Container: MKV • SubViewer (.sub) • Advanced SubStation Alpha • Micro DVD (.sub or .txt) Container: MKV •...
  • Page 173: Supported Music File Formats

    Supported music file formats File Extension Type Codec Comments *.mp3 MPEG MPEG1 Audio Layer 3 *.m4a, *.mpa, *.aac, *.3ga MPEG4 *.flac FLAC FLAC The Seek (jump) function is not supported. Supports up to 2 channel Supported Video Formats • Video content will not play, or not play correctly, if there is an error in the content or the container. •...
  • Page 174 File Container Video Codec Resolution Frame rate Bit rate Audio Codec Extension (fps) (Mbps) *.avi DivX 3.11 / 4.x / 5.x / 6.x 1920 x 1080 6~30 *.mkv LPCM *.asf ADMPCM MPEG4 SP / ASP *.wmv (IMA, MS) *.mp4 *.mov HE-AAC H.264 BP / MP / HP *.3gp...
  • Page 175: Troubleshooting Guide

    Troubleshooting Guide Requirements Before Contacting Samsung Customer Service Center Before calling Samsung Customer Service Testing the Product Center, test your product as follows. If the problem persists, contact Samsung Check if your product is operating normally by using the product test function.
  • Page 176: Check The Followings

    Check the followings. Installation issue (PC mode) The screen keeps switching on and off. Check the cable connection between the product and PC, and ensure the connection is secure. Blank spaces are found on all four sides of the screen when The blank spaces found on the screen have nothing to do with the product.
  • Page 177 Screen issue The screen is not clear. The screen is blurry. Adjust Coarse and Fine. Remove any accessories (video extension cable, etc) and try again. Set the resolution and frequency to the recommended level. The screen appears unstable and shaky. Check that the resolution and frequency of the PC and graphics card are set within a range compatible with the product.
  • Page 178 Lines (red, green or blue) are displayed on the screen. These lines are displayed when there is a defect in DATA SOURCE DRIVER IC on the monitor. Contact a Samsung Service Center to resolve the issue. The display looks unstable and then freezes.
  • Page 179 Sound issue The volume is too low. Adjust the volume. If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software program. Video is available but there is no sound. If an HDMI cable is connected, check the audio output settings on the PC.
  • Page 180 Sound issue There is an echo sound coming from the speakers. Different decoding speeds between the product speakers and external speakers can cause an echo. Speaker Settings to External. In this case, set Remote control issue The remote control does not work. Make sure that the batteries are correctly in place (+/-).
  • Page 181 Other issue Caption is grayed out and not selectable. If the selected input source is not TV, Caption OnScreen Display cannot be selected from the menu. Caption can be enabled from a source device. The product smells like plastic. The plastic smell is normal and disappears over time. The monitor appears tilted.
  • Page 182 Other issue There is no sound in HDMI mode. Displayed picture colors may not look normal. Video or sound may not be available. This can occur if a source device that only supports an older version of the HDMI standard is connected to the product. If these issues occur, connect an audio cable along with the HDMI cable.
  • Page 183 Q & A Question Answer How can I change the frequency? Set the frequency on your graphics card. • Windows XP: Go to Control Panel → Appearance and Themes → Display → Settings → Advanced → Monitor and adjust the frequency in Monitor Settings. •...
  • Page 184 Question Answer How do I set powersaving mode? • Windows XP: Set power-saving mode in Control Panel → Appearance and Themes → Display → Screen Saver Settings or BIOS SETUP on the PC. • Windows ME/2000: Set power-saving mode in Control Panel → Display → Screen Saver Settings or BIOS SETUP on the PC.
  • Page 185: Specifications

    Specifications General - Size Model Name DH40D DH48D DH55D Panel Size 40 CLASS (40.0 inches / 101 cm) 48 CLASS (47.6 inches / 121 cm) 55 CLASS (54.6 inches / 138 cm) Display area 885.6 mm (H) x 498.15 mm (V) 1054.08 mm (H) x 592.92 mm (V)
  • Page 186 ― Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may appear brighter or darker on the panel. This does not affect product performance. ― This device is a Class A digital apparatus. (USA only) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call, (877) 278 - 0799...
  • Page 187: Power Saving Mode

    (SOG Signal : Not Support the (Without PIM) (Power Switch) Rating Typical DPM Mode, Without PIM) Power Indicator Blinking Power Consumption DH40D 120 W 58 W 135 W 0.5 W 0.5 W 200 W 220 W (With PIM) (With PIM)
  • Page 188: Preset Timing Modes

    ― Check the frequency when you exchange a CDT product (connected to a PC) for an LCD product. If the LCD product does not support 85Hz, change the vertical frequency to 60Hz using the CDT product before you exchange it with the LCD product. Model Name DH40D / DH48D / DH55D Synchronization Horizontal Frequency...
  • Page 189 Resolution Horizontal Vertical Frequency Pixel Clock Sync Polarity Frequency(kHz) (Hz) (MHz) (H/V) VESA, 640 x 480 37.500 75.000 31.500 VESA, 800 x 600 35.156 56.250 36.000 VESA, 800 x 600 37.879 60.317 40.000 VESA, 800 x 600 48.077 72.188 50.000 VESA, 800 x 600 46.875 75.000...
  • Page 190: Responsibility For The Pay Service (Cost To Customers)

    ― When the service is requested, in spite of in warranty, we may charge you for a visit from a service • Use of supplies or separatly sold product unspecified by Samsung. technician in the following cases. • Repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd. Not a product defect •...
  • Page 191: Optimum Picture Quality

    Optimum Picture Quality and Afterimage Black Matrix Color-Filter Common Electrode (ITO) Burn-in Prevention Optimum Picture Quality Source Drain • Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the panel. This does not affect product performance. - The number of sub-pixels by panel type: 6,220,800 •...
  • Page 192: Flight : Time

    Preventing afterimage burn-in • Regular Text color Change - Use bright colors of similar brightness. ― The best way to protect the product from afterimage burn-in is switching the power off or setting the Interval: Change text color and background color every 30 minutes PC or system to run a screen saver when not in use.
  • Page 193 In the case of using open source software, Open Source Licenses are available on the product menu. Open Source License Notice is written only English. For information on the Open Source License Notice, contact the Samsung Customer Center or send email to oss.request@samsung.com.
  • Page 194 Terminology Non-interlace Mode and Interlace Vertical Frequency____ The product Component ports (green, blue and DVD (Digital Versatile Disc)____ DVD 480i / 480p / 720p / 1080i / red)____ The component ports, which 1080p____ Each of the scanning Mode____ Non-interlace mode displays a single image many times refers to a CD-sized mass storage disk rates above refers to the number of...
