MODEL
XIS100
Integration Dock for iPod
INSTALLATION INSTRUCTION
DESCRIPTION

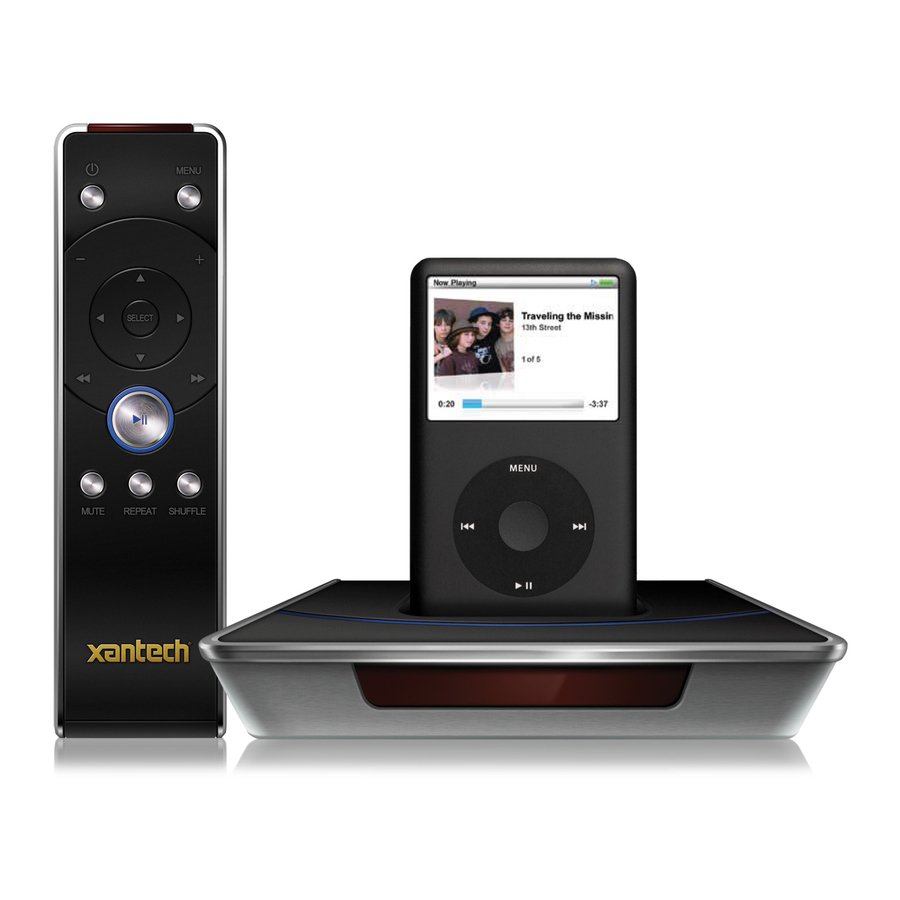

Xantech's 'XIS100' docking station is the industry's first iPod docking station designed for the high-
resolution television revolution. It features a unique component video output capability that will enable
owners of the new 480P video output iPods to see their video in full native resolution on a plasma,
LCD, or other compatible TV screen with component video output. The 'XIS100' features a unique on-
screen menu display and control system and is compatible with the latest iPod video technology.
KEY FEATURES
• Stand-Alone iPod Dock
• Stylish Remote with Hi-End Chrome Design
• Compatible with All Current iPods (iPod Classic, iPod Touch, Nano 3g etc...)
• Allows Menu Viewing and Control Direct from Any Viewing Monitor (i.e. Plasma, LCD
Projector etc.)
• COMPONENT Video and Composite Video Output
• RS232 and IR Controllable
• Touch Panel Support
• Multi-Language Menu Support
• Direct IR Input on Rear
• Works as Stand Alone or Via On-Screen Video Display
• Album Art Display
• Metadata to and from Xantech CSPLCD Displays with Multi Line Display (or to XTR39 with
New RF2IR2w)
• Single Line Metadata Display with Xantech MRC Keypads
• Threaded Inserts for Secure Mounting in Public Places
PACKAGE INCLUDES
• Component Video Cables
• Composite Video and Audio Left & Right Cable
• Power Supply with North America, Europe, UK, and Australia/New Zealand Adapters
• XIS100 Docking Station
• XIS100 Remote Control
• Instruction Manual
• DB9 to RJ45 Adaptor
08905180X1
- 1 -
Advertisement
Table of Contents
Related Manuals for Xantech XIS100
Summary of Contents for Xantech XIS100
- Page 1 480P video output iPods to see their video in full native resolution on a plasma, LCD, or other compatible TV screen with component video output. The ‘XIS100' features a unique on- screen menu display and control system and is compatible with the latest iPod video technology.
- Page 2 A/V cable to connect to a composite video and audio amplifier. Direct the included remote control to the XIS100 and press the ‘power’ button. The ring on the XIS100 will light ‘on’. Be sure the remote control has batteries installed.
- Page 3 REMOTE CONTROL UPPER PART Home Whenever pressing this button, you can go back to the Main Menu. Power Press it to power on and off. SELECT PART Select When you decide to select a item, press it to enter or play it. Select When you are in a menu, press them to go up and down and select...
- Page 4 BASE STATION Dock Well Connects to the iPod connector. Gently slide the iPod unit into the vertical connector and verify it is not tilted. Included with the XIS100 is a Dock Well adaptor for smaller iPod units. IR Eye Discreetly hidden is a front panel IR eye used to communicate with the XIS100 remote control.
- Page 5 Video Format This selector switch is used to select NTSC or PAL format. IR IN Modulated IR input use to connect to a Xantech IR bus system. RS232/422 Port to connect to RS232 or RS422 communications devices. To change between 232 and 422, use the on-screen ‘settings’ menu.
- Page 6 Limited Warranty Xantech® warrants its products to be free of defects in materials or workmanship. This is a Limited Lifetime warranty from the date of purchase by the original consumer. Any products returned to Xantech and found to be defective by Xantech within the warranty period will be repaired or replaced, at Xantech’s option, at no charge.
