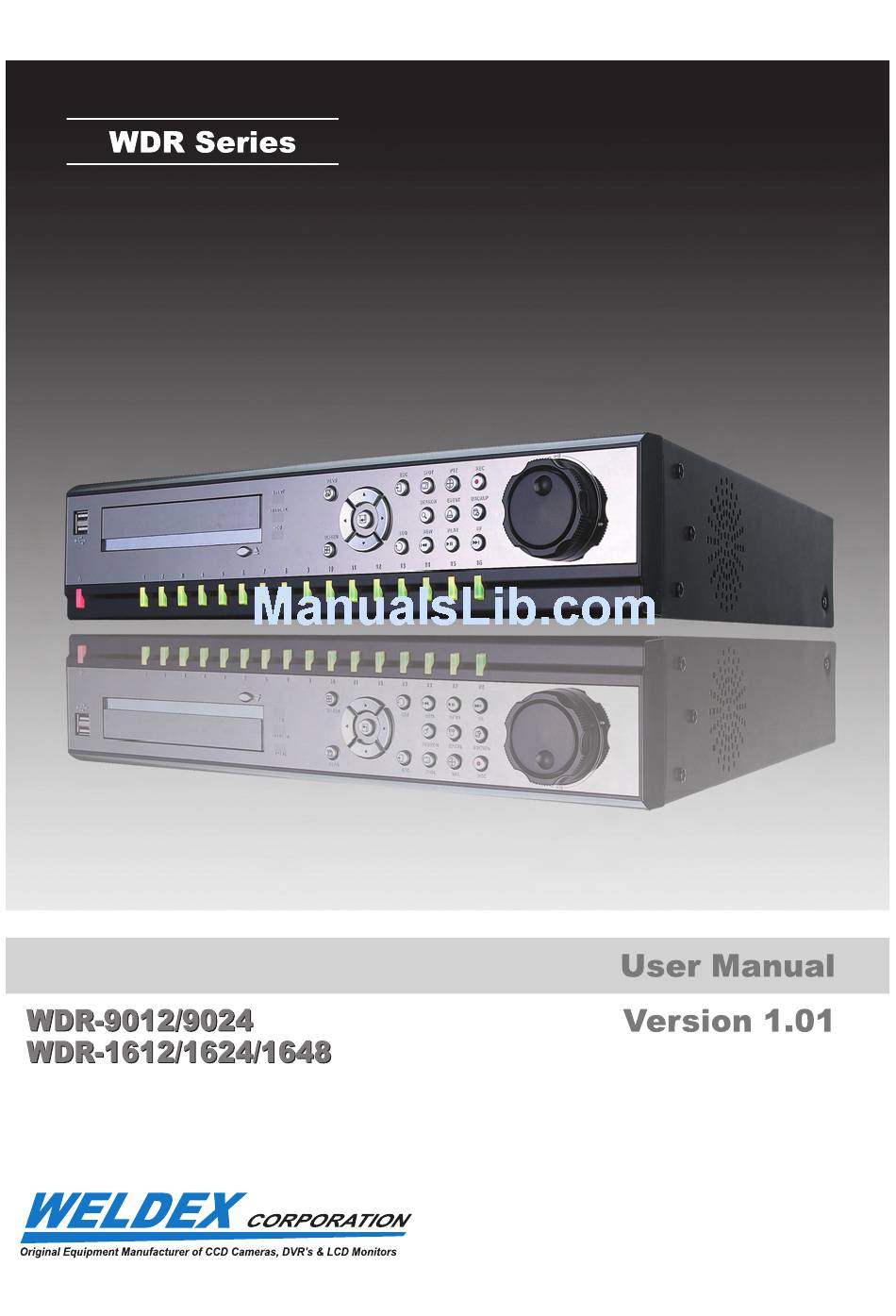

Weldex WDR-9012 User Manual

Wdr series
Hide thumbs Also See for WDR-9012:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WDR-9012 and is the answer not in the manual?

Questions and answers

Related Manuals for Weldex WDR-9012

Summary of Contents for Weldex WDR-9012

  • Page 2: Table Of Contents

    INDEX 1. Product Contents and Specifications •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 5 ▣ Read This First ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 6 ▣ Safety Precautions •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 7 ▣ Caution ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 9 1.1 Product Contents •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 10 1.2 IR Remote Controller •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 11 1.3 User’s Guide •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 12 1.4 Quick Start Page •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 14 1.5 Main Features •••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••...
  • Page 3 4.1.5 SYSTEM / System Upgrade ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 46 4.1.6 SYSTEM / HDD Info ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 47 4.1.7 SYSTEM / Factory Default ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 48 4.1.8 SYSTEM / User Management ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 49 4.1.8.1 SYSTEM / User Management / Add Group ••••••••••••••••••••••••••••••••••• 50 4.1.8.2. SYSTEM / User Management / Add User •••••••••••••••••••••••••••••••••••• 51 4.1.8.3.
  • Page 4 Weldex. ● Weldex makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the Digital Video Recorder, the software, the hard drives, personal computers, peripheral devices, or unapproved/unsupported devices.
  • Page 5 FCC NOTICE Digital Video Recorder, Model WDR-1612, WDR-9012. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

  • Page 6: Product Contents And Specifications

    1. Product Contents and Specifications - 5 -...

  • Page 7: Read This First

    The Privacy act of 1974 (5 U.S.C. § 552a) Please note that WELDEX Digital Video Recorders are intended for recording of surveillance use and should never be used in a manner that invades other people’s privacy or contravenes international or domestic privacy act and its regulations.

  • Page 8: Safety Precautions

    Do not drop metallic parts through slots. This could permanently damage the Digital Video Recorder. Immediately turn the DVR’s power off or unplug the power cord from the power outlet. Contact a qualified service personnel authorized by the equipment distributor or a WELDEX customer help desk.
  • Page 9 humid or greasy environments, the dust that collects around the ventilation or the slots on the outer casing over long periods of time may become saturated with humidity and short-circuit, leading to fire. Do not cut, damage, alter or place heavy items in the power cord. Any of these actions may cause an slsdcrical short circuit, which may lead to fire or electrical shock.

  • Page 10: Caution

    CAUTION Avoid using placing or storing the equipment in places subject to strong sunlight or high temperatures, such as the greenhouse or trunk of a car. Exposure to intense sunlight and heat may cause the battery to leak, overheat or explode, resulting in fire, burns or other injuries.

  • Page 11: Product Contents

    1.1 Product Contents Before installing the DVR, please make sure that the following items are included in the box. Plug-In Software Remote Manual Power Cable Connection Block Control - 10 -...

  • Page 12: Ir Remote Controller

    1.2 IR REMOTE CONTROLLER < How to change Remote ID> 1. Push IDSEL button for 3~5 seconds. 2. Push the Number button of 2 digits to change remote identification. ID input range : 00 ~ 99 3. It finished setting. - 11 -...

  • Page 13: User's Guide

    1.3 USER’s GUIDE 16 Channel DVR Series Item WDR-1612 WDR-1624 WDR-1648 Geode X86 32-bit Processor SDRAM 128 MB 3.5 inch 2 HDD + DVD-RW (Max. 4 HDD) Operating System Embedded Linux Video Format NTSC / PAL standards, Auto-Sensing Video Input 16 BNC Video output 16 BNC...
  • Page 14 9 Channel DVR Series Item WDR-9012 WDR-9024 Geode X86 32-bit Processor SDRAM 128 MB 3.5 inch 2 HDD + DVD-RW (Max. 4 HDD) Operating System Embedded Linux Video Format NTSC / PAL standards, Auto-Sensing Video Input 9 BNC Video Output...

  • Page 15: Quick Start Page

    1.4 QUICK START PAGE The Factory Default password for the unit is “0000” - 14 -...

  • Page 16: Main Features

    1.5 MAIN FEATURES DISPLAY MODE - Realtime Display - Multi-Split Screen Mode PLAYBACK MODE - Playback Recorded Images SETUP MODE - 5 Options for System Control - SYSTEM - DEVICE - RECORD - NETWORK - BACKUP - 15 -...

  • Page 17: Product Dimension

    1.6 PRODUCT DIMENSION 450 mm 430 mm 430 mm - 16 -...

  • Page 18: Dvr Layout

    1.7 DIGITAL VIDEO RECORDER LAYOUT 1.7.1 FRONT PANEL LAYOUT Name Functions The USB port is to connect external backup devices such as CD-RW, ○ USB Port DVD-RW, external hard disk drive and flash memory stick. Indicates the camera image is being stored into or retrieved from the HDD. ○...

  • Page 19: Rear Panel Layout

    1.7.2 REAR PANEL LAYOUT Name Functions ○ 1 POWER Voltage : AC 100-240 V, AC POWER SOCKET, POWER FAN ○ 2 VIDEO IN Connect Video Input with BNC. ○ 3 LOOP OUT Camera image of each channel will be outputted. ○...

  • Page 20: Product Operation

    2. Product Operation - 19 -...

  • Page 21: Installation

    2.1 INSTALLATION 2.1.1 Connecting Peripheral Devices This section describes how to efficiently hook up peripheral devices for usage with DVR. Install DVR on flat surface. If required, attach the rubber mount for installation. Note Install system in location with good ventilation to prevent overheating. Internet Caution Depending on the grounding, the coaxial cable connecting to the camera has danger of electric shock.

  • Page 22: System Startup And Shutdown

    2.2 SYSTEM STARTUP and SHUTDOWN 2.2.1 System Startup After connecting all peripheral devices, connect power cord to DVR for system startup. The power will be turned on automatically within 5 seconds of power cord being connected. However, power will not be turned on automatically, if power button was previously turned off by user. In that case, The power button must be pressed again to restore power.
  • Page 23 - 22 -...

  • Page 24: How To Use Device

    3. How to use Device - 23 -...

  • Page 25: Display Mode

    3. How to use Device 3.1 DISPLAY MODE Displays the basic information about the DVR. Taskbar Display Mode Picture Item Function Timed images displayed 16 camera option on 120 Screen Frames per second. Number of Channels Choose camera option with mouse. (1~16) Event Click to capture current event.
  • Page 26 Click on PIP mode to display channels or images on PIP Mode Channels. Next Screen Click to go to next screen. Setup Click to go to DVR menu. Search Click to go to Search mode. PTZ MODE Click to go to PTZ operation mode. Data Backup Backup Images.

  • Page 27: Display Mode Popup

    3.1.1 Display Mode Popup Taskbar Display Mode Search Item Function Display Mode To set display Put images in a particular sequence. FREEZE Freeze image. ZOOM Get close up of image or adjust zoom. PTZ bar enables. SEARCH Search bar enables. MENU Go to menu screen.

  • Page 28: Playback Mode

    3.2 PLAYBACK MODE When the Playback button is pressed, the DVR starts to playback any record data from The latest data, when in live or recording mode. When the DVR reaches the end of the recorded data, it will be at still mode of playback data. During the playback, the DVR may be played back in reverse, paused, speed search.
  • Page 29 Screen Mode Change from 4, 9, 16 screens. Next Screen Go to next screen. Search for Playback Click to find image. Playback Keys Playback buttons. Return to live mode Click to go back to current image. - 28 -...

  • Page 30: Calendar Search

    3.2.1 Calendar Search To look for specific event use the calendar search screen. Taskbar Display Mode Search Calendar Search Item Function Month To set month Year To set year Camera To set camera options Time Table Bar Shows amount of time Arrow Key Shows amount of current image captured Search Time...

  • Page 31: Event Search

    3.2.2 Event Search Click on Search menu to enable event search. Taskbar Display Mode Search Event Search Item Function Date Displays date of recording. Click on image button to search image on a given date. To show all recorded events. Sensor Displays sensor event captured.

  • Page 32: Time Search

    3.2.3 Time Search Taskbar Display Mode Search Time Search Item Function Search Time Search Time Setting PLAY Play of Search Time - 31 -...

  • Page 33: Ptz Bar

    3.3 PTZ Bar Taskbar Display Mode PTZ Bar Item Function Arrow Key Up / Down / Left / Right ZOOM Z+, Z- to Zoom In or Zoom Out FOCUS F+, F- to Focus Near or Focus Far IRIS I+, I- to adjust PRESET Device ->...

  • Page 34: System Setup

    4. System Setup - 33 -...

  • Page 35: Initial Setup

    4. SYETEM SETUP INITIAL SETUP <Menu Tree> - 34 -...

  • Page 36: Main Menu

    Main Menu - Click a menu button to go to main menu. - 35 -...

  • Page 37: System Menu

    4.1 SYSTEM MENU Main menu will dlirect you to system menu for general information. - 36 -...

  • Page 38: System / General

    4.1.1 SYSTEM / General Shows system information (Site ID, DVR ID, Remote Controller ID, Language, Time) SETUP SYSTEM General Item Function Site ID Identifies each unit. Virtual Keyboard Virtual Keyboard Text allows to be typed. DVR ID I identifies DVR used. Remote Controller ID can set up 0 ~ 99.

  • Page 39: System / General / Keyboard

    4.1.1.1 SYSTEM / General / Keyboard SETUP SYSTEM General keyboard Item Function Edit Box Top of keyboard to input information. EXIT Top right side to exit out of keyboard menu. Number/Alphabet For Title Name Backspace For backspace key Enter For enter key Shift For shift key Caps Lock...

  • Page 40: System / General / Spot Out

    4.1.1.2 SYSTEM / General / Spot Out SETUP SYSTEM General Spot Out Item Function Set Camera Ability to set each camera. Ok set cameras. - 39 -...

  • Page 41: System / General / Spot Out / Spot Out(Camera)

    4.1.1.3 SYSTEM / General / Spot Out / Spot Out(Camera) SETUP SYSTEM General Spot Out Item Function Camera Number Click All to enable all cameras or click on each individual camera. Ok selection(s) made. CANCEL Cancel inputted information. - 40 -...

  • Page 42: System / Osd

    4.1.1.4 SYSTEM / General / OSD SETUP SYSTEM General Item Funchion Enable all options. Date Enable dute to appear. Time Shows time. Title Shows camera identity. To enable PTZ. Recording Enable record mode. Audio Allow audio. Accept selections. CANCEL Cancel selections made. - 41 -...

  • Page 43: System / Date & Time

    4.1.2 SYSTEM / Date & Time SETUP SYSTEM Date/Time Item Function Date/Time Display Date/Time Virtual Calendar Enter Date/Time Date Format Select date format Time Format Select time format Time Zone Select time zone automatic Daylight Saving Time option Time Sync Mode To display when inputs were made duel saved Sync Server IP Input IP address...

  • Page 44: System / Date&Time / Calendar

    4.1.2.1 SYSTEM / Date&Time / Calendar SETUP SYSTEM Date/Time Calendar Item Function Month Set this month with arrow icon. Year Set this year with arrow icon. Hour Set Hour information. Minute Set minute information. Set second information. AM / PM Set AM/PM option.

  • Page 45: System / System Info

    4.1.3 SYSTEM / System Info SETUP SYSTEM System Info Item Function Video signal Switch from NTSC/PAL. Software Version Indicates software version. Indicates hardware version. Hardware Version Used and hdd much is free. Disk Usage Indicates current IP address. IP Address Indicates unique MAC address for Ethernet.

  • Page 46: System / System Log

    4.1.4 SYSTEM / System Log SETUP SYSTEM System Log Item Function Date log to retrieve. Date Virtual Calendar Enter date/time. Display all date/ time activities. Displays all system information. System Displays setup information. Setup Displays log event. Event Network Network related log. CLOSE Close out of screen.

  • Page 47: System / System Upgrade

    4.1.5 SYSTEM / System Upgrade Allows upgrade of software. SETUP SYSTEM Upgrade Item Function Method To uprade use USB, CD-RW or FTP. Device To see current device used. Scan To see current scan. Host Address Show host address. Current Version Current software version.

  • Page 48: System / Hdd Info

    4.1.6 SYSTEM / HDD Info SETUP SYSTEM HDD Info Item Function HDD Id displayed. Model HDD model displayed. Capacity HDD capacity displayed. Free Amount of unused space. Temperature HDD temperature displayed. When HDD is full, Overwrite/Stop Recording HDD Full can be chosen. FORMAT Begin HDD format.

  • Page 49: System / Factory Default

    4.1.7 SYSTEM / Factory Default Factory Default screen allows resetting of system. SETUP SYSTEM Factory Default Item Function Edit Factory Default edit option. Confirm Confirm option. Factory Default changes. CLOSE Close out of screen. - 48 -...

  • Page 50: System / User Management

    4.1.8 SYSTEM / User Management SETUP SYSTEM User Management Item Function Group Show current group name. User Show individual user access. Add Group Assign new group. Add User Assign new user. Edit Edit Group/User. Delete Remove Group/User Auto Log-in Automatically log-in SAVE Save new information.

  • Page 51: System / User Management / Add Group

    4.1.8.1 SYSTEM / User Management / Add Group In user management screen click on ADD group for screen below. Here you can add/remove groups. SETUP SYSTEM User Management Add Group Item Function Group Add up to 15 different groups. Virtual Keyboard Enter Group Name.

  • Page 52: System / User Management / Add User

    4.1.8.2 SYSTEM / User Management / Add User SETUP SYSTEM User Management Add User Item Function User Add new user. Group Add new group. Password 1-9 characters for password. Confirm Confirm password again here. Confirm information. CANCEL Cancel inputted information. - 51 -...

  • Page 53: System / User Management / Edit

    4.1.8.3 SYSTEM / User Management / Edit In user Management screen group choose to edit group information. SETUP SYSTEM User Management Add User Item Function Group Change group user. Allow changes. CANCEL Cancel changes made. - 52 -...

  • Page 54: System / Export & Import Setup

    4.1.9 SYSTEM / Export & Import Setup DVR Export/Import Setup SETUP SYSTEM Export & Import Setup Item Function Export To Choose where to export to Scan Indicates where to scan to Import From Choose where to import to Scan Indicates where to scan to. Progress Progress of Export/Import.

  • Page 55: System / Log Off

    4.1.10 SYSTEM / Log Off How to log off DVR SETUP SYSTEM Export & Import Setup Item Function User Choose user ID. Password User password can be typed with virtual keyboard. LOGIN Confirm log-in. ‼ Warning - Do not forget admin password. - 54 -...

  • Page 56: Device Menu

    4.2 DEVICE MENU Click on second icon for device setup on main menu. There are 6 sub menues. - 55 -...

  • Page 57: Device / Camera

    4.2.1 DEVICE / Camera Enables setup of each camera from brightness, contrast, color, sharpness, sensitivity, etc. SETUP DEVICE Camera Item Function Camera Choose camera. Motion Area Choose areas of motion to be triggered. Show Show areas where motion will be triggered. Title Name each camera.

  • Page 58: Device / Ptz

    4.2.2 DEVICE / PTZ How to setup PTZ SETUP DEVICE Item Function Camera Choose PTZ camera to edit. Screen Shows PTZ camera. Protocol Set PTZ camera protocol. Address Set PTZ camera ID. Set special protocol and address. Directions Move PTZ around. Z+, Z- PTZ camera zoom in or zoom out option.

  • Page 59: Device / Ptz / Guard Tour

    4.2.2.1 DEVICE / PTZ / Guard Tour How to setup Guard Tour DEVICE GUARD TOUR Item Function List List of Guard Tours. Add Preset time. Modify Modify Guard Tour. Delete Delete Guard Tour. START Begin Guard Tour. CANCEL Cancel inputted information. - 58 -...

  • Page 60: Device / Ptz / Guard Tour / Guard Tour Setting

    4.2.2.2 DEVICE / PTZ / Guard Tour / Guard Tour Setting DEVICE GUARD TOUR GUARD TOUR SETTING Item Function Tour Point Choose from Preset1 ~ Preset8. Tour Sec Set Guard Tour time. Choose from Preset time to place in Guard Tour. ...

  • Page 61: Device / Ptz / Aux

    4.2.2.3 DEVICE / PTZ / AUX Camera auxiliary information DEVICE GUARD TOUR GUARD TOUR SETTING Item Function Indicates camera ON/OFF mode. Indicates camera light ON/OFF mode. Indicates camera front wiper ON/OFF mode. Indicates camera front windshield wiper ON/OFF mode. Camera Auxiliary 1. Camera Auxiliary 2.

  • Page 62: Device / Audio

    4.2.3 DEVICE / Audio 4 cameras can have audio preset. SETUP DEVICE Audio Item Function Audio Up to 4 capability ON / OFF ON/OFF mode for audio on cameras. Two-Way Audio Select two-way audio. SAVE Save new information. CANCEL Cancel information. - 61 -...

  • Page 63: Device / Sensor In & Relay Out

    4.2.4 DEVICE / Sensor In & Relay Out SETUP DEVICE Sensor In & Relay Out Item Function Sensor 16 sensor option. ON/OFF ON/OFF of sensor. Camera Indicatcs cameras with sensor. Set cameras to output. Set IPS. (IPS = FPS, frame per second) Preset Presert alarm for PTZ.

  • Page 64: Device / Sensor In & Relay Out / Notify

    4.2.4.1 DEVICE / Sensor In & Relay Out / Notify SETUP DEVICE Sensor In & Relay Out Notify Item Function On/Off All. Buzzer On/Off buzzer. Message On/Off message. Camera Pop-up On/Off camera pop-up. Save changes. CANCEL Cancel changes. - 63 -...

  • Page 65: Device / Motion Alarm

    4.2.5 DEVICE / Motion Alarm SETUP DEVICE Motion Alarm Item Function Camera Indicates camera. ON/OFF On/Off option. To indicate camera notin motion. Indicates frame rate. (image per second) Dwell Motion up to 3 seconds. Pre-Alarm Motion up to 5 seconds. 1-8 camera options.

  • Page 66: Device / Extra Alarm

    4.2.6 DEVICE / Extra Alarm How to set Alarm On/Off SMART, Video Loss, Recording Failure and HDD SETUP DEVICE Extra Alarm Item Function Alarm S.M.A.R.T, Video Loss, Recording Failure ON/OFF Select On, Off of Alarm. Select relay out port to output. Dwell Alarm set up for trigger.

  • Page 67: Record Menu

    4.3 RECORD MENU Third icon on main menu directs you to recording features of camera. - 66 -...

  • Page 68: Record / Camera

    4.3.1 RECORD / Camera SETUP RECORD CAMERA Item Function Recording Resolution Choose type of resolution. Camera Indicates cameras 1-8, 9-16. ON/OFF On/off per camera. Set IPS. Quality 5 Quality of recording image. Audio Indicate audio on cameras 4-maximum. Shows 1-8 cameras. 9-16 Shows 9-16 cameras.

  • Page 69: Record / Camera /Data Keeping Day

    4.3.1.1 RECORD / Camera /Data Keeping Day SETUP RECORD CAMERA Data Keeping Day Item Function View Data Keeping Day ALL SAME DAY(S) Click to save same data on all cameras. CLOSE Close out of window. - 68 -...

  • Page 70: Record / Recording Schedule

    4.3.2 RECORD / Recording Schedule SETUP RECORD Recording Schedule Item Function Use Schedule Check On/Off for used schedule. Multi-Channel Setting Check On/Off for multi channel setting. Check for all camera recording. 0-23 Set hours to record. SUN-H.DAY Check days to record. Check to not record.

  • Page 71: Record / Recording Schedule / Holiday Setup

    4.3.2.1 RECORD / Recording Schedule / Holiday Setup How to Preset Holiday setup SETUP RECORD Recording Schedule Holiday Setup Item Function List Shows selected holiday list. days of week Date Add day/date Remove day/date CLOSE Close out of window. - 70 -...

  • Page 72: Network Menu

    4.4 NETWORK MENU Fourth icon on main menu directs you to networking. - 71 -...

  • Page 73: Network Network

    4.4.1 NETWORK / Network MENU NETWORK Network Item Function Network Type LAN and DHCP option. IP Address Choose Network type is LAN. Subnet Mask Choose subnet mask. Gateway Choose gateway. Choose DNS(Domain Name Server) address. Bandwidth Limit Maximum 10/100Mbps. TCP/IP Port Setup Choose TCP/IP Port number.

  • Page 74: Network / Network /Tcp/Ip Ports Setup

    4.4.1.1 NETWORK / Network /TCP/IP Ports Setup MENU NETWORK Network TCP/IP Port Setup Item Function Set TCP/IP port. Set UDP port. Default Set as default. CLOSE Close without saving. - 73 -...

  • Page 75: Network / Ddns

    4.4.2 NETWORK / DDNS SETUP NETWORK DDNS Item Function Use DDNS Check DDNS option. DDNS Server For DDNS Server use Virtual Keyboard. TCP/IP Port For TCP/IP Port use Virtual Keyboard UDP Port For UDP Port use Virtual Keyboard ID TYPE MAC or DVR ID Select TEST If DVR ID is selected, Click to Test Button...

  • Page 76: Network / Event Notification

    4.4.3 NETWORK / Event Notification SETUP NETWORK Event Notification Item Function Event Server Check for event server IP Address E-mail Input IP address/email address. Events IP-event option. Add IP address with virtual keyboard. Modify Modify IP address with virtual keyboard. Delete Delete information.

  • Page 77: Network / Event Notification / Event

    4.4.3.1 NETWORK / Event Notification / Event To indicate On/Off of event features SETUP NETWORK Event Notification Event Item Function Check for all events. Log-in/out Notify Log-in/out. Setup User setup Start/End recognition. System Start System start notification. Shutdown DVR shutdown notification. Sensor Notify sensor alarm.

  • Page 78: Backup Menu

    4.5 BACKUP MENU Fifth icon on main menu directs you to backup information. - 77 -...

  • Page 79: Backup / Manual Backup

    4.5.1 BACKUP / Manual Backup SETUP BACKUP Manual Backup Item Function Device Backup device. Scan Indicates which device is used. File Format Type of format used. From From date. To date. Camera Choose back up camera. Estimated File Size Indicates file size. Add Viewer Check to add viewer Progress...

  • Page 80: Backup / Schedule Backup

    4.5.2 BACKUP / Schedule Backup SETUP BACKUP Schedule Backup Item Function Check on/off for using schedule backup. Mon~Everyday Select days. Continuous Check on/off for continuous backup. Start Day Enter beginning day for the desired backup. Backup Interval Enter beginning date and ending date for desired backup. Camera(s) Select cameras for desired backup.
  • Page 81 - 80 -...

  • Page 82: Appendix

    5. Appendix - 81 -...

  • Page 83: Rack Bracket Assembly

    5.1 RACK BRACKET ASSEMBLY This drawing is an assembly to install 2 Rack Brackets. After assembling as below, you can lay the DVR on rack cabinet. “Rack Mount Instructions – The following or similar rack-mount instructions are included With the installation instructions : A) Elevated Operating Ambient –...
  • Page 84 B) Reduced Air Flow – Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised. C) Mechanical Loading – Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

  • Page 85: Terminal Block Assembly

    5.2 TERMINAL BLOCK ASSEMBLY Terminal Block Component is used to connect alarm in/out devices and RS-485 communication devices. This drawing is an assembly to install 4 Terminal Block of female type. - 84 -...

  • Page 86: The Configurations Of Terminal Blocks

    5.2.1 The Configurations of Terminal Blocks (1) WDR-1612 / 1624 / 1648 (16 Cahannel DVR) Item Terminal Block Device Type Relay Output Female 8 PIN NO/NC (DC 30V/1A) Alarm Output Female 16 PIN TTL (DC 5V/300㎃) Alarm Input Female 20 PIN TTL (DC 5V/25㎃) RS-485 Female 4 PIN...
  • Page 87 (2) WDR-9012 / 9024 (9 Cahannel DVR) Item Terminal Block Device Type Relay Output Female 8 PIN NO/NC (DC 30V/1A) Alarm Output Female 8 PIN TTL (DC 5V/300㎃) Alarm Input Female 12 PIN TTL (DC 5V/25㎃) RS-485 Female 4 PIN...
