Weldex WDR-4405MC User Manual

Hdd mobile dvr
Hide thumbs Also See for WDR-4405MC:
Table of Contents

Advertisement

Quick Links

Download this manual

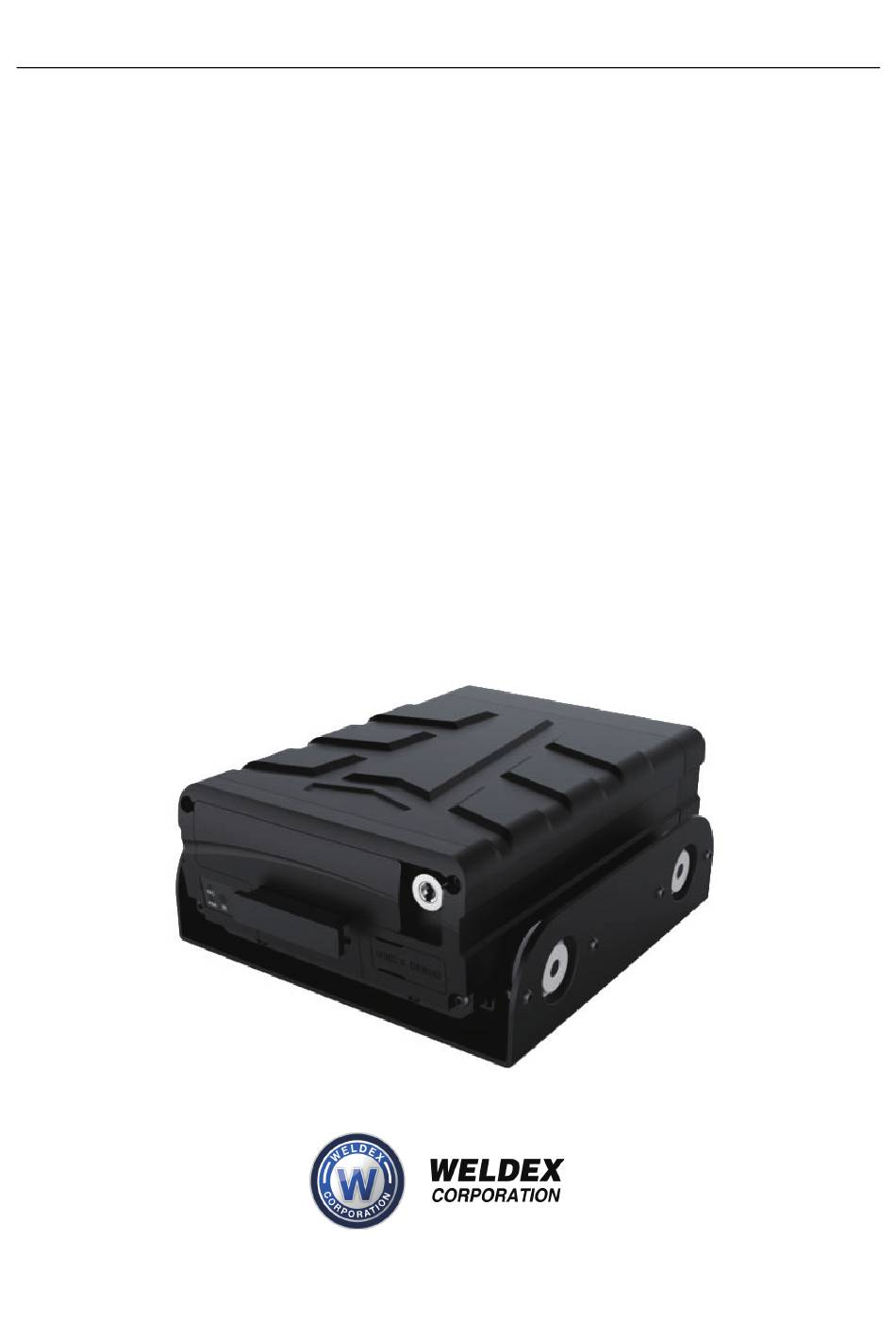

User Manual
Product Name : HDD Mobile DVR
Product Model : WDR-4405MC(Rev.2)
Version : V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WDR-4405MC and is the answer not in the manual?

Questions and answers

Related Manuals for Weldex WDR-4405MC

Summary of Contents for Weldex WDR-4405MC

  • Page 1 User Manual Product Name : HDD Mobile DVR Product Model : WDR-4405MC(Rev.2) Version : V1.0...

  • Page 2: Table Of Contents

    Content 1. introduction ...........................2 1.1. Purpose of writing......................2 1.2. Security alert........................2 2. Product Introduction ........................3 2.1. Product Overview ......................3 2.2. Main Feature ........................3 2.3. Specification ........................4 2.3.1. List of Product Function Specification..............4 2.3.2. Product performance parameters................5 2.4. Product characteristics ....................5 2.4.1.

  • Page 3: Introduction

    1.1. Purpose of writing WDR-4405MC(Rev.2) User Manual was written to enable users to master the features and functions of this product with the help of this manual, to correctly install and use the product, and to facilitate the daily work of technical support engineers and the maintenance work of product engineers.

  • Page 4: Product Introduction

    2. Product Introduction 2.1. Product Overview WDR-4405MC(Rev.2) is a cost -effective, scalable device specially designed for in- vehicle video surveillance and remote monitoring. It adopts high-speed processor and embedded operating system, combined with the most advanced H.264/H.265 video compression/decompression technology and GPS positioning technology in the IT field.

  • Page 5: Specification

    2.3. Specification 2.3.1. List of Product Function Specification Specification Parameter Operation language English System Operation interface Graphic operation interface(OSD menu) Password security Two-level administration: User/Administrator password Video input Support 4CH D1/720P/1080P AHD video mixed inputs Video output 1ch video output(V-OUT), 1ch HDMI video output TV system NTSC / PAL (NTSC@120 frame 1080P / PAL@100frame 1080P) Video...

  • Page 6: Product Performance Parameters

    2.3.2. Product performance parameters Electrical parameter Power input: ＋8V～＋36V; always < 8V or >36V, auto power-off will start and enter into Power input 8 ~ 36V protect mode. Power output Power output: 12V（+/-0.2V）; max current 1A Operating temperature -20°C ~ +80°C Referring to excellent ventilation conditions 2.4.

  • Page 7: Front Panel And Back Panel

    2.4.3. Front panel and back panel HDD case, SD card HDD lock LED light USB and Debug Front panel Front panel definition as below shown: Panel classification Definition Hard disk box, sd card slot It is hard disk, sd card Led indicator light Show device operating status Receive remote control keys...

  • Page 8: Accessories

    Alarm input and output Alarm input and output interface (input high level > interface, I/O interface 4V and low level < 3V valid, alarm output +12V) Display output interface(connect to monitor) AV-OUT Audio & video output IPC interface IPC/ local network interface Speaker Intercom interface Intercom interface for remote intercom...

  • Page 9: Wiring Method

    waterproof and shockproof. a) Waterproof: choose a location that is not easy to enter the water, and keep away from the air conditioner as much as possible to prevent condensation from accumulating inside and outside the terminal equipment when the temperature changes, which seriously affects the service life of the product;...

  • Page 10: Mdvr Operation Guide

    4. MDVR Operation Guide 4.1. Remote Control Function Key Guide Remote control buttons and functions: When the MDVR has a password, press the LOGIN button to enter the password. LOGIN Because the system does not have a recovery and reset function, please remember the password.

  • Page 11: Main Menu Framework

    4.2. Main menu framework Menu Monitor screen Storage Video Setup Status Maintainance manageme search Display Playback Storage About Basic info Time&Date Export device Parameter 3/4G info User Video Data export Upgrade Record Rebooting Network Alarm GPS 信 Peripheral Vehicle 4.3. Operation and configuration 4.3.1.
  • Page 12 be implemented through the soft keyboard. Main Menu: Display all main settings: system setup, video search, disk management (storage), system information(status), system maintenance 4.3.2.1. System setup System management settings include below submenu: display, time and date, user, record, network, alarm, peripherals, vehicle. ①...
  • Page 13 to preview Start guide: help users understand software operations  ② Time and date setting: set time and date Date and time: set the date and time, select the date with the mouse, enter the  number keys to manually set the time Date format: three formats, year/month/day, month/day/year, day/month/year ...
  • Page 14 Switch: On/Off; select Off, you can log in to the setting interface without entering  the password; when you open, you must enter the user name and password to log in to the setting interface. User name and password can be set by yourself (please keep your username and ...
  • Page 15 2. Main stream setting: set the main stream encoding and recording parameters Main stream setting: you can set the recording enable, resolution, frame rate, image  quality, and volume. 3. Substream setting: set substream encoding and recording parameters Sub stream settings: you can set the recording enable, resolution, frame rate, image ...
  • Page 16 ⑤ Network setting 1. Wired network Switch: wired network setting switch  IP : set the network IP address  Network related parameters like subnet mask, default gateway, primary DNS,  secondary DNS server can be set 2. WIFI setting STA mode Switch: WIFI setting switch ...
  • Page 17 Name: set the SSID name of the WIFI hotspot  Password: set the password of the WIFI hotspot  Allow networking: turn on networking (AP hotspot network)  Networking: set wired or 3/4G networking  ⑥ Alarm: Alarm Settings 1. I/O input: I/O input setting I/O input: I/O enable, trigger level, linkage setting (buzzer, I/O output, snapshot, ...
  • Page 18 3. G_sensor：G_sensor alarm setting Horizontal installation: you can set forward parallel, forward vertical, reverse  parallel, reverse vertical  （1）Scene mode: you can set harsh acceleration alarm, harsh deceleration alarm, harsh turn alarm, incline alarm, linkage setting （2）Value mode: you can set Y reverse alarm, X direction alarm, Z direction alarm, linkage setting (buzzer, I/O output, record) Note: The linkage setting can be set only when enabled.
  • Page 19 ⑦ Peripherals 1. RS232 serial port peripherals Device type: select the peripheral type and select the corresponding setting for the  corresponding device. Parameter setting: set corresponding parameters (baud rate, data bit, stop bit,  check mode, etc.) according to the corresponding peripheral devices 2.
  • Page 20 ⑧ Vehicle: 1. Vehicle info Plate number: set the corresponding license plate number of the device  Driver Name：set the corresponding driver name  Phone Number：set the corresponding phone number  Company：set the corresponding company name  2. Location service Position Mode：set device position mode（BD、GPS、or BD/GPS mixed）...
  • Page 21 3. Power Protect Enable：set the power protection switch  Min Voltage (V)：set the minimum voltage for power protection  ON-OFF Mode: select switch mode  Delay Switch：after the switch is turned on, you can choose Delay 1 (level 1:  time-lapse recording time after ACC disconnection), Delay 2 (level 2: delayed shutdown time after ACC disconnection and delay level 1 ends )
  • Page 22 4.3.2.2. Video search ① Video search：select the corresponding device and click Search for the video as shown below: Monthly calendar: the date displayed in the table which shows green indicates that  the day is with normal recording, shows red indicates that there is alarm video on the day, shows blank indicates that there is no video file on the day, and shows blue indicates that the video is selected for the day.
  • Page 23 Play: there are two ways (playback interface as shown above) Method 1: select the file to be played, press the ENTER button on the remote control to play (press the up and down buttons of the remote control to select the video file to be played.
  • Page 24 4.3.2.3. Storage ① Disk(Storage device): manage video storage devices Overwrite mode: set the recording loop overwrite mode  Format: after checking, click Format to format the storage device, which can  display information such as the available capacity and total capacity of the storage device and the file system format.
  • Page 25 4.3.2.4. Status ① Basic status The basic status can also be entered directly by clicking the menu bar of the channel live preview interface. Voltage: display device input power voltage.  Disk Used：display hard disk space status in normal recording ...
  • Page 26 4.3.2.5. Status About: display device firmware related information, such as: operating system,  device name, customer version, App version, Mcu version, etc. Parameter maintenance: you can export and import device configuration  parameters and restore factory settings Upgrade: used to upgrade device firmware and microcontroller software ...
  • Page 27 Rebooting: operating device security restart  4.3.2.6. Menu Bar Description Menu: click to enter the menu  Full screen( show one channel  口): Four split screen( how four channels 田): s Color adjustment: you can select the channel, set the brightness, chroma, contrast, ...

  • Page 28: Common Shortcut Settings And Solutions For Possible Issues

    5. Common Shortcut Settings and Solutions for Possible Issues 5.1. Shorcut settings 5.1.1. Wiring test and boot The mobile dvr power cable has three lines(red, black and yellow). The red and black line needs to connect directly to the vehicle battery. The red line is connected to the positive pole, while the black line is connected to the negative pole, and the yellow line is connected to the ignition line (ACC).

  • Page 29: Related Issues

    5.2. Related issues 5.2.1. Why no record after the device is turned on? ①. Please check whether the SD card slot of the front panel has a SD card. ②. If the SD card exists, please check the storage disk status on the system info interface: Status types: non-existent;...

  • Page 30: Gps Related Issues

    The device firmware or hardware is faulty. Please remove the storage hard disk or SD card. If the device is powered normally and still restarts. Please inform the technical support engineer the firmware version of mdvr and return to the factory for repair if necessary.

  • Page 31: Appendix

    5.4. Appendix Image quality and storage comparison table H264 H265 Quality Quality Best Better Medium Normal Best Better Medium Normal Resolution Resolution 140.6 112.5 84.4 56.3 84.4 67.2 50.5 34.4 D1/960H 562.5 450.0 337.5 225.0 D1/960H 337.5 269.8 202.2 134.9 720P 1125.0 900.0...
