ATC-X
The is completely controllable by MIDI, with a long
list of parameters and functions assignable to Velocity,
Modwheel, and Aftertouch. Certain sound parameters also
have a dedicated Continuous Controller assignment (see
chart on page 16). In addition, parameter edits made by the
rotary encoder are transmitted as Controller data. This
extensive MIDI implementation allows for an almost
unlimited expression of tone and timbre manipulation,
which can be recorded to any MIDI sequencer.

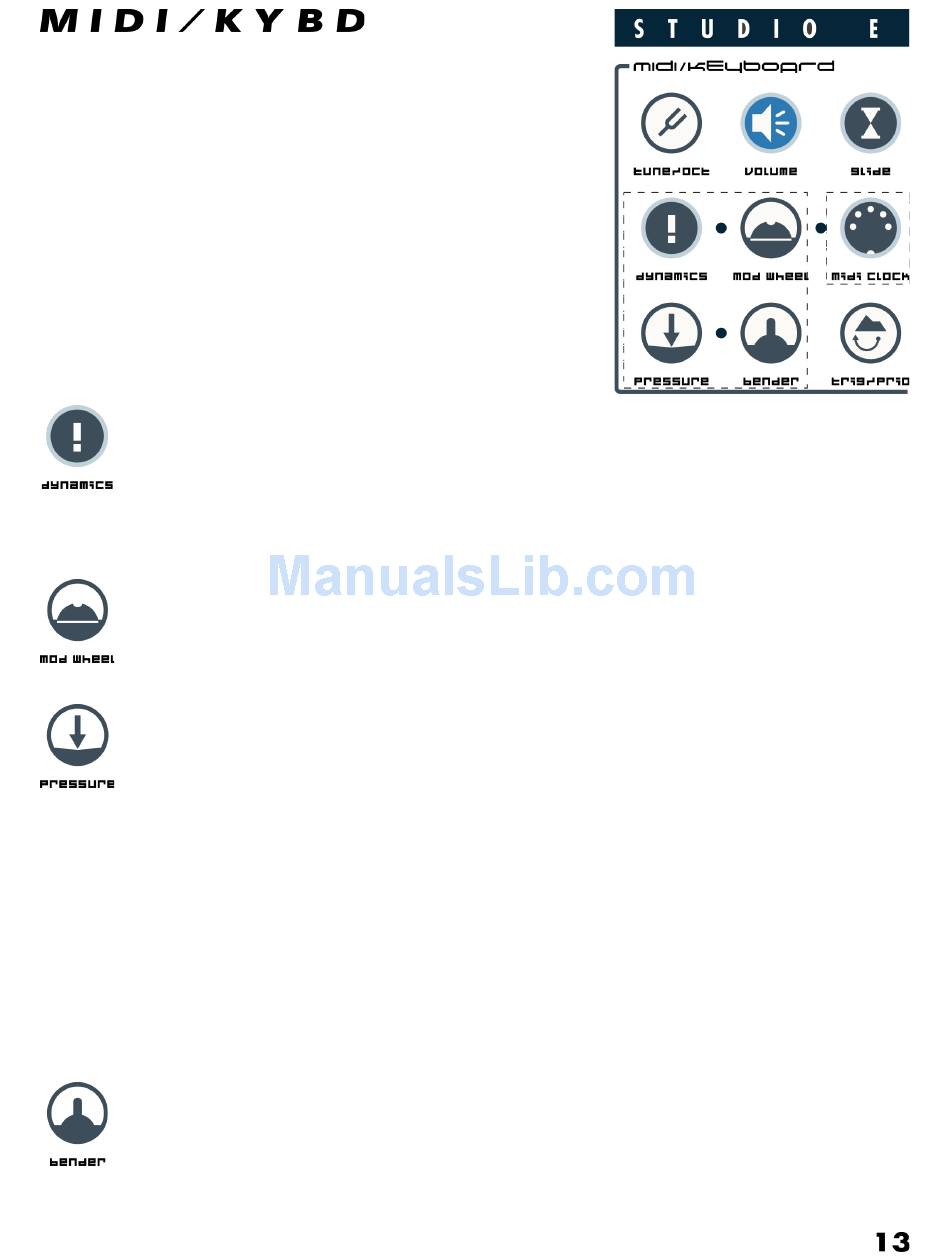

What the Switch pads do:
Selects the velocity sensitivity of Envelope amounts 1, 2, and 3. Press once to
access Envelope 1; the display will read: EA1
encoder––press again to access Envelope 2; the display will read: EA2
encoder to edit––pressing a third time accesses Envelope 3; the display will read:
EA3. Follow with the encoder to change the value. An edit to the patch to be EA3
made to display the current value of a parameter selected.
Selects the Modwheel assignment and its sensitivity. Press once to access the
assignment list, press again to access the sensitivity amount. The Modwheel can
control only one parameter at a time (see page 16 for the complete assignment
list).
Selects the Aftertouch assignment and its sensitivity. Press once to access the
assignment list; press again to access the sensitivity amount. Only one parameter
at a time can be controlled by Aftertouch. Assignments for Aftertouch are the
same as for the Modwheel. Aftertouch/Pressure destinations are also assignable
to Modwheel––allows Modwheel to control two simultaneous modulation targets
with independent depths (tricky... but rewarding). Doubling up protocol:
Press and hold pressure then press exit. Display will show on/off. Keep holding
pressure while pressing exit button to toggle on or off. Off means that pressure
will not be received and that Modwheel will control the pressure assignment.
Program the desired pressure (now Modwheel) assignment and depth as usual.
Release pressure and press any other button to exit this mode. Note: unless so
programmed, the pressure info sent from keyboard or sequencer is received as
Aftertouch/Pressure info.
Selects the Pitch Bend control range of the oscillators and the filter. Press once
to access the oscillators; the display will read: OSC
the value––press again to access the filter; the display will read: VCF
encoder to edit. An edit to the patch to be made to display the current value of a
parameter selected.
EA1. To change the value, use the
OSC. Use the encoder to change
EA2. Use the
VCF. Use the
