615M-1 Cellular Modem & IP Router Quick Start Guide

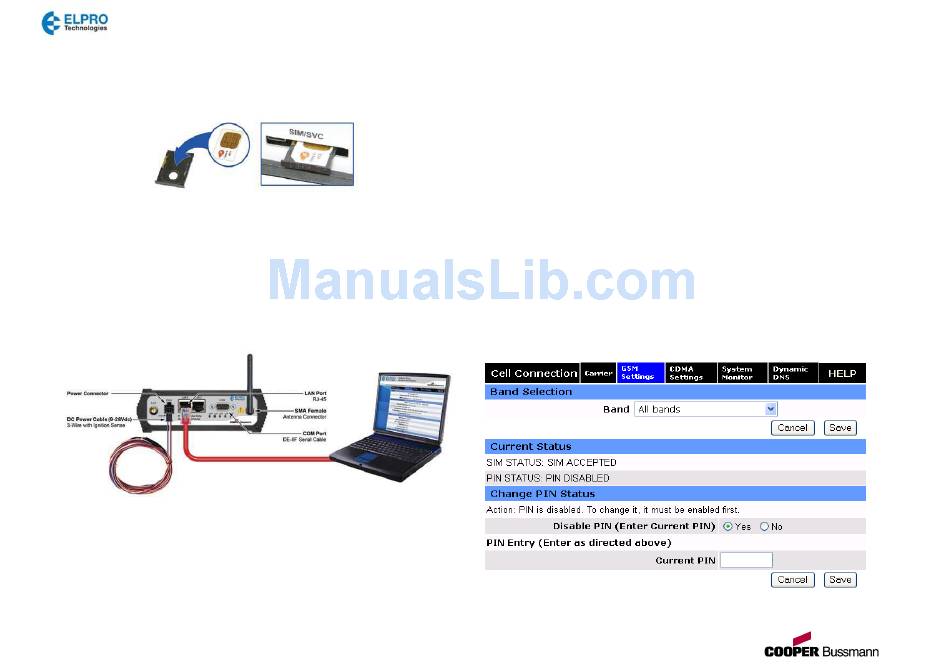

Device Connections
STEP 1: For GSM, insert the SIM card with the gold side up.
Push the card completely into the slot until it clicks in place. (Not required for CDMA).
STEP 2: Connect an antenna to the ANT connector. Use of dual band cellular antenna
is preferred.
STEP 3: Connect the Ethernet cable to the modem's Ethernet port and plug the other
end into the network port of your PC.
STEP 4: Connect the DC Power Cable to the modem and plug into a 9-28Vdc power
source. Connect the ignition sense line (white) with the voltage input line (red). The
ignition sense line is only used for in-car application.
At power up, all LEDs will light red, then amber, then green. Once the boot sequence
is complete, RSSI will light solid green and SVC will be flashing green.
Ver1.0
0612
Accessing the Modem's Web Server
STEP 1: Obtaining the proper IP address to access the modem's web server:
For Windows XP users, select Start » Control Panel » Network Connections.
Right click Local Area Connection and select Properties. Select Internet Protocol
(TCP/IP) and click Properties. On the General tab, select Obtain an IP address
automatically and Obtain DNS server address automatically. Click OK to complete
TCP/IP configuration.
For Windows 7 users, select Start » Control Panel » Network and Sharing Center.
Select Change adapter Setting. Right click Local Area Connection, select Internet
Protocol Version 4 (TCP/IPv4) and click Properties. On the General tab, select
Obtain an IP address automatically and Obtain DNS server address automatically.
Click OK to complete TCP/IP configuration.
STEP 2: Open a web browser and enter 192.168.1.50 in the address bar. A login screen
should appear, enter the User name: admin and the Password: password and click OK.
STEP 3: On the device Home page, the PPP status will read DOWN until the cellular
device is enabled. Before moving onto activation, please verify you have an adequate
RSSI, which is listed on the home page of the device.
GSM Settings (GSM SIM Card Acceptance)
GSM Subscribers
From the device Home page, select Cell Connection from the main navigation panel
and then select GSM Settings. SIM STATUS should read SIM ACCEPTED.
www.cooperbussmann.com/wirelessresources
