Elpro Technologies 415U-E C Series Install Manual

Install Guide 415U-Ex-Cx
415U-Ex-Cx wireless mesh modem and gateway
installation guide
Models
415U-E-C1 – 148 to 174MHz
415U-E-C3 – 360 to 400MHz
415U-E-C4 – 480 to 480MHz
415U-E-C5 – 470 to 520MHz
415U-E-C9 – 928 to 960MHz
Antenna installation
When selecting an antenna, consider radio proximity.
Use Figure 1 as a guide for installing an antenna and attaching it to the 415U-E-Cx.

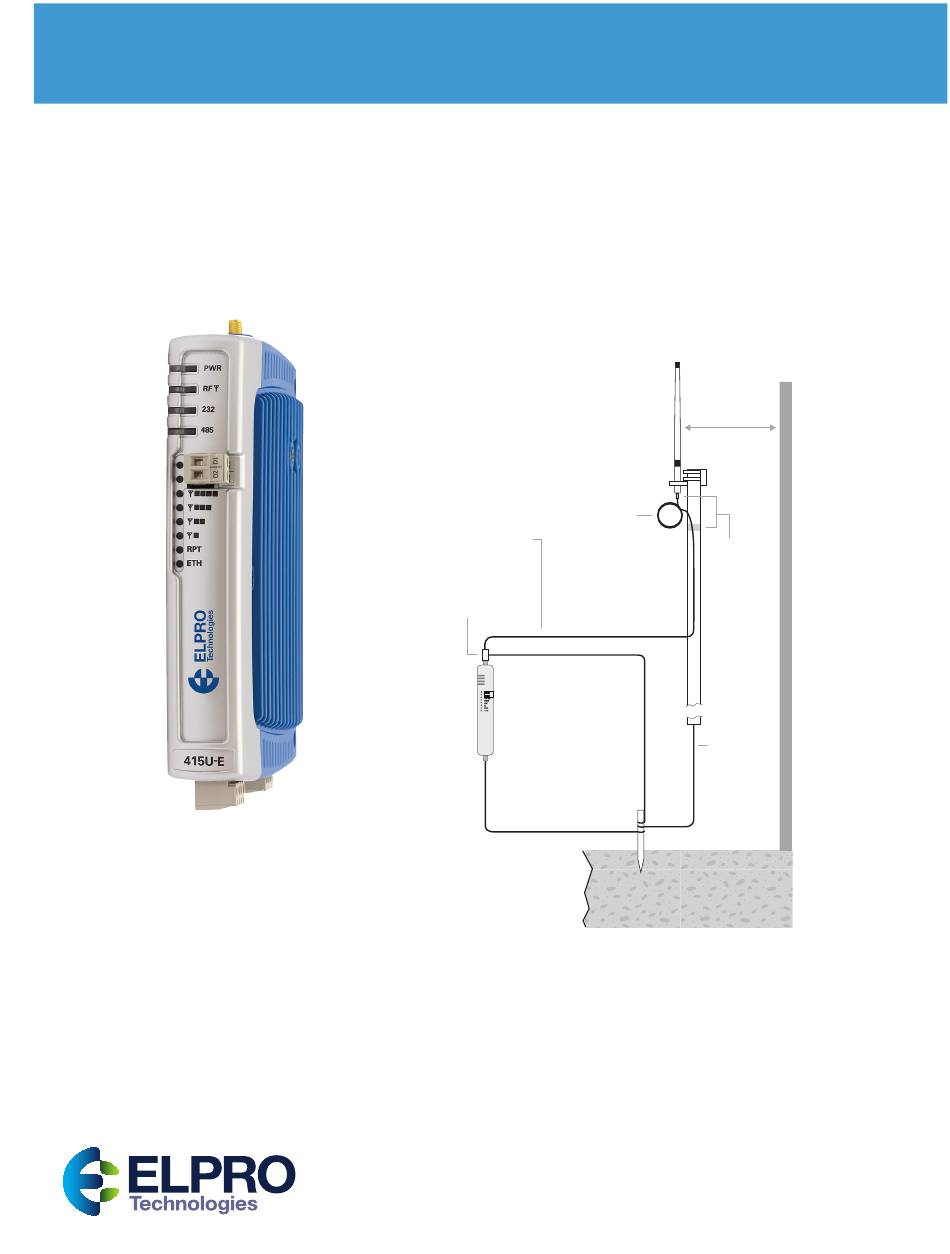

Figure 1. Antenna installation
Wavelength: Antenna
148MHz = 80" (202cm)
360MHz = 33" (83cm)
400MHz = 30" (75cm)
480MHz = 25" (63cm)
930MHz = 13" (32cm)
Connect Coax to
building earth in
accordance with
Stress
6.2 g) and 6.2 i) of
Relief
IEC60728-11:2005
Loop
Surge Arrestor
(recommended)
Coaxial Cable
GND
415U-E-Cx
GND
at least 11 AWG (4 mm 2 )
Provide good ground
connection to mast,
module, and surge
arrestor.
If ground conditions
are poor, use more
than one stake.
Connecting to the module for configuration
Download and install configuration application "CConfig" from ELPRO website
•
www.elpro.com.au
Connect to PC using supplied USB cable
•
Connect to the device at 192.168.111.1
•
The PC will be automatically assigned an IP address via DHCP
•
Username: user
Password: user
1 Wavelength
*
(minimum)
Weatherproof
Connections
(recommended:
3M ™ 23 self-
bonding tape)
Mast
Earth Conductor
at least 5 AWG
(16 mm 2 )
For maximum
*
range, install
above local
obstruc�ons.
Earth Stake
Effective Sept 2022
