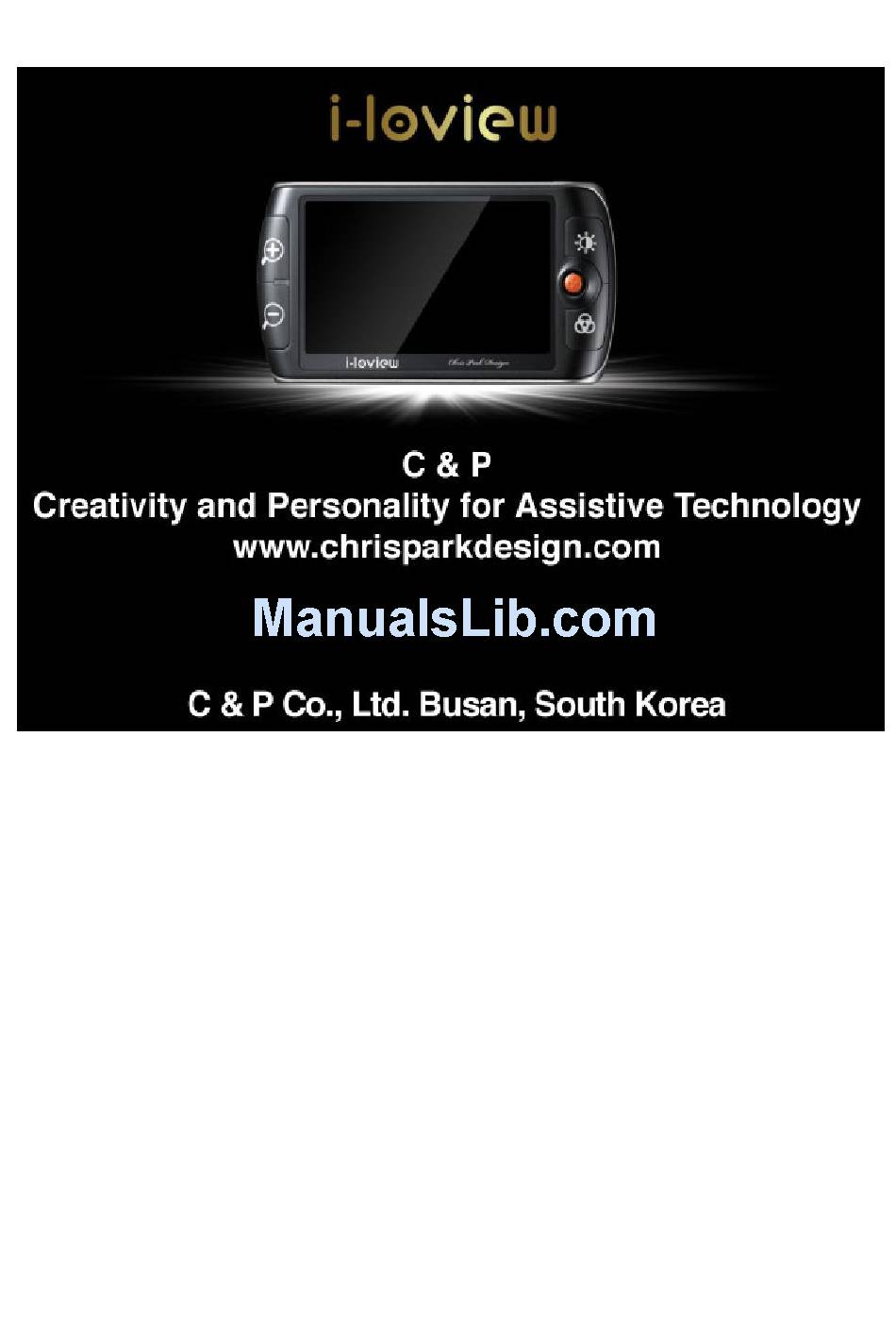

C&P i-loview User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for C&P i-loview

Summary of Contents for C&P i-loview

  • Page 2 Precautions Please read this manual carefully to ensure safe and proper use of the product. IMPORTANT: Negligent use or misuse of the product may cause a fire, personal injury or serious damage. • Do not use damaged power plug or unsuitable outlet to prevent electronic shock or fire.
  • Page 3 IMPORTANT: Misuse of the product may result in personal injury or damage to the unit. • Use only the adapter supplied with the product. Other adapter may damage the unit. • Do not use this unit in moist environments like a bathroom or shower room.

  • Page 4: Table Of Contents

    CONTENTS 1. Package 2. Instructions before Use 3. Configuration 4. Key Features (1) Sound ON/OFF (2) Battery Status (3) Saving Image (4) Magic Mode (5) Returning to User Preferred Settings (6) Power Saving Mode (7) Light ON/OFF (8) Factory Reset (9) Menu 5.

  • Page 5: Package

    1. Package Thank you very much for choosing the i-loview. Please check for the following items in the i-loview package: (1) i-loview (430B) (2) SD Card (3) Power adapter (4) TV-out cable (5) Carrying bag (6) Wrist strap (7) User Manual...

  • Page 6: Instructions Before Use

    2. Instructions before Use (1) The battery must be fully charged for approximately 3 hours prior to the initial use. Please connect the supplied power adapter to the DC input jack to charge the battery. (2) Remove the LCD protection film before using the unit. (3) Be careful not to allow foreign material to adhere to the camera lenses.

  • Page 7: Configuration

    3. Configuration...
  • Page 8 3. Configuration ○ 1 Power ON/OFF switch To turn the unit on, slide the switch to the right. To turn off the unit, slide the switch to the right again with the power on. If there is an operation error or malfunction, slide the power switch to the right for 6 seconds to shut down the system.
  • Page 9 3. Configuration (Cont) ○ 3 Zoom (+): Press the button to enlarge the displayed image. ○ 4 Zoom (-): Press the button to reduce the size of image. There are 12 different levels of magnification. Every time you press the Zoom button, the level increases or decreases as follows: Zoom Level Distance from Object...
  • Page 10 3. Configuration (Cont) ○ 5 Color Mode button The image on the screen can be viewed in five color modes: - Natural color - White on black background - Black on white background - Blue on yellow background - Yellow on blue background ○...
  • Page 11 3. Configuration (Cont) ○ 7 Screen Brightness button You can change the brightness of the screen by up to five levels. Every time you press this button, the brightness will increase by 1 level. If you press the button again at level 5, it will return to level 1. ○...
  • Page 12 You can go to other menu by moving the Jog button right or left. Press the button to select your desired item. ○ 9 TV/Video Out terminal You can connect to your i-loview to a TV or computer monitor. On the TV out mode you cannot access the menu. ○ 10 DC-Jack...
  • Page 13 3. Configuration (Cont) ○ 11 Battery charging indicator The indicator shows the battery charging status. The light is red when you are charging the battery, and it will change to green after it is fully charged. ○ 12 Legs You can unfold these legs to rest the unit on the surface of what you are reading.
  • Page 14 3. Configuration (Cont) ○ 14 LED lights ○ 15 Speaker ○ 16 LCD screen ○ 17 Strap hold This strap hold is used to connect the supplied strap.

  • Page 15: Key Features

    4. Hot Keys and Features (1) Sound ON/OFF You can turn the sound on/off by pressing and holding down the Zoom (+) button and Brightness button for 2 seconds or more. (2) Battery status The status of the remaining battery power is not normally displayed, but the indicator shows up when the battery power drops to 30 percent of full charge.

  • Page 16: Saving Image

    4. Hot Keys and Features (Cont) (3) Saving Images If you press and hold down the Snap Shot button for 2 seconds or more the camera icon will appear on the screen. The image on the screen can be saved as an image file to the SD Card. Once the image is saved the camera icon will disappear.

  • Page 17: Returning To User Preferred Settings

    4. Hot Keys and Features (Cont) (5) Returning to User Preferred Settings If you press and hold down the Zoom (-) button, you can restore your preferred settings through the Save Settings menu item. (6) Power Saving Mode If you leave the unit turned on and unused for 3 minutes, it automatically goes into the Power Saving Mode.

  • Page 18: Factory Reset

    4. Hot Keys and Features (Cont) (8) Factory Reset If you turn off the power with the Zoom (+) button pressed, the unit is automatically rebooted and reset to factory defaults.

  • Page 19: Menu

    4. Hot Keys and Features (Cont) (9) Menu To display the menu, press and hold down buttons ⑤ and ⑦ simultaneously for 3 seconds or more. Move the Jog button to the right or left and the menu is displayed in the following order: Press the Jog button to select an item.
  • Page 20 4. Hot Keys and Features (Cont) View Photo : This allows you to display the images stored on the SD Card. You can view other images by moving the view to the right or left. Also in the View Photo mode, you can zoom in/out the images and adjust their colors and brightness levels.
  • Page 21 4. Hot Keys and Features (Cont) Light Brightness: This allows you to adjust the LED light brightness. There are 4 different levels. Sound Volume: You can turn on, off and adjust the volume of sound when you press buttons. There are 16 different levels.
  • Page 22 4. Hot Keys and Features (Cont) Save Settings: You can save your preferred settings for the following items: Zoom in/out ratio, color, screen brightness, image contrast, light brightness and sound volume Press the Zoom (-) button for 2 seconds or more to return to the saved settings.

  • Page 23: Technical Specifications

    5. Technical Specifications Magnification Rate 1.5x - 17x Natural color White on black background Color Mode Black on white background Blue on yellow background Yellow on blue background Wide Screen TFT-LCD (16:9) Screen4.3″ SD Card Max. 32 GB SD Card support Rechargeable lithium polymer Battery - Continuous use: 3.5 hours...

  • Page 24: Warranty

    6. Warranty (1) The warranty term is for one (1) year, except for the battery which is warranted for six (6) months. (2) The warranty does not cover any product problems caused due to the user’s fault.

  • Page 25: Memo

    24page MEMO (1) Certification Number: (2) Name of the Certified Company: (3) Name of the Unit : i-loview (4) Manufacturer and Country of Origin:...
