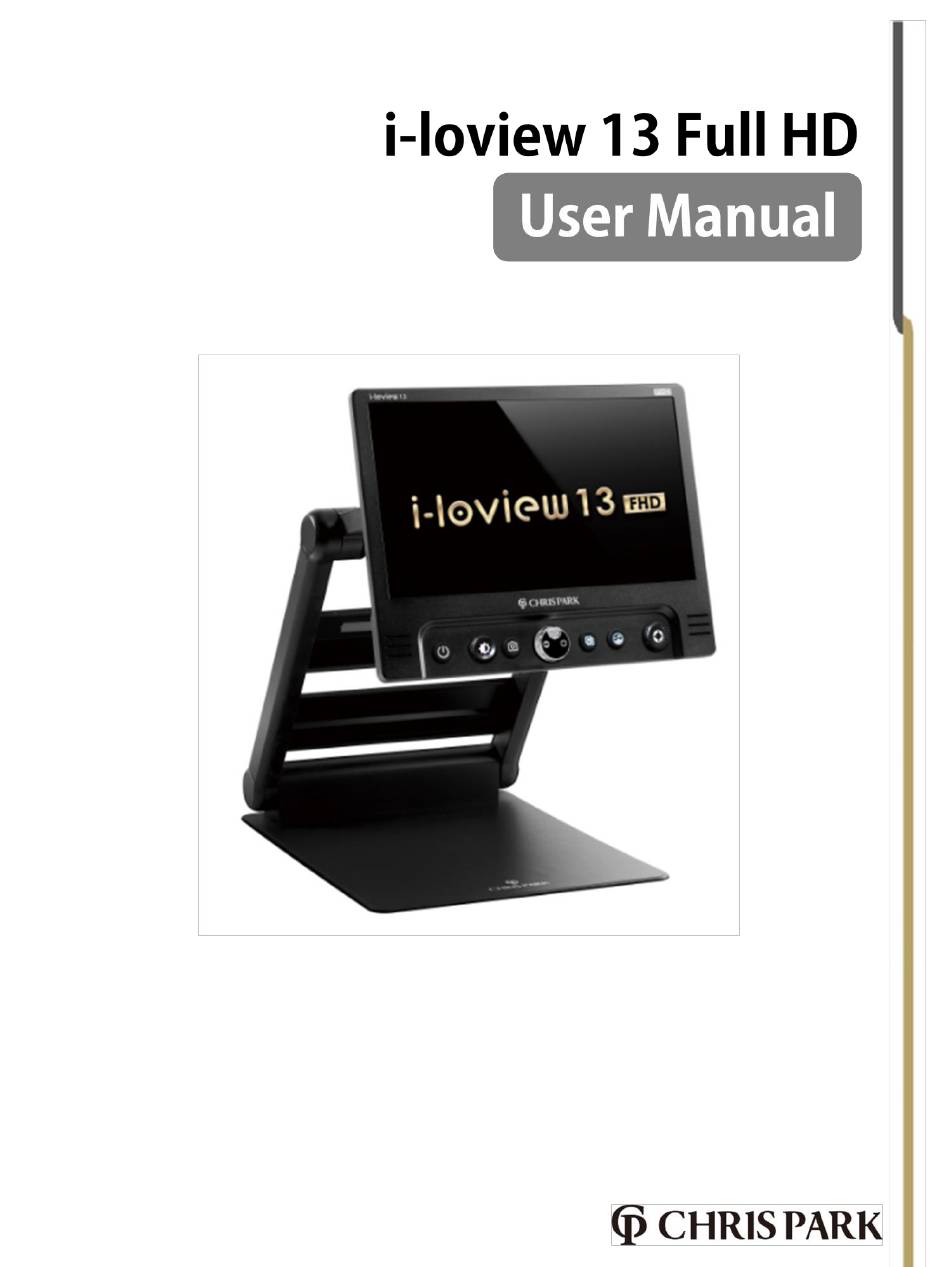

C&P i-loview 13 User Manual

Full hd
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the i-loview 13 and is the answer not in the manual?

Questions and answers

Related Manuals for C&P i-loview 13

Summary of Contents for C&P i-loview 13

  • Page 3 Introduction...
  • Page 4 Introduction...
  • Page 5 Precautions Please read this manual carefully to ensure safe and proper use of the product. ! Important ! Negligent use or misuse of the product may cause a fire, personal injury or serious damage. ㆍ Do not use damaged power plug or unsuitable outlet to prevent electronic shock or fire.
  • Page 6 Precautions Please read this manual carefully to ensure safe and proper use of the product. ! Important ! After six(6) months usage, the lifespan of the battery may be shortened. ! Important ! Keep the product out of direct sunlight and extreme temperatures. ㆍ...

  • Page 7: Table Of Contents

    Contents 1. Package · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2.

  • Page 8: Package

    1. Package Thank you very much for choosing the i-loview 13 Full HD (i-1388) Please check for the following items in the i-loview 13 Full HD (i-1388) Package : 2) Power adapter 1) Portable magnifier 3) Carrying pouch 4) User’s manual...

  • Page 9: Instructions Before Use

    2. Instructions before use ㆍ The battery must be fully charged for prior to the initial use. Please connect the supplied power adapter to the DC input jack to charge the battery. ㆍ Remove the LCD protection film before using the unit. ㆍ...
  • Page 10 Opening the i-loview 13 FHD ① Place the folded i-loview 13 on stable such as table. ② Press on the base plate with one hand, while other hand grabs on top of the body frame. ③ Lift the arm until it locks in place.
  • Page 11 Closing the i-loview 13 FHD ① Put both hands on the left and right sides of the LCD monitor. ② To close the i-loview 13, push down the LCD monitor using both hands. ③ Push the LCD monitor toward the main body frame.
  • Page 12 Camera positions You can use various modes by adjusting the Camera location adjuster ① Self-view mode(mirror mode) ② Reading mode ③ Distance-view mode...

  • Page 13: Configuration

    3. Configuration 1) Power On/Off button 5) Color mode button 2) Image optimizer Wheel 6) Natural color button (Adjusting a brightness) 7) Super Function Key 3) Snap shot button (A Jog Key) 4) Zoom Wheel 8) LCD...
  • Page 14 3. Configuration 9) Camera 10) Conversion lens 11) DC jack...
  • Page 15 3. Configuration 12) LED lights 13) Camera location adjuster...
  • Page 16 3. Configuration 1) HDMI IN 2) HDMI OUT 3) External Key port 4) USB 2.0 5) USB Micro-B type (USB 3.0)
  • Page 17 3. Configuration ① Power On/Off button ㆍ Power on : To turn on the unit, press the button for 2 seconds or more. ㆍ Power off : To turn off the unit, press the button for 2 seconds or more again with the power on state. ②...
  • Page 18 3. Configuration ③ Snap shot button Briefly press the button and the image on the screen will be freezed. ㆍ You can then zoom in/out on the still image and adjust color and screen brightness. ㆍ Press the button again, back to the live image mode. ㆍ...
  • Page 19 3. Configuration ⑤ Color mode button The image on the screen can be viewed in eight(8) color modes ㆍ Natural color mode ㆍ White text on black background mode ㆍ Black text on white background mode ㆍ Yellow text on black background mode ㆍ...
  • Page 20 3. Configuration ⑧ LCD screen ⑨ Camera ㆍ Be careful not to allow foreign material to adhere to camera lens. ㆍ If any foreign material is on the lens, wipe it off with the provided microfiber cloth. ⑩ Conversion lens Open the conversion lens for the distance view mode.

  • Page 21: Hot Keys & Features

    4. Hot keys & Features ( 1 ) Line & Mask Press and hold the Super Function Key(⑦) to activate Line & Mask. When Line & Mask is active, the direction key and wheel of the Super Function Key(⑦) works as follows. ㆍ...
  • Page 22 4. Hot keys & Features ㆍ Wheel : Move the position of the Line & Masks. 1) Counterclockwise 2) Clockwise ( 2 ) Battery status ㆍ The status of the remaining battery power is not normally displayed. ㆍ The battery charging icon when the power adapter is connected will be displayed.
  • Page 23 4. Hot keys & Features ( 3 ) Power saving mode ㆍ If you leave the unit turned on and unused for 10 minutes, it automatically goes into the Power saving mode. If the unit is left further 3 minutes after entering the Power saving mode, power is automatically switched off.
  • Page 24 4. Hot keys & Features ( 5 ) Self-view mode & Distance-view mode You can change the mode by moving the camera with the Camera location adjuster(⑬). ㆍ Self-view mode (Mirror mode) Use when the direction of the camera lens is facing the user. - The camera operates in Self-view mode by the sensor.
  • Page 25 4. Hot keys & Features ( 7 ) MENU Press and hold the center of Zoom wheel(④) to enter the menu mode. In Menu mode, you can change the settings of the following functions. ㆍ Color mode : Add / Delete in default color modes ( MAX 35 modes ) ...

  • Page 26: Technical Specifications

    5. Technical specifications LCD Screen Size 13.3inch ( 338mm ), 16 : 9 wide screen LCD Resolution 1920 x 1080 ( Full HD ) 180 degree LCD Rotation angle Camera 1920 x 1080, 60 fps Auto Focus Specifications Dimensions app. 320mm x 373mm x 420mm ( in operation ) app.
  • Page 27 5. Technical specifications This unit is an EMC-registered device. This device bears the CE and FCC , KC approval mark...

  • Page 28: Warranty

    -> Any problem due to spills of liquid or food. -> Any problem due to operation of the i-loview 13 FHD with tools or equipment not supplied by C&P. -> All metal and plastic surfaces and all other externally exposed parts that will be scratched or damaged due to normal use.
  • Page 29 MEMO...
  • Page 30 MEMO...
  • Page 31 MEMO...
  • Page 32 C & P Creativity and Personality for Assistive Technology www.chrisparkdesign.com Designed in Newport Beach, California, USA Made in South Korea...
