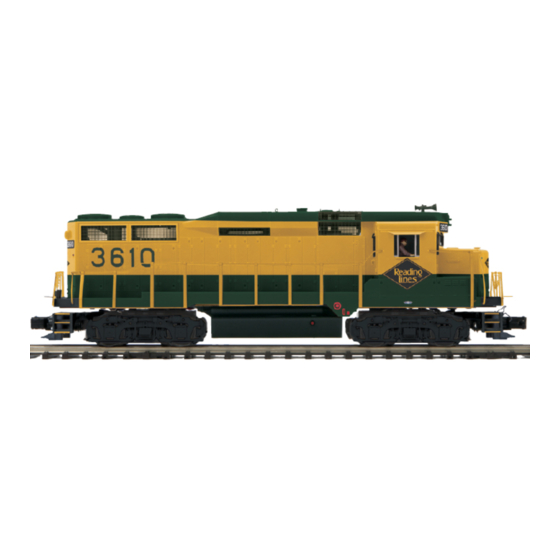

Premier GP-30
OPERATOR'S MANUAL
(3V PS-2)
(Proto-Scale 3-2)
Compatibility
This engine will operate on any
traditional O-31 Gauge track system,
including M.T.H. ' s RealTrax® or
ScaleTrax™ or traditional tubular
track. It is also compatible with most
standard AC transformers. (See page
24 for a complete list of compatible
transformers and wiring instructions.)
Freight Yard Sound
PLEASE READ BEFORE USE AND SAVE
Advertisement
Table of Contents
Related Manuals for MTHTrains Premier GP-30
Summary of Contents for MTHTrains Premier GP-30
- Page 1 Premier GP-30 OPERATOR’S MANUAL (3V PS-2) (Proto-Scale 3-2) Compatibility This engine will operate on any traditional O-31 Gauge track system, including M.T.H. ’ s RealTrax® or ScaleTrax™ or traditional tubular track. It is also compatible with most standard AC transformers. (See page 24 for a complete list of compatible transformers and wiring instructions.)
-
Page 2: Table Of Contents
Table of Contents Set Up Checklist......................Lubrication....................... Checking the Battery..................Priming the Smoke Unit................. Configuring the Locomotive for 2-rail or 3-Rail Operation..... Basic Operation......................Activating Features................... Manual Volume Control.................. Proto-Sound 2.0 Operating Instructions..............Activating Proto-Sound 2.0 Conventional Mode Features......Freight Yard Sounds (FYS)/Passenger Station Announcements (PSA).. Proto-Coupler®... -
Page 3: Set Up Checklist
If you notice that the sounds are g arbled, test and charge the engine as described in the "Self-Charging Battery Back-Up" on page 17. Premier GP-30 Engine with PS-2 and Proto-Scale 3-2... -
Page 4: Priming The Smoke Unit
Add Smoke Fluid Running the engine without a primed smoke unit may cause damage Smoke Unit Control Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 5: Configuring The Locomotive For 2-Rail Or 3-Rail Operation
2-Rail track operation, please do the following: 1. Remove the center rail pickup roller assemblies 2. Change the power input from 3-Rail to 2-Rail as seen in figure 3-Rail Pick ups 3-Rail Pick ups 2-Rail/3-Rail Switch Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... - Page 6 For the configuration and polarity shown above the DCS Polarity switch should be towards the front of the locomotive. DCS Polarity Switch Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2...
-
Page 7: Basic Operation
The engine is programmed to restart in neutral each time the track voltage is turned off for 25 seconds or more. Cycle Phases Neutral Reverse Forward Neutral Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 8: Manual Volume Control
To adjust the volume of all sounds made by this engine, turn the master volume control knob located next to the fuel tank clockwise to increase the volume and counter-clockwise to decrease the volume. Volume Adjustment Knob Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 9: Proto-Sound 2.0 Operating Instructions
After about 30 seconds, press the Direction button again to trigger the third FYS/PSA sequence. Again, after allowing about 30 seconds for that sequence to run, press the Direction button one more time to trigger the fourth and final FYS/PSA sequence. Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 10: Proto-Coupler Operation
Horn/Whistle button, allowing approximately ½ second to lapse between each quick button press. The sound of the liftbar and air line de pletion will play, and the knuckle will be released. Fire Horn/ Horn/ Horn/ Bell Rear Whistle Whistle Whistle Coupler Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 11: Speed Control
Direction Lock Two Whistle Blasts whistle (indicates change is made) Repeat to Return to Normal Condition Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 12: Reset To Factory Default
Cab Chatter plays at random intervals when the engine idles in neutral. Engine Start-up and Shut-down sounds play when the engine is initially powered on or is powered off for five seconds or more. Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 13: Maintenance
3. Use a Grease Tube Dispenser to put a small amount (Approx. 1-2mL.) of lithium-based grease into the gearbox and axles. 4. Replace the Screw. Remove Pickup Roller Grease Port Screw Assembly Screw Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 14: Cleaning The Wheels, Tires And Track
Thereafter, keep an eye on the track and clean it when it gets dirty to ensure good electrical contact and to lengthen the life of the tires. Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 15: Traction Tire Replacement Instructions
One set of replacement tires is packaged with the model. Additional tires are available directly from the M.T.H. Parts Department (phone: 410-381-2580; fax: 410-423-0009; e-mail: parts@mth-railking.com; mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532). Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 16: Locomotive Light Bulb Replacement
Disconnect light bulb harness from main harness wire. Replacement bulb harnesses are available directly from the M.T.H. Parts department. Connect replacement bulb harness and reassemble in reverse.. Body Mount Screws Body Mount Screws Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 17: Self Charging Battery Back-Up
PS 2.0 circuit board and/or the batteries. **Do not use alkaline batteries for testing or checking purposes for the 3-Volt PS2 boards. Using alkaline batteries will damage the 3-Volt battery charging circuit.** Lift Out Battery Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 18: Protosmoke Unit Operation
After removing the engine from storage, add another 25 drops of fluid, letting the wick soak up the fluid for 15 minutes prior to operation. Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... - Page 19 Replacement parts and wick replacement instructions are available directly from the M.T.H. Parts Department (order online: www.mth-railking.com, e-mail: parts@mth-railking.com; mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532, FAX: 410-423-0009). Inspection Cover Screws Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2...
-
Page 20: Troubleshooting Proto-Sound® 2.0 Problems
Do NOT use oil. The coupler does not fire or stay The coupler needs to be cleaned. coupled. Wipe with denatured alcohol (not rubbing alcohol) and let dry. Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... - Page 21 Because there are a limited number of sound clips available in each FYS/PSA sequence, it is probable that some of these sound clips will be repeated from time to time. Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2...
- Page 22 FYS/PSA after step in the FYS/PSA cycle. Wait fourth press of the direction at least 30 seconds in each button. FYS/PSA sound clip before pressing the direction button. Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2...
-
Page 23: Additional Features Accessible With The Dcs Remote Control System
(start in forward or reverse) for double- heading operations •Locomotive Consist Set-up-User can determine locomotive values for consist make-ups, allowing multiple locomotives belonging to a consist to operate together Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 24: Transformer Compatibility And Wiring Chart
Standard Lionel TW 8-18v 175-Watt Standard Lionel ZW A,B,C or D 8-20v 275-Watt Standard Lionel Post-War A,B,C or D Common 0-20v 135/190 Watt Electronic Celebration Series ZW * Conventional Mode Only Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 25: Recommended Dc Power Supplies
300 Watt Electronic BridgeWorks Magnum 200 0-24v 300 Watt Electronic BridgeWorks Magnum 400 0-24v 300 Watt Electronic BridgeWorks Magnum 1000 0-24v 300 Watt Electronic LGB Jumbo 50101 0-24v 240 Watt Electronic Premier GP-30 Diesel Engine with PS-2 and Proto-Scale 3-2... -
Page 26: Service & Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty When you suspect an item is defective, please check the operator's manual for standard operation and trouble-shooting techniques that may correct the problem. Additional information may be found on the M.T.H.
