  • Page 1: Mobile Phone

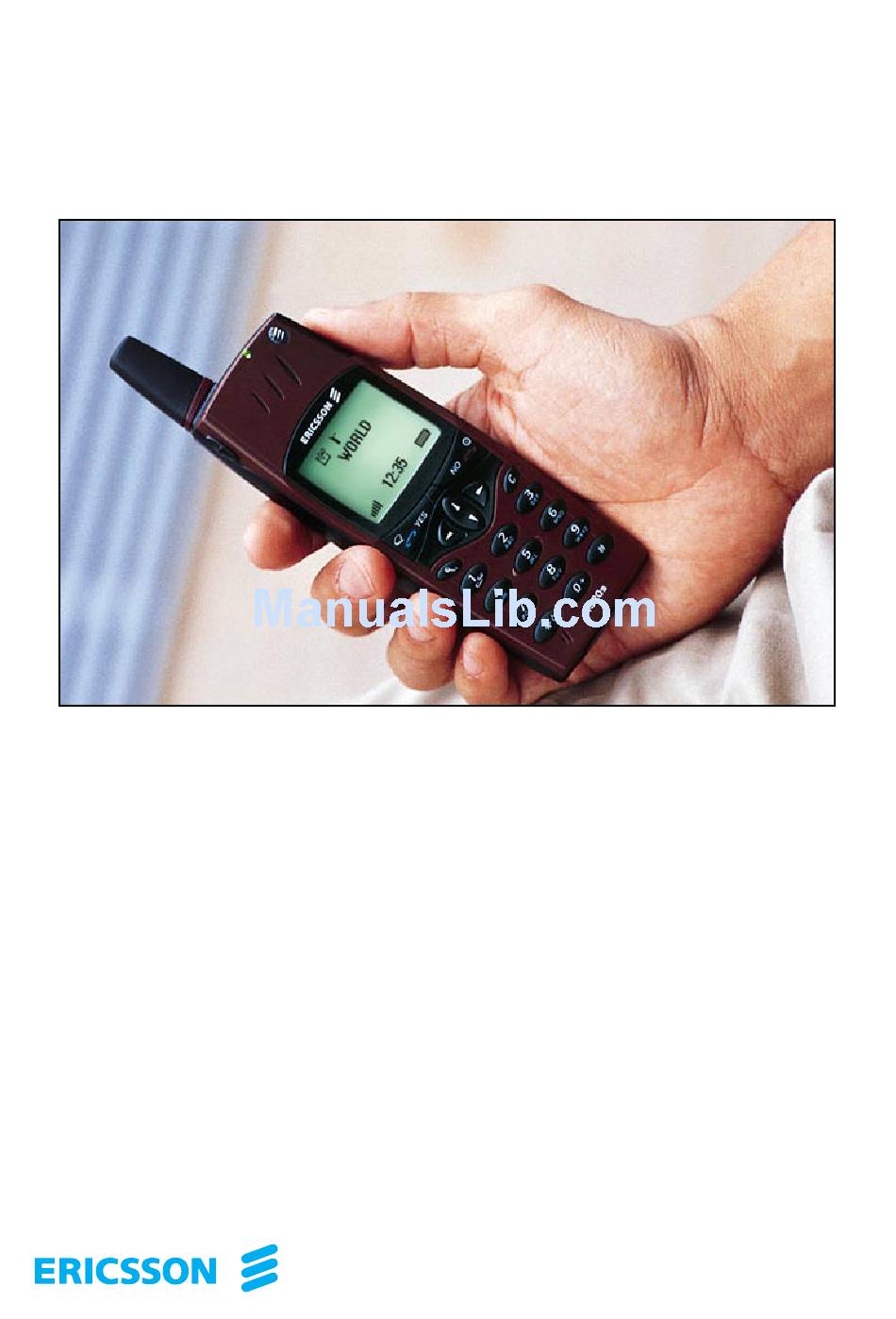

    LZT 1083714 R1A Mobile Phone R320s White Paper...
  • Page 2 Ericsson is the leading provider in the new telecoms world, with communications solutions that com- bine telecom and datacom technologies with freedom of mobility for the user. With more than 100,000 employees in 140 countries, Ericsson simplifies communications for its customers - network operators, service providers, enterprises and consumers - the world over.

  • Page 3: Product Description

    APPLICATIONS ............30 Profiles Fixed Dialling and Call Barring Personal Phone Book Voice Dialling Voice Memo Code Memo Calendar Entry Exchange Business Card Exchange Ring Signal Exchange ONLINE SERVICES ..........32 SIM AT Services supported by Ericsson R320s User interaction with SIM AT...
  • Page 4 TERMINOLOGY AND ABBREVIATIONS .....37 RELATED INFORMATION ........41 Documents Software Links Trademarks and acknowledgements...
  • Page 5 The Ericsson R320s White Paper is designed to give the reader a deeper technical understanding of how the Ericsson R320s is designed, and also how it interacts with other media. This docu- ment will make it easier to integrate Ericsson R320s in the IT and communication solutions of a company or organisation.
  • Page 6 P P P P R R R R O O O O D D D D U U U U C C C C T T T T D D D D E E E E S S S S C C C C R R R R I I I I P P P P T T T T I I I I O O O O N N N N The Ericsson R320s is a Dual Band phone with a lithium battery; a phone of modern design and advanced technology.
  • Page 7 WAP Gateway. The WAP proÞles The Ericsson R320s can hold Þve WAP proÞles, each with a group of network settings and a homepage. If you provide a corporate WAP ser- vice on your Intranet, it is useful to enter an Intranet WAP proÞle in the usersÕ...
  • Page 8 T T T T e e e e c c c c h h h h n n n n i i i i c c c c a a a a l l l l s s s s p p p p e e e e c c c c i i i i f f f f i i i i c c c c a a a a t t t t i i i i o o o o n n n n o o o o f f f f t t t t h h h h e e e e W W W W A A A A P P P P b b b b r r r r o o o o w w w w s s s s e e e e r r r r Feature Support in Ericsson R320s WAP browser Authentication WAP 1.1.
  • Page 9 Feature Support in Ericsson R320s WAP browser KRC 114 1230, English(EN), Arabic(AR), Czech(CS), KRC 114 1231, Danish(DA), Finnish(FI), French(FR), KRC 114 1232, Hungarian(HU), Norwegian(NO), KRC 114 1186, Polish(PL), Portuguese(PT), Russian, KRC 114 1187, Slovakian(SK),Swedish(SV) KRC 114 1188 KRC 114 1161,...
  • Page 10 M M M M a a a a n n n n u u u u a a a a l l l l W W W W A A A A P P P P c c c c o o o o n n n n f f f f i i i i g g g g u u u u r r r r a a a a t t t t i i i i o o o o n n n n o o o o f f f f p p p p h h h h o o o o n n n n e e e e See the UserÕs Guide for general instructions on conÞguration.
  • Page 11 I I I I n n n n t t t t e e e e r r r r n n n n e e e e t t t t / / / / I I I I n n n n t t t t r r r r a a a a n n n n e e e e t t t t a a a a c c c c c c c c e e e e s s s s s s s s You have selected a WAP proÞle to use for the conÞguration.
  • Page 12 G G G G a a a a t t t t e e e e w w w w a a a a y y y y a a a a c c c c c c c c e e e e s s s s s s s s The Gateway can provide services in the companyÕs Intranet, a banking or stock trading service on the Internet, or provide an access to other WAP applications on web addresses anywhere on the Internet.
  • Page 13 O O O O v v v v e e e e r r r r t t t t h h h h e e e e A A A A i i i i r r r r c c c c o o o o n n n n f f f f i i i i g g g g u u u u r r r r a a a a t t t t i i i i o o o o n n n n To simplify the provisioning of WAP settings to a number of phones, all settings can be sent as an SMS message to each phone.
  • Page 14 S S S S e e e e c c c c u u u u r r r r i i i i t t t t y y y y i i i i s s s s s s s s u u u u e e e e s s s s The Ericsson R320s is based on the WAP 1.1 speciÞcations where security functionality is spe- ciÞed (WTLS).
  • Page 15 In everyday life, access to an updated Calendar and addresses of friends and business colleagues is greatly appreciated. The Calendar of the Ericsson R320s has up to 100 entries that can be synchronized with the Calendar/Agenda program on the user's PC. The Phone book can also be synchronized.
  • Page 16 This is vital if, for example, each member in a workgroup has their own Ericsson R320s, and needs to synchronize with one PC. It makes it easy, for example, to download a common company phone directory to the Phone book in each company mobile phone.
  • Page 17 A synchronization menu is embedded inside Microsoft Outlook. It provides one key synch- ronization and allows the user to control the sync process by easy to use settings. ¥ Handheld devices supported include Ericsson R320s, palm-sized and handheld devices using Windows CE and PalmOS. Casio Personal Organizeers. ¥...
  • Page 18 Infrared communication creates a data link between two communications devices through an infrared beam of light. On the Ericsson R320s, this link can be used as a wireless connection with desktop computers, PDAs, Ericsson handheld computers, laptop PCs, other phones for example Ericsson R320s, and other hardware supporting the standard.
  • Page 19 For the best performance, place the Ericsson R320s within the range of a metre and at a 30 degree angle from the infrared port on the PC/ PDA, or other phone. One advantage of this narrow infrared gap is that the risk of transmitting data to other devices nearby is minimized.
  • Page 20 C C C C o o o o n n n n n n n n e e e e c c c c t t t t i i i i o o o o n n n n v v v v i i i i a a a a c c c c a a a a b b b b l l l l e e e e The infrared connection is not always the best solution for connecting with a PC/PDA, or in fact, even possible.

  • Page 21: On-Line Command Mode

    U U U U s s s s i i i i n n n n g g g g G G G G S S S S M M M M D D D D a a a a t t t t a a a a f f f f o o o o r r r r f f f f a a a a x x x x c c c c o o o o m m m m m m m m u u u u n n n n i i i i c c c c a a a a t t t t i i i i o o o o n n n n Sending a fax is very similar to sending data. When the Ericsson R320s is connected, using infrared or cable, to a PC/PDA, the fax program in the computer will work as if it was connected via an external modem, or a PC Card modem to a Þxed line.
  • Page 22 The following illustration summarises the methods that are used to switch between the three infrared modem operating modes. Power up Off-line Command Mode Exchange AT command data between computer and Infrared Modem Lose carrier Dial Answer lose I.R. link <tel. Lose carrier no.>...
  • Page 23 A A A A T T T T c c c c o o o o m m m m m m m m a a a a n n n n d d d d s s s s p p p p h h h h o o o o n n n n e e e e t t t t e e e e r r r r m m m m i i i i n n n n a a a a l l l l t t t t e e e e r r r r m m m m i i i i n n n n a a a a t t t t e e e e d d d d Ensemble S1/B/E : GSM DTE-DCE Interface commands +CSCS Select terminal character set...
  • Page 24 *ESCN Ericsson Set Credit Card Number +CPUC Price Per Unit And Currency Table *ESVM Ericsson Set Voice Mail Number *EDIF Ericsson Divert Function *EDIS Ericsson Divert Set Unsolicited Result Codes +CREG Network Registration +CLIP Calling Line IdentiÞcation Presentation +CCWA Call Waiting +CSSU Supplementary service notiÞcation +CSSI...
  • Page 25 +CMGW Write message to memory +CMGD Delete message +CMGF Message format +CSCA SMS service centre address +CSCB Select cell broadcast message type +CSAS Save Settings +CRES Restore Settings +CNMI New message indication to TE Unsolicited Result Codes +CBM New Message Indication +CMTI New Message Indication +CMT...
  • Page 26 *EQVL Ericsson External Volume Status *EXVC Ericsson Set External Volume Control Unsolicited Result Codes *EBCA Ericsson Indication Algorithm Status *EPEV Ericsson Pin Code event *EVOLC Ericsson Volume Change Report *EKSC Ericsson Key Sound Change Report Ensemble C21/C/E : Accessory Menus *EAM Ericsson Add Accessory Menu Item *EAST...
  • Page 27 *EYTN Train Name *EYPT Play Training Recording *EYDE Delete Entry *EYSR Save Recording *EYAB Abort *EYGP Get Phones *EYDP Delete Phone *EYRP Register Phone *EYSS Start Synchronise Ensemble C31/C/E : Quick Menu *ECMW Ericsson Customized Menu Write *EMLR Ericsson Menu List Read...
  • Page 28 A A A A T T T T c c c c o o o o m m m m m m m m a a a a n n n n d d d d s s s s m m m m o o o o d d d d e e e e m m m m t t t t e e e e r r r r m m m m i i i i n n n n a a a a t t t t e e e e d d d d Ensemble S1/B/E : GSM DTE-DCE Interface commands +CSCS Select terminal character set...
  • Page 29 Ensemble S10/B : GSM Mobile Equipment Error Control +CMEE Report mobile equipment error Ensemble C18/B : Fax Class 1 +FCLASS Capabilities IdentiÞcation and Control +FMI Manufacturer identiÞcation +FMM Request product identiÞcation +FMR Request version +FTS Stop transmission and wait +FRS Receive silence +FTM Facsimile transmit...
  • Page 30 A A A A P P P P P P P P L L L L I I I I C C C C A A A A T T T T I I I I O O O O N N N N S S S S P P P P r r r r o o o o f f f f i i i i l l l l e e e e s s s s The proÞle feature;...
  • Page 31 Service, a user can send text messages containing up to 160 characters to and from GSM mobile stations. A Service Centre (SC) acts as a store and forward centre. The Ericsson R320s also supports using SMS as a bearer type for connecting to WAP.

  • Page 32: Get Inkey

    In the Ericsson R320s, a separate menu is available for functions residing on the SIM. These can include submenus for the user to control the functions, and also functions which allows the phone to initiate calls, send data, display information to the user.

  • Page 33: Get Input

    Service Mode Support in R320 GET INPUT General: No of hidden input characters. bit 1: 0 = digits (0-9, *, # and +) only 1 = alphabet set bit 2: 0 = SMS default alphabet 1 = UCS2 alphabet bit 3: 0 = ME may echo user input on the display 1 = user input shall not be revealed in...

  • Page 34: Set Up Call

    Service Mode Support in R320 SET UP CALL General: Capability conÞguration Setup speech call CallParty Subaddress DTMF support '00' = set up call, but only if not currently busy on another call; '01' = set up call, but only if not currently busy on another call, with redial;...

  • Page 35: Display Text

    U U U U s s s s e e e e r r r r i i i i n n n n t t t t e e e e r r r r a a a a c c c c t t t t i i i i o o o o n n n n w w w w i i i i t t t t h h h h S S S S I I I I M M M M A A A A T T T T DISPLAY TEXT A text string of up to 160 characters (80 UCS coded) is supported.
  • Page 36 is supplied and only one item provided, then this item is used as header. If no alpha identiÞer is supplied and several items are found in the menu, a default title is used. If the SIM AT Menu Item is selected using the ÔYESÕ...
  • Page 37 T T T T E E E E R R R R M M M M I I I I N N N N O O O O L L L L O O O O G G G G Y Y Y Y A A A A N N N N D D D D A A A A B B B B B B B B R R R R E E E E V V V V I I I I A A A A T T T T I I I I O O O O N N N N S S S S Beam Sending an item to another phone or a compatible application using the infrared link.This can include ring signals, calendar entries, business...
  • Page 38 e-GSM Extended GSM, e-GSM, are new frequncies speciÞied by the Euro- pean Radio communications Committee (ERC) for GSM use when additional spectrum is needed (Network dependent). It allows opera- tors to transmit and receive just outside GSMÕs core 900 frequency band.
  • Page 39 can be stored and accessed by name or position. Service Center (for SMS). Service Provider A company that provides services and subscriptions to mobile phone users. SIM card Subscriber Identity Module card Ð a card that must be inserted in any GSM-based mobile phone.
  • Page 40 based services. Wireless Session Protocol. WTLS Wireless Transport Layer Security. World Wide Web. Extensible Markup Language.
  • Page 41 D D D D o o o o c c c c u u u u m m m m e e e e n n n n t t t t s s s s ¥ Ericsson R320s UserÕs Guide ¥...
  • Page 43 Index ..............37 Abbreviations ............... 41 Acknowledgement ............... 30 Applications .......... 28 AT commands modem terminated ........ 23 AT commands phone terminal terminated ............21 AT commands support ............18 Built-in Infrared Modem ............31 Business Card Exchange ............31 Calendar Entry Exchange ................
  • Page 44 Ring Signal Exchange ............. 9 Screen characteristics ..............14 Security issues ............32 SIM Application Toolkit ......32 SIM AT Services supported by Ericsson R320s ................. 31 ............ 13 SMS access characteristics ................41 Software ............15 Synchronization features ......... 15 Synchronization in Ericsson R320s ......
