4. Adjustment
FinePix E500 Service Manual
4-15. [F3] : LCD Adjustment
<Setup for LCD Adjustment>

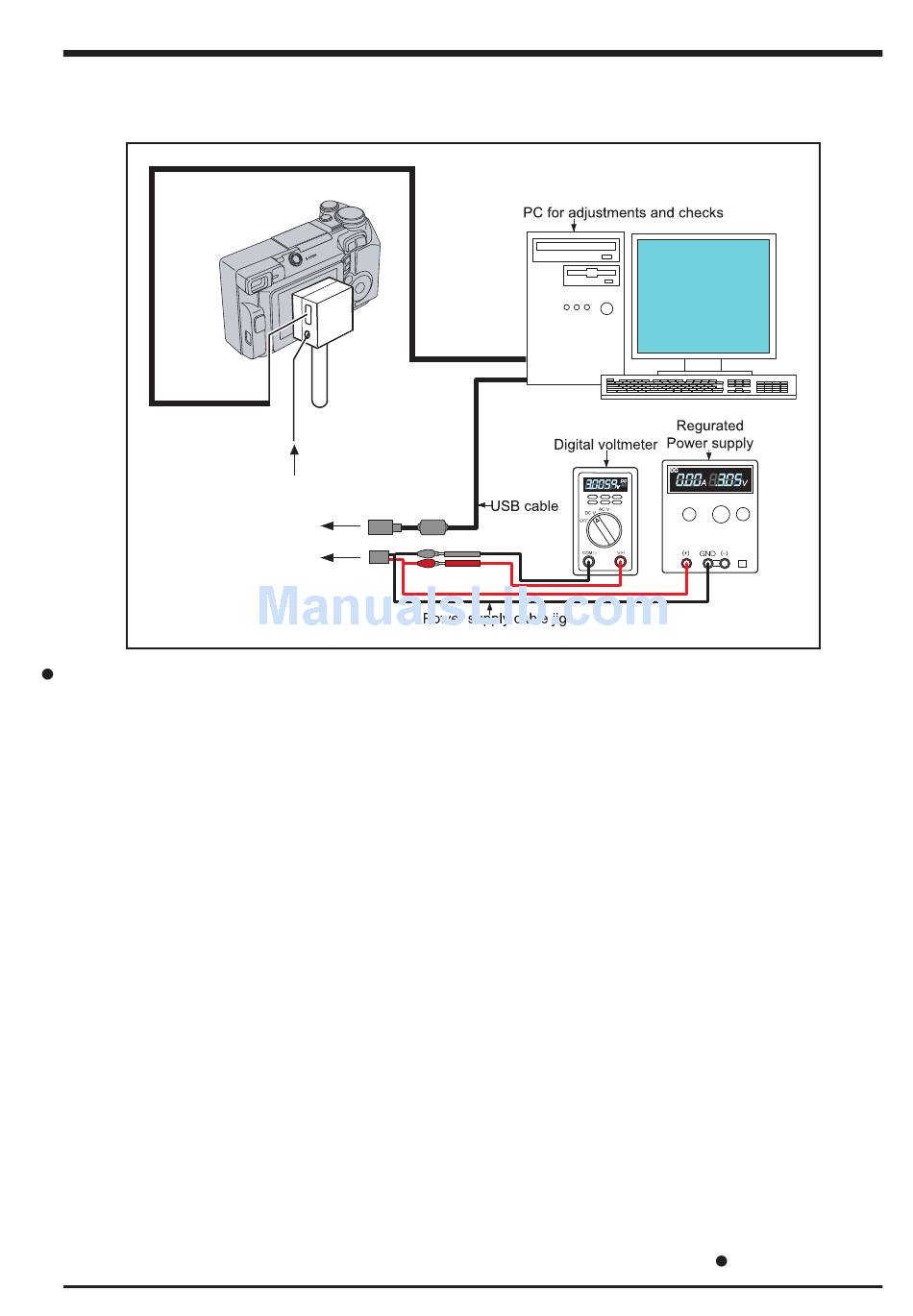

(Set up the PCI-2747C board in the computer as explained in the instructions for the LCD adjustment Jig.
FinePix E500/E510
PCI-2747C
AC-5VW
USB
DC JACK
* Confirm the VIDEO output is NTSC mode before starting the adjustmen.
<Step 1>
Select [F3] LCD Adjustment on the [Adjustment Items Select] screen.
—> The [LCD Adjustment Start] screen appears.
<Step 2>
Run the adjustment in accordance with the instructions on the screen.
—> The [LCD Adjustment Complete] screen appears if download is successful.
