INSTALLATION GUIDE
NI 9925 Outdoor IP54 Enclosure
Wireless/Ethernet Enclosure for NI cDAQ-9181/9191 Chassis
This guide describes how to install and use the National Instruments 9925 outdoor IP54
enclosure with the NI cDAQ-9181/9191 chassis. The NI 9925 provides a minimum ingress
protection (IP) of IP54 against dust and water for outdoor or industrial environments when
installed according to these instructions with the connectors provided. Figure 1 shows the
components in the NI 9925 kit.
1
2
3
13
12
11
1
Antenna IP Sleeve
2
2.4 GHz Antenna
3
Antenna IP Boot
4
DIN Rail
5
NI 9925 Enclosure
6
I/O Cable Clamp Nuts
7
I/O Cable Clamp Gaskets
8
I/O Cable Clamps
9
Internal Power Cable
10 M12 Field Termination Power Connector Kit

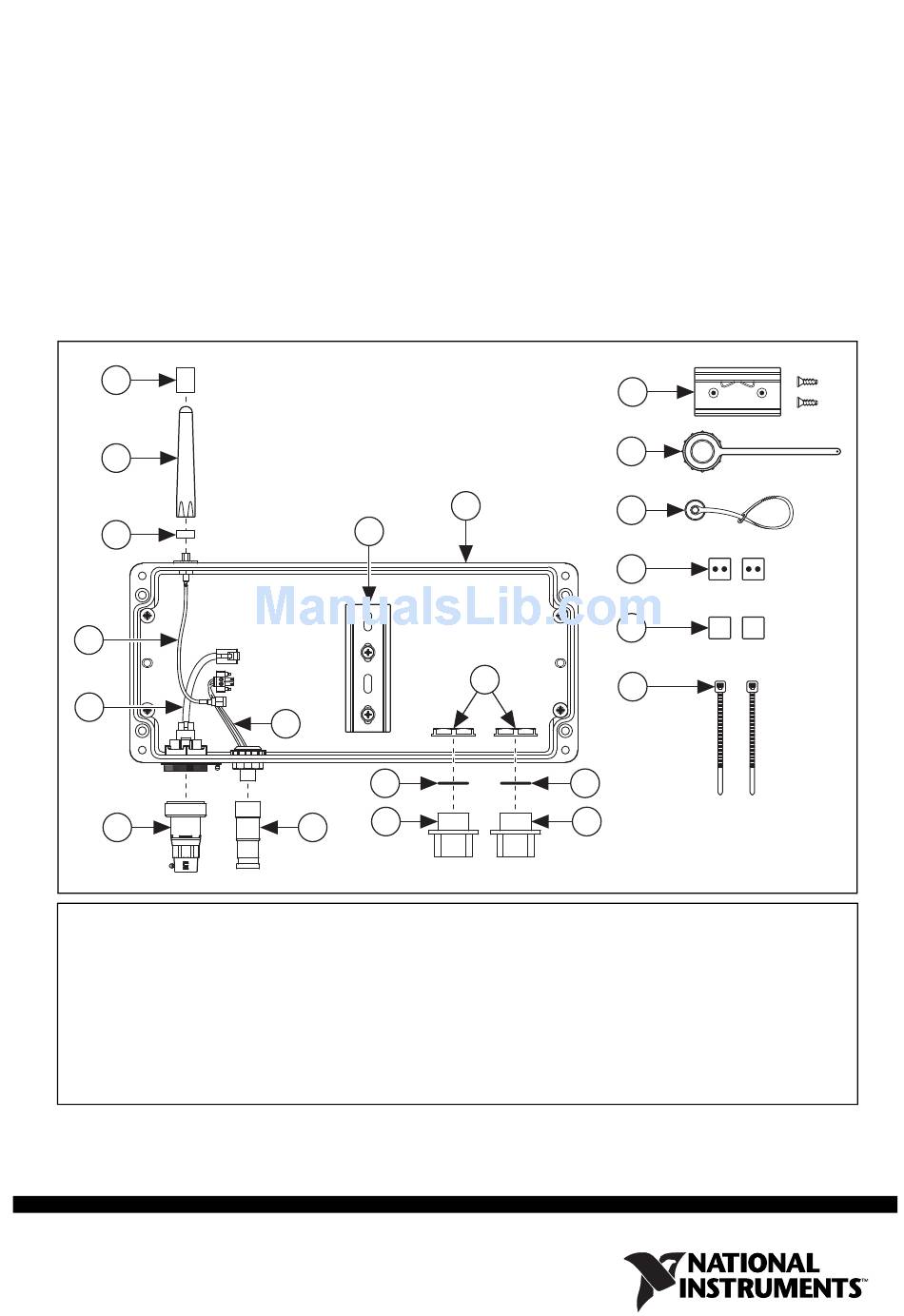

Figure 1. NI 9925 Outdoor IP54 Enclosure Kit Components
4
9
7
8
10
14
15
5
16
17
18
6
19
7
8
11 Ethernet Connector Kit
12 Internal RJ45 Ethernet Cable
13 Internal Antenna Cable
14 DIN Rail Mounting Clip and
FLH #6-32 × 5/16" Screws
15 Ethernet End Cap
16 M12 Power End Cap
17 Grommets, Split
18 Grommets, Blank
19 Zip Ties For Cable Management
