Eclypse Z7 Enclosure Assembly Guide
Revised 3/19/2020

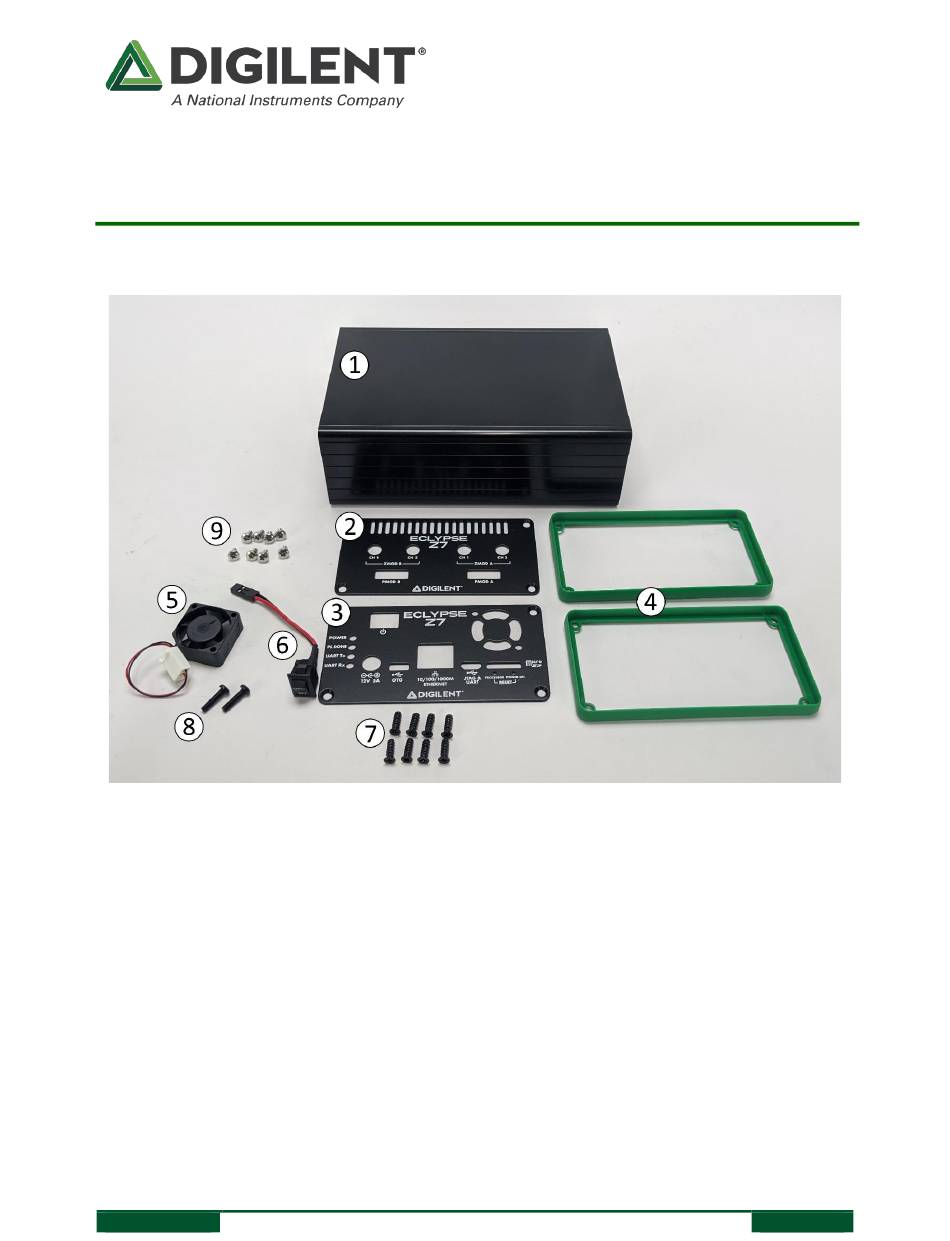

What's in the box?
① Aluminum Enclosure
② Zmod faceplate
③ Main interface faceplate
④ End caps
⑤ Fan
1
Materials Needed
•
1× Phillips Screwdriver
•
1x 8mm wrench or pliers
DOC#: 574-001
Other product and company names mentioned may be trademarks of their respective owners.
⑥ Power switch
⑦ 8× Enclosure screws (Thread cutting, #6x3/8")
⑧ 2× Fan screws (Thread forming, M3x12mm)
⑨ 8× Zmod screws (M3x5mm)
Copyright Digilent, Inc. All rights reserved.
1300 Henley Court
Pullman, WA 99163
509.334.6306
www.digilent.com
Page 1 of 5
