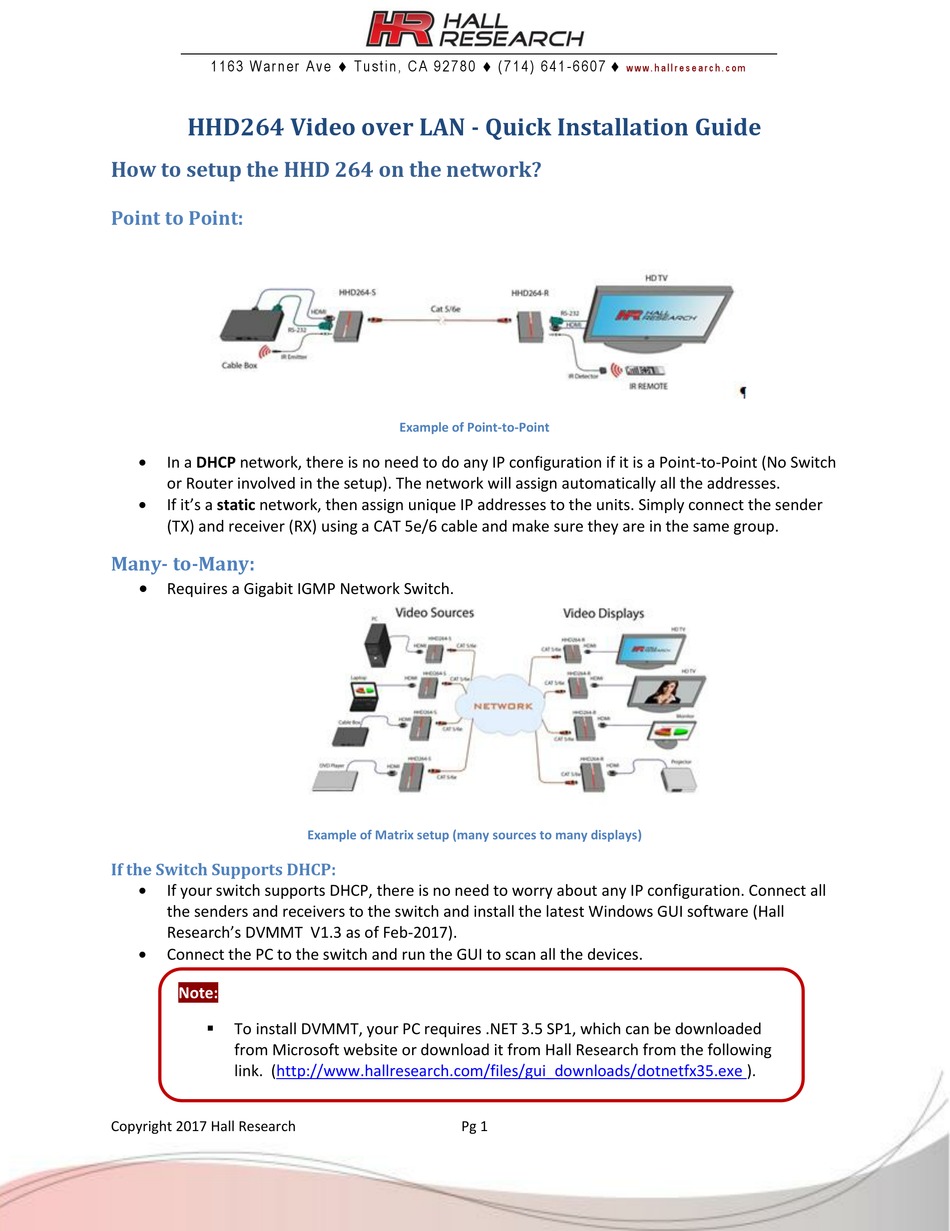

HHD264 Video over LAN - Quick Installation Guide

How to setup the HHD 264 on the network?

Point to Point:


In a DHCP network, there is no need to do any IP configuration if it is a Point-to-Point (No Switch
or Router involved in the setup). The network will assign automatically all the addresses.

If it's a static network, then assign unique IP addresses to the units. Simply connect the sender
(TX) and receiver (RX) using a CAT 5e/6 cable and make sure they are in the same group.
Many- to-Many:

Requires a Gigabit IGMP Network Switch.

If the Switch Supports DHCP:


If your switch supports DHCP, there is no need to worry about any IP configuration. Connect all
the senders and receivers to the switch and install the latest Windows GUI software (Hall
Research's DVMMT V1.3 as of Feb-2017).

Connect the PC to the switch and run the GUI to scan all the devices.
Note:

To install DVMMT, your PC requires .NET 3.5 SP1, which can be downloaded
from Microsoft website or download it from Hall Research from the following
link. (http://www.hallresearch.com/files/gui_downloads/dotnetfx35.exe
