cable from the hot shoe to the base of the shutter housing (Figure 1-6) completes the connection
between the camera electronics and the flash electronics.

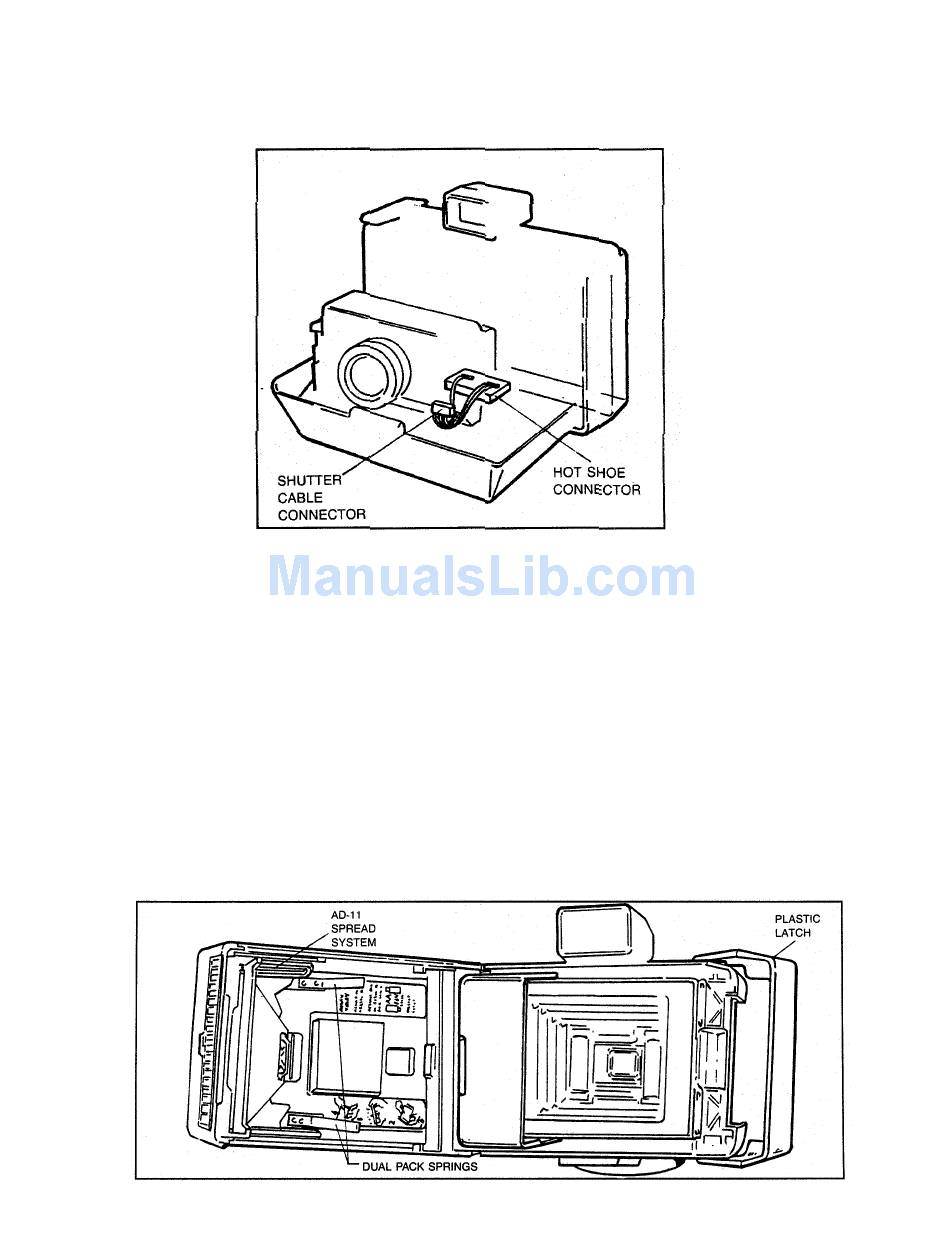

FIGURE 1-6 FLASH TO SHUTTER FIVE WIRE CABLE

CB103 Camera Back

The ProPack employs a modified CB103 camera back. This camera back has a built-in plastic
latch instead of the metal bail latch used in the Reporter and the EE100. The back surface of the
door has two recesses; one is for the ring handle and the other is for a new electronic develop-
ment timer.
As can be seen in Figure 1-7, the pack spring arrangement in the CB-103 differs from the pack
spring arrangement in earlier cameras. In the CB-103, there are actually two different springs
arranged along the same plane in which the film is pulled from the camera.
FIGURE 1-7 MODIFIED CB103 CAMERA BACK
10
ProPack Camera
