- Page 1 Halcyon DIR Dive Systems Explorer/Apollo/Proteus Lighting systems manual...
- Page 2 Halcyon HID & Halogen Primary Light Owner's Manual Trademark Notice Halcyon, Extreme Exposure, BC Keel, Multifunction Compensator ACB, DLR, Explorer Pro, and Scout Light are registered trademarks of Halcyon Manufac- turing, Inc. Warnings, Cautions and Notes Pay special attention to information provided in warnings, cautions, and...
-
Page 3: Table Of Contents
Halcyon Explorer, Proteus & Apollo Lighting Systems Halcyon Lighting Overview HID Lighting Systems 18w HID and Halogen Light Head Operation 10w HID Light Head Operation Canister & Lid Halcyon Power Systems Battery Charging Battery Storage Burn Testing Transporting Troubleshooting Your Halcyon Light... -
Page 4: Halcyon Lighting Overview

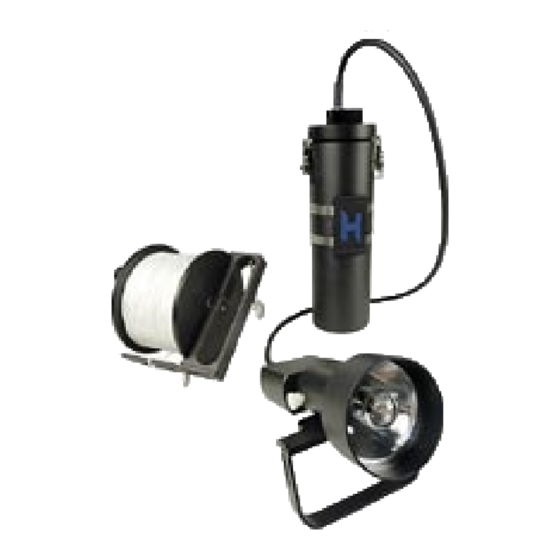

Halcyon primary light. At Halcyon we appreciate the faith your choice places in our products. Like the rest of the Halcyon line, the Explorer, Proteus and Apollo lights were created out of a very real need for a lighting instrument capable of withstanding the rigorous demands of exploration diving. - Page 5 Delrin canisters to complete your video, film or photographic package. Explorer, Proteus and Apollo light canisters are designed to be mounted on a diver's waist belt, while the hands-free Goodman-style light head allows you maximum dexterity during the dive. Manufactured from a single piece of black Delrin, the tough Goodman-style head allows for hands-free operation while sitting cleanly on top of the diver's hand.
-
Page 6: Hid Lighting Systems
HID has quickly become the standard for exploration-grade lighting systems. Halcyon's Explorer, Proteus, and Apollo lights require very little attention beyond the care given to a halogen light. Although it produces 5% of its output when first ignited, the HID light requires a few seconds (usually 15-20) to produce full output. - Page 7 The glass lamps should be handled with care giving special attention to the quartz arc tube. The Halcyon HID light is a DC lamp; proper electrical wiring polarity must be observed to prevent damage to the lamp. Only certified Halcyon repair technicians are authorized to work on Halcyon products;...
- Page 8 18 watt HID Light Head Halcyon's workhorse light, the 18 watt HID, allows full adjustability and easy bulb changes in a conventional test tube style design. Light output is similar to a 75 watt halogen light at a fraction of the power consumption.
-
Page 9: Hid And Halogen Light Head Operation
Video Light heads Halcyon's Apollo series are available with dual/single lamp HID and HMI light heads. Dual head Apollo systems are ready for mounting on housing arms with standard hardware. The HMI lamp is truly an underwater motion picture studio lighting instrument, with the output of a 1,000 watt halogen burning at a solid 5,600K. - Page 10 Should the bulb in your Halcyon 18 watt HID or halogen light become damaged, it can be easily replaced by following these simple steps: 1. Remove the Goodman handle and reflector assembly from the light head.
-
Page 11: Hid Light Head Operation
Figure 6 Figure 7 Figure 5 Should the bulb in your Halcyon 10 watt HID Light become damaged, it can be easily replaced by following these simple steps: 1. Begin disassembly by removing the steel retaining ring from the inside edge of the front bezel (Figure 1). Use a small screwdriver to pry the retaining ring out of its slot. -
Page 12: Canister & Lid
Delrin and High-Impact Canisters Halcyon mills Explorer and Apollo canister out of a solid rod of Delrin. The one-piece design ensures a structural integrity not found in any other available dive light. -
Page 13: Halcyon Power Systems
All Explorer, Apollo and Proteus lights feature high quality stainless steel fittings and locking latches. Explorer and Apollo lights use a lid-integrated set of plugs to connect to the battery pack. Simply line up the plugs with the gold-edged receptacles on the top of the battery pack and push down until the lid rests on top of the battery pack's delrin cap. -
Page 14: Battery Charging
Batteries tend to slowly discharge if left over time, especially if exposed to extremes of heat or cold. For example, SLA batteries can discharge up to 1% per day, or drop over 30% during a month of storage. Your Halcyon... - Page 15 Proteus 6 requires 12 hours to reach full charge. Charging your Explorer or Apollo battery pack (NiMH Batteries) Proper charging of your Explorer battery pack is essential to ensure a long NiMH battery life. If the charger is not properly designed and...
-
Page 16: Battery Storage
Maintenance Charge phase. For a fully discharged battery, the complete charging process should take approximately 1 hour for a Explorer 4.5 pack, 2 hours for either Explorer/Apollo 9 pack, and 3 hours for a Explorer/Apollo 13 pack. -
Page 17: Burn Testing
To be sure that your battery is adequately charged reference the following considerations: 1. Plug in the charger and verify that it is receiving power. Verify that the green power light is on when you connect the charger to the bat- tery pack on SLA packs and the Yellow light is on for NiMH battery packs. - Page 18 1. Make certain that the battery has been fully charged. For the best charge, burn the battery for ten minutes and then bring it back to a full charge. 2. Place the light head into the water. Make sure that there is enough wa- ter to prevent overheating.
-
Page 19: Transporting
Transporting Your Light Your Halcyon light should be left unplugged during transport. You want to eliminate the possibility of activating the light while the unit is out of the water. Be sure to reconnect the battery prior to getting into the water and to disconnect the battery prior to travel. - Page 20 Please refer to the preceding steps to insure that the bulb is functioning properly. If the switch is suspect, the light head should be returned to Halcyon and the switch replaced.
- Page 21 What to do if your light turns itself on A light that begins burning with the switch in the off position must have the switch replaced. This problem occasionally occurs in lights that have been previously flooded. A light that turns itself on should be disconnected immediately to prevent any damage from overheating.
- Page 22 What to do if your light is leaking This guide will provide instructions for identifying and repairing some possible leaks in your Halcyon light. If your light continues to leak after troubleshooting, contact Halcyon for instructions on returning your light for repair. If any doubt exists about potential damage, please contact Halcyon for consultation about possible repairs.
-
Page 23: Halcyon Nimh Battery Faq
Most professional photographers and explorers recommend scheduled maintenance replacement after every two years if the connectors are constantly exposed to salt water. Explorer/Apollo NiMH Frequently Asked Questions What are the number of charge/discharge cycles I can expect from NiMH batteries? Under normal conditions you can expect anywhere from 800 - 1000 charge/discharge cycles from your NiMH batteries. - Page 24 Do I have to use the Halcyon charger with my Explorer or Apollo battery pack? The Halcyon Explorer charger has been designed to ensure adequate return of charge while minimizing overcharge.
- Page 25 Can I disassemble my Explorer/Apollo battery pack or dry lid? If you remove the protective Delrin caps, the plastic shrink-wrapping from your NiMH battery pack, or disassemble the Halcyon dry lid, you will void your Halcyon warranty. There are no user-serviceable parts within the pack;...
-
Page 26: Appendex 1: System Burn Times
Appendex 2: Halcyon Warranty Information All warranty requests must be accompanied by proof of original purchase from an Authorized Halcyon Dealer. Be sure to save your sales receipt, and present it whenever returning your light for warranty service. Should your Halcyon lighting system prove to be defective for any reason (other than those listed in the limitations section below) it will be repaired or replaced (at Halcyon’s discretion) free of charge excluding... - Page 27 A lifetime warranty to the original owner, applies to Halcyon Delrin and UHMW canisters. A 90-day warranty, from the date of purchase,...
