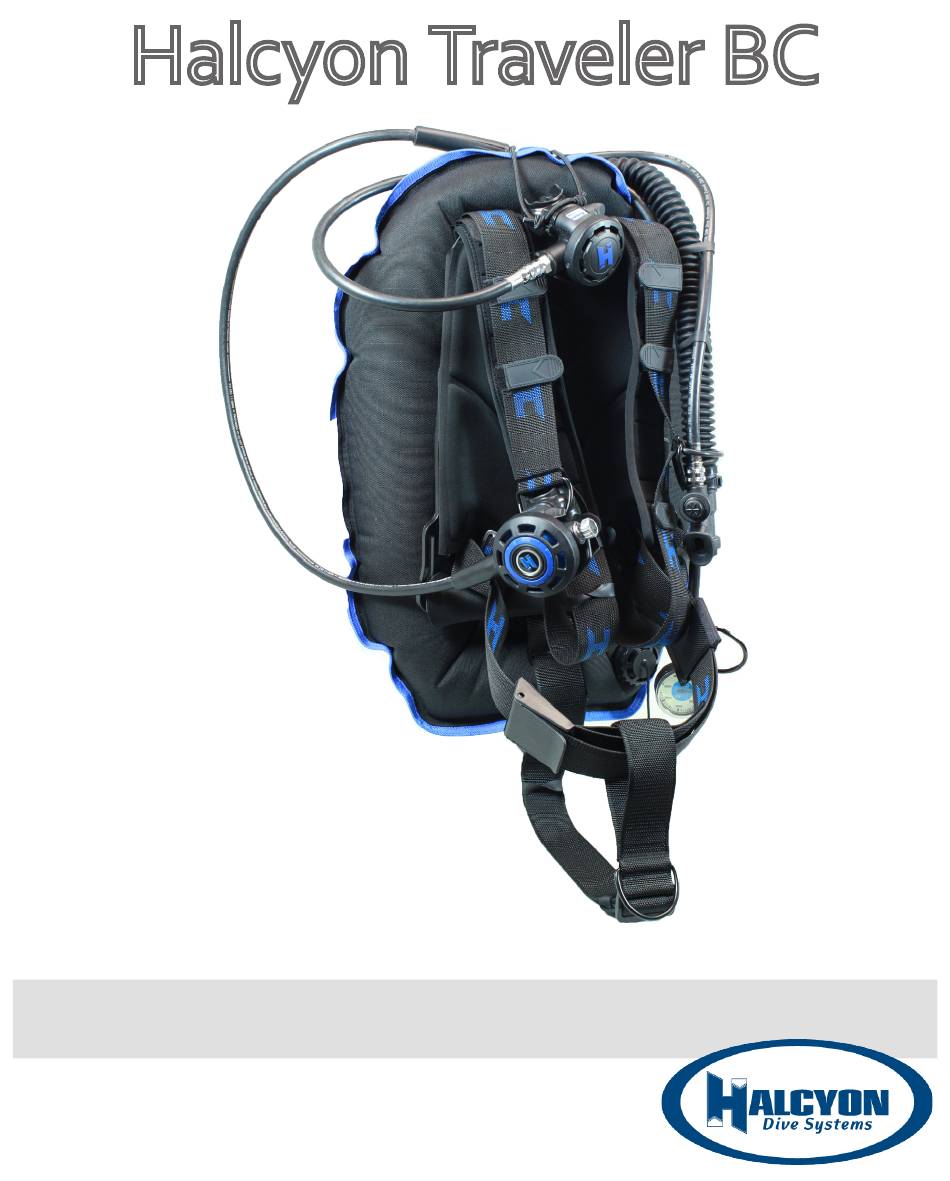

- Page 1 Halcyon Traveler BC OWNER’S MANUAL...
-
Page 3: Ce Certification Information
CE CERTIFICATION INFORMATION Eclipse / Infinity / Evolve / Explorer / Pioneer 30 Traveler BC Systems EC Type approval conducted by TÜV Rheinland LGA Products GmbH Tillystr. 2 D-90431 Nürnberg Notified body 0197 EN 1809:201+A1:20164 CE Contact Information Halcyon Dive Systems... -
Page 4: Warnings, Cautions, And Notes
HALCYON BUOYANCY COMPENSATOR OWNER’S MANUAL Trademark Notice Halcyon® and BC Keel® are registered trademarks of Halcyon Manufacturing, Inc. Halcyon’s BC Keel and Trim Weight systems are protected by U.S. Patents #5855454 and 6530725b1. The Halcyon Cinch is a patent-pending design protected by U.S. -
Page 5: General Precautions And Warnings
If your BC is not functioning properly or is damaged, remove it from service until it can be repaired by an authorized Halcyon Dealer. - Page 6 Halcyon Dealer. If you have any questions regarding your Buoyancy Compensator or these instructions, contact your Halcyon Dealer or Halcyon at: (386) 454-0811.
-
Page 7: Table Of Contents
TABLE OF CONTENTS CE Certification Information Warnings, Cautions, and Notes Contacting Halcyon General Precautions and Warnings Disassembly of the Traveler™ BC Adjusting the Halcyon Traveler™ BC Fitting the Halcyon Traveler™ BC Weighting Your Halcyon Traveler™ Final Assembly Installing the Optional Light Retainer Assembly... -
Page 8: Disassembly Of The Traveler™ Bc
DISASSEMBLY OF THE TRAVELER™ BC The Traveler™ is not designed to be disassembled. This system can only be used with a single tank. It is not possible to use other BCs with the Traveler™. If you are looking for a modular system, please see our Infinity™ and Eclipse™... -
Page 9: Fitting The Halcyon Traveler™ Bc
FITTING THE HALCYON TRAVELER™ BC While standing on land, your BC should be snug but not uncomfortably tight. In the water your harness should be snug enough to prevent notable motion of the cylinder as you change orientation, but not too tight so as to bind or restrict your complete range of shoulder and arm movement. - Page 10 Once you have properly sized your Secure Harness, you will want to fine-tune the position of the D-rings. The shoulder D-rings should be positioned relatively high on the shoulder straps. Figure 5 To position the shoulder D-rings, extend your arms straight out to the side, parallel to the ground. Bend at the elbow and bring your thumb straight to the shoulder strap.
-
Page 11: Weighting Your Halcyon Traveler
The Halcyon Traveler™ has been designed to work with a maximum 12 pounds (6kg). The back side of your BC plate has four fixtures, each designed to hold 3 pounds (1.5kg). You must be sure not to use overly large weights or weight that exceeds these limits. -
Page 12: Final Assembly
WARNING • Do not use the straps if they are becoming worn or if the velcro is not holding tightly. • Do not use more than 3lb (1.5kg) per fixture. FINAL ASSEMBLY WARNING: The cam straps may stretch after they become wet. Always wet the straps prior to making the final adjustment, and apply enough tension to ensure that the cylinder is held completely secure. -
Page 13: Installing The Optional Light Retainer Assembly
OPTIONAL LIGHT FIXTURE ASSEMBLY Figure 10 If you wish to carry a primary, hip-mounted light then you should purchase the optional Halcyon light fixture assembly, which allows the light to remain fixed at your waist while the harness adjusts freely. (Fig. 10) INSTALLING THE OPTIONAL LIGHT RETAINER ASSEMBLY •... -
Page 14: Installing The Optional Acb Weight Pockets
INSTALLING THE OPTIONAL ACB WEIGHT POCKETS To facilitate the use of releasable weight, Halcyon offers the optional Active Control Ballast (ACB) Integrated Weight Pockets. These are designed to replace the need for a conventional weight belt. The ACB is comprised of two weight pockets attached to the harness waist belt. -
Page 15: Releasing The Acb Integrated Weight Pockets
Before each use, the BC must be given a thorough visual inspection and functionality test. Do not dive with a BC that shows signs of damage unless a complete inspection is performed by an authorized Halcyon dealer. As part of your normal yearly service, you should ensure your Halcyon technician periodically checks the entire Buoyancy Compensator, including the OPV, for damage or corrosion. -
Page 16: Bc System Care And Maintenance
• Avoid any contact with oil, gasoline, or other solvents or contaminants. ADDITIONAL WARNINGS CAUTION: Recommended working pressure of the Halcyon BC inflator is 120 psi (8.3 bar) to 160 psi (11 bar). CAUTION: The operating temperature range of the Halcyon BC system is -20 Celsius (-4 Fahrenheit) to 70 Celsius (158 Fahrenheit). -
Page 17: Post-Dive Maintenance
POST-DIVE MAINTENANCE To prevent permanent damage from corrosion, salt crystals, or chlorine attack, thoroughly rinse the BC inside and out with fresh water after every day of use, using the following procedure: Pressurize the power inflator with low-pressure air via the quick-disconnect hose. CAUTION: Before rinsing, ensure that the power inflator is pressurized with air. -
Page 18: Warranty Information
Should your HALCYON BC prove to be defective for any reason (other than those listed in the limitations section below), it will be repaired or replaced (at HALCYON’s discretion) free of charge excluding shipping and handling charges. All correspondence concerning this warranty must be accompanied by a copy of the original sales receipt.
