EXPANDING THE BOOT
The boot can be partially (1/3 or 2/3) or totally extended by
splitting the rear seat. See the descriptions in "Removing the
parcel shelf" and "Folding back the seats" paragraphs for how to
expand the boot.

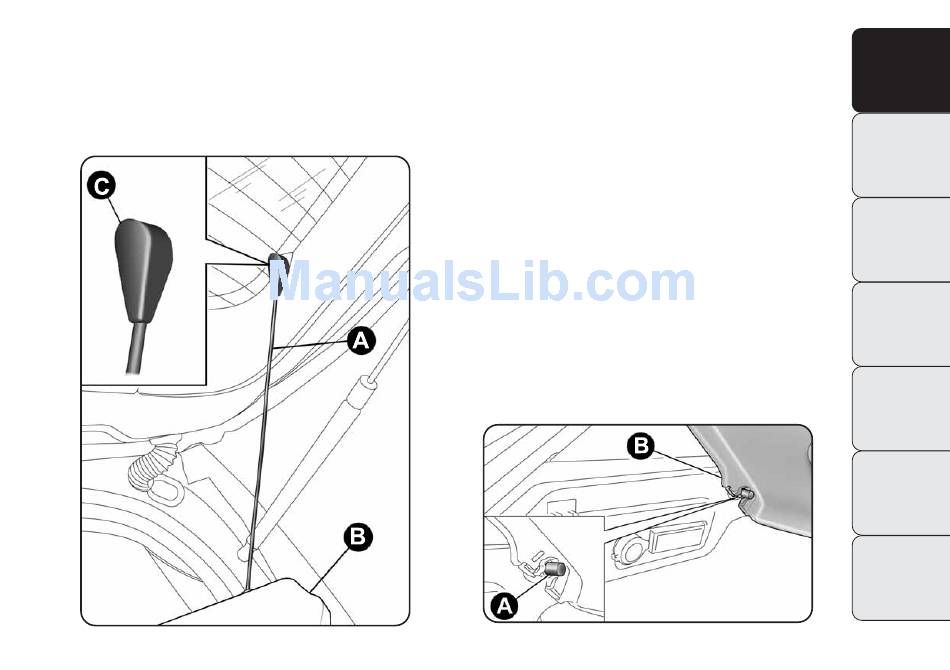

fig. 72
Removing the parcel shelf
Proceed as follows:
❍ free the ends of the two links A-fig. 72 supporting the parcel
shelf B, releasing eyelets C from supporting pins D;
❍ release the pins A-fig. 73 on the outer side of the shelf, and then
remove the shelf B by pulling it outwards.
❍ after removal, the parcel shelf can be loaded sideways into the
boot or placed between the front seat backrests and the fold-
ed-back rear seats (with the luggage compartment complete-
ly expanded).
fig. 73
