FILE NO. 030-200402
SERVICE MANUAL

COLOUR TELEVISION

PW33 Chassis
42PW33Q
Jun. 2004 (YC/X)

Advertisement

Table of Contents
loading

Related Manuals for Toshiba 42PW33Q

Summary of Contents for Toshiba 42PW33Q

  • Page 1: Colour Television

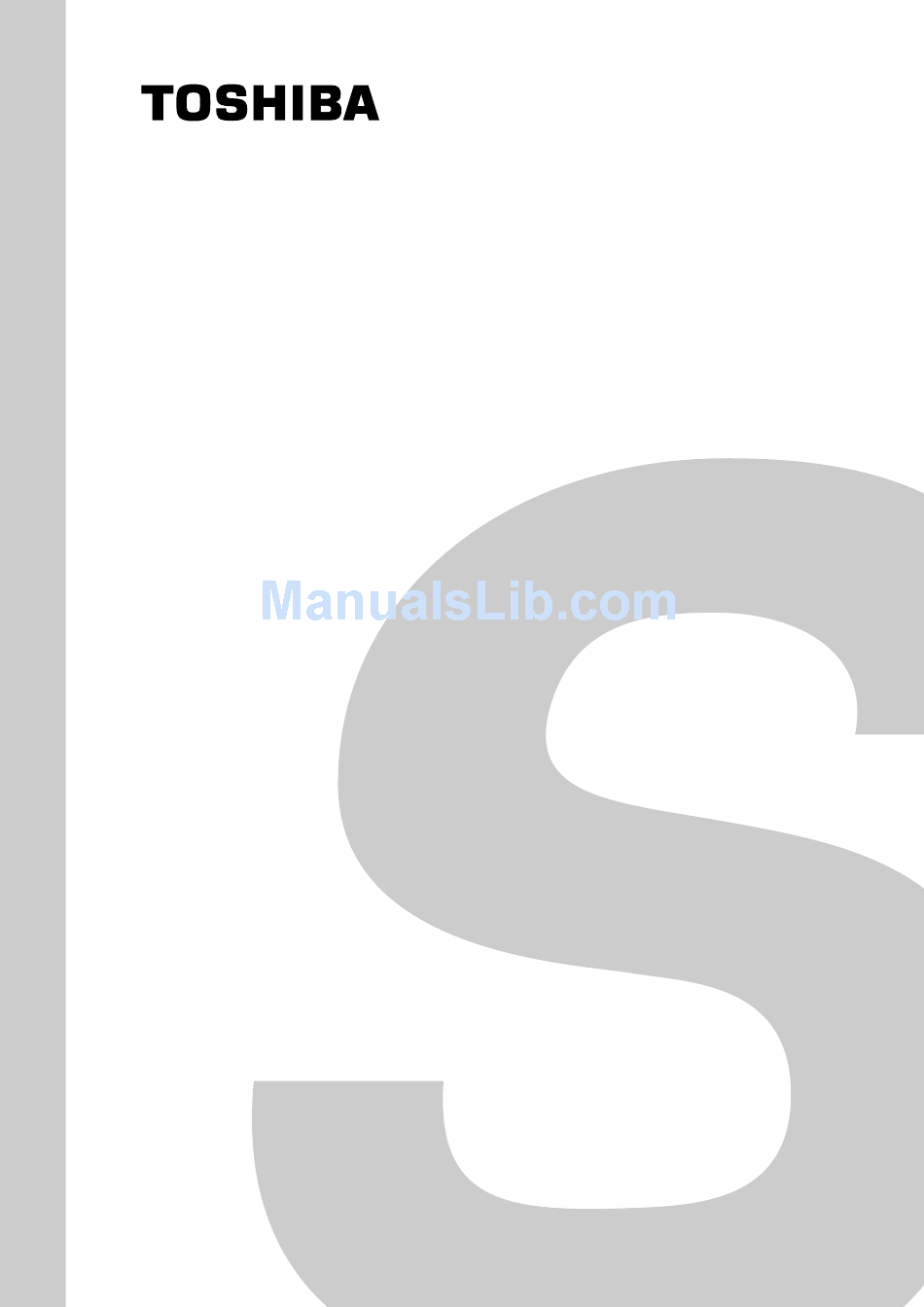

    FILE NO. 030-200402 SERVICE MANUAL COLOUR TELEVISION PW33 Chassis 42PW33Q Jun. 2004 (YC/X)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1 GENERAL ADJUSTMENTS SAFETY INSTRUCTIONS ............................3 CRT ASSEMBLY REPLACEMENT AND MOUNTING ..................... 4 PICTURE TUBE COMPONENTS ADJUSTMENT ....................6 SERVICE POSITION ..............................9 SERVICE MODE ..............................10 DESIGN MODE ..............................13 ELECTRICAL ADJUSTMENT ..........................14 CONVERGENCE ADJUSTMENT ..........................

  • Page 3: Chapter 1 General Adjustments

    CHAPTER 1 GENERAL ADJUSTMENTS SAFETY INSTRUCTIONS WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU- TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW. X-RAY RADIATION PRECAUTION 1. Excessive high voltage can produce potentially hazardous 2. The only source of X-RAY RADIATION in this TV receiver X-RAY RADIATION.

  • Page 4: Crt Assembly Replacement And Mounting

    CRT ASSEMBLY REPLACEMENT AND MOUNTING CAUTION : DO NOT LOOSEN THE HEX HEAD BOLTS WITH SPRINGS (12 PCS), BECAUSE THOSE ARE FOR SEALING OF CRT COOLANT. Attention Serviceman The Hex Head Bolts with Springs. (see sketch) used on CRT assembly, are “NOT”...

  • Page 5: Servicing Precautions

    TO REMOVE CRT (Same procedure for R, G, B) 1. Remove CRT DRIVE Board, S. V. M. COIL and DEF. YOKE from CRT. 2. Remove Lens Assembly. 3. Detach CRT Anode Cap from CRT. Anode Cap 4. Remove CRT Assembly from CRT Mounting. CRT REPLACEMENT (Same procedure for R, G, B) Reverse the removal procedures except the followings.

  • Page 6: Picture Tube Components Adjustment

    WARNING : BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRE- CAUTION" AND "PRODUCT SAFETY NOTICE" ON PAGE 3 OF THIS MANUAL. PICTURE TUBE COMPONENTS ADJUSTMENT ADJUSTING PROCEDURE IN REPLACING CRT RGB FOCUS ADJUSTMENT 1. Call-up the adjustment mode (see page 10) User convergence center check Cutoff 2.
  • Page 7 In case of warming up of more than 2 hours under a condition Note: Keep in mind that only the BLUE electric focus is ad- that the large anode current is running through the projection justed with the black cross-hatch. tube so that for example the all-white pattern appears, adjust to obtain the sharpest focus while observing the whole screen 20.
  • Page 8 LOCATION OF SCREEN AND FOCUS VR'S To remove the Speaker grille and Front panel. FOCUS VR's SCREEN VR's Speaker grille REPLACEMENT OF HIGH VOLTAGE CABLE 1. When replacing Anode Lead or Anode Cap with new one, remove Lead Holder from old lead as shown in ANODE LEAD figure below, and put it on new lead.

  • Page 9: Service Position

    WARNING : BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRECAU- TION" AND "PRODUCT SAFETY NOTICE" ON PAGE 3 OF THIS MANUAL. SERVICE POSITION In order to assure the performance, processed wires shall be replaced after the repair work. Work procedures are as follows: 1.

  • Page 10: Service Mode

    SERVICE MODE 1. ENTERING TO SERVICE MODE 1) Press o button once on 2) Press o button again to 3) While pressing the o button, Remote Control. keep pressing. press MENU button on TV set. Item Data or Sound Mute (Service mode display) 2.
  • Page 11 4. SELECTING THE ADJUSTING ITEMS 1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2. (t button for reverse order) Refer to table-2 for preset data of adjustment mode. (See SETTING & ADJUSTING DATA on page 31) 5.
  • Page 12 8. SELF DIAGNOSTIC FUNCTION 1) Press “9” button on Remote Control during display of adjustment menu in the service mode. The diagnosis will begin to check if interface among IC’s are executed properly. 2) During diagnosis, the following displays are shown. Indicated color of mode now selected : Green and Red Indicated color of other modes : Black...

  • Page 13: Design Mode

    DESIGN MODE 1. ENTERING TO DESIGN MODE 1) Select the Service mode. 2) While pressing CALL button on Remote 3) Press MENU button on TV. and press MENU button on TV. ITEM Press DATA Press (Design mode) (Adjustment mode) When QA02 is initialized, items “OPT0”, “OPT1” and "OPT2" of DESIGN MODE are set to the data of the representative model of this chassis family.

  • Page 14: Electrical Adjustment

    ELECTRICAL ADJUSTMENT ITEM ADJUSTMENT PROCEDURE WIDTH 1. Call up the adjustment mode display, then select the item WID. 2. Press the VOLUME t button to get the picture so the left (WID) or right edges of raster begins to lack. 3.
  • Page 15 Reference factory adjustment – 15 –...
  • Page 16 – 16 –...
  • Page 17 – 17 –...
  • Page 18 Deflection amplitude setting for 42PW33Q (HIT/WID adjusting method under muted convergence) * Green pattern under the muted convergence Screen edge 0 point 3rd flag 1st flag Castration border line Hor izontal amplitude: : Left and right register mar ks of Philips pattern C + D = 10 (See A of the upper figure. . )
  • Page 19 Adjustment items Adjusting methods Focus adjustment (Conditions) - User adjustment : Dynamic mode, Cinema mode - To be performed after centering magnet adjustment. - Signal : Lens: R ..Retma Pattern (PAL) G ..Crosshatch (PAL) B ..Crosshatch (PAL) Electrical focus : R ..
  • Page 20 Adjustment items Adjusting methods Concerning items 1), 2), 3), and 5) of G adjustment, these are common to the ones Focus adjustment on the previous page. 3. R adjustment 1) Set to the R monochrome by lens cap. 2) Receive the image of Retma pattern. 3) Adjust the R electrical focus.

  • Page 21: Convergence Adjustment

    CONVERGENCE ADJUSTMENT 1. SCREEN ADJUSTMENT The adjustment is carried out on four screens; Wide, S.Live, Before proceeding to the adjustment for each screen, always Cinema, S.title in both PAL and NTSC modes. When making perform the adjustments for vertical size (HIT) and horizontal the adjustments, feed an external signal to make an size (WID) with the main deflection data changed.
  • Page 22 1-2. Remote Control Key CALL o key ....Push this key twice and the set con- sole menu key to enter the service mode. F key ....Push this key and 7 key to enter and cancel the convergence menu. 5 key ....
  • Page 23 1-3. Adjusting Screen Note ; * Horizontal conergence adjustment makes to mask hidding addustment. ( Make the desired screen size.) Screen Adjusting Items Settings Input signals Adjusting methods Names standards WIDE Dynamic Philips Pattern 1) Set the screen size to WIDE. WIDE mode (PAL-I)
  • Page 24 2. Case Study In many cases, color matching problems can be solved by returning the HIT and WID data for main deflection to the initial adjustment values. Convergence cannot be re-adjusted in the following cases. 2-1 When the CRT has been replaced Main deflection re-adjustment and color matching are necessary when the CRT has been replaced.
  • Page 25 3 Screen adjustment dimensions 3-1 WIDE (PAL mode) 246.8 217.9 130.7 43.6 (screen center) 43.6 130.7 217.9 246.8 3-2 Super Live (PAL mode) 261.5 231.0 137.0 (pattern center) -5.3 52.0 143.3 232.1 261.5 Caution: Do not perform the VLIN adjustment. –...
  • Page 26 3-3 Cinema (PAL mode) Note: The cursor will move outside the screen limits in the Cinema mode; therefore, be careful to consider the position of the cursor displayed on the screen when making adjustments. 275.6 238.9 165.4 55.1 55.1 165.4 238.9 275.6 3-4 Subtitle (PAL mode)
  • Page 27 3-5 WIDE/4:3 (NTSC mode) 242.6 207.9 104.0 (screen center) 104.0 207.9 242.6 3-6 Super Live (NTSC mode) 261.5 223.7 110.3 (pattern center) -5.3 117.6 226.8 261.5 Caution: Do not perform the VLIN adjustment. – 27 –...
  • Page 28 3-7 Cinema (NTSC mode) Note: The cursor will move outside the screen limits in the Cinema mode; therefore, be careful to consider the position of the cursor displayed on the screen when making adjustments. Note: Please be aware that the Cinema screen convergence pattern center is located at the center of the screen but the image center is located approximately 13mm above that.

  • Page 29: Screen And Mirror Alignments

    SCREEN AND MIRROR ALIGNMENTS ASSEMBLING AND MOUNTING OF FRONT SCREEN * Please refer to MECHANICAL DISASSEMBLY page 34. CLEANING OF LENS AND MIRROR CAUTION : Do not hold the optical system parts (lens and mirror) with bare hand to avoid finger-prints on the surface of those parts.

  • Page 30: Circuit Checks

    CIRCUIT CHECKS HIGH VOLTAGE CHECK CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps below. 1. Connect an accurate high voltage meter to the anode of the picture tube. 2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST to minimum (zero beam current). 3.

  • Page 31: Chapter 2 Specific Informations

    CHAPTER 2 SPECIFIC INFORMATIONS SETTING & ADJUSTING DATA SAFETY INSTRUCTIONS 42PW33Q HIGH VOLTAGE AT ZERO BEAM: 33.3 kV MAX HIGH VOLTAGE: 34.5 kV AC VOLTAGE 220~240 V Table-1 SERVICE MODE ADJUSTING ITEMS AND DATAS IN THE SERVICE MODE: Item Adjustment...

  • Page 32: Location Of Controls

    LOCATION OF CONTROLS � Front ������������ �������������� �������������������� Back COMPONENT VIDEO INPUT (EXT 4) SCART 3 (EXT 3) SCART 2 (EXT 2) SCART 1 (EXT 1) – 32 –...

  • Page 33: Remote Controller

    Remote Controller ���������������������������������������������������� ������������������� ������������������������������������� ��������������������������������������� ������������������� �������������� ������������������������������������� ������������������������������������ ����������������������������������� ���� ������������������ ������������������������������ ������������� ��������������� ��������������������������������� �������������� �������������������� ������������������������������������ �������������������������������������� ������ �� ������������������������� ������������������������ ������������������������� ����������������������� �������������� ����������������� ������������������������ � ���������������� � ����� �������� � ������������������������� � ����� �������� ����...

  • Page 34: Mechanical Disassembly

    MECHANICAL DISASSEMBLY K502 SCREW K601 K501 4 SCREWS A001 (A420) Labels A424 A201 2 SCREWS 4 SCREWS A258 A202 (A213) (A214) (A223) (A225) K101 K102 K103 – 34 –...

  • Page 35: Chassis And Cabinet Replacement Parts List

    · · · · · The part number must be used when ordering parts, in order to assist in processing, be sure to include the Model number and Description. · · · · · The PC board assembly with mark is no longer available after the end of the production. Model : 42PW33Q Capacitors ..... CD : Ceramic Disk PF : Plastic Film EL : Electrolytic Resistors ....
  • Page 36 Location Parts No. Description Location Parts No. Description C468 24820123 PLASTIC FILM, 630V 0.012UF J C704 24105330 CERAMIC CHIP, 50V CH 33PF J C481 24666101 ELECTROLYTIC 04Q, 16V 100UF M 3A C705 24100104 CERAMIC CHIP, 25V F 0.1UF Z C482 24092733 CERAMIC CHIP, 50V B 0.022UF K C706 24100104 CERAMIC CHIP, 25V F 0.1UF Z...
  • Page 37 Location Parts No. Description Location Parts No. Description C821 24503115 PLASTIC FILM, 800V 0.022UF J C7724 24667101 ELECTROLYTIC CE04Q, 25V 100UF M 3A C823 24667221 ELECTROLYTIC CE04Q, 25V 220UF M 3A C7725 24667101 ELECTROLYTIC CE04Q, 25V 100UF M 3A C824 24667221 ELECTROLYTIC CE04Q, 25V 220UF M 3A C7726 24105331 CERAMIC CHIP, 50V CH 330PF J...
  • Page 38 Location Parts No. Description Location Parts No. Description CC73 24109102 CERAMIC CHIP, 50V B 1000PF K 24212103 CERAMIC DISC, 50V B 10000PF K @U901D CC74 24109102 CERAMIC CHIP, 50V B 1000PF K CW06 24781121 CERAMIC CHIP, 50V SL 120PF J CC75 24109102 CERAMIC CHIP, 50V B 1000PF K CW07...
  • Page 39 Location Parts No. Description Location Parts No. Description CW94 24781101 CERAMIC CHIP, 50V SL 100PF J R332 24000525 METAL FILM, 1/4W 4.7K OHM F CW95 24781101 CERAMIC CHIP, 50V SL 100PF J R333 24011103 CHIP, METAL FILM, 1/20W 10K OHM J CW97 24781101 CERAMIC CHIP, 50V SL 100PF J R334...
  • Page 40 Location Parts No. Description Location Parts No. Description R461 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R615 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R462 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R616 24011103 CHIP, METAL FILM, 1/20W 10K OHM J R463 24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J R617...
  • Page 41 Location Parts No. Description Location Parts No. Description R748 24872332 CHIP, 1/16W 3.3K OHM J R911 24366471 CARBON FILM, 1/6W 470 OHM J R749 24872362 CHIP, METAL FILM, 1/16W 3.6K OHM J R913 24942102 CARBON COMPOSITION, 1/2W 1K OHM J R750 24872911 CHIP, 1/16W 910 OHM J R915...
  • Page 42 Location Parts No. Description Location Parts No. Description R7727 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RA35 24011102 CHIP, METAL FILM, 1/20W 1K OHM J R7728 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J RA37 24011101 CHIP, METAL FILM, 1/20W 100 OHM J R7729 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RA38...
  • Page 43 Location Parts No. Description Location Parts No. Description RR05 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RT03 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RR06 24011223 CHIP, METAL FILM, 1/20W 22K OHM J RT04 24011102 CHIP, METAL FILM, 1/20W 1K OHM J RR07 24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J RT05...
  • Page 44 Location Parts No. Description Location Parts No. Description RV88 24872151 CHIP, 1/16W 150 OHM J RW60 24000824 CHIP JUMPER, 2125TYPE RV89 24872151 CHIP, 1/16W 150 OHM J RW61 24872472 CHIP, 1/16W 4.7K OHM J RV94 24011750 CHIP, METAL FILM, 1/20W 75 OHM J RW62 24872622 CHIP, 1/16W 6.2K OHM J RV95...
  • Page 45 Location Parts No. Description Location Parts No. Description GJ74 24000445 CHIP JUMPER, 1608TYPE L754 23103866 FILTER, TEM2105T GJ75 24000445 CHIP JUMPER, 1608TYPE L803 23103880 COIL, CHOKE, TEM2011Y GJ76 24000445 CHIP JUMPER, 1608TYPE @U101 L804 23103894 FILTER, FERRITE BEAD, TEM2011AW 24000445 CHIP JUMPER, 1608TYPE @U102 L823 23248073 COIL, CHOKE, TLN3299D GJ77...
  • Page 46 Location Parts No. Description Location Parts No. Description LW12 23238718 COIL, PEAKING, TRF4479AJ Q523 23205005 TRANSISTOR, KTA2014Y LW13 23238702 COIL, PEAKING, TRF4101AJ Q524 23205014 TRANSISTOR, 2SC4667-O LW14 23238702 COIL, PEAKING, TRF4101AJ Q610 23000269 IC, TA8216H LW15 23238718 COIL, PEAKING, TRF4479AJ Q611 70114396 TRANSISTOR, 2SC3326B LW16...
  • Page 47 Location Parts No. Description Location Parts No. Description QB04 23205005 TRANSISTOR, KTA2014Y QW40 23314163 TRANSISTOR, 2SA1162-Y QB05 23205006 TRANSISTOR, KTC4075Y QW41 23314163 TRANSISTOR, 2SA1162-Y QB06 23205005 TRANSISTOR, KTA2014Y QW42 23314163 TRANSISTOR, 2SA1162-Y QB81 70114396 TRANSISTOR, 2SC3326B QW43 23314163 TRANSISTOR, 2SA1162-Y QB82 70114396 TRANSISTOR, 2SC3326B QW51...
  • Page 48 Location Parts No. Description Location Parts No. Description D873 23357318 DIODE, ZV=25.63-26.95 DZ27 BS C BB701 23368517 CONNECTOR, PLUG, B-B 6P D875 23357283 DIODE, DZ9.1 BS C D819 23316454 SCR, SF0R3G42NG5H D876 23357324 DIODE, ZV=29.68-31.22 DZ33 BS A D845B 70391355 SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN D877 23357318 DIODE, ZV=25.63-26.95 DZ27 BS C F801...
  • Page 49 A266 23450659 PANEL, POLE SPK GRILLE(RIGHT) A268 23450660 PANEL, POLE SPK GRILLE(LEFT) A420 23532099 COVER, MIRROR COVER A424 23429099 CABINET, VENT BACK BOARD 42PW33Q E921 23964147 COOLANT, COOLANT E929 23969684 TAPE, GLASS-CLOTH, W/ADHESIVE W=90 T=0.18 E951 23964147 COOLANT, COOLANT E959 23969684 TAPE, GLASS-CLOTH, W/ADHESIVE W=90 T=0.18...

  • Page 50: Pc Boards Layout Top View

    PC BOARDS LAYOUT TOP VIEW – 50 –...
  • Page 51 SIGNAL BOARD PD0380F (U101) TOP (FOIL) SIDE C111 C110 H002 JP025 C160 D101 H001 JP017 C632 C619 C631 JP032 JP016 L101 C634 C628 C627 C639 C626 C620 C624 LC66 LV42 C636 CS14 JP030 CS13 C621 CZ08 CC41 CC42 CZ22 CZ08 LZ08 R528 CZ06...
  • Page 52 SIGNAL BOARD PD0380F (U101) BOTTOM (FOIL) SIDE C111 C110 C160 D101 GJ30 GJ30 H002 C109 H001 C109 LG103 G102 LG103 G102 LG102 LG102 GJ63 G103 23546922 CC26 CC27 GJ63 CC26 CC27 G604 Q616 R110 D607 R110 D601 D601 R618 C631 C105 C105 C628...
  • Page 53 MAIN/POWER BOARD PD0384C (U902) TOP (FOIL) SIDE C840 D801 L839 R818 D818 JP008 D819 R816 R815 BB85A R817 8 10 12 14 R814 BB82A BB80A C890 R842 JP040 JP028 Q843 C824 C898 JP049 Q810 JP011 JP012 Z853 C823 D830 L866 C842 CAUTION P802B...
  • Page 54 MAIN/POWER BOARD PD0384C (U902) BOTTOM (FOIL) SIDE 15 13 11 9 R818 L839 D818 BB85A T803 D819 SR81 R816 1 2 3 4 5 6 7 8 R815 D856 10 8 R817 BB80A C898 BB82A R842 C821 C820 Q810 C890 Z853 C823 D830...
  • Page 55 DEF/CONV BOARD PD0381E (U102) TOP (FOIL) SIDE BB85B BB80B R390 R344 L442 BB82B GJ43 L404 GJ42 R442 D461 C468 C443 Z7711 Q404 R7710 R440 R7711 C467 Q404A Z7721 JP108 JP013 R7721 L402 C412 JP063 R7720 JP026 C445 JP163 JP146 JP041 C446 JP155 JP022...
  • Page 56 DEF/CONV BOARD PD0381E (U102) BOTTOM (FOIL) SIDE BB80B BB82B BB85B R390 R344 L442 23546923 L404 R442 DS-1107A D461 Z450 C468 C443 Q404 C467 Z7711 R440 R7710 R7711 Q404A C445 Z7721 R7721 R7720 L402 Q400 C446 C412 Q761 Q798 R7709 Q762 R7719 R7709 R7718...
  • Page 57 CRT-D RED BOARD PD0383D1 (U901A) CRT-D RED BOARD PD0383D1 (U901A) CRT-D GREEN BOARD PD0383D2 (U901B) CRT-D GREEN BOARD PD0383D2 (U901B) TOP (FOIL) SIDE BOTTOM (FOIL) SIDE TOP (FOIL) SIDE BOTTOM (FOIL) SIDE R972 Q964 Q966 Q964 R970 R970 Q966 L911 PV16A L911 P932...
  • Page 58 CRT-D BLUE BOARD PD0383D3 (U901C) CRT-D BLUE BOARD PD0383D3 (U901C) TOP (FOIL) SIDE BOTTOM (FOIL) SIDE Q9605 R9602 R9602 Q9606 C9602 R9605 Q9605 R9604 R9613 JP019 R9614 R9601 R9601 R9617 R9617 V903A R9615 R9615 SCREEN V903A BLUE C925 R9701 R926 R9701 R926 R928...
  • Page 59 FRONT IN BOARD PD1103F1 (U903A) TOP (FOIL) SIDE CC50 CC49 SA06 SA04 SA03 SA02 SA01 LC14 MENU VOL DN VOL UP POS DN POS UP PV40 CC48 RC61 RA71 RA72 RV46 RV47 RC60 RA73 P661 GJ73 LC13 GC10 GJ74 R688 CC52 CC47 JP405...
  • Page 60 TEXT-P2 BOARD PD0267J (U104) TEXT-P2 BOARD PD0267J (U104) TOP (FOIL) SIDE BOTTOM (FOIL) SIDE 23599090A PD0267 RT33 CT06 RT33 CT06 QT01 CT05 CT05 CT08 QT11 RT26 RT26 QT09 CT19 QT11 RT24 QT07 QT01 RT24 CT10 GT08 RT03 QT10 LT12 RT03 RT36 QT02 RT43...

  • Page 61: Terminal View Of Transistors

    TERMINAL VIEW OF TRANSISTORS 2SD2253 2SC3852 2SC752 2SA1788 2SC752GTM (old) 2SD1763A 2SA562TM 2SC2482 2SC1569 2SC5243 2SC2655 2SA1015 2SC4544 2SC4721P 2SC1815 2SA1788 2SC2878 2SA1306 2SC1740S 2SA1186A 2SC2120 2SA9335 RN2203 2SD1554 ON4409 2SD2253 RN2201 RN2004 2SD1556 RN1203 2SC5143 RN1204 2SD2553 RN2204 RN1205 RN1202 RN1201 –...

  • Page 62: Schematic Diagram

    SCHEMATIC DIAGRAM MODEL : 42PW33Q WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL. CAUTION: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list.
  • Page 63 – 73 –...

  • Page 64: Specifications

    SPECIFICATIONS MODEL 42PW33Q Broadcast systems/channels PAL-I UHF UK21-UK69 PAL-B/G UHF E21-E69 VHF E2-E12, S1-S41 SECAM-L UHF F21-F69 VHF F1-F10, B-Q SECAM-D/K UHF R21-R69 VHF R1-R12 Video Input PAL, SECAM, NTSC 3.58/4.43 External connections EXT1 Input 21-pin Scart RGB, A/V EXT2...
  • Page 65 TOSHIBA CORPORATION 1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN...
