V-CD500
CD/MP3-
CD/MP3 RECEIVER
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-CD500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Varta V-CD500

Summary of Contents for Varta V-CD500

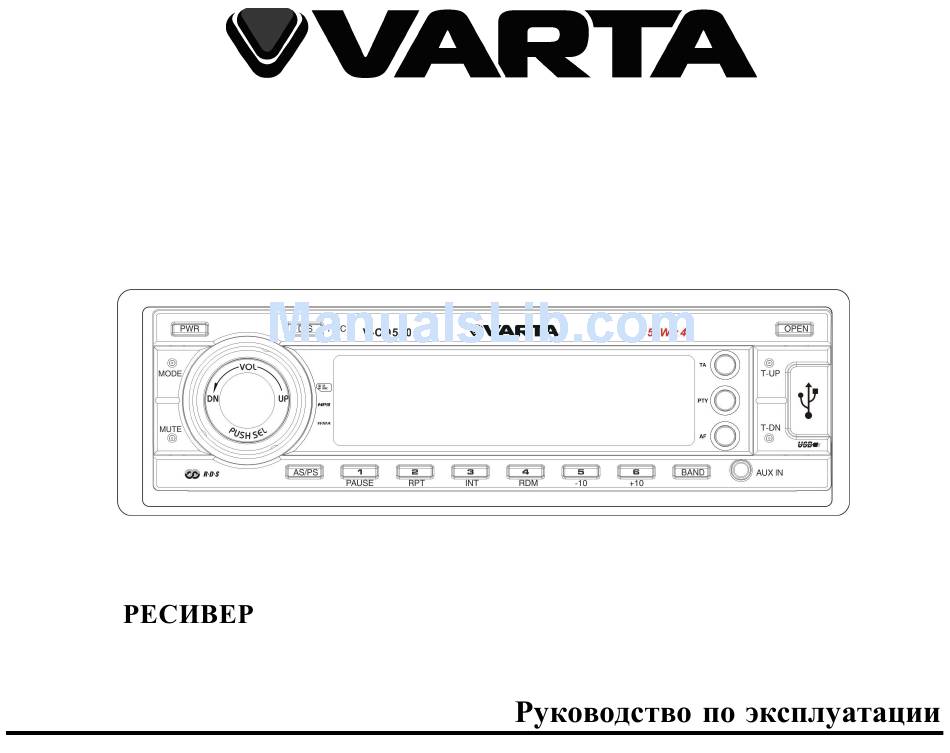

  • Page 1 V-CD500 CD/MP3- CD/MP3 RECEIVER Instruction manual...

  • Page 2: Table Of Contents

    V-CD500 Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ...............................2 Important safeguards ............................3...

  • Page 3: Important Safeguards

    V-CD500 Important safeguards Using the device at temperature below -10º may cause the breakage of the device. Before using please heat up the passenger compartment to the recommended temperature! Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

  • Page 4: Accessories

    V-CD500 Accessories Receiver Panel protective case 1 pc set ISO cable 1 pc Release keys 2 pcs Screw B5 x 20 1 pc Bolt M5 x 6 4 pcs 1 pc Spring Washer 1 pc Flat Washer 1 pc Mounting strap...

  • Page 5: Installation/Connection

    V-CD500 Installation/connection Note: Unit should be installed horizontally in an angle less than 30°. Insert Half Sleeve into dash-board hole and bend mount tabs outwards to fix it. If necessary, place the mount strap at the rear of the unit and fix it with provided washer.
  • Page 6 V-CD500 Un-installation Remove Trim Ring and insert Release Keys into left and right side-end holes and pull the unit out of the dash- board. Detaching the front panel 1. Press OPEN button on the front panel. The panel will go down (pic. 1).
  • Page 7 V-CD500 Electrical connection Caution: Do not interchange the connection of the wiring! For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit.

  • Page 8: Panel Controls

    V-CD500 Panel controls Front panel 1. MODE button 2. PWR button 3. DIS/REC button 4. PTY button 5. TA button 6. T-UP/NEXT button 7. OPEN button 8. USB jack 9. T-DN/PREVIOUS button 10. AUX jack 11. AF button 12. BAND button 13.
  • Page 9 V-CD500 22. SD/MMC slot 23. EJECT button Inner panel 24. Light indicator 25. RESET button 26. DISC slot...

  • Page 10: General Operations

    V-CD500 General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button on the panel to open the panel and press RESET button to restore the unit to the original factory settings.
  • Page 11 V-CD500 Setting other characteristics During TUNER mode press SEL button and hold for 2 seconds, shortly and repeatedly press SEL button to select the setting: INVOL=> ADJ => TA VOL => EON ON => REC => DSP => LOUD OFF => LOC OFF =>...
  • Page 12 V-CD500 LOUD OFF/ON Choose LOUD ON or OFF. LOC OFF/ON Choose LOC On or OFF. STEREO Choose Stereo or mono audio output. NORMAL/REVERSE Rotate the knob to choose NORMAL display (black mask with white word) or REVERSE display (white mask...
  • Page 13 V-CD500 Turning the sound off Press MUTE button to turn the sound off. Press it again or rotate VOL knob to turn the sound on. Mode setting Press MODE button on the panel repeatedly to select: TUNER => CD (if inserted) => USB (if USB device is inserted) =>...

  • Page 14: Digital Tuner Operations

    V-CD500 Digital tuner operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. RDS overview PI: Program Identification Code – for identifying code.
  • Page 15 V-CD500 Hold a Preset button (1-6), which you want store the station for at least 2 seconds. To recall a station: Select a band (if needed) Press a Preset button (1-6) briefly to recall the stored station. Auto memory store Select a band.
  • Page 16 V-CD500 MODE / T-UP/NEXT/T-DN/PREVIOUS and BAND are locked. Press TA button once to ignore the received TA information, press TA button twice to turn off the function. AF (Alternative Frequencies) function Press AF button on the panel shortly to turn on or turn off the AF function. If the AF function is on the display will show “AF”.
  • Page 17 V-CD500 TEST, ALARM 3. Press PTY button until PTY icon disappears.

  • Page 18: Cd/ Mp3/ Wma/ Usb/ Sd Card Operations

    V-CD500 CD/ MP3/ WMA/ USB/ SD card operations Discs for playback This unit can play disc types: CD/CD-R/-RW. Compatible with formats: CDDA/MP3/WMA. USB/ SD/ MMC notes USB functions (flash memory type) MP3 music play. SD/MMC card support, 2in1 (SD/MMC) support.
  • Page 19 V-CD500 Loading/Ejecting a disc Turn the power on. Press OPEN button on the panel. Insert the disc with the printed side facing upward into the slot. Press EJECT button on the inner side to eject the disc. Inserting the SD/MMC card/USB device Insert the MMC/SD card or USB device into MMC/SD compartment or USB socket.
  • Page 20 V-CD500 Repeat playback Press RPT button to play track repeatedly, press again to cancel. (when RPT on, LCD display "RPT", when RPT off, this word disappears). Note: After finishing playing all tracks or all folders of CD/MP3/SD/MMC, the unit restarts playing all tracks or all folders automatically.

  • Page 21: Mp3/ Wma Overview

    V-CD500 MP3/ WMA overview Notes on MP3: MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 22 V-CD500 Notes on creating your own CD-R or CD-RW containing MP3 files: To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate o f 128 kbps. DO NOT store more than 256 MP3 files per disc.

  • Page 23: File / Folder Search Function

    V-CD500 File / Folder Search Function In CD, USB, SD/MMC mode, press AS/PS button to enter search mode. Below is toggle sequence of search mode. File Number Search -> File Name Search -> Folder Search -> Exit search mode Note: Audio-CD Disc only supports File number Search File Number Search Press AS/PS button first time, it locates file number search and there is 3 digit of number (“001”) on LCD...

  • Page 24: Encoding (Recording) Function

    V-CD500 Encoding (Recording) function The Recording (Encoding) function is to record sound source from Tuner, Audio CD, AUX-in directly to a storage device (either USB flash device or SD/MMC Card). If the storage device does not have enough memory capacity left, the last music source fails to be recorded completely.
  • Page 25 V-CD500 Press and hold DIS/REC button for more than 2 seconds, the unit asks the location to copy firstly to MMC or you can switch to USB by pressing the button again. To cancel recording, press and hold DIS/REC button for more than 2 seconds.

  • Page 26: Handling Discs

    V-CD500 Handling discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches.

  • Page 27: Troubleshooting Guide

    V-CD500 Troubleshooting guide Symptom Cause Solution The car ignition is not on. If the power supply is properly connected No power to the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc cannot be loaded.

  • Page 28: Specification

    V-CD500 Specification General Power supply: 12 V DC Storage support: CD/CD-R/CD-RW/USB/SD/MMC Compatible with: CDDA/MP3/WMA Current consumption: max. 15 A Maximum power output: 50 W x 4 channels Dimensions (L x W x H): 178 x 175 x 50 mm Working temperature range: -10º...
  • Page 29 V-CD500 ..............................29 ..........................30 ............................31 ..........................32 ...........................35 ............................37 ........................40 / SD / USB ...............44 WMA............................47 ............................49 .............................50 ............................52 ..............................52 ....................53 ........................54...
  • Page 30 V-CD500 -10º...
  • Page 31 V-CD500...
  • Page 32 V-CD500 30°.
  • Page 33 V-CD500 OPEN . 1). . 2). .3). . 4).
  • Page 34 V-CD500...
  • Page 35 V-CD500 MODE DIS/REC T-UP/ NEXT OPEN T-DN/PREVIOUS BAND 6/+ 10 5/- 10 4 / RANDOM 3 / INTRO 2 / REPEAT 1 / PLAY/PAUSE AS/PS VOL / MUTE...
  • Page 36 V-CD500 SD/MMC EJECT RESET...
  • Page 37 V-CD500 OPEN, RESET OPEN), PWR. VOL/SEL, SEL, : VOLUME ) => BASS ( ) => TRE LE ( ) => BALANCE ( ) => FADER ( ) => CONTRAST ( VOL/SEL.
  • Page 38 V-CD500 SEL, SEL, : INVOL=> ADJ => TA VOL => EON ON => REC => DSP => LOUD OFF => LOC OFF ( ) => STEREO ( )=> NORMAL => INVOL ( ADJ ( TA VOLUME ( Enhanced Other Networks (...
  • Page 39 V-CD500 LOC OFF/ON ( LOC ON LOC OFF ( STEREO ( NORMAL/REVERSE NORMAL ( REVERSE ( VOL/SEL, MOD , : TUNER ( ) => CD ( ) => USB ( ) => SD ) => AUX. DIS/REC, : Clock/Time ) => PTY => Radio Frequency ( ) =>...
  • Page 40 V-CD500 RDS ( – – – – MOD , - TUNER. B ND, : FM1, FM2, FM3, MW1 (AM1), MW2 (AM2). T-DN/T-UP; MANUAL ( T-DN/T-UP,...
  • Page 41 V-CD500 (18 FM 12 AM). T-DN/T-UP. (1-6), (1-6). S/PS 1-6. S/PS. S/PS, TA ( (ON) (OFF).
  • Page 42 V-CD500 AS/PS /[1-6]/PTY/ MODE/T-UP/NEXT/T-DN/PREVIOUS BAND AF ( (ON) (OFF) «AF». (on), REG. PTY ( PTY, PTY. T-DN/T-UP,...
  • Page 43 V-CD500 POP M, ROCK M NEWS, AFFAIRS, INFO EAST M, LIGHT M SPORT, EDUCATE, DRAMA CLASSICS, OTHER M CULTURE, SCIENCE, VARIED JAZZ M, COUNTRY M WEATHER, FINANCE, CHILDREN NATION M, OLDIES M SOCIAL, RELIGION, PHONE IN FOLK M TRAVEL, LEISURE, DOCUMENT,...
  • Page 44 V-CD500 / SD / USB : CD/CD-R/-RW. : CDDA/MP3/WMA. USB/ SD/ MMC SD/ MMC, 2 1 (SD/MMC). FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( , 500 FAT 32 ( , 500 : 32 : 32 (id3tag ver 2.0) USB 2.0.
  • Page 45 V-CD500 OPEN, EJECT, SD/MMC/USB SD/MMC PLAY/PAUSE. PLAY/PAUSE, PLAY/PAUSE PREVIOUS, NEXT, PREVIOUS/NEXT...
  • Page 46 V-CD500 +10/-10 5/- 10, 6/ + 10 RPT, “RPT”), “RPT” Intro 3/INT Intro ( 4/RDM...
  • Page 47 V-CD500 WMA: MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, PC “ ” “ ” 256. VBR, . VBR: WMA (Windows Media Audio) – Microsoft Corporation.
  • Page 48 V-CD500 , 64 CD-R CD-RW, MP3: 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG. WMA (Windows Media Audio) – Microsoft Corporation. , 64...
  • Page 49 V-CD500 CD, USB, SD/MMC, AS/PS => => => AS/PS, (“001”), T-UP/T-DN SEL), BAND, AS/PS, (“A**”), T-UP/T-DN BAND, T-UP/T-DN BAND, : “NO MATCH”.
  • Page 50 V-CD500 AS/PS, T-UP/T-DN BAND, “ROOT”, AUX-in (USB- SD/MMC). “NO MEDIA” (« »); /AUX-IN ( DIS/REC, SD/MMC; DIS/REC, BAND DIS/REC,...
  • Page 51 V-CD500 MMC ALL ( SD/MMC) -> USB ALL ( ) -> MMC ONE ( SD/MMC) -> USB ONE ( DIS/REC. BAND; DIS/REC, SD/MMC ( DIS/REC. BAND SD/MMC, DIS/REC; “DELETE” (« »). BAND DIS/REC SD/MMC SD/MMC...
  • Page 52 V-CD500...
  • Page 53 V-CD500 “ ”. RESET.
  • Page 54 V-CD500 CD/CD-R/CD-RW/USB/SD/MMC CDDA/MP3/WMA 178 175 50 -10º - +60º 87.5 - 108.0 MW ( 522-1620 – 20 (A-vtd): Classic, Rock, Pop, Flat RCA- (2 )
