Quick Installation Instructions

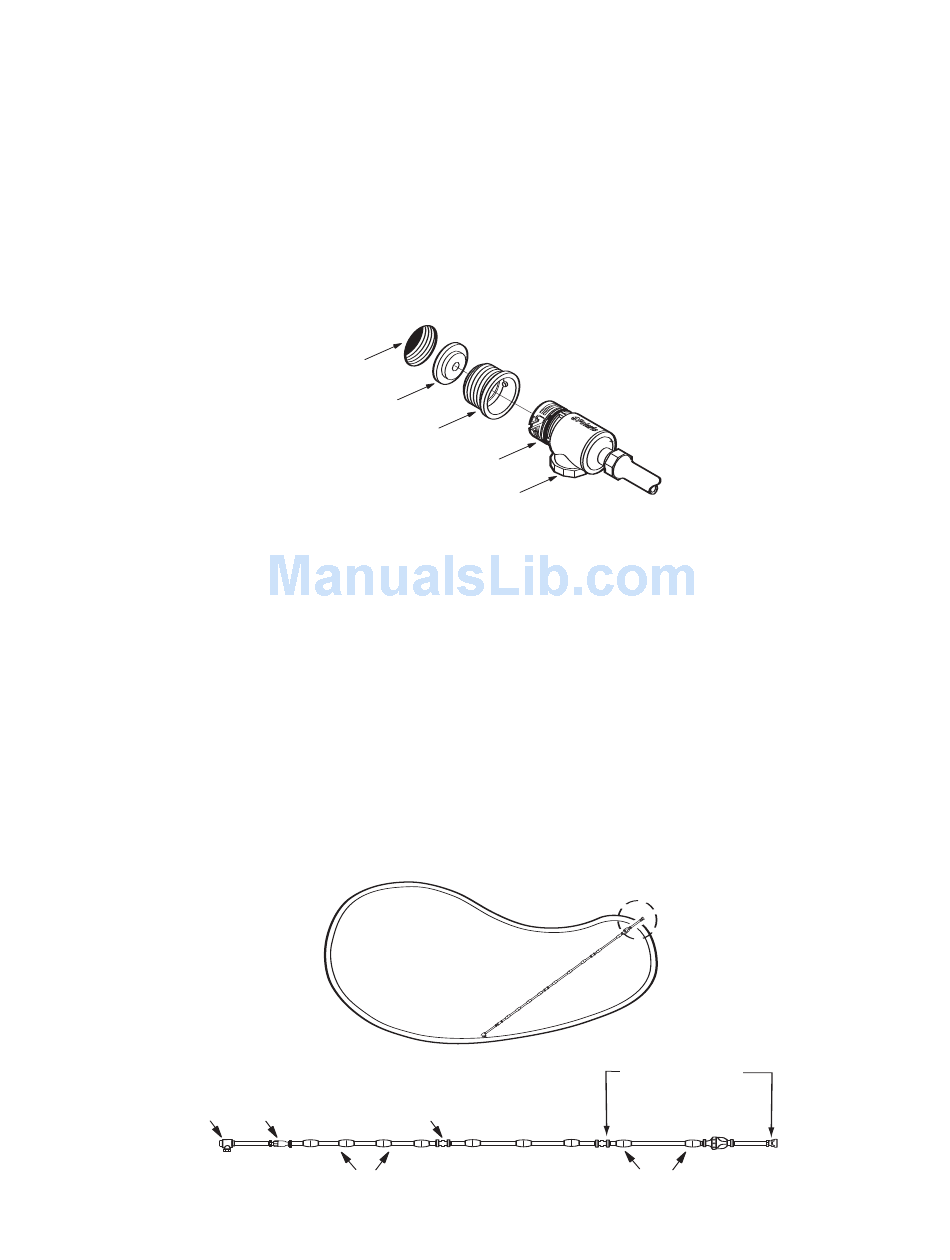

Install the Universal Wall Fitting

1
Installs in minutes on pools with a dedicated cleaner return line.
1. Turn on the filtration pump and flush out the plumbing line.Turn pump off.
2. Remove the Universal Wall Fitting (UWF) from the Quick Disconnect and screw it
into the return opening with the blue restrictor disk in place.
3. Turn the Quick Disconnect clockwise into the UWF and pull away to secure.

Adjust Feed Hose To Fit Pool Length

2
1. Measure the deepest part of the pool. Cut leader hose, from end that attaches to feed
hose, so length is equal to the greatest depth of the pool.
2. Attach leader hose to feed hose and connect hose to the pool wall at the return line.
Extend hose to farthest point of pool. The hose end must be within 6" – longer or
shorter – of the farthest point. See diagram below.
If hose is too long: Separate hose at center swivel. Cut equal amounts of the
overage from each 10-foot feed hose section.
If hose is too short: Add a feed hose section (part #9-100-3104), a swivel
(part #D20) and two hose nuts (part #D15). Adjust to proper length.
Each feed hose section should be equal in length after adjustments.
3. After adjusting the length, position the hose floats as shown.
In-Line
UFW Filter
Dedicated
Return Line
Restrictor Disk
UWF
Quick Disconnect
Pressure Relief Valve
Return
Line
Center
Swivel
Feed Hose Floats
1.5 to 3' apart
4
Furthest
Point
Leader Hose
Length = Max. Depth
Leader Hose Floats
2-3' apart
