Air Techniques VistaCam Omni IC4 Manual

Intraoral cameras
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TM
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VistaCam Omni IC4 and is the answer not in the manual?

Questions and answers

Related Manuals for Air Techniques VistaCam Omni IC4

Summary of Contents for Air Techniques VistaCam Omni IC4

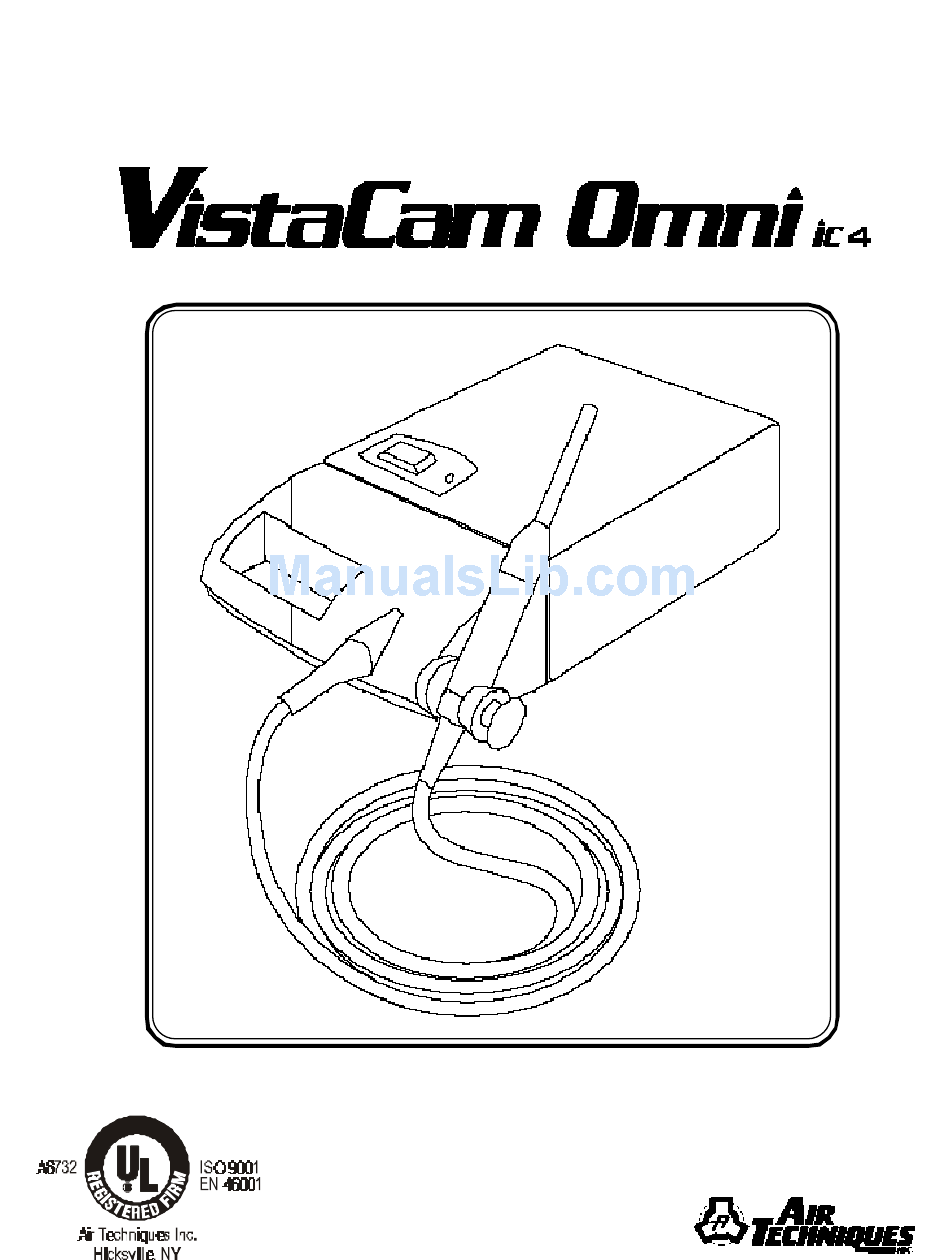

  • Page 1 MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS SAFETY INSTRUCTIONS ......................... 4 WARRANTY ............................4 CONGRATULATIONS ........................5 READ THIS BEFORE YOU USE YOUR VISTACAM OMNI ic 4 ..........6 PRE-INSTALLATION CHECK ......................7-8 OPERATION ............................9-20 1. POWER ON ..........................9 2.
  • Page 3 TABLE OF CONTENTS TABLE OF CONTENTS MAJOR COMPONENTS (cont.) IMAGE PRINTER - PN 77300 n Control Buttons; Indicator Lights ................... 23 n Inside the Control Cover ....................23 n Installation Connections ....................23 n Trouble Shooting - Paper or Ink Cartridge ..............24 13"...

  • Page 4: Safety Instructions

    AIR TECHNIQUES WARRANTY This Air Techniques equipment is warranted to be free from defects in material and workmanship from the date of installation for a period of twelve months. Any item returned to our factory in Hicksville, New York, through an Air Techniques’ Authorized Dealer, will be repaired or replaced at our option at no charge provided that our inspection shall indicate it to have been defective.

  • Page 5: Congratulations

    You have purchased the VistaCam Omni ic 4, the latest camera that is the heart of the VistaCam video imaging product line from Air Techniques, a leading manufacturer of dental equipment since 1962. The VistaCam Omni ic 4 consists of a camera and handpiece unit with integral image capture capabilities, and a Docking Station with power supply, lamp and fan.

  • Page 6: Read This Before You Use Your Vistacam Omni Ic 4

    READ THIS BEFORE YOU USE YOUR VISTACAM OMNI ic 4 The OPERATION section of this manual covers three installation scenarios: 1. Cart, Counter-Top or Wall-Mount System 2. Multi-Operatory Installation w/o interoperatory wiring 3. Multi-Operatory Network with QDA (Queuing Distribution Amplifier) For all installation scenarios, follow these steps: 1.

  • Page 7: Pre-Installation Check

    PRE-INSTALLATION CHECK PRE-INSTALLATION CHECK For the VistaCam Omni ic 4, the Image Printer is factory pre-set for a SINGLE image to appear on the monitor and pre-set to produce printouts with the same color fidelity as appears on the monitor. Since proper Image Printer set-up is critical, we recommend the following PRE-INSTALLATION checks for optimum system performance.

  • Page 8: Pre-Installation Check

    PRE-INSTALLATION CHECK PRE-INSTALLATION CHECK FIG. 4 - FACTORY PRE-SET SUB MENUS 1 . PRINT MODE M E N U 2. MI MODE ® ® PRINT COUNT MULTI O F F M I R R O R O F F 1. PRINT MODE N E G A O F F 2.

  • Page 9: Operation

    OPERATION OPERATION FIG. 6 INDICATOR LIGHT VISTACAM OMNI ic 4 ROCKER KEY PARTS IDENTIFICATION SWITCH 90° LENS HANDLE DOCKING STATION CAMERA HANDPIECE HOLDER UMBILICAL FIG. 7 ROCKER SWITCH CONTROLS (CAM (ON) (OFF) ONLY) 1. POWER ON n If all components share a single power source, turn ON the power source. All components on a VistaCam cart system are plugged into a power strip with an ON/OFF switch.

  • Page 10: The Handpiece

    OPERATION OPERATION 2. THE HANDPIECE When the rocker switch is in the ON ( ) position, the fiber optic light source (lamp) turns on automatically when the handpiece is removed from the handpiece holder. When the handpiece is returned to the handpiece holder, the light source turns OFF automatically and the camera remains ON.

  • Page 11: Multi-Function Footswitch - Overview

    OPERATION OPERATION 3. MULTI-FUNCTION FOOTSWITCH CONTROLS - OVERVIEW See 4., 5. & 6. for how to capture and print and image. FIG. 10 PRINTER FOOTSWITCH MONITOR PRINT BUTTON BUTTON MEMORY FORMAT PEDAL BUTTON SELECT FORMAT PEDAL Press to choose the 4 SINGLE image or 1 QUAD image mode. SELECT In the QUAD format, press to highlight and/or reposition the on-screen frame to 1 of the 4 images in the QUAD.
  • Page 12 OPERATION OPERATION 3. MULTI-FUNCTION FOOTSWITCH CONTROLS Multi-operatory network with QDA (Queuing Distribution Amplifier) Press to print the stored image displayed on the monitor. There is a delay of several seconds before the printer at the base station begins processing an image to print. If PRINT is pressed by more than one operatory at approximately the same time, the QDA receives the print signals and sends them to the printer in the order they were received.

  • Page 13: Before Capturing An Image (Format And Select)

    OPERATION OPERATION 4. BEFORE YOU CAPTURE AN IMAGE (FORMAT AND SELECT) VISTACAM OMNI The VistaCam Omni ic 4 can capture 4 SINGLE images or 4 images in a QUAD format. NOTE: All images are captured in the FRAME or highest resolution mode. Use the FORMAT button on the multi-function footswitch to select a SINGLE or a QUAD image to display on the monitor screen.
  • Page 14 OPERATION OPERATION D. To replace an image... In the QUAD format, press the SELECT pedal until the on-screen frame surrounds and highlights the image to be changed. Position the handpiece, then capture the image. (See CAPTURE AN IMAGE) In the SINGLE image format, press the SELECT pedal until you are viewing the image to be changed.

  • Page 15: Capture An Image (Memory And Monitor)

    OPERATION OPERATION 5. CAPTURE AN IMAGE (MEMORY AND MONITOR) Use the MEMORY pedal on the multi-function footswitch to choose the best mode in which to capture an image. Choose between: press MEMORY to capture an image; or press, then release MEMORY to capture an image.

  • Page 16: Print

    OPERATION OPERATION 6. PRINT Install the print cartridge and video print paper prior to printing. (See INSTALLING/ CHANGING THE VIDEO PRINT KIT.) CART, COUNTER-TOP OR WALL-MOUNT SYSTEM Press PRINT on the multi-function footswitch to print the captured image displayed on the monitor.

  • Page 17: Multi-Operatory Network W/Qda

    OPERATION OPERATION B. ATTACH THE CAMERA AT THE BASE STATION Attach the camera to the Docking Station at the base station where the printer is located. If the Docking Station is on the counter, position the camera against the Docking Station, tilt the camera up to catch the top edge of the Docking Station, then bring it down to lock in place.

  • Page 18: Installing / Changing The Video Print Kit

    OPERATION OPERATION INSTALLING / CHANGING THE VIDEO PRINT KIT The Video Print Kit contains a video print cartridge and 50 sheets of video print paper. Reorder PN 77150. (Use only manufacturer's printer paper. The use of other paper may result in damage to the printer or inferior print quality.) Caution: Do not store the video print kit in a location exposing it to high temperature, humidity or direct sunlight.

  • Page 19: The 0° Full Face Portrait Lens

    OPERATION OPERATION THE FULL FACE PORTRAIT LENS n Detach / attach the lens A. Detach the lens from the handpiece / umbilical assembly by pulling the quick release collar back with one hand, then pull the lens off with the other hand. (See Fig. 16) B.

  • Page 20: Cleaning / Maintenance

    OPERATION OPERATION CLEANING AND MAINTENANCE CAUTION: TURN OFF AND UNPLUG THE VISTACAM OMNI ic 4 AND SYSTEM COMPONENTS BEFORE CLEANING. n ALL COMPONENTS Use conventional cleaning methods and water based solutions. Do not wipe the surfaces using benzine, thinner, etc. as this may degrade the finish. n HANDPIECE / UMBILICAL ASSEMBLY Following every patient use, the handpiece / umbilical assembly can be wiped clean and disinfected with any commercial surface disinfectant following the manufacturer's recommended cleaning procedures.

  • Page 21: Major Components

    MAJOR COMPONENTS MAJOR COMPONENTS VISTACAM OMNI ic 4 PN 78400 n QUICK DISCONNECT - DETACH / ATTACH CAMERA AND DOCKING STATION A. Detach the camera from the Docking Station by FIG. 20 depressing the latch release on the back of the REAR VIEW camera.

  • Page 22: N 3 Position Handpiece Holder

    MAJOR COMPONENTS MAJOR COMPONENTS VISTACAM OMNI ic 4 PN 78400 n 3 POSITION HANDPIECE HOLDER The handpiece holder is designed with three positions so it can be oriented to an "up" (tilted slightly forward for ease of use) ready-to-use position whether the VistaCam Omni is installed on a counter, wall mounted, or transported to another operatory.

  • Page 23: Image Printer Pn 77300

    MAJOR COMPONENTS MAJOR COMPONENTS IMAGE PRINTER PN 77300 CONTROL BUTTONS In VistaCam Omni ic 4 installation, after initial Printer setup only the PRINT command to the printer is controlled by the multi-function footswitch. All other multi-function footswitch commands control the VistaCam Omni ic 4.

  • Page 24: Trouble Shooting - Paper Or Ink Cartridge

    MAJOR COMPONENTS MAJOR COMPONENTS IMAGE PRINTER TROUBLE SHOOTING PAPER OR INK CARTRIDGE If the PAPER indicator light flashes ON and OFF after the PRINT button has been pressed, see INDICATOR LIGHTS. If the INK indicator lamp flashes ON and OFF, see INDICATOR LIGHTS. NOTE: To see the Error Code connect an S-Video cable from the printer S-Video out to the S-Video input on the monitor.

  • Page 25: 13" Monitor (White) Pn 77310

    MAJOR COMPONENTS MAJOR COMPONENTS 13" MONITOR (WHITE) PN 77310 n FRONT PANEL CONTROLS 1. POWER Press to turn ON or OFF. 2. VOLUME A. VOLUME CONTROL: Press to adjust Sound Level: left ( ) to decrease volume; right ( ) to increase volume B.

  • Page 26: Installation Connections

    MAJOR COMPONENTS MAJOR COMPONENTS INSTALLATION CONNECTIONS FIG. 27 - BACK OF MONITOR...

  • Page 27: To Access Main Menu

    MAJOR COMPONENTS MAJOR COMPONENTS MONITOR OPERATION The VistaCam Monitor is factory pre-set and color-coordinated with the VistaCam Image Printer to produce true to life color images with matching printouts. The image on the monitor may be temporarily adjusted for clinical purposes. These adjustments are not reflected in the printout.

  • Page 28: To Set The Input Selection

    MAJOR COMPONENTS MAJOR COMPONENTS n TO SET THE INPUT SELECTION (See Fig. 30) FIG. 30 - INPUT SELECT MENU 1. Press ACTION button to display the Main Menu. 2. Press the directional arrows ( ) to select INPUT. 3. Press the ACTION button to display the Input Select Menu 4.

  • Page 29: Queuing Distribution Amplifier Pn 78724 & Pn 78724-1

    MAJOR COMPONENTS MAJOR COMPONENTS QUEUING DISTRIBUTION AMPLIFIER PN 78724 PN 78724-1 with VCR/CD-I Interface A Queuing Distribution Amplifier (QDA) is required in a VistaCam Omni ic 4 multi-operatory network installation with a centrally located printer at a base station. The QDA is connected, in line, before the printer and functions as the printer’s gate keeper.

  • Page 30: Installation

    INSTALLATION INSTALLATION VISTACAM OMNI ic 4 CART OR COUNTER-TOP SYSTEM Components: VistaCam Omni ic 4, Monitor, Multi-Function Footswitch, Image Printer CAUTION • Plug the AC power line cord into a power source as the last installation step. • Avoid bending pins when inserting the connectors into their mating receptacles. Align the keys with the keyways and push gently when inserting.
  • Page 31 INSTALLATION VISTACAM OMNI ic 4 CART OR COUNTER-TOP SYSTEM Components: VistaCam Omni ic 4, Monitor, Multi-function Footswitch, Image Printer...

  • Page 32: Multi-Operatory Installation (W/O Wiring)

    INSTALLATION INSTALLATION VISTACAM OMNI ic 4 MULTI-OPERATORY INSTALLATION W/O INTEROPERATORY WIRING OPERATORY Components: Operatory - VistaCam Omni ic 4, Monitor, Footswitch Base Station - Docking Station, Image Printer, Monitor, Multi-function Footswitch CAUTION P/N 77379 • Plug AC power line cords into a power source as the last installation step.
  • Page 33 INSTALLATION INSTALLATION VISTACAM OMNI ic 4 MULTI-OPERATORY INSTALLATION W/O INTEROPERATORY WIRING OPERATORY BASE STATION...

  • Page 34: Multi-Operatory Network W/Qda

    INSTALLATION INSTALLATION VISTACAM OMNI ic 4 MULTI-OPERATORY NETWORK Components: Operatory - VistaCam Omni ic 4, Monitor, Footswitch Base Station - Queuing Distribution Amplifier (QDA), Image Printer CAUTION - Plug the AC power line cord into a power source as the last installation step. - Avoid bending pins when inserting the connectors into their mating receptacles.
  • Page 35 VISTACAM OMNI ic 4 MULTI-OPERATORY NETWORK NOTE: UP TO 6 OPERATORIES PLUS BASE STATION CAN BE INSTALLED AS PART OF THE VISTACAM OMNI ic 4 NETWORK WITH ONE QDA...

  • Page 36: System Components

    VISTACAM OMNI ic 4 - SYSTEM COMPONENTS VISTACAM OMNI ic 4 VistaCam Omni Complete # 78500 Includes: - Camera and Docking Station - Handpiece/umbilical assembly - 90° lens with quick connect - (1) S-Video Cable # 77379 (Footswitch not included) VistaCam Omni ic Complete # 78500C Includes:...
  • Page 37 VISTACAM OMNI ic 4 - SYSTEM COMPONENTS DISTRIBUTION AMPLIFIERS (FOR 2-6 OPERATORIES) Queuing Distribution Amplifier (S-Video Only) 78724 Allows for multi-operatory printing For one to six operatories in a network installation Includes: (4) S-Video Cables # 77379 PRINTER and ACCESSORIES (3) 8 Pin Cables # 77701 Queuing Distribution Amplifier with VCR/CD-I Interface...
  • Page 38 VISTACAM OMNI ic 4 - SYSTEM COMPONENTS MAJOR COMPONENTS MONITORS 77310 13 in. Monitor (White) (without Receiver & Remote Control) S-Video IN/OUT 77723 13 in. Monitor/Receiver with IR Remote Control (Black Only) S-Video IN/OUT 77719 20 in. Monitor/Receiver with IR Remote Control (Black Only) S-Video IN/OUT MONITOR MOUNTS...

  • Page 39: System Components

    VISTACAM OMNI ic 4 - SYSTEM COMPONENTS REPLACEMENT/ACCESSORY PARTS 77100 Infection Control Sheaths for Handpiece (Box of 500) 77186 (Box of 100) 77157 Infection Control Sheaths for Monitor Mount Handles (Box of 100) 77360 Laser Screen P o i n t e r MONITOR MOUNTS 77150 Video Print Kit for VistaCam Printer -...

  • Page 40: Wall Mount Kit Pn 78776

    Air Techniques is a leading manufacturer of dental products from air compressors and vacuum systems to x-ray film processors, intraoral video cameras, air abrasion systems, evacuation units and automatic rapid curing and bleaching systems. CORPORATE HEADQUARTERS We have been manufacturing quality products for the dental 70 Cantiague Rock Road, Hicksville, NY 11801 professional since 1962.
