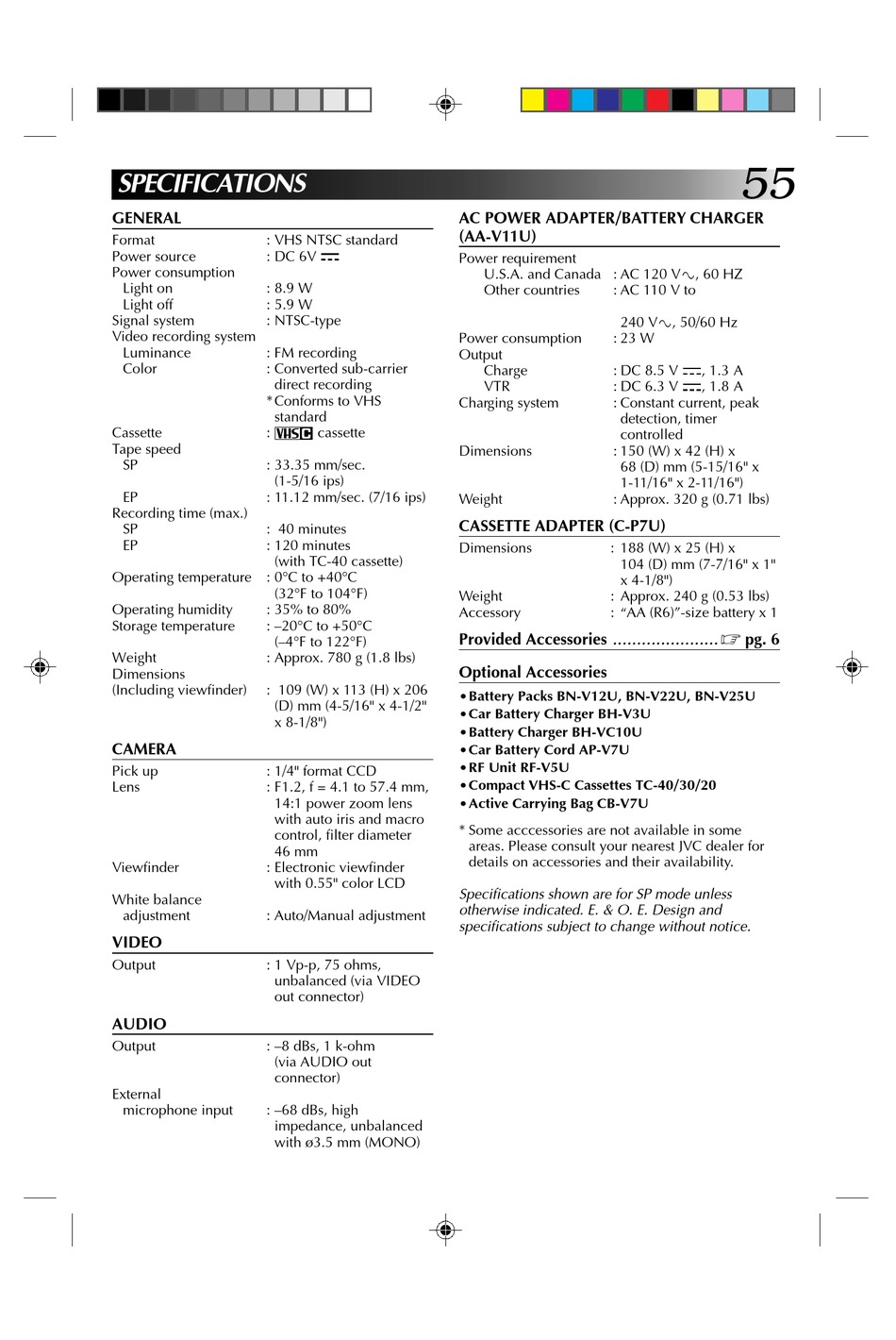

SPECIFICATIONS

GENERAL
Format : VHS NTSC standard
Power source : DC 6V
Power consumption
Light on : 8.9 W
Light off : 5.9 W
Signal system : NTSC-type
Video recording system
Luminance : FM recording
Color : Converted sub-carrier
direct recording
* Conforms to VHS
standard
Cassette :
Tape speed
SP : 33.35 mm/sec.
(1-5/16 ips)
EP : 11.12 mm/sec. (7/16 ips)
Recording time (max.)
SP : 40 minutes
EP : 120 minutes
(with TC-40 cassette)
Operating temperature : 0°C to +40°C
(32°F to 104°F)
Operating humidity : 35% to 80%
Storage temperature : –20°C to +50°C
(–4°F to 122°F)
Weight : Approx. 780 g (1.8 lbs)
Dimensions
(Including viewfinder) : 109 (W) x 113 (H) x 206
(D) mm (4-5/16" x 4-1/2"
x 8-1/8")
CAMERA
Pick up : 1/4" format CCD
Lens : F1.2, f = 4.1 to 57.4 mm,
14:1 power zoom lens
with auto iris and macro
control, filter diameter
46 mm
Viewfinder : Electronic viewfinder
with 0.55" color LCD
White balance
adjustment : Auto/Manual adjustment
VIDEO
Output : 1 Vp-p, 75 ohms,
unbalanced (via VIDEO
out connector)
AUDIO
Output : –8 dBs, 1 k-ohm
(via AUDIO out
connector)
External
microphone input : –68 dBs, high
impedance, unbalanced
with ø3.5 mm (MONO)
AC POWER ADAPTER/BATTERY CHARGER
(AA-V11U)
Power requirement
U.S.A. and Canada : AC 120 V`, 60 HZ
Other countries
Power consumption
Output
Charge
VTR
Charging system
cassette
Dimensions
Weight
CASSETTE ADAPTER (C-P7U)
Dimensions
Weight
Accessory
Provided Accessories ......................
Optional Accessories
•Battery Packs BN-V12U, BN-V22U, BN-V25U
•Car Battery Charger BH-V3U
•Battery Charger BH-VC10U
•Car Battery Cord AP-V7U
•RF Unit RF-V5U
•Compact VHS-C Cassettes TC-40/30/20
•Active Carrying Bag CB-V7U
* Some acccessories are not available in some
areas. Please consult your nearest JVC dealer for
details on accessories and their availability.
Specifications shown are for SP mode unless
otherwise indicated. E. & O. E. Design and
specifications subject to change without notice.
55
: AC 110 V to
240 V`, 50/60 Hz
: 23 W
: DC 8.5 V , 1.3 A
: DC 6.3 V , 1.8 A
: Constant current, peak
detection, timer
controlled
: 150 (W) x 42 (H) x
68 (D) mm (5-15/16" x
1-11/16" x 2-11/16")
: Approx. 320 g (0.71 lbs)
: 188 (W) x 25 (H) x
104 (D) mm (7-7/16" x 1"
x 4-1/8")
: Approx. 240 g (0.53 lbs)
: "AA (R6)"-size battery x 1
