CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM CONTROL PANEL user manual & log book Approved Document No. DFU7001020 Rev 1... -
Page 2: Table Of Contents
CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL CONTENTS Safety ..............................3 Important information regarding the safe use of this fire alarm panel CFP Key Features ..........................3 Lists the different features available on the CFP range of conventional fire alarm panels Fire Alarm Systems - An Overview ....................4 How fire alarm systems operate and a general overview of their key features User Responsibilities ........................5 General guidelines on what the user is expected to do... -
Page 3: Cfp Key Features
CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL S FETY The fire alarm panel is safe to operate provided it has been installed in compliance with the manufacturer’s instructions and used in accordance with this user manual. Do not operate the fire alarm panel with its enclosure open. There is no need to open the enclosure except to carry out commissioning, maintenance and remedial work. -
Page 4: Fire Alarm Systems - An Overview
CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL FIRE L RM SYSTEMS – N OVERVIEW The primary purpose of a fire alarm system is to provide an early warning of a fire so that people and animals can be evacuated and action taken to stop the fire as soon as possible - all according to a predetermined plan. -
Page 5: User Responsibilities

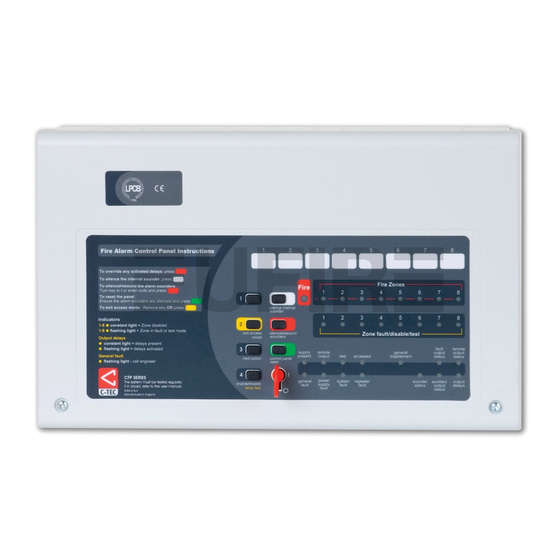

CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL USER RESPONSIBILITIES BS5839-1 is the British Standard code of practice for the design, installation, commissioning and maintenance of fire detection and fire alarm systems for buildings. Section 7 of the standard (User Responsibilities) states that a named responsible person should be appointed to supervise all matters pertaining to the fire alarm system {clause 47.2a}. - Page 6 CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL P NEL L YOUT/ CCESSING THE CONTROLS The fire alarm panel allows both keyswitch and keypad entry methods for entering access level two. Note: Repeater Fault and Output Delays lights are not on the CFP Economy Panel. Fire Zones Fire silence internal...
-
Page 7: What The Indicator Lights Mean
CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL What the indicator lights mean The table below summarises the various indicators available on the fire alarm panel and what they mean in their various states. The final column highlights the pages(s) you should turn to for further information. LIGHT STATUS OF LIGHT WHAT THIS MEANS... -
Page 8: Fire Conditions
CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL FIRE CONDITIONS Fire Zone Lights General Fire Light Fire Zones Fire When the fire alarm panel receives an alarm trigger from a detector or manual call point located in a zone that is not already in a fire state, it will: •... - Page 9 CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL F ULT CONDITIONS When a fault occurs on a critical part of the fire alarm system, the panel responds by activating its internal sounder and illuminating the General Fault light and any other Fault light(s) relating to the fault. The panel’s fault output will also activate (provided it hasn’t been disabled).
- Page 10 CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL DIS BLEMENTS Certain fire alarm panel functions can be temporarily disabled (i.e. switched off) to suit certain conditions. For example, if there is a risk of a false alarm in a zone, e.g. from vehicle exhaust smoke in a loading bay, it is possible for the user to disable that zone during the risk period and enable it again afterwards.
- Page 11 CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL To avoid confusion, during the selection process any light in the table of options that was showing a fault condition will have the fault indication turned off. After the selection process is complete, fault indication will be restored unless that option was disabled during the selection process.
- Page 12 CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL NOTES ON DEL YS What is a delay? A delay can be programmed into the fire alarm panel to postpone the activation of the alarm sounders and other outputs for a predetermined length of time. The delay period gives a responsible person time to investigate the cause of an alarm, usually in areas which are prone to false alarm (such as vehicle exhaust smoke in a loading bay) before the building is evacuated.
-
Page 13: System Set-Up Data Chart
CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL SYSTEM SET-UP D T CH RT Important: This page should be carefully completed by an authorised engineer prior to system hand-over. FIRE ZONE INFORMATION ZONE ZONE DESCRIPTION DELAY NON-LATCHING COINCIDENCE (*) An explanation of rooms and areas contained in each zone APPLIED? ZONES (tick if selected) - Page 14 CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL FIRE L RM LOG BOOK It is recommended that this log book be maintained by a responsible person, who should ensure that every entry is properly recorded. In the UK, this is necessary to satisfy the recommendations of BS5839-1, compliance with which may be a requirement of legislation.
- Page 15 CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL Details of tests (including fire drills), actual fire alarms, disablements or enablements and faults should be recorded here. False alarms and maintenance work should also be recorded on page 18. DATE TIME EVENT ZONE DEVICE ACTION REQUIRED COMPLETED INITIALS...
- Page 16 CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL DATE TIME EVENT ZONE DEVICE ACTION REQUIRED COMPLETED INITIALS e.g. test, fire alarm signal, fault CFP USER MANUAL • Approved Document No. DFU7001020 Rev 1 • Page 16 of 20...
- Page 17 CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL DATE TIME EVENT ZONE DEVICE ACTION REQUIRED COMPLETED INITIALS e.g. test, fire alarm signal, fault CFP USER MANUAL • Approved Document No. DFU7001020 Rev 1 • Page 17 of 20...
-
Page 18: False Alarms
CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL False alarms DEVICE THAT MAINTENANCE FINDINGS OF CATEGORY FURTHER BRIEF CIRCUMSTANCES DONE CAUSE DATE TIME ZONE TRIGGERED THE VISIT REQUIRED? MAINTENANCE OF FALSE ACTION (where cause is unknown, PLEASE (IF KNOWN) ALARM SIGNAL record activities in the area) (YES or NO) TECHNICIAN... -
Page 19: Fire Alarm Log Book
CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL BS5839-1 recommends that certificates be issued for all aspects of the fire alarm system including design, installation, commissioning, acceptance, verification (optional) and maintenance. Therefore, before this user manual is handed over, the following installation certificate and commissioning certificate (overleaf) should be completed as appropriate by the relevant installation/commissioning engineer(s). -
Page 20: Certificate Of Commissioning
CFP 2/4/8 ZONE CONVENTIONAL FIRE ALARM PANEL BS5839-1 recommends that certificates be issued for all aspects of the fire alarm system including design, installation, commissioning, acceptance, verification (optional) and maintenance. Therefore, before this user manual is handed over, the following commissioning certificate and the installation certificate (overleaf) should be completed as appropriate by the relevant installation/commissioning engineer(s).
