EN54 APPROVED 2-4 ZONE PULSE2 ALARMSENSE
CONTROL PANEL
810a/05
Document Ref: EUFS-UI-ALS-02 Issue 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pulse2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alarm Sense Pulse2

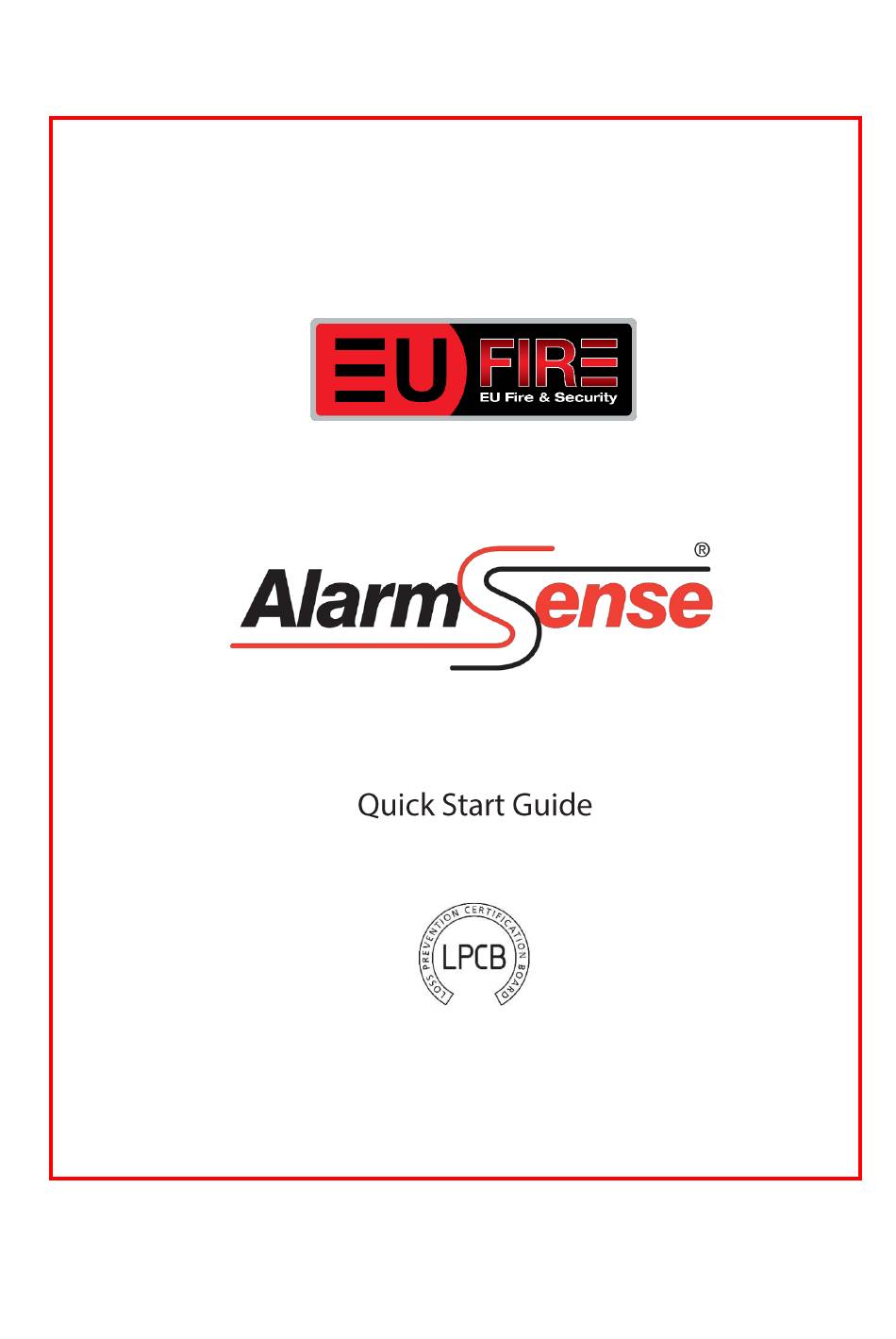

  • Page 1 EN54 APPROVED 2-4 ZONE PULSE2 ALARMSENSE CONTROL PANEL 810a/05 Document Ref: EUFS-UI-ALS-02 Issue 1.0...
  • Page 2: Important Safety Notes

    0832 Haes Systems Ltd, Columbia House, Packet Boat Lane, Cowley Peachey, Uxbridge, UB8 2JP Model Number CPR Number Haes AlarmSense 2-4 zone AlarmSense panel ALS-2/4 0832-CPR-F0573 European Standard EN54-2 : 1997 + A1 : 2006 Control and indicating equipment for fire detection and fire alarm systems for buildings. Provided Options (with requirements): Output to fire alarm devices, test condition European Standard EN54-4 : 1997 + A1 : 2002 + A2 : 2006...
  • Page 3: Mains Connections

    Quick Start Guide MAINS CONNECTIONS Do not connect the mains supply to the panel until you are fully conversant with the layout and features of the equipment. A rating plate is attached to the power supply module describing the nature of the supply permitted.
  • Page 4 The AlarmSense relay can be used to monitor conventional alarm sounders and has a DIL switch to enable selection of the relay operation for the non priority or priority mode. The Pulse2 AlarmSense panels have special programming options incorporated for use with AlarmSense devices: •...
  • Page 5 Quick Start Guide PROGRAMMING OPTIONS - SEE FULL MANUAL FOR FURTHER DETAILS Option/Setting Description Code(s) Initialise Factory Settings Restores all programming, test modes and disablements back to 1113 factory default settings Set Fault Buzzer Volume Set the fault buzzer volume to high or low 2224 Disable Buzzer In Test Mode Prevent the sounding of the panel buzzer during test mode...
  • Page 6: Panel Controls & Indications

    Quick Start Guide PANEL CONTROLS & INDICATIONS Zones in Fire Supply Healthy General Fire General Fault Zone Fault / Disabled / Test General Disablement Test Mode Fire Detection System Sounder Status Aux Output Status Power Supply Fault System Fault ENTER Access Level Activate Controls In normal standby mode the keypad controls are inactive to protect from unauthorised operation.
  • Page 7: Disable Mode

    Quick Start Guide DISABLE MODE Disable Mode is used to disable or isolate individual zone circuits or all sounder circuits or all auxiliary outputs. To initialise Disable Mode, firstly activate the controls by turning RESOUND SILENCE RESET the key switch or by entering the four digit code. Then press and hold the Disable Mode button (1) for 3 seconds.
  • Page 8: Test Mode

    Quick Start Guide TEST MODE Test Mode is used when testing the fire alarm system. In test mode the devices in the zone(s) in test, detectors and call points etc, can be activated and the panel will automatically reset, enabling the system to be tested by one person.
  • Page 9: Fault Diagnosis

    Quick Start Guide FAULT DIAGNOSIS If the panel has detected a fault on the system the General Fault LED will be illuminated and the internal fault buzzer will sound. Secondary LEDs will also be illuminated depending on the location of the fault. Pressing and holding the ENTER button will reveal more detailed information about the loction and type of fault.
  • Page 10 SCHEDULE OF TESTING This Section To Be Used To Record ALL Weekly Tests Of The Fire Alarm System DATE & INITIALS DEVICE TESTED COMMENTS & LOCATION (IF ANY) TIME OF TEST TESTER AlarmSense Quick Start Guide Document Ref: EUFS-UI-ALS-02 Issue 1.0...
  • Page 11 USER INSTRUCTIONS If an alarm condition is present YOU MUST FOLLOW YOUR NORMAL FIRE DRILL PROCEDURES. A responsible person should then:- Check the control panel to see which area or zone has caused the system to go into alarm. This will be indicated by a pulsing red LED on the front of the control panel.
  • Page 12 EU Fire & Security Units 2-4 The Pavilions, Bridgefold Road, Rochdale OL11 5BY...
