Alarm Sense PLUS AS-5003 Installation, Commissioning & Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN54 APPROVED 8-12 ZONE PULSE2 ALARMSENSE
CONTROL PANEL
810a/06
Document EUFS- UI-ALS-01 Issue 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLUS AS-5003 and is the answer not in the manual?

Questions and answers

Related Manuals for Alarm Sense PLUS AS-5003

Summary of Contents for Alarm Sense PLUS AS-5003

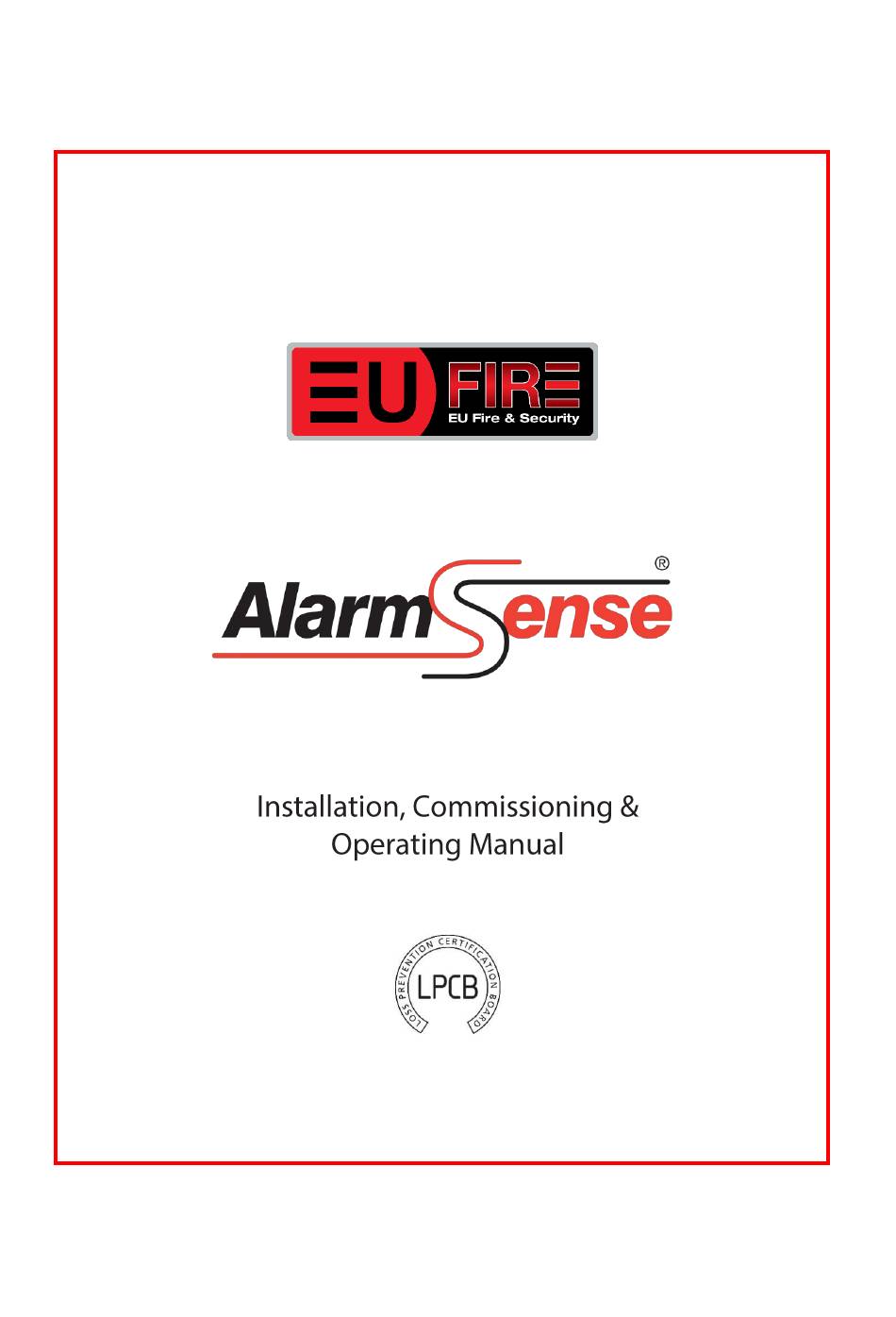

  • Page 1 EN54 APPROVED 8-12 ZONE PULSE2 ALARMSENSE CONTROL PANEL 810a/06 Document EUFS- UI-ALS-01 Issue 1.0...

  • Page 2: Important Note

    0832 Haes Systems Ltd, Columbia House, Packet Boat Lane, Cowley Peachey, Uxbridge, UB8 2JP Model Number CPR Number Haes AlarmSense PLUS 4-12 zone AlarmSense panel ASP-4/8/12 0832-CPR-F0574 European Standard EN54-2 : 1997 + A1 : 2006 Control and indicating equipment for fire detection and fire alarm systems for buildings. Provided Options (with requirements): Output to fire alarm devices, delays to outputs, test condition European Standard EN54-4 : 1997 + A1 : 2002 + A2 : 2006...

  • Page 3: Table Of Contents

    CONTENTS Page ABOUT THIS PANEL PRODUCT OVERVIEW CABINET DETAILS CIRCUIT BOARDS MAIN PCB TERMINALS ZONE CARD TERMINALS TECHNICAL SPECIFICATION POWER SUPPLY MODULE DESIGN CONSIDERATIONS SYSTEM DESIGN & PLANNING INSTALLATION SAFETY ESD PRECAUTIONS GENERAL MOUNTING THE CABINET MAINS CONNECTIONS CONNECTING THE BATTERIES SETUP &...

  • Page 4: About This Panel

    ABOUT THIS PANEL PRODUCT OVERVIEW Quality, reliability, ease of use and feature rich are attributes that are consistent across the entire range of Pulse2 fire alarm control panels. The Pulse2 AlarmSense PLUS encompasses all of these attributes to provide the fire alarm engineer’s panel of choice. The AlarmSense PLUS panel is available from 8 to 12 AlarmSense zones.

  • Page 5: Cabinet Details

    ABOUT THIS PANEL CABINET Pulse2 - AlarmSense PLUS AlarmSense PLUS Installation, Commissioning & Operating Manual Document EUFS-UI-ASP-01 Issue 1.0...

  • Page 6: Circuit Boards

    ABOUT THIS PANEL CIRCUIT BOARDS AlarmSense PLUS panels comprise of two main circuit boards plus optional ancillary boards TPCA06-P4 - Master PCB 28V 0V FIRE FAULT SNDR1 SNDR2 ZONE1 ZONE2 ZONE3 ZONE4 C NC NO C NC NO -OP -OP -IP -IP BATTERY TPCA03 - LED Display &...
  • Page 7 ABOUT THIS PANEL ANCILLARY CIRCUIT BOARDS TPCA07 - 4 zone extension card ZONE A ZONE B ZONE D • 4 x AlarmSense zone circuits. • 2 x switched -ve outputs • 2 x Aux relay outputs NC NO NC NO AUX A UX B OPA OPB...

  • Page 8: Main Pcb Terminals

    ABOUT THIS PANEL MAIN PCB TERMINALS AlarmSense PLUS Installation, Commissioning & Operating Manual Document EUFS-UI-ASP-01 Issue 1.0...

  • Page 9: Zone Card Terminals

    ABOUT THIS PANEL ZONE CARD TERMINALS ZONE A ZONE B ZONE C ZONE D + - + - + - + C NC NO C NC NO OPA OPB AUX A AUX B AlarmSense PLUS Installation, Commissioning & Operating Manual Document EUFS-UI-ASP-01 Issue 1.0...

  • Page 10: Technical Specification

    ABOUT THIS PANEL TECHNICAL SPECIFICATION Electrical Specification Inputs & Outputs - TPCA06-P4 Main PCB Terminal capacity 0.5mm to 2.5mm solid or stranded wire. PSU @ output Power supply voltage control line. For temperature compensation control. PSU Input + - 28vdc supply input. Diode protected for Max input current 3 amps.

  • Page 11: Power Supply Module

    ABOUT THIS PANEL General Specification Enclosure Steel IP30. Epoxy powder coated Interpon Radon, silver grey Cabling Fire resistant screened cable, minimum size 1mm . Max cable length 1Km (20 Ohm). FireBurn, FP200 or equivalent (max capacitance 1uF, max inductance 1 millihenry). Temperature range -5 deg C to +40 deg C max RH 95% Number of AlarmSense circuits...

  • Page 12: Design Considerations

    DESIGN CONSIDERATIONS This guide is intended as an aid to designers and installers of fire SYSTEM DESIGN & PLANNING - A few handy tips detection systems. It is NOT to be used as a substitute to BS5839 which should be read in full. What is a detection zone? In order to direct those responding to a fire alarm signal, particularly the fire service, to the area of a fire, all buildings, other than very small buildings, need to be divided into detection zones.
  • Page 13 DESIGN CONSIDERATIONS Beacons • Visual alarms such as beacons, should always be mounted at a minimum height of 2.1m from floor level. General • Fire Alarm Control Panels should be installed at a location appropriate for staff and fire fighters •...

  • Page 14: Installation

    INSTALLATION SAFETY Suppliers of articles for use at work are required under section 6 of the Health and Safety at Work Act 1974 to ensure as reasonably as is practical that the article will be safe and without risk to health when properly used.

  • Page 15: Esd Precautions

    INSTALLATION ESD PRECAUTION Electronic components are vulnerable to damage by Electrostatic Discharges (ESD). An ESD wrist strap, suitably grounded, should be worn at all times when handling pcbs. These wrist straps are designed to prevent the build up of static charges, not only within a persons body, but on many other materials. ESD damage is not always evident immediately, faults can manifest themselves at anytime in the future.

  • Page 16: Mains Connections

    INSTALLATION Typical panel layout 28V 0V FIRE FAULT FR FLT CC PUL SNDR1 SNDR2 ZONE1 ZONE2 ZONE3 ZONE4 ZONE A ZONE B ZONE C ZONE D ZONE A ZONE B ZONE C ZONE D + - + - + - + - + - + - + - + - @ + - + - + - + - + - + - + - + -...

  • Page 17: Connecting The Batteries

    INSTALLATION CONNECTING THE BATTERIES Batteries of even very small capacity are capable of delivering very high currents which can cause fire or injury, therefore battery connections should be done with caution. The panel is supplied with battery leads already connected to the battery terminals on the main PCB. These leads are coloured red for +ve and black for -ve.

  • Page 18: Setup & Programming

    SETUP & PROGRAMMING What is AlarmSense? ® AlarmSense is a range of conventional detection and alarm products designed to be connected to the same pair of supply wires. It is not compatible with other ranges of detectors and must be used with AlarmSense compatible control equipment.

  • Page 19: Zone Interface Function

    SETUP & PROGRAMMING ZONE INTERFACE FUNCTION This is a special setting to configure the last zone on the panel, (i.e. zone 4 on a 4 zone, zone 8 on a 8 zone and zone 12 on a 12 zone), to be used for interconnection from other control panels. It is possible, in the Level 3 engineering programming, to setup any zone for this function, however, this is simply a shortcut method.

  • Page 20: Level 3 Engineering Mode

    SETUP & PROGRAMMING LEVEL 3 ENGINEERING OPTIONS A series of programmable engineering options are available. These programming modes are initiated by entering a four digit code using RESOUND SILENCE RESET buttons 1 - 4 on the keypad followed by the ENTER button. ENTER Disable Test...
  • Page 21 SETUP & PROGRAMMING OPTIONS INDEX The following programmable options and settings are available. Option/Setting Description Code(s) Page View History View the last 40 events 1111 Set Fault Buzzer Volume Set the fault buzzer volume to high or low 2224 Disable Buzzer In Test Mode Disable the panel buzzer during test mode 2223 Clear All Disablements...
  • Page 22 SETUP & PROGRAMMING View History The control panel stores a log of the last 40 events which have occurred. This is useful for identifying intermittent faults or activations. Enter the above code and press ENTER, the most recent event that has RESOUND SILENCE RESET...
  • Page 23 SETUP & PROGRAMMING Set Fault Buzzer Volume There are two levels of volume for the internal fault buzzer, high and low. RESOUND SILENCE RESET Enter the above code and press the ENTER button to increase or decrease the fault buzzer tone from the previous level. ENTER Setting will change when ENTER button is pressed.
  • Page 24 SETUP & PROGRAMMING Panel Wide Settings RESOUND SILENCE RESET There are 6 general, panel wide, settings available. Enter the above code and press the ENTER button. The 6 programmable ENTER options are represented by fire zone LEDs 1 - 6. Disable Test Mute...
  • Page 25 SETUP & PROGRAMMING OPTION 2 . Set Number of Repeater Panels on System If repeater panels are to be used, the quantity on the system, 1- 8, must be set up for monitoring purposes. An incorrect quantity will cause a repeater fault to be shown on the panel. With the zone 2 fire LED lit, the amber, fault LEDs will show the current quantity of repeaters set 0 - 8.
  • Page 26 SETUP & PROGRAMMING OPTION 4 . Turn Off Battery Monitoring (EN54!) The battery monitoring may be disabled for applications where this is appropriate such non fire alarm use or where no battery backup is required. Note: No remote PSU fault input is available on the panel. With the zone 4 fire LED lit, the amber, fault LEDs will show the current setting.
  • Page 27 SETUP & PROGRAMMING OPTION 6 . Repeater Comms Monitoring Type (EN54!) The repeater panels are designed to be wired in a fault tolerant (fail safe) loop configuration, from comms A to B and back to the main panel again (see drawing below). This enables repeater panels to still work if there is a break in the cables.
  • Page 28 SETUP & PROGRAMMING OPTION 7 . Set Number of Output Cards Up to 2 output/relay cards may be added to each control panel to provide additional common or zonal outputs. The presence of the cards must be setup to enable operation. With the zone 7 fire LED lit, the amber, fault LEDs (zones 1 - 2) will show the current settings.
  • Page 29 SETUP & PROGRAMMING RESOUND SILENCE RESET Use button 1 to move to the zone that requires editing. ENTER Disable Test Mute Test Mode Mode Buzzer Lamps With the required zone for editing LED lit, press the ENTER button to enter ‘editing mode’. The fire zone 1 LED will now pulse to indicate the editing of attribute 1 (fire RESOUND SILENCE...
  • Page 30 SETUP & PROGRAMMING AlarmSense programming options There are three AlarmSense panel settings available. Enter the above code and press the ENTER button. The three programmable options are represented by the fire zone LEDs 1 - 3. RESOUND SILENCE RESET Use button 1 to move to the option required as per the table below. ENTER Disable Test...
  • Page 31 SETUP & PROGRAMMING Option 3, set non priority mode indication This option sets which zones are to provide a zonal indication and buzzer during non priority mode. With fire zone 3 LED lit press the ENTER button. The status of each of the zones is represented by the amber fault LED.
  • Page 32 SETUP & PROGRAMMING EN54 Sounder Resound Options By default, after an initial fire condition and the (blue) Silence Alarms button has been activated, any new fire condition in a different zone will cause the alarms to resound. It is possible to change this on a zonal basis so that any new alarm in a different zone will not resound the alarms.
  • Page 33 SETUP & PROGRAMMING Apply Delay to Outputs For Selected Zones The activation of sounder circuits and aux outputs can be delayed in response to selected zones. The actual delay time is set up in the panel wide programming options, 2-1-2-3. The setting of delays here applies to all sounder circuits, all aux outputs or all sounder circuits and all aux outputs.
  • Page 34 SETUP & PROGRAMMING Input Function Settings The panel has two inputs, located on the main circuit board, Class Change (CC) and Alert (PUL). Switching a negative voltage into these inputs will cause the alarm sounders to operate. The Class Change input (CC) will cause the alarms to sound continously and the Alert input -IP -IP...
  • Page 35 SETUP & PROGRAMMING Output Programmability & Miscellaneous All of the relays & outputs on the control panel’s main circuit board (TPC-A01) have default functions, i.e. operate on fire or fault. The function for each of these outputs, however, can be changed. The outputs can also be programmed to have different responses for selected zones.
  • Page 36 SETUP & PROGRAMMING Relay & Output Responses to Selected Zones Each of the relays and switched -ve outputs on the main circuit board and high spec zone extension cards can be independently programmed to respond in one of three different ways for each zone, ON, OFF or PULSING.
  • Page 37 SETUP & PROGRAMMING Conventional Sounder Circuit Responses to Selected Zones Each of the conventional sounder circuits on the main circuit board can be independently programmed to respond in one of three different ways for each zone, ON, OFF or PULSING. Enter the above code and press the ENTER button.
  • Page 38 SETUP & PROGRAMMING AlarmSense Sounder Circuit Responses to Selected Zones The sounders on each of the AlarmSense circuits can be programmed to respond to each zone in the same way as the conventional sounder circuits. The process is exactly the same as with the conventional sounder circuits, but using the above code. I.e.
  • Page 39 SETUP & PROGRAMMING Set Coincidence Zones Any number of zones can be selected to be coincidence zones. This means that two or more of the coincidence zones have to be in alarm before any associated sounders, relays or outputs will operate. The response to a coincidence alarm by individual relays, outputs, AlarmSense &...
  • Page 40 SETUP & PROGRAMMING Relay & Output Functional Options Each of the relays and switched -ve outputs on the main circuit board and zone extension cards can be independently programmed with a custom response to; Silence Alarms (including, Silence button or input programmed for remote Silence Alarms), Evacuate (including, Resound button, input programmed for Evacuate or 220Ω...
  • Page 41 SETUP & PROGRAMMING AlarmSense Sounder Circuit Functional Options The sounders on each of the AlarmSense circuits can be programmed with a custom response to various panel functions in the same way as the relays and switched -ve outputs. The process is exactly the same as with the relays & switched -ve outputs, but using the above code. I.e.
  • Page 42 SETUP & PROGRAMMING Comms PCB Output Functional Options If a repeater Comms PCB (TPCA05) has been fitted to the panel, the 6, swtched -ve outputs on the PCB can also be independently programmed with a custom response to; Silence Alarms (including, Silence button or input programmed for remote Silence Alarms), Evacuate (including, Resound button, input programmed for Evacuate or 220Ω...
  • Page 43 SETUP & PROGRAMMING System Diagnostics Mode System faults can occur if a PCB in the control panel or one of the repeater panels stops working. This may be due to a fault condition, loss of power, software lockup or memory checksum error. A system fault can also occur if the internal PCB configuration or number of repeater panels has not been correctly set up in the panel wide programming options (2-1-2-3).
  • Page 44 SETUP & PROGRAMMING REPEATER PANEL SETUP & PROGRAMMING The AlarmSense PLUS can support up to 8, fully functional repeater panels. Repeater Comms PCB To run repeaters, a Comms PCB (TPCA05) must be fitted to the control panel. A Comms PCB for the control panel is supplied with each repeater panel.
  • Page 45 SETUP & PROGRAMMING Wiring The repeater panels are designed to be wired in a fault tolerant (fail safe) loop configuration, from comms A to B and back to the main panel again (see diagram). This enables repeater panels to still work if there is a break in the cables.

  • Page 46: Operating

    OPERATING PANEL CONTROLS & INDICATIONS Zones in Fire Zone Fault / Disabled / Test Pulse2 - AlarmSense PLUS Fire Detection System Supply Healthy Test Mode Delay Status RESOUND SILENCE RESET General Fire Sounder Status Repeater Faul t General Fault Aux Output Status System Fault ENTER General Disablement...
  • Page 47 OPERATING Status LED Indicators LED On LED Pulsing Zones in Fire 1 - 12 Indicates alarm condition in zone. Zone Fault/Disabled/Test Indicates zone circuit is disabled or in test Indicates a fault in the zone circuit. 1 - 12 mode. Indicates mains and/or battery supply is Supply Healthy: present.

  • Page 48: Disable Mode

    OPERATING DISABLE MODE Disable Mode is used to disable or isolate individual zone circuits or all sounder circuits, all auxiliary outputs and any delays to outputs. To initialise Disable Mode firstly activate the controls by turning RESOUND SILENCE RESET the key switch or by entering the four digit code. Then press and hold the Disable Mode button (1) for 3 seconds.

  • Page 49: Test Mode

    OPERATING TEST MODE Test Mode is used when testing the fire alarm system. In test mode the devices in the zone(s) in test, detectors and call points etc, can be activated and the panel will automatically reset, enabling the system to be tested by one person.

  • Page 50: Fault Diagnosis

    OPERATING FAULT DIAGNOSIS If the panel has detected a fault on the system the General Fault LED will be illuminated and the internal fault buzzer will sound. Secondary LEDs will also be illuminated depending on the location of the fault. Pressing and holding the ENTER button will reveal more detailed information about the loction and type of fault.

  • Page 51: Functionality During A System Fault

    OPERATING FUNCTIONALITY DURING A SYSTEM FAULT A system fault is indicated when a processor controlling a function in the panel has a watchdog time out or processor failure. In the event of a system fault the particular board affected may not be functional. The following indications may be observed.

  • Page 52: Service & Maintenance

    SERVICE & MAINTENANCE The following section is a summary of the requirements in BS5839 Part 1 For comprehensive information a copy of BS5839 Part 1 can be purchased from the British Standards Institution via their web site at www.bsi-global.com. THE NEED FOR MAINTENANCE Your Fire Alarm System is working 24 hours a day, 365 days a year.
  • Page 53 SERVICE & MAINTENANCE WEEKLY TEST The call point test key should be inserted firmly and deliberately into the bottom of the manual call point. Once activated it may be necessary to wait up to four seconds before the alarms sound. Your manual call points may not be the same as the ones described above.

  • Page 54: Schedule Of Testing Log Book

    SCHEDULE OF TESTING This Section To Be Used To Record ALL Weekly Tests Of The Fire Alarm System DATE & DEVICE TESTED COMMENTS INITIALS & LOCATION (IF ANY) TIME OF TEST TESTER AlarmSense PLUS Installation, Commissioning & Operating Manual Document EUFS-UI-ASP-01 Issue 1.0...
  • Page 55 SCHEDULE OF TESTING This Section To Be Used To Record ALL Weekly Tests Of The Fire Alarm System DATE & DEVICE TESTED COMMENTS INITIALS & LOCATION (IF ANY) TIME OF TEST TESTER AlarmSense PLUS Installation, Commissioning & Operating Manual Document EUFS-UI-ASP-01 Issue 1.0...
  • Page 56 SCHEDULE OF TESTING This Section To Be Used To Record ALL Weekly Tests Of The Fire Alarm System DATE & DEVICE TESTED COMMENTS INITIALS & LOCATION (IF ANY) TIME OF TEST TESTER AlarmSense PLUS Installation, Commissioning & Operating Manual Document EUFS-UI-ASP-01 Issue 1.0...
  • Page 57 SCHEDULE OF TESTING This Section To Be Used To Record ALL Weekly Tests Of The Fire Alarm System DATE & DEVICE TESTED COMMENTS INITIALS & LOCATION (IF ANY) TIME OF TEST TESTER AlarmSense PLUS Installation, Commissioning & Operating Manual Document EUFS-UI-ASP-01 Issue 1.0...

  • Page 58: False Alarms, Faults & Engineer Visit Log Book

    FALSE ALARMS, FAULTS & ENGINEERS VISITS Fault/Reason Engineer’s Details Action Taken Date Work Completed For Call- AlarmSense PLUS Installation, Commissioning & Operating Manual Document EUFS-UI-ASP-01 Issue 1.0...
  • Page 59 FALSE ALARMS, FAULTS & ENGINEERS VISITS Fault/Reason Engineer’s Details Action Taken Date Work Completed For Call- AlarmSense PLUS Installation, Commissioning & Operating Manual Document EUFS-UI-ASP-01 Issue 1.0...
  • Page 60 FALSE ALARMS, FAULTS & ENGINEERS VISITS Fault/Reason Engineer’s Details Action Taken Date Work Completed For Call- AlarmSense PLUS Installation, Commissioning & Operating Manual Document EUFS-UI-ASP-01 Issue 1.0...
  • Page 61 USER INSTRUCTIONS If an alarm condition is present YOU MUST FOLLOW YOUR NORMAL FIRE DRILL PROCEDURES. A responsible person should then:- Check the control panel to see which area or zone has caused the system to go into alarm. This will be indicated by a pulsing red LED on the front of the control panel.
