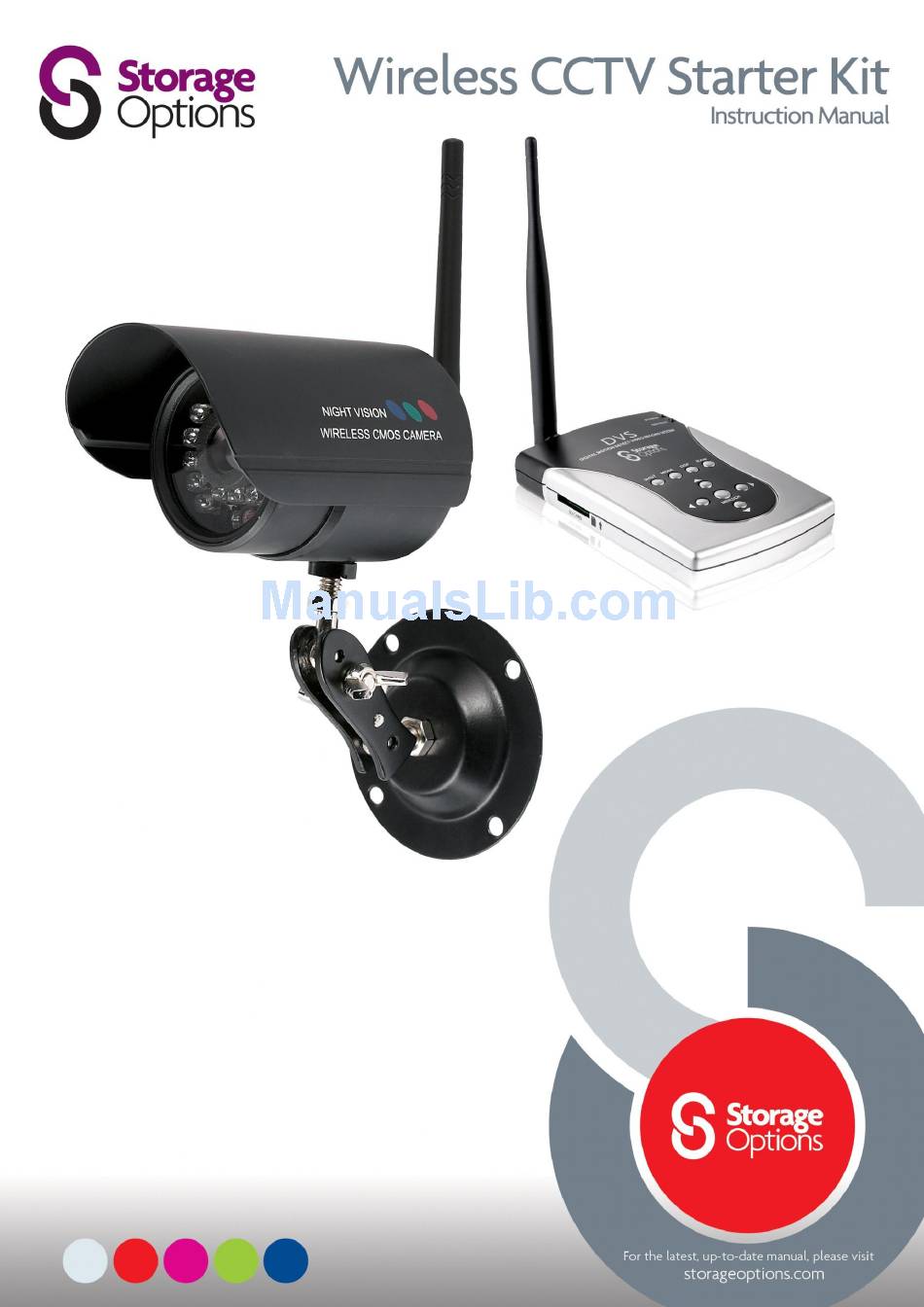

Storage Options Wireless CCTV Starter Kit User Manual

Wireless cctv starter kit dvs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wireless CCTV Starter Kit and is the answer not in the manual?

Questions and answers

Related Manuals for Storage Options Wireless CCTV Starter Kit

Summary of Contents for Storage Options Wireless CCTV Starter Kit

  • Page 2 IMPORTANT SAFEGUARD All lead-free products offered by the company comply with the requirements of the European law of the Restriction of Hazardous Substances (RoHS) directive, which means our manufacturing processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product’s end-of-life.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS OVERVIEW 1.1 – Key Features PACKAGE CONTENTS INSTALLATION 3.1 – Mounting The Camera 3.2 – Connecting The DVR To A Monitor And Mains Supply 3.3 – Inserting An SD Card 3.4 – Powering On The DVR 3.5 – Pairing The Camera To The DVR BASIC OPERATION 4.1 –...

  • Page 4: Overview

    OVERVIEW Storage Options presents a complete CCTV solution for home or office security, featuring a high-quality camera, Secure Digital card recording, easy setup and configuration, and alarm triggers. 1.1 – KEY FEATURES  Stand-alone wireless DVR with wireless camera ...

  • Page 5: Connecting The Dvr To A Monitor And Mains Supply

    3.3 – INSERTING AN SD CARD To record still images and video from the camera feed, the Storage Options SD DVR requires a Secure Digital memory card. The DVR can accept any SD card up to 32GB in capacity, and to ensure maximum compatibility, Storage Options SDHC cards are recommended.

  • Page 6: Powering On The Dvr

    3.4 – POWERING ON THE DVR To turn the unit on, slide the power switch to the left. The “Power” LED on the front of the DVR will light up red to indicate power. To turn the unit off, slide the power switch back to the right. The “Power” LED on the front of the DVR will be extinguished.

  • Page 7: Basic Operation

    4.3 – PICTURE-IN-PICTURE It is possible to connect up to two analogue cameras to the Storage Options SD DVR (but will only record from one). You can cycle between four different views when using two cameras by pressing the “DISP” button.

  • Page 8: On-Screen Icons

    4.4 – ON-SCREEN ICONS The DVR will display a number of icons depending on which functions are activated. See this legend for information on what each icon means: Indicates a Secure Digital SD card has been inserted Indicates manual capture mode Indicates the DVR will capture still frames Indicates the DVR is in motion detection mode Indicates the DVR is currently recording an image...

  • Page 9: Record Mode Menu Functions

    RECORD MODE MENU FUNCTIONS 5.1 – Navigation To navigate the on-screen menus, simply use the ↑, ↓, ←, → buttons to highlight an item and press the “Menu/OK” button to make a selection. The main menu is split into five sub menus: Manual Capture Auto Capture Motion Detect...

  • Page 10: Auto Capture

    5.3 – AUTO CAPTURE This menu allows you to configure how auto recording functions. Use the ↑ / ↓ and “Menu/OK” keys to highlight and select one of the following options:  Auto Capture  Master Capture  Movie PreRecord ...

  • Page 11: Motion Detect

    5.4 – MOTION DETECT Use the ↑ / ↓ and “Menu/OK” keys to highlight and select one of the following options:  Range  Timeslot  Sensitivity Range 1/1: Motion detection sensor will cover the full frame. 1/4: When selected, a green box (¼ of the screen size) will appear. Use ↑, ↓, ←, →...

  • Page 12: Advanced

    5.5 – ADVANCED Use the ↑ / ↓ and “Menu/OK” keys to highlight and select one of the following options:  Photo Quality  Movie Quality  TV Output Standard Photo Quality Choose a quality setting for captured still frames. At higher quality, the images will be clearer and more detailed but they will also occupy a larger amount of space on the SD memory card.

  • Page 13: Date / Time

    5.6 – DATE / TIME Use the ↑ / ↓ and “Menu/OK” keys to highlight and select one of the following options:  Set Time / Date  Photo TimeStamp  Movie TimeStamp Set Time / Date Use the ← and → buttons to highlight the field you wish to change, then use ↑...

  • Page 14: Playback Mode Menu Functions

    PLAYBACK MODE MENU FUNCTIONS 6.1 – NAVIGATION highlight an item and press the To navigate the on-screen menus, simply use the ↑, ↓, ←, → buttons to “Menu/OK” button to make a selection. 6.2 – PLAYBACK MENU The Manual Capture menu allows you to configure “Master Capture” settings. to highlight and select one of the Use the ↑...

  • Page 15: Appendix - Product Specification

    APPENDIX – PRODUCT SPECIFICATION Wireless CCTV Starter Kit Video Output: 1 channel RCA Video Compression: JPEG VGA (640 x 480) Image Resolution: AVI D1 (720 x 480) 30fps Motion Detection: Area and programmable sensitivity setting TV System: PAL / NTSC...
  • Page 16 Page 16...
