OPERATOR'S MANUAL

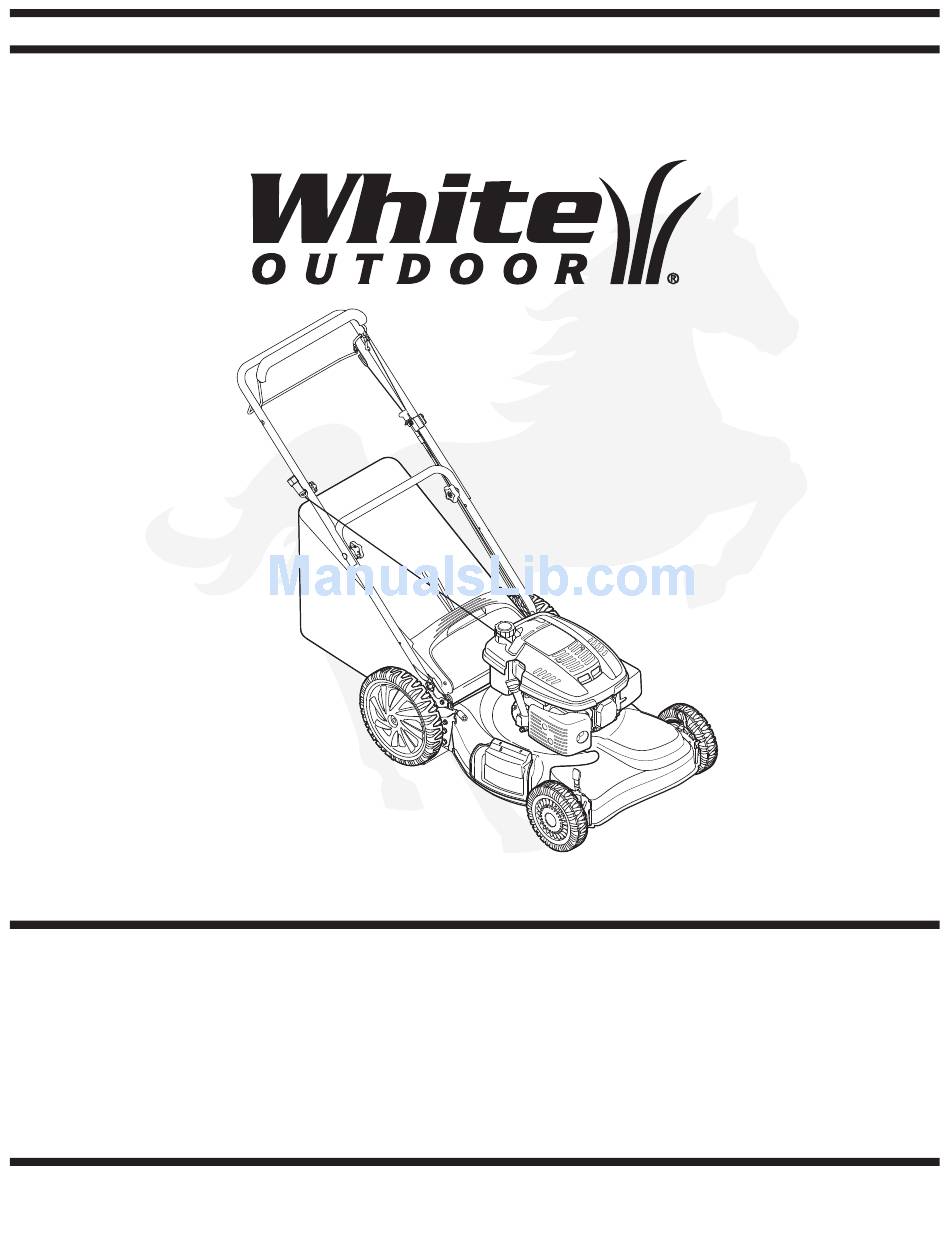

21-inch Self-Propelled Rotary Mower — Model 56M
IMPORTANT
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-
covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,
Ohio 44136-0019.
FORM NO. 769-02233A
PRINTED IN U.S.A
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
01/26/2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 56M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for White Outdoor 56M

  • Page 1 Safety • Assembly • Operation • Maintenance • Troubleshooting • Parts Lists • Warranty OPERATOR’S MANUAL 21-inch Self-Propelled Rotary Mower — Model 56M IMPORTANT READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush- covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
  • Page 2: Table Of Contents

    If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of this unit, you can seek help from the experts. To reach a local White Outdoor dealer or retailer, visit www.whiteoutdoor.com or phone our Dealer Locator line at 1-800-949-4483.
  • Page 3: Slope Guide

    Use this page as a guide to determine slopes where you may not operate safely. Do not operate your lawn mower on such slopes. Slope Gauge WARNING Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet).
  • Page 4: Safe Operation Practices

    WARNING: Engine Exhaust, some of its constituents, and certain vehicle compo- nents contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm. DANGER: This machine was built to be operated according to the rules for safe operation in this manual.
  • Page 5: Slope Operation

    23. If situations occur which are not covered in this manual, 13. Never store the machine or fuel container near an open use care and good judgment. Contact your White Outdoor flame, spark or pilot light as on a water heater, space dealer or call (800) 949-4483 for the name of your nearest heater, furnace, clothes dryer, or other gas appliances.
  • Page 6: Setup And Adjustment

    IMPORTANT: This unit is shipped without gasoline or oil in the engine. Fill up gasoline and oil as instructed in the Engine Operation section before operating. 1. Remove any packing material which may be between upper and lower handles. � a.
  • Page 7 5. Follow steps below to assemble the grass catcher (if needed). Make certain bag is turned right side out before assembling (warning label will be on the outside): � a. Place bag over frame so that its black plastic side is at the bottom.
  • Page 8: Operating Your Lawn Mower

    Know Your Lawn Mower ����� ������� ����� ������� ����� ������� Operating ������ Your Lawn ������� Mower �������� ���� ��� ���� ������ ���������� ����� ���� WARNING ������ Figure 4-1: The major components on the mower. The blade control Now that you have set up your lawn mower, it’s important to become acquainted with its controls and features. mechanism is a safety device.
  • Page 9: Starting The Engine

    Starting the Engine WARNING: Be sure no one other than the � operator is standing near the lawn mower while starting engine or operating mower. Never run engine indoors or in enclosed, poorly ventilated areas. Engine exhaust contains carbon monoxide, an Operating odorless and deadly gas.
  • Page 10: Maintaining Your Lawn Mower

    Lubrication • Lubricate pivot points on the blade and drive control at least once a season with light oil. Both must operate freely in both directions, Figure 5-1. • Lubricate the wheels at least once a season with light oil (or motor oil). If wheels are removed for any Maintaining reason, lubricate surface of the pivot arm and inner surface of the wheel with light oil, Figure 5-1.
  • Page 11: Blade Care

    Blade Care WARNING: When removing cutting blade for sharpening or replacement, protect your hands with a pair of heavy gloves or use a heavy rag to hold blade. 1. Disconnect spark plug wire from spark plug. Turn Maintaining mower on its side making sure that the air filter and the carburetor are facing up.
  • Page 12: Troubleshooting

    Problem Cause Remedy 1. Blade control disengaged. 1. Engage blade control. Engine fails to start 2. Spark plug boot disconnected. 2. Connect wire to spark plug. 3. Fuel tank empty or stale fuel. 3. Fill tank with clean, fresh gasoline. 4.
  • Page 13: Off-Season Storage And Safety Labels

    Off-Season Storage The following steps should be taken to prepare your lawn mower for storage. • Clean and lubricate mower thoroughly as described in • Store mower in a dry, clean area. Do not store next the lubrication instructions. to corrosive materials, such as fertilizer. •...
  • Page 14: Engine Appendix

    WARNING: Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. If gasoline is spilled on yourself or your clothes, wash your skin and change clothes immediately. Gasoline and its vapors are •...
  • Page 15: Safety Label Location

    Running engine produces heat. • Tie up long hair and remove jewelry. Engine parts, especially muffler, • Do not wear loose-fitting clothing, dangling draw- strings or items that could become caught. become extremely hot. Severe thermal burns can occur on contact.
  • Page 16: Operating Your Engine

    Know Your Engine Fuel Cap Air Cleaner Operating Starter Grip Your Engine Oil Fill Cap Oil Drain Spark Plug Muffler Figure 9-1: The major components of the engine. IMPORTANT: This engine is shipped without gaso- Read this section before starting your lawn mower engine. Compare the illustration in Figure 9-1 with your lawn mower line or oil in the engine.
  • Page 17: Check Oil Level

    Check Oil Level IMPORTANT: Be sure to check the engine on a level surface with the engine stopped. 1. Remove the oil filler cap and wipe the dipstick clean, Figure 9-2. 2. Insert the dipstick into the oil filler neck, but do not Oil Fill Cap/ Operating screw it in.
  • Page 18: Maintaining Your Engine

    WARNING: Shut off the engine before Periodic inspection and adjustment of the engine is performing any maintenance. To essential if high level performance is to be maintained. prevent accidental start-up, disconnect Regular maintenance will also ensure a long service life. the spark plug boot.
  • Page 19: Air Cleaner Service

    IMPORTANT: Used motor oil may cause skin cancer if repeatedly left in contact with the skin for prolonged periods. Although this is unlikely unless you handle used ����� ������� oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil.
  • Page 20: Removing From Storage

    Storage Engines stored over 30 days need to be drained of fuel ��������� to prevent deterioration and gum from forming in fuel system or on essential carburetor parts. If the gasoline in your engine deteriorates during storage, you may need to have the carburetor, and other fuel system components, Maintaining serviced or replaced.
  • Page 21 NOTES...
  • Page 22 Model 56M � � �� �� � �� � �� �� �� �� �� �� �� �� �� �� �� �� � �� � �� � � �� �� �� �� �� �� �� �� �� �� � �� ��...
  • Page 23: Parts List

    1 747-1214 Drive Control 2 749-0928A Lower Handle 3 710-0703 Carriage Bolt 1/4-20 4 750-04162 Spacer.375 x.50 x 1.02” Lg. 5 731-04134A Rear Discharge Door Parts List 6 731-04859 Deluxe Bail Cover 7 747-1161A Blade Control 8 749-1092A Upper Handle 9 731-04177 Chute Deflector 10 687-02055...
  • Page 24 Model 56M �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� � �� �� � �� �� �� �� �� �� �� �� �� � �� �� � �� �� ��...
  • Page 25 1 710-0599 TT Screw 1/4-20 x 0.5 32 787-01298 Height Adjuster Plate - RH 2 736-0270 Bell Washer.265 x 0.75 787-01299 Height Adjuster Plate - LH 3 17032A Deflector Chute Adapter 33 732-0706 Front Lever - RH 732-0707 Front Lever - LH 4 732-1014 Torsion Spring 34 716-0102...
  • Page 26 Engine 1P70 ��� �� � � �� ��� �� � � � � �� �� �� �� �� �� �� �� �� �� � �� � � �� �� �� �� �� ��...
  • Page 27 951-10368 Fuel Tank 951-10369 Flywheel Shroud 951-10335 Rubber Fuel Tank Mounting Washer 951-10334 Oil Filler Tube Assembly Illustrated 951-10333 Dipstick Assembly 951-10332 Cylinder Head Complete Parts List 951-10329 Short Block Assembly 951-10321 Stop Switch and Brake Assembly 951-10319 Recoil Spring and Pulley Assembly 951-10344 Push Rod Kit 951-10345...
  • Page 28 NOTES:...
  • Page 29 NOTES:...
  • Page 30: Emission Control System Warranty Statement

    MTD LLC (MTD), the California Air Resources Board (CARB) and the United States Environment Protection Agency (U. S. EPA) Emission Control System Warranty Statement (Owner’s Defect Warranty Rights and Obligations) EMISSION CONTROL SYSTEM COVERAGE IS APPLICABLE TO CERTIFIED ENGINES PURCHASED IN CALIFORNIA IN 2005 AND THERE- AFTER, WHICH ARE USED IN CALIFORNIA, AND TO CERTIFIED MODEL YEAR 2005 AND LATER ENGINES WHICH ARE PURCHASED AND USED ELSEWHERE IN THE UNITED STATES.
  • Page 31 (4) Repair or replacement of any warranted part under the warranty provisions of this article must be performed at no charge to the owner at a warranty station. (5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs must be provided at all MTD distribution centers that are franchised to service the subject engines.
  • Page 32 MANUFACTURER’S LIMITED WARRANTY FOR The limited warranty set forth below is given by MTD LLC (“MTD”) with dealer. respect to new merchandise purchased and used in the United States, its MTD does not extend any warranty for products sold or possessions and territories.
