Page 1

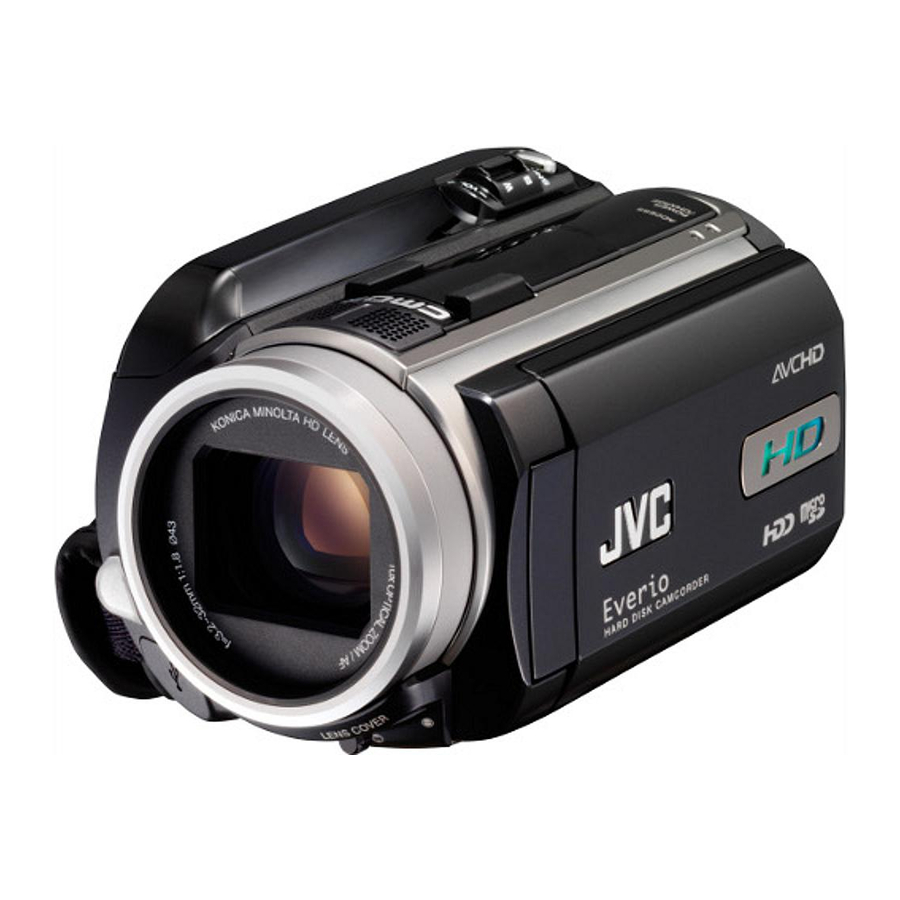

INSTRUCTIONS MANUAL DE INSTRUCCIONES HD HARD DISK CAMCORDER VIDEOCÁMARA EQUIPADA CON DISCO DURO GZ-HD10 Dear Customers Thank you for purchasing this hard disk camera. Before use, please read the safety information and precautions contained on pages 6 and 7 to ensure safe use of this product.
• Charge the battery pack before use. ( • Be sure to use JVC battery packs. If you use any other battery packs besides JVC battery packs, safety and performance can not be guaranteed. Open the cover To AC Outlet...
Page 3
Before recording, charge the battery and set the date/time. See the next page for recording videos. Preparation Open the LCD monitor to turn on the camera Select [YES] within 10 seconds Select SET DATE/TIME! SELECT QUIT When the message disappears, press the power button for at least 2 seconds to turn off the power, and then press it again for at least 2 seconds.
Video recording CAUTION • This camera records video in accordance with the AVCHD format. • Try recording with easy [AUTO] mode fi rst. Select recording mode SELECT PLAY/REC The mode changes when you press the button Select auto mode AUTO INFO The mode changes when you press the button...
Playing back Select playback mode SELECT PLAY/REC The mode changes when you press the button Select the desired fi le Press down the set lever Press down the set lever to start playback, and press it again to stop To perform operations such as fast forwarding or fast rewinding ( To view video/still image on TV ( CAUTION Don’t forget to make copies after recording!
Safety Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
Page 7
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Contents GETTING STARTED Accessories ...10 Preparing the Remote Control ... 11 Index ...12 Indications on LCD Monitor ...14 Necessary Settings before Use ...16 Charging the Battery Pack ... 16 Checking the Remaining Battery Power ... 16 Date/Time Setting ... 17 Language Setting ...
If the camera does not operate correctly, reset the camera. Precautions on handling batteries • Be sure to use the JVC BN-VF808U/VF823U battery packs. • If the camera is subjected to electrostatic discharge, turn off the power before using it again.
GETTING STARTED Accessories AC Adapter Battery Pack AP-V14U BN-VF808U USB Cable Shoulder Strap p. 18) Lithium Battery CR2025 Pre-installed in the remote control unit. NOTE Make sure to use the provided cables for connections. Do not use any other cables. Component Cable Audio/Video Cable p.
Preparing the Remote Control A battery is included inside the remote control at the time of purchase. Remove the insulation sheet before use. Beam Effective Area Remote Sensor Effective distance: Max. 5 m (16 ft) NOTE The transmitted beam may not be effective or may cause incorrect operation when the remote sensor is directly exposed to sunlight or powerful lighting.
Index NOTES • The LCD monitor can rotate 270°. • Power-linked operation You can also turn on/off the camera by opening/closing the LCD monitor. • Be careful not to cover sensors 7, > and ? during shooting.
Page 13
Camera ! Index Button [INDEX]/Remaining Space Button/Data Battery Button [ 0 / 1 ] ( # Set Lever Move to ¡ : Reverse Skip ( p. 24)/Up/Backlight Compensation Button [ - ] Move to ¢ : Forward Skip ( p. 24)/Down/Manual Focus Button [FOCUS] Move to £...
Indications on LCD Monitor During both Video and Still Image Recording 1080p 200X FOCUS 1/4000 4 : 5 5 P M J A N . 2 0 . 2 0 0 8 ! Selected Recording Mode Indicator p. 23) # Tele Macro Mode Indicator $ Approximate Zoom Ratio % Output with 1080p &...
Page 15
During Video Playback 1080p X - 6 0 1 : 5 5 : 0 1 4 : 5 5 P M J A N . 2 0 . 2 0 0 8 ! Mode Indicator ( p. 24) : Playlist Playback Indicator (Appears when playing back a playlist.) $ Output with 1080p % x.v.Color™...
Necessary Settings before Use Charging the Battery Pack Close the LCD monitor to turn off the camera. Attach the battery pack. BATT. Connect the AC adapter. DC Connector To AC Outlet (110V to 240V) AC Adapter • The power/charge lamp blinks to indicate charging has started.
Date/Time Setting Open the LCD monitor to turn on the camera. Press MENU. MENU Select [BASIC SETTINGS]. Select GAIN UP x.v.Color REGISTER EVENT BASIC SETTINGS QUIT Select [CLOCK ADJUST]. Select BASIC SETTINGS LANGUAGE CLOCK ADJUST DATE DISPLAY STYLE MONITOR BRIGHT SET DATE/TIME RETURN QUIT...
Other Settings Grip Adjustment Open the pad and make grip adjustments. Attaching the Shoulder Strap Eyelet Buckle Strap Guide Lens Cover When not using the camera, close the lens cover to protect the lens. Lens Cover Lens Cover Switch NOTE Do not push the lens cover strongly.
When Using a microSD Card If you want to record to a microSD card, the following 3 operations need to be performed. • Operations are confi rmed on the following microSD cards. - Panasonic - TOSHIBA - SanDisk - ATP Video recording: Class 4 or 6 compatible microSDHC card (4 GB, 8 GB)
RECORDING Recording Files Video Recording Preparation: Open the LCD monitor to turn on the camera. Slide the mode switch to select (video) mode. To stop recording Press START/STOP again. To view the last recorded scene Press QUICK REVIEW while recording is paused.
Still Image Recording Preparation: Open the LCD monitor to turn on the camera. Slide the mode switch to select (still image) mode. To view the last recorded scene Press QUICK REVIEW while recording is paused. Pressing DELETE during playback deletes that scene. To change the picture quality Change the settings in [IMAGE QUALITY].
Recording Files (Continued) Zooming Preparation: • Select mode. • Select the recording mode. Zoom out Zoom in W: Wide angle T: Telephoto Maximum zoom ratio (factory-preset) mode mode To change the maximum zoom ratio (! mode only) Change the settings in [ZOOM]. NOTE Macro shooting is possible as close as approx.
Manual Recording To Change to Manual Recording Mode Preparation: • Select mode. • Select the recording mode. AUTO INFO To return to the auto recording mode Press AUTO/INFO so that the 4 indicator appears. Program AE You can record videos or still images with optimum brightness by adjusting the exposure and shutter speed to suit your surroundings or the subject.
PLAYBACK Playing Back Files Video Playback Slide the mode switch to select (video) mode. To return to the index screen Press INDEX. To check the fi le information Press AUTO/INFO when playback is stopped. To delete a video Press DELETE when playback is stopped. Operations during Playback Return to the fi...
Still Image Playback Slide the mode switch to select (still image) mode. To return to the index screen Press INDEX. To check the fi le information Press AUTO/INFO. To delete a still image Press DELETE. Operations during Playback Rotate 90 degrees (counterclockwise) Display the previous fi...
Watching Images on TV This camera is designed to be used with high-defi nition or NTSC-type color television signals. It cannot be used with a television of a different standard. Connection with TV You can output videos from the HDMI connector, COMPONENT connector, or AV connector.
To connect using the AV connector To AC Outlet AV Connector AC Adapter DC Connector AV Cable AV Input Connector NOTE Change the settings in [VIDEO OUTPUT] to suit the screen size of your television. Playback Operation After the connection with TV is completed Turn on the camera and the TV.
EDITING/PRINTING Managing Files CAUTION Do not remove the recording medium or perform any other operation (such as turning off the power) while accessing fi les. Also, be sure to use the provided AC adapter, as the data on the recording medium may be corrupted if the battery becomes exhausted during operation.
Playlists It is a list that enables you to organize recorded videos in order of preference. Preparation: • Select mode. • Select the playback mode. Creating Playlists Press MENU. MENU Select [EDIT PLAYLIST]. Select EDIT PLAYLIST PLAYBACK PLAYLIST CHANGE EVENT REG. SEARCH EVENT CREATE/EDIT PLAYLIST QUIT...
You can dub video recorded on this camera onto VCR/ DVD recorder. ( p. 33) It is recommended to use the JVC DVD burner (CU-VD50/CU-VD3). When using CU-VD20 or CU-VD40, the recording time may take approx. 2 times longer than the time that is described in the instruction manual of DVD burner.
Page 32
Copying Files (Continued) Backup All Files Preparation: • Connect the camera to the DVD burner. • Select mode. • Select HDD or microSD card. (# mode only) The following illustrations of display screens are examples of when backing up video. Select [CREATE FROM ALL].
Standard-defi nition Dubbing You can dub videos in standard-defi nition to a DVD recorder. Preparation: Turn off all units. To connect using the AV connectors (analog dubbing) To AC Outlet AV Connector DC Connector AC Adapter AV Cable VCR/DVD Recorder AV Connector Preparation: Create a playlist.
Choose which of the functions to use. • To solve the problem, fi rst follow the instructions below. • If the problem is not solved, reset the camera. • If the problem persists, please consult your nearest JVC dealer. Action...
Page 35
Trouble • Operate the camera. If the camera is not operated for a certain length of time when The LCD monitor using the AC adapter, it will enter sleep mode, and the LCD appears blank. monitor will turn off. • Replace the microSD card.
Warning Indications Indication • Set the date and time. (Connect the camera to an AC outlet using the AC adapter for over 24 hours to charge the clock’s SET DATE/TIME! built-in lithium battery. Then set the date/time.) • Set [REC MEDIA FOR VIDEO] in the [BASIC SETTINGS] to CANNOT USE IN [HDD].
Specifi cations Camera For general Power supply DC 11 V (Using AC adapter) DC 7.2 V (Using battery pack) Power consumption Approx. 4.8 W* * When the LED light is off and the monitor backlight is set to [STANDARD] mode. Dimensions (W x H x D) 71 mm x 68 mm x 123 mm (2-13/16"...
Page 38
Specifi cations (Continued) Remote Control Power supply DC 3 V Battery life Approx. 1 year (depending on the frequency of use) Operating distance Within 5 m (16.4 ft) Operating temperature 0°C to 40°C (32°F to 104°F) Approximate recording time (minutes) (for video) Recording medium Quality Approximate number of storable images (for still image)
In case of connecting the unit’s power cord to an AC wall outlet other than American National Standard C73 series type use an AC plug adapter, called a “Siemens Plug”, as shown. For this AC plug adapter, consult your nearest JVC dealer. Plug Adapter Battery Packs The supplied battery pack is Terminals a lithium-ion battery.
Page 40
Changes or modifi cations not approved by JVC could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
• Cargue la batería antes del uso. ( • Asegúrese de utilizar baterías JVC. Si utiliza alguna otra batería que no sea de JVC, no se puede garantizar la seguridad ni el rendimiento. Abrir la cubierta A la toma de CA...
Page 47
Antes de grabar, cargue la batería y ajuste la fecha/hora. Consulte la página siguiente para saber cómo grabar vídeos. Preparativos Abra la pantalla LCD para encender la cámara Seleccione [SÍ] en 10 segundos Seleccionar ¡AJUSTE FECHA/HORA! SÍ SELECC AJUSTE SALIR Ajustar Cuando desaparezca el mensaje, pulse el botón de alimentación durante al menos...
Page 48
Grabación de vídeo PRECAUCIÓN • Esta cámara graba vídeo de acuerdo con el formato AVCHD. • Primero pruebe a grabar con el modo [AUTO], que es más sencillo. Seleccione el modo de grabación SELECT PLAY/REC El modo cambia al pulsar el botón Seleccione el modo automático AUTO...
Page 49
Reproducción Seleccione el modo de reproducción SELECT PLAY/REC El modo cambia al pulsar el botón Seleccione el archivo que desee Pulse el botón selector Pulse el botón selector para iniciar la reproducción y vuelva a pulsarlo para detenerla Para realizar operaciones, como avance rápido o retroceso rápido ( Para visualizar vídeos/imágenes fi...
Precauciones de seguridad ADVERTENCIA: PARA EVITAR RIESGO DE INCENDIOS O ELECTROCUCIONES, NO EXPONGA ESTE APARATO A LA LLUVIA O HUMEDAD. NOTAS: • La placa de valores nominales y la precaución de seguridad se encuentran en la parte inferior y/o en la parte posterior de la unidad principal. •...
Page 51
INSTRUCCIONES IMPORTANTES DE SEGURIDAD 1. Lea estas instrucciones. 2. Conserve estas instrucciones. 3. Preste atención a las advertencias. 4. Siga todas las instrucciones. 5. No utilice este aparato cerca del agua. 6. Limpie sólo con paño seco. 7. No bloquee ninguna abertura de ventilación. Instale de acuerdo con las instrucciones del fabricante.
Page 52
Contenido PREPARATIVOS Accesorios ...10 Preparación del mando a distancia ... 11 Índice ...12 Indicaciones en la pantalla LCD ...14 Ajustes preliminares necesarios ...16 Carga de la batería ... 16 Comprobación de la carga restante de la batería ... 16 Ajuste de la fecha/hora ... 17 Ajuste del idioma ...
Page 53
Se recomienda que guarde los datos importantes que haya grabado copiándolos en un DVD o cualquier otro soporte de grabación. ( p. 31) JVC no se responsabilizará de cualquier pérdida de datos. Realice una grabación de prueba Antes de grabar los datos importantes, realice una grabación de prueba y reproduzca los datos...
PREPARATIVOS Accesorios Adaptador de CA Batería AP-V14U BN-VF808U Cable USB Correa para hombro p. 18) Pila de litio CR2025 Preinstalada en el mando a distancia. NOTA Asegúrese de utilizar los cables suministrados para las conexiones. No utilice ningún otro cable. Cable componente Cable de audio/vídeo p.
Preparación del mando a distancia El mando a distancia se suministra con una pila instalada. Antes de su uso, retire el plástico de aislamiento. Área efectiva del haz de infrarrojos Sensor remoto Distancia efectiva: Máx. 5 m NOTA El haz transmitido no será efectivo o puede provocar un funcionamiento incorrecto si el sensor remoto está...
Índice NOTAS • La pantalla LCD puede girar 270°. • Funcionamiento siempre listo para grabar La cámara también se puede encender y apagar abriendo y cerrando la pantalla LCD. • Procure no tapar los sensores 7, > y ? durante la fi lmación.
Page 57
Cámara ! Botón de índice [INDEX]/ botón de espacio restante/ botón de batería de datos [ 0 / 1 ] ( # Botón selector Mover hacia ¡ : Botón de salto hacia atrás ( p. 24)/arriba/ compensación de contraluz [ - ] Mover hacia ¢...
Indicaciones en la pantalla LCD Durante la grabación de vídeo e imágenes fi jas 1080p 200X FOCUS 1/4000 4 : 5 5 P M J A N . 2 0 . 2 0 0 8 ! Indicador de modo de grabación seleccionado ( p.
Page 59
Durante la reproducción de vídeo 1080p X - 6 0 1 : 5 5 : 0 1 4 : 5 5 P M J A N . 2 0 . 2 0 0 8 ! Indicador de modo ( p. 24) : Indicador de reproducción de lista de reproducción (Aparece al reproducir una lista de reproducción.)
Ajustes preliminares necesarios Carga de la batería Cierre la pantalla LCD para apagar la cámara. Instale la batería. BATT. Conecte el adaptador de CA. Conector de CC A la toma de CA (de 110 V a 240 V) Adaptador de CA •...
Ajuste de la fecha/hora Abra la pantalla LCD para encender la cámara. Pulse MENU. MENU Seleccione [AJUSTES BÁSICOS]. Seleccionar GANANCIA x.v.Color REGISTRAR EVENTO AJUSTES BÁSICOS Ajustar AJUSTE SALIR Seleccione [AJUS.RELOJ]. Seleccionar AJUSTES BÁSICOS LANGUAGE AJUS.RELOJ ESTILO INDIC. FECHA BRILLO DEL MONITOR AJUSTAR FECHA/HORA Ajustar VOLVER...
Otros ajustes Ajuste de la correa de mano Abra la almohadilla y ajuste la correa a sus necesidades. Colocación de la correa para hombro Orifi cio Hebilla Guía corredera de la correa Cubierta del objetivo Cuando no utilice la cámara, cierre la cubierta del objetivo para proteger el objetivo.
Cuando se utiliza una tarjeta microSD Para grabar en una tarjeta microSD, realice las 3 operaciones siguientes. • Se ha confi rmado el funcionamiento con las siguientes tarjetas microSD. - Panasonic - TOSHIBA - SanDisk - ATP Grabación de vídeo: Tarjeta microSDHC compatible de clase 4 ó...
GRABACIÓN Grabación de archivos Grabación de vídeo Preparativos: Abra la pantalla LCD para encender la cámara. Deslice el interruptor de modo para seleccionar el modo (vídeo). Para detener la grabación Pulse START/STOP de nuevo. Para ver la última escena grabada Pulse QUICK REVIEW mientras la grabación está...
Grabación de imágenes fi jas Preparativos: Abra la pantalla LCD para encender la cámara. Deslice el interruptor de modo para seleccionar el modo (imagen fi ja). Para ver la última escena grabada Pulse QUICK REVIEW mientras la grabación está en pausa. Si se pulsa DELETE durante la reproducción, se elimina la escena.
Grabación de archivos Uso del zoom Preparativos: • Seleccione el modo • Seleccione el modo de grabación. Reducción Ampliación W: Gran angular T: Telefoto Porcentaje de zoom máximo (preajuste de fábrica). Modo ! Modo Para cambiar el porcentaje de zoom máximo (sólo modo !) Cambie los ajustes en [ZOOM].
Grabación manual El modo de grabación manual permite ajustar manualmente el enfoque, el brillo de la pantalla, etc. Para cambiar al modo de grabación manual Preparativos: • Seleccione el modo • Seleccione el modo de grabación. AUTO INFO Para regresar al modo de grabación automático Pulse el botón AUTO/INFO para que aparezca el indicador 4.
REPRODUCCIÓN Reproducción de archivos Reproducción de vídeo Deslice el interruptor de modo para seleccionar el modo (vídeo). Para volver a la pantalla de índice Pulse INDEX. Para consultar la información del archivo Pulse AUTO/INFO cuando la reproducción esté detenida. Para eliminar un vídeo Pulse DELETE cuando la reproducción esté...
Reproducción de imágenes fi jas Deslice el interruptor de modo para seleccionar el modo (imagen fi ja). Para volver a la pantalla de índice Pulse INDEX. Para consultar la información del archivo Pulse AUTO/INFO. Para eliminar una imagen fi ja Pulse DELETE.
Visionado de imágenes en el televisor Esta cámara está diseñada para ser utilizada con señales de televisión en color de tipo NTSC o de alta defi nición. No se puede usar con un televisor de otra norma. Conexión con el televisor Los vídeos se pueden emitir por el conector HDMI, el conector COMPONENT o el conector AV.
Para realizar la conexión con el conector A la toma de CA Conector AV Adaptador de CA Conector de CC Cable AV Conector de entrada AV NOTA Cambie los ajustes de [SALIDA DE VÍDEO] de acuerdo con el tamaño de la pantalla de su televisor.
EDICIÓN/IMPRESIÓN Gestión de archivos PRECAUCIÓN No extraiga el soporte de grabación ni realice ninguna otra operación (por ejemplo, apagar la alimentación) mientras se accede a los archivos. Asimismo, asegúrese de utilizar el adaptador de CA suministrado, ya que los datos del soporte de grabación se pueden dañar si la batería se agota durante la operación.
Cambio del registro de eventos Preparativos: • Seleccione el modo • Seleccione el modo de reproducción. Cambio del evento del archivo visualizado Pulse MENU. MENU Seleccione [CAMBIAR REG. EVENTO]. Seleccionar REPR. LISTA REPROD. CAMBIAR REG. EVENTO BUSCAR EVENTO MONITOR APAGADO CAMBIAR EVENTO REGISTRADO Ajustar AJUSTE...
Listas de reproducción Una lista de reproducción es una lista que permite organizar los vídeos grabados por preferencias. Preparativos: • Seleccione el modo • Seleccione el modo de reproducción. Creación de listas de reproducción Pulse MENU. MENU Seleccione [EDITAR LISTA REPR.]. Seleccionar EDITAR LISTA REPR.
( p. 33) Se recomienda utilizar la grabadora de DVD JVC (CU-VD50/CU-VD3). Si se utiliza CU-VD20 o CU-VD40, el tiempo de grabación puede tardar aprox. 2 veces más que el tiempo indicado en el manual de instrucciones de la grabadora de DVD.
Page 76
Copia de archivos (continuación) Copia de seguridad de todos los archivos Preparativos: • Conecte la cámara a la grabadora de DVD. • Seleccione el modo • Seleccione unidad de disco duro o tarjeta microSD. (Sólo modo #) Las siguientes ilustraciones de las visualizaciones en pantalla son ejemplos de cuando se realiza una copia de seguridad de vídeos.
Copia de defi nición estándar Se pueden copiar en defi nición estándar en una grabadora de DVD. Preparación: Apague todas las unidades. Para realizar la conexión con los conectores AV (copia analógica) A la toma de CA Conector AV Conector de CC Adaptador de Cable AV Grabadora de...
Elija cuál de las dos funciones quiere utilizar. • Para resolver el problema, siga primero las instrucciones indicadas abajo. • Si no se resuelve el problema, reinicie la cámara. • Si el problema persiste, consulte con su distribuidor JVC más próximo. Acción...
Problema • Haga funcionar la cámara. Si la cámara no se hace funcionar durante un determinado periodo de tiempo cuando se utiliza el adaptador de CA, entra en La pantalla LCD aparece modo de suspensión y se apaga la pantalla LCD. en blanco.
Indicaciones de advertencia Indicación • Ajuste la fecha y la hora. (Conecte la cámara a una toma de CA mediante el adaptador de CA durante más de 24 horas para ¡AJUSTE FECHA/HORA! cargar la pila de litio integrada en el reloj. A continuación, ajuste la fecha/hora.) •...
Especifi caciones Cámara Aspectos generales Fuente de alimentación eléctrica CC 11 V (con adaptador de CA) CC 7,2 V (con batería) Consumo eléctrico Aprox. 4,8 W* * Cuando la luz LED está apagada y la luz de fondo de la pantalla está ajustada en modo de [ESTÁNDAR].
Especifi caciones (continuación) Mando a distancia Fuente de alimentación eléctrica CC 3 V Duración de la batería 1 año aproximadamente (dependiendo de la frecuencia de uso) Distancia de funcionamiento Dentro de 5 m Temperatura de funcionamiento 0°C a 40°C Tiempo de grabación aproximado (minutos) (para vídeo) Unidad de disco Soporte de grabación Calidad...
CA que no sea de la serie American National Standard C73, emplee un enchufe adaptador de CA, denominado “Siemens Plug”, como el mostrado. Consulte con su distribuidor JVC más cercano para obtener este enchufe adaptador. Enchufe adaptador Baterías La batería suministrada...
Los cambios o modifi caciones no aprobados por JVC podrian anular la autoridad del usuario para utilizar el equipo. Este equipo ha sido examinado y cumple con los límites de dispositivos digitales Clase B, segun el Apartado 15 de la reglamentacion FCC.
Términos Adaptador de CA ...16, 39 Ajuste del idioma ...17 Ajuste del reloj ...17 Batería ...16, 39 Conexión AV ...27, 33 Conexión componente ...26 Conexión HDMI ...26 Confi guraciones de menús ...19 Copia (traslado) de archivos ...31 Copia de seguridad en DVD ...31 Cubierta del objetivo ...18 Disco duro ...39 División de archivos ...29...
