P/N 126616-01 Rev. A 01/31/14
This book is valuable. In addition to instructing you
on how to install and maintain your appliance, it also
contains information that will enable you to obtain
replacement parts or accessory items when needed.
Keep it with your other important papers.
This fireplace is approved for use as a wood burning
fireplace or for use with a vented gas log approved
to ANS Z21.60, Z21.84 standards or for use with a
vent-free gas log heater approved to ANS Z21.11.2
standard. An INNOVATIVE HEARTH PRODUCTS, LLC
hood must be installed when using a vent-free log
heater (see Accessories, page 16).
PFS
®
C
US
REPORT NO. 09-146
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
For more information, visit www.Superiorfireplaces.US.com
INSTALLATION AND OPERATION
INSTRUCTIONS

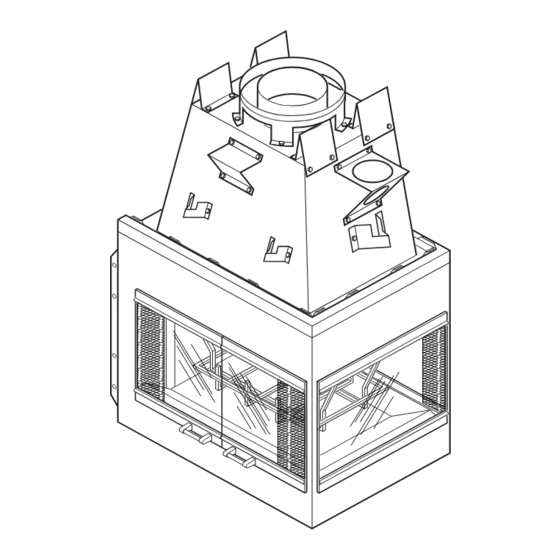

Custom Series Multi-Sided
Wood burning Fireplaces
MODEL
WRT40PFWS
P126616 01
This wood burning fireplace complies with UL127-
CAN/ULC-S610-M87 standard as a FACTORY BUILT
APPLIANCE.
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before instal-
lation to determine the need to obtain a permit.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Advertisement
Table of Contents
Related Manuals for Superior Custom WRT40PFWS
Summary of Contents for Superior Custom WRT40PFWS
- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS Custom Series Multi-Sided Wood burning Fireplaces MODEL WRT40PFWS P126616 01 ® REPORT NO. 09-146 P/N 126616-01 Rev. A 01/31/14 KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE This book is valuable. In addition to instructing you This wood burning fireplace complies with UL127-...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Thank you for your purchase. We appreciate your business! Safety .....................2 Please carefully read and follow all instructions in this manual. Pay Product Dimensions ..............4 special attention to all warnings and safety information. Fireplace Installation ..............5 Following these safety, care, and operation instructions will help Venting Installation ................7 ensure many years of dependable and enjoyable service from your Optional Gas Line Installation ............13... - Page 3 SAFETY Continued This fireplace is not intended to be used as a sub- Use SOLID WOOD only for fuel. It is best to use dry stitute for a furnace to heat an entire home. Use for and well seasoned hardwood. Softwoods tend to burn supplemental heat only.
-
Page 4: Product Dimensions
SAFETY Continued "Creosote – Formation and Need for Removal WARNING: Always leave glass doors fully opened or fully closed when operating fireplace. When wood is burned slowly, it produces tar and other organic vapors, which combine with expelled moisture WARNING: Children and adults should be alerted to form creosote. -
Page 5: Fireplace Installation
FIREPLACE INSTALLATION SELECTING LOCATION Spacers on Sides of Fireplace 2" (5 cm) Min. Clearance To determine safest and most efficient location for fireplace, you Provide Required 1" (2.5 cm) From Pipe to Combustibles Clearance must take into consideration the following guidelines: The location must allow for proper clearances (see Figure 2). - Page 6 FIREPLACE INSTALLATION Continued 2. If fireplace is to be installed directly on carpeting, tile (other than ceramic) or any combustible material other than wood flooring, fireplace must be installed upon a metal or wood panel extending full width and depth of fireplace. 1/2"...
-
Page 7: Venting Installation
FIREPLACE INSTALLATION Continued VENTING INSTALLATION OPTIONAL OUTSIDE AIR KIT (MODELS AK4 OR AK4F) Noncombustible Hearth The installation of an outside air kit should be performed during Extension the rough framing of the fireplace due to the nature of it’s location. Outside combustion air is accessed through and exterior wall (AK4) or a vented crawl space (AK4F). - Page 8 Figure 18). LINEAL GAIN PART NO. DESCRIPTION GAIN SUPPORT SECTIONS WRT40PFWS Peninsula Fireplace " The chimney support section is a 4" strap and 12" length of pipe. A chimney support is required every 30 feet above fireplace after a 48-12DM Flue Pipe "...
- Page 9 VENTING INSTALLATION Continued 2" (5.1cm) Existing Minimum Ceiling Frame Angled Firestop Firestop 2" (5.1cm) Minimum Spacer Screws or Ceiling Staples Support (Min. of 8) Straps Figure 19 - Firestop Spacer with Living Space Above Ceiling Return Elbow Screws or Staples (Min.
- Page 10 VENTING INSTALLATION Continued MINIMUM/MAXIMUM CHIMNEY HEIGHT PENETRATING ROOF The minimum height of the chimney (measured from the base of the To maintain a 2" clearance to pipe on a roof with a pitch, a rectangular fireplace to the flue gas outlet-end of pipe) is 16 feet for a straight run, opening must be cut.
- Page 11 VENTING INSTALLATION Continued RLT-12D Stainless Storm Collar Inner Flue Chase Overlap Pipe Shingles Top Screen and Sides Only Flashing Cone Nail Only Outer 1" Non- Perimeter of com- Flashing bustible Secure 1" Spacer Termination Space to Outer Apply Pipe with 3 Waterproof Screws Caulking...
-
Page 12: Noncombustible Facing Material
VENTING INSTALLATION Continued FINISHING FIREPLACE Noncombustible Combustible materials, such as wallboard, gypsum board, sheet Facing Material rock, drywall, plywood, etc. may make direct contact with sides and top around the fireplace face. It is important that combustible materials do not overlap the face itself. Brick, glass, tile or other noncombustible materials may overlap the front face provided they do not obstruct essential openings like louvered slots or any other opening. -
Page 13: Optional Gas Line Installation
OPTIONAL GAS LINE INSTALLATION If you install a decorative gas appliance (vented gas log), decorative WARNING: A qualified service person must con- gas appliance must comply with the Standard for Decorative Gas nect fireplace to gas supply. Follow all local codes. Appliance for Installation in Solid Fuel Burning Fireplaces, ANSI Z21.60/CSA 2.26 or Z21.84 and shall also be installed in accordance A gas line may be installed for the purpose of installing a vented... -
Page 14: Operation And Maintenance Guidelines
OPERATION AND MAINTENANCE GUIDELINES GLASS DOORS Cleaning Glass Cabinet type glass doors are optional with this fireplace. Check with Clean glass with any commercial glass cleaner or soap and water. your local distributor for availability. Do not use any abrasive material to clean glass. Do not clean glass with any cool water if glass is still hot from the fire. -
Page 15: Replacement Parts
OPERATION AND MAINTENANCE GUIDELINES REPLACEMENT PARTS Continued Note: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty. GRATE Contact authorized dealers of this product. To locate a dealer in your The grate is designed to provide you with the maximum solid fuel area contact IHP at 1-800-655-2008. -
Page 16: Parts
PARTS This list contains replaceable parts used in your fireplace. GRATE , 10'' EMBER PROTECTORS 11150 20093 ACCESSORIES CHIMNEY SUPPORT ADJUSTABLE HOOD 12S-12DM (Also available in triple wall) Black Painted Finish - GA6050 Antique Brass Finish - GA6053 Required when installing a vent-free gas log in this fireplace. DOUBLE WALL 30°... - Page 17 ACCESSORIES Continued ROOF FLASHING OUTSIDE AIR KIT FOR FLOOR INSTALLATION 0 TO 6/12 PITCH - V6F-10DM 6/12 TO 12/12 PITCH - V12F-10DM Vent Plaster Vent Hood ECONO TOP TERMINATION Collar STL-12DM Connector Duct - 4" x 3' BI-FOLD GLASS DOOR DG36PN (Brushed Brass) DC36PN (Platinum) DBPPN36 (Black)
- Page 18 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ www.Superiorfireplaces.US.com 126616-01A...
- Page 19 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ 126616-01A www.Superiorfireplaces.US.com...
- Page 20 Innovative Hearth Products reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Consult your local distributor for fireplace code information. P126616 01 1508 Elm Hill Pike, Suite 108 Nashville, TN 37210 1-800-655-2008 Printed in U.S.A.
