Zvox Audio SoundBase 870 Setup & Operation Manual page 6

Coaxial Digital Output
A few TVs, set top boxes and DVD/Blu-ray players have a coaxial digital audio output. You
can connect this output to the coaxial digital audio input on the SoundBase using a cable
with an RCA phono plug at each end.
Program Sources with an Analog Audio Output
If your TV set does not have a digital audio output, you could connect the TV set's analog
audio output to an analog audio input on the SoundBase system.
An analog audio input on the SoundBase is also useful for connecting portable devices
with an audio output. For instance, the headphone output of a smartphone or music player
could be connected to the SoundBase front panel minijack. This requires a cable with a
stereo miniplug at both ends. The minijack headphone output from a TV could be connected
to one of the rear panel inputs. This requires a cable with a stereo miniplug at one end (to fit
the TV headphone jack) and Red/White RCA plugs at the other end (to connect to the ZVOX
back panel).

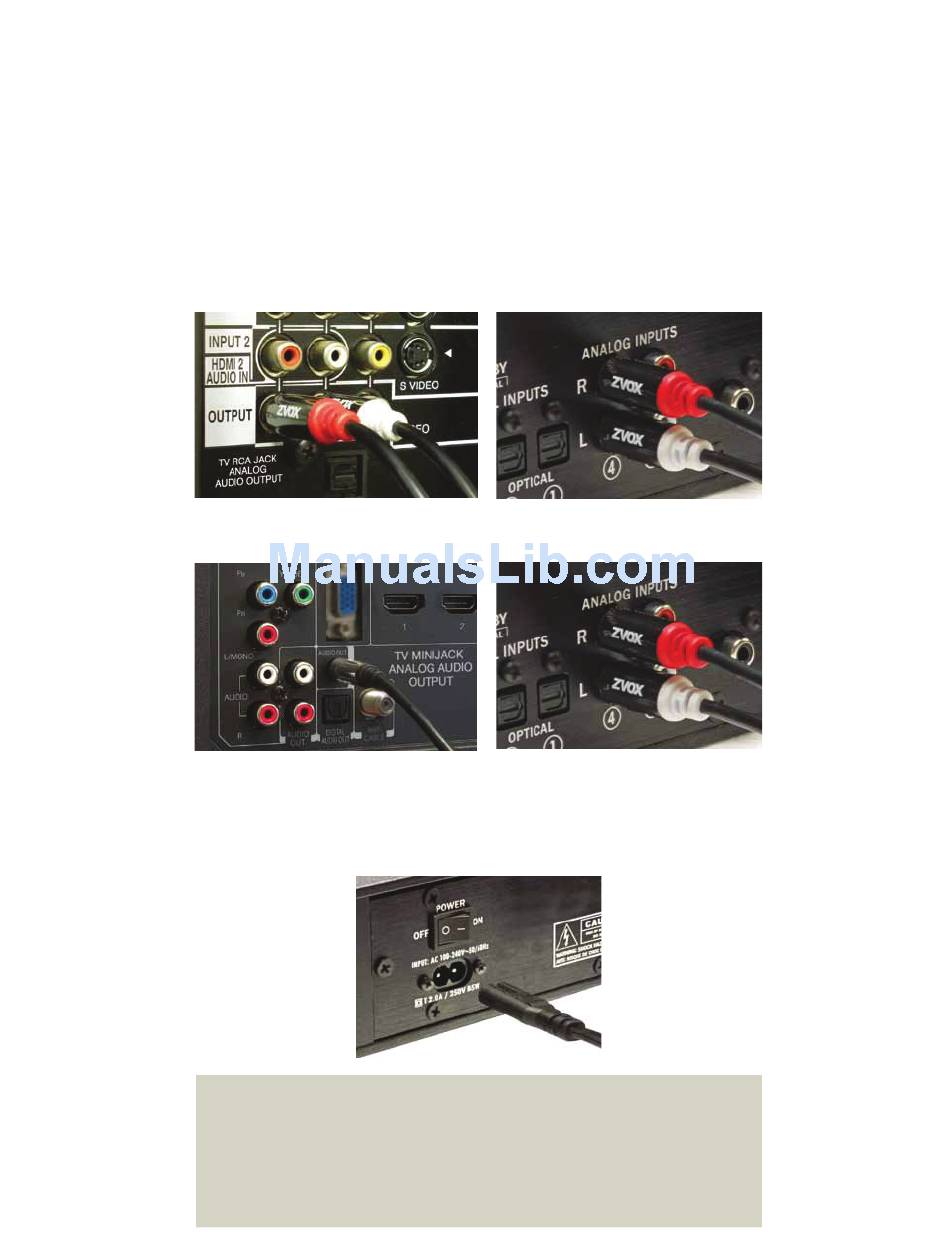

You can connect an RCA jack analog audio output to Analog Input 4.
You can connect a minijack analog audio output to Analog Input 4.
3. Connect the AC cord
After making the signal connection, connect the AC power cord to the back of the speaker.
Then connect the AC power cord to an AC power receptacle. Turn on the speaker using the
power switch on the back panel next to the AC cord.
AC cord connection to SoundBase back panel.
If your home TV system does not conform to the descriptions in this
guide, don't hesitate to send an inquiry to info@zvoxaudio.com or
call ZVOX Audio at (866) 367-9869. Please provide your TV brand
and model number. A ZVOX Audio representative should be available
(Eastern Time Zone) Monday through Friday 9:30 AM to 7:30 PM and
noon to 4:00 PM on Saturday.
OR
