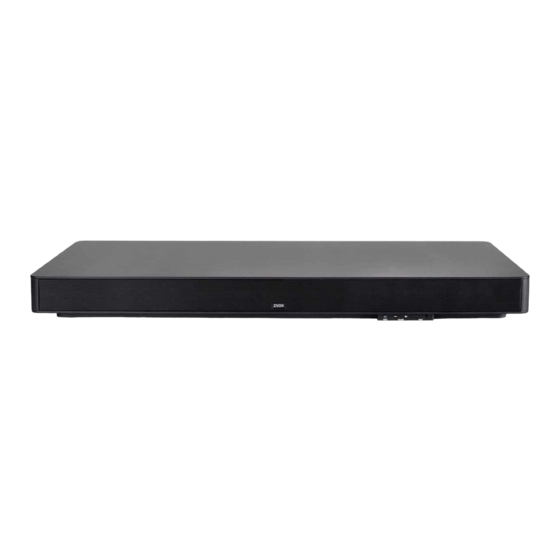

Zvox Audio SoundBase 870 Setup & Operation Manual

®
ZVOX SoundBase
1
Position the
SoundBase.
"TV base" position
Shelf position
Place the SoundBase
on stable, flat surface.
Ensure all components
are stable and secure.
Other Possible TV Audio Outputs
RCA Jack Analog
Audio Out
a
A red/white pair of RCA jacks
on the back of the TV labeled
OUTPUT. Do not connect to
RCA jacks labeled INPUT.
"Minijack" Analog
b
Audio Out
Some TVs use a minijack
output or headphone jack.
Do not use a minijack
labeled INPUT.
Coaxial Digital
c
Audio Output
(Single RCA jack,
may be orange)
Any cable with an RCA plug
at each end can be used.
®

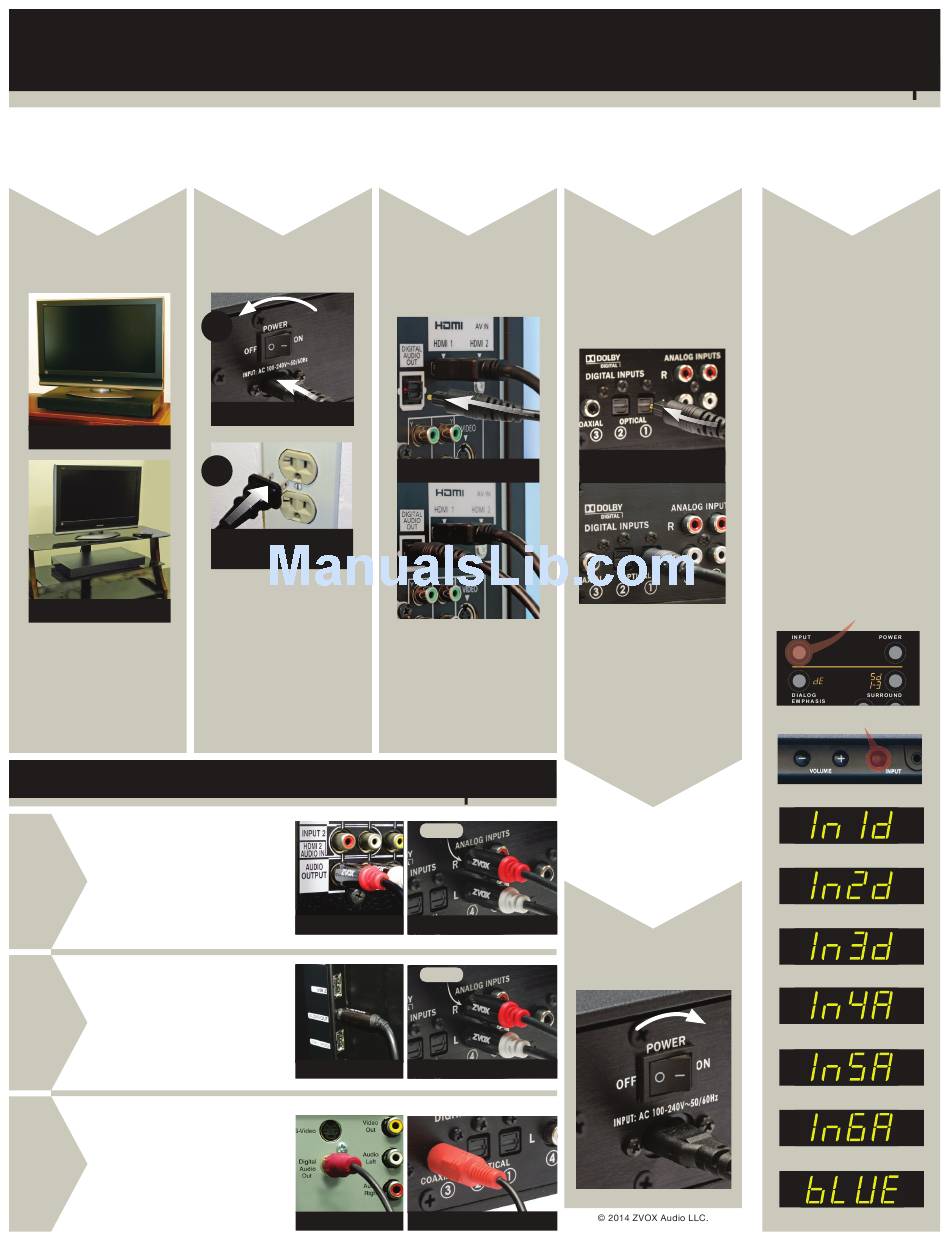

870/770/670/570 Quick Setup
2
Connect the
power cord.
1 OFF
Back of SoundBase
2
AC Power
Receptacle
Connect the AC
power cord to
the back of the
SoundBase. Leave
the Power Switch in
"Off" . Then insert the
AC plug into an AC
power receptacle.
Back of TV
Back of TV
Back of TV
3
Connect to
Optical Audio
Output of TV.
Back of TV
Optical Audio Output
Connect one end of
an optical digital cable
to the TV's Audio Out
optical jack.
Input 1
Back of SoundBase
Flip on the Power.
Input 1
Back of SoundBase
Back of SoundBase
4
Connect to
Optical Audio
Input of
SoundBase.
Back of SoundBase
SoundBase's Optical
Audio Input #1
Connect the other end
of the optical cable
to the SoundBase's
optical input jack #1.
5
ON
6
Confirm you hear
TV sound through
the SoundBase.
With an optical digital
audio connection, you
should hear the TV
sound through the
SoundBase with the
SoundBase volume set
to 12-15.
If you don't hear sound
or if you did not use
an optical connection,
press the INPUT button
on the SoundBase re-
mote control to select
the correct input.
Select the TV input using
the remote control
or the front panel.
Input 1—digital (optical jack)
Input 2—digital (optical jack)
Input 3—digital (coaxial jack)
Input 4—analog (RCA jacks)
Input 5—analog (RCA jacks)
Input 6—analog (front minijack)
Bluetooth device
