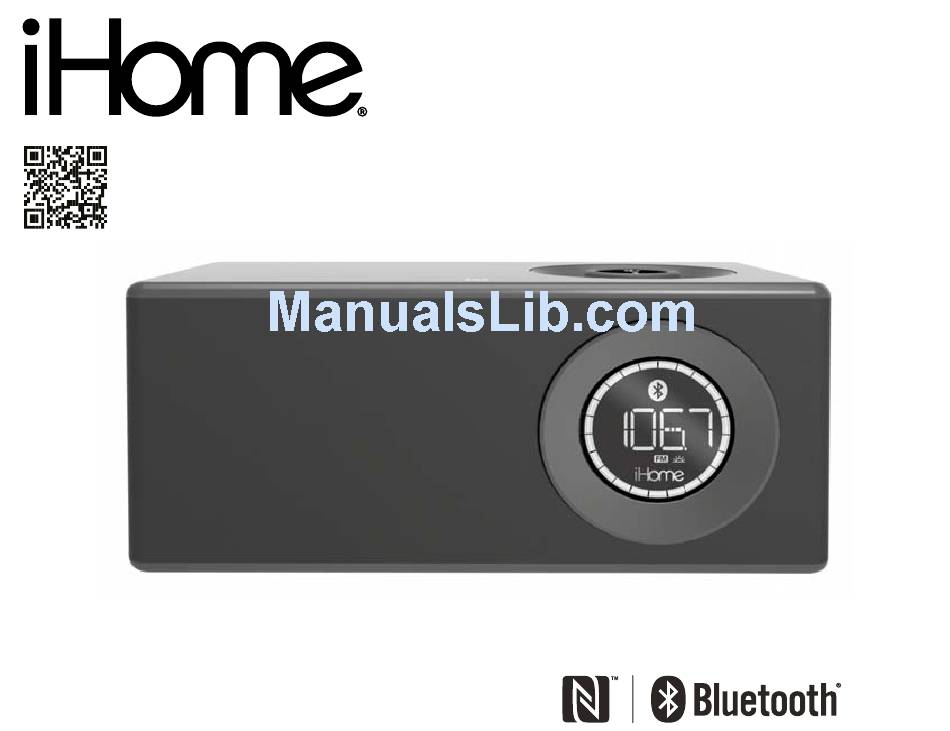

- Page 1 Bluetooth Wireless Stereo Speaker System with Speakerphone and USB Charging Questions? Contact Customer Service at 1-800-288-2792 instruction manual...
- Page 2 Introduction Thank you for purchasing the iHome iBN10. This product is designed to provide high quality wireless sound from your iPad, iPhone, iPod, computer, or other Bluetooth audio device. Along with the included Quick Bluetooth Connection Guide this instruction booklet explains the basic operation and care of the unit.
- Page 3 FCC/IC Information FCC ID:EMOiBN10 IC:986B-iBN10 FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
-
Page 4: Table Of Contents
Table of Contents Included / Meet Your iBN10 ..................... 1-3 Setting Up the Unit / Turning the Unit ON and OFF ..............4 Setting the Clock / FM Radio ....................5 Setting and Using FM Presets / Using FM Radio in Other Countries..........6 Using Bluetooth: Pairing Your Device Using NFC .............. - Page 5 Included • iBN10 System • 100V-240V universal AC adaptor • Audio cable AC adaptor iBN10 Audio cable...
-
Page 6: Included / Meet Your Ibn10
Meet Your iBN10 Volume Knob Mode Button Turn to adjust Power/Pairing Button Press to power on/off Press and hold to pair Reverse/Talk/ Answer Call Button Forward/ End Call Button Play/Pause/Preset Button Antenna Area Speakerphone Touch NFC device to pair... - Page 7 Meet Your iBN10 The Display Bluetooth/Pairing Mode Indicator Talk Mode Indicator End Call Indicator (Speakerphone) Time Display PM Indicator Low Backup Battery Daylight Saving Time Indicator (DST) Mode Indicator Aux-in Mode Indicator FM Mode Indicator Status Indicator (volume, dimmer, pairing, etc) When unit is off press and hold the Display/Clock Button on the back of the unit for 5 seconds to adjust the clock display from High to Low.
-
Page 8: Setting Up The Unit / Turning The Unit On And Off
Setting Up the Unit Using the Connect the included AC adaptor to the DC jack located on the back panel of the unit and connect the other end to a working wall outlet. Extend the FM antenna fully for best reception. -
Page 9: Setting The Clock / Fm Radio
Setting the Clock Using the The unit features a Daylight Saving Time (DST) Switch on the back of the unit to quickly add or subtract an hour to account for Daylight Saving Time and Standard Time differences. Before setting the time, move the DST Switch to +1 to add an hour or to -1 to subtract an hour. -
Page 10: Setting And Using Fm Presets / Using Fm Radio In Other Countries
Setting and Using FM Presets Using the The unit allows you to store up to 6 FM radio station presets Button on the unit to turn it on. 1. Press the 2. Press and release the Mode Button as needed until the FM indicator icon and current FM radio frequency appear on the display. -
Page 11: Using Bluetooth: Pairing Your Device Using Nfc
“spin” while the unit attempts to pair. “iHome iBN10” should appear on your device’s menu. If your device asks if you wish to pair, accept (select “Yes” or similar). Once paired with a device, the Bluetooth icon will stop flashing, 2 confirmation tones will sound and your music will play through the unit. -
Page 12: Using Bluetooth: Pairing Your Device Using Bluetooth
Bluetooth icon on the display will flash and the status indicator ring will “spin” while the unit attempts to pair. “iHome iBN10” should appear on your device’s menu. If “Not Paired, “Not Connected” or similar message appears, select “iHome iBN10”... -
Page 13: Playing Audio Via Bluetooth
Pairing with a Different Device Using the When you power ON the speaker, it will automatically link with the previously paired Bluetooth device as long as that device is still within range (about 33 feet). To pair with a different device, follow steps 1 –... -
Page 14: Using The Speakerphone Feature
Using the Speakerphone feature Using the NOTE: The unit must be powered and linked to a Bluetooth phone to receive a call. Talk Button to answer the When a call is received, playing music is muted to hear the ring tone. Press the End Button to ignore it. -
Page 15: Charging Devices Via Usb Port / Dimming The Display
Charging Devices via USB Port Using the The unit will charge most mobile devices while connected to AC power 1. Connect the standard size end of a USB cable (not included) to the USB Port and connect the other end to the charging port on your device. -
Page 16: Replacing And Installing Clock Backup Batteries
Replacing and Installing Clock Backup Battery Using the Note: 1 CR2450 battery is included with the unit. Remove pull tab before using the unit. This model is equipped with a battery backup circuit that will maintain the time and other settings in the event of a temporary power interruption (the display is NOT maintained). -
Page 17: Consumer Product Safety Guide
Consumer Product Safety Guide IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. - Page 18 13. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel. Questions? Visit www.ihome.com or call 1-800-288-2792 Toll Free...
-
Page 19: Troubleshooting
• Check that all connections are correct and properly plugged in. • Only use the AC adaptor that came with the unit. • Make sure your device is properly paired with the iBN10. • Make sure the Power is ON, indicated by lit up Power Button. -
Page 20: Warranty
Limited 1 Year Warranty iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
