Summary of Contents for Monitor Audio IWA-250
- Page 1 o w n e r s m a n u a l...
-
Page 2: Table Of Contents

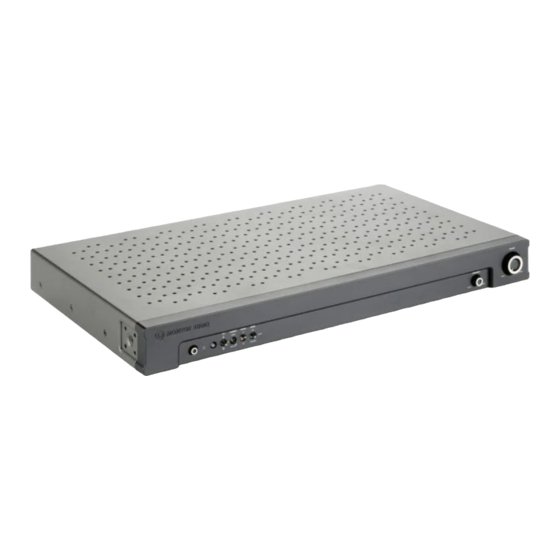

Trouble Shooting Owner Information Introduction Thank you for your purchase of the IWA-250 subwoofer amplifier, which has been designed and constructed using quality systems and materials to provide years of enjoyment, reliability and pride of ownership. Music is and should be a natural enhancement of life. It stimulates the imagination, changes your mood, helps you relax, and provides endless hours of entertainment. -
Page 3: Installation
Fitting Rubber Feet Fitting to Rack If installing in a rack or communications cabinet, you need to fit the supplied brackets first. NOTE: When fitting to a rack, please ensure there is space above and below to allow for suitable airflow. IWA-250... -
Page 4: Initial Set Up
Do not play any music or movies at this stage as the auto set up of the AV amp (if using one) will need to be run. If your amp has an auto set up procedure, run this now ensuring the IWA-250 is turned on. -
Page 5: Amp Panel & Controls
The crossover frequency will need to be set if using this method of connection. If using the IWA-250 Series speakers set the crossover dial to approximately 80Hz. This may vary depending on room and tastes. Note:- cable lengths should not exceed 10 metres to avoid interference from other electrical appliances. - Page 6 NOT attempt to re-fit a further fuse as this could result in serious damage to the amplifier unit. Mains Power Switch The mains power switch should be switched to the ‘Off’ position when the IWA-250 will not be used for extended periods. The switch must be in the ‘On’ position for the subwoofer to function.
-
Page 7: Specifications
12v Trigger Input 5 - 12v via 3.5mm mono mini-jack socket Standby: < 0.5W (ErP approved) Power Consumption Typical Idle: < 10W Max Rated: 200W Weight (unpacked 4Kg (8lb 12oz) Monitor Audio reserves the right to alter specifications without notice. IWA-250... -
Page 8: Trouble Shooting
Is the unit receiving a signal (12v trigger not being used)? Is the Power Mode Switch in Auto or On position, and signal source turned on? Try adjusting the volume level of the source. If it still does not turn on/ power up, please contact your local dealer/ distributor or Monitor Audio immediately. No sound from amplifier. - Page 9 Monitor Audio Ltd. 24 Brook Road Rayleigh, Essex SS6 7XJ England Tel: +44 (0)1268 740580 Fax: +44 (0)1268 740589 Email: info@monitoraudio.co.uk Web: www.monitoraudio.com Designed in the United Kingdom Version 2. 2013...
