- Page 1 Lattis Matrix Switcher 1600 and 800 Series Owner’s Manual Publication M-LE-00 Manual Revision Feb 2000 Software Version 5.21 Model Number:_______________ Serial Number:_______________ Date Purchased:_______________ Place of Purchase:_______________...
- Page 2 FAX: (480) 354-5558 ©2000 Vaux Electronics, Inc. Printed in the U.S.A. All rights reserved. Aris, Lattis, MediaMation, Vaux, VauxConfig, VauxControl, VauxNet, and VauxProtocol are trademarks of Vaux Electronics, Inc. Other trademarks and registered trademarks are owned by their respective companies.
-
Page 3: Table Of Contents
INTRODUCTION Matrix Switching and Zone Expansion IR and RF Remote Control and Keypad Operation Computer Control Systems LATTIS MATRIX SWITCHER FRONT PANEL LATTIS MATRIX SWITCHER (LE-1600A) REAR PANEL PARTS CHECKLIST INSTALLATION RC-16 REMOTE CONTROL PROGRAMMING THE SYSTEM Setting each Zone’s Initial Volume Level (and maximum level) Remote Control Setup Commands (shift-pause-x): AUDIO/VIDEO OPERATION Setting the RC-16’s Current-A/V-Zone:... - Page 4 Command/Message Parameter Notes (Aris-only IR, X-10, and Macros): Command/Message Parameter Notes (System-Information Message): Command/Message Parameter Notes (Miscellaneous Messages): VC-232 SERIAL PORT (EIA/RS-232) VC-232 Port (RS-232 Interface) (DB-9 F Connector): MAINTENANCE AND SERVICE LIMITED WARRANTY SAFETY INFORMATION...
-
Page 5: Introduction
Introduction Thank you for selecting a Vaux Lattis Matrix Switcher. These systems have been designed for the utmost in performance and reliability. There are currently four models in the Lattis Matrix Switcher family: LE-800A 8-source by 8-zone, audio-only LE-800AV 8-source by 8-zone, audio/video LE-1600A 16-source by 16-zone, audio-only LE-1600V 16-source by 16-zone, video-only... -
Page 6: Lattis Matrix Switcher Front Panel

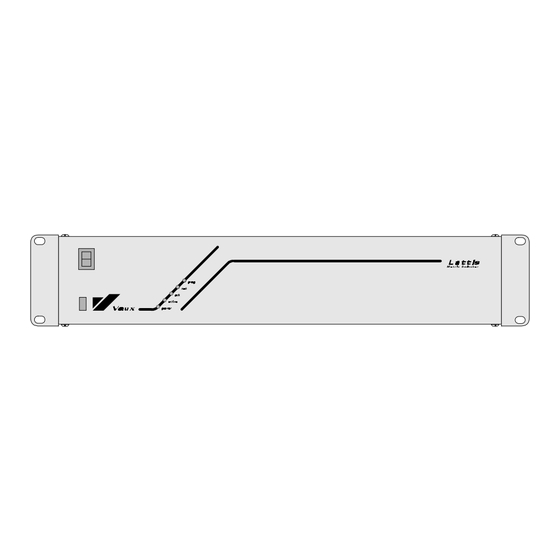

Lattis Matrix Switcher Front Panel Power Switch Infrared Contol Sensor (below switch, left of logo) Power light Active light (one or more zones on) Ack light (acknowledge) Nak light (negative acknowledge) Prog light (programming) Lattis Matrix Switcher (LE-1600A) Rear Panel A/V Source Inputs (phono jacks) —... -
Page 7: Parts Checklist
Parts Checklist When unpacking your Lattis system, ensure that you have received the following: • Lattis Matrix Switcher (LE-800A, LE-800AV, LE-1600A, LE-1600V) • AC Adapter – 12 VDC, 800 mA • Owner’s Manual Other components you may need: • Vaux RC-16-IR infrared remote control(s) •... -
Page 8: Installation
Installation The Lattis Matrix Switcher is quite flexible, in that it can integrate with a variety of A/V devices and control systems, and may be configured a variety of ways. Installation of the Lattis System is described below: 1. System Power: Place the Lattis Matrix Switcher near your audio/video components. Turn off the Lattis front panel switch and plug the AC power adapter’s cable into the rear panel Power connector on the Lattis Matrix Switcher. -
Page 9: Rc-16 Remote Control
RC-16 Remote Control • The RC-16 Remote Control has four lighted "Mode" keys, which select one of four operating modes. Pressing a mode button will flash the light twice and change the "Current-Mode." When non-mode buttons are pressed on the remote, the appropriate mode light flashes to confirm the button press, as well as the Current-Mode in use. -
Page 10: Programming The System
Programming the System Setting each Zone’s Initial Volume Level (and maximum level) When you have the system running, you will likely wish to tailor each room’s initial volume level (the level to which it first turns on). You can also set the maximum volume of the amplifier at this point. Note: The earlier RC-8-IR remote control may also be used to set this adjustment. -
Page 11: Remote Control Setup Commands (Shift-Pause-X)
Remote Control Setup Commands (shift-pause-x): Note: The earlier RC-8-IR remote control may also be used to set this adjustment. * shift-pause-1 Zone-Initial-Volume-To-Current zone 1-90, also ack/nak flash * shift-pause-2 Zone-Mute-Volume-To-Current zone 1-90, also ack/nak flash * shift-pause-3 Zone-Min-Volume-To-Current zone 1-90, also ack/nak flash * shift-pause-4 Zone-Max-Volume-To-Current zone 1-90, also ack/nak flash * shift-pause-5 Zone-Previous-Volume-Flag-Off... -
Page 12: Audio/Video Operation
Audio/Video Operation For all operations below, change the RC-16 remote control to the desired zone, if needed. The remote also needs to be in a/v mode for the following operations: press the RC-16's a/v mode button to change to a/v mode (the button will flash twice). -
Page 13: Adjusting Zone Volume And Muting
Adjusting Zone Volume and Muting: • Press the RC-16’s Volume-Up/Down buttons, and release at desired volume level. Note: This will automatically place the remote in A/V mode. • Press the RC-16’s Mute button -- the zone volume lowers to the programmed Mute-Volume-Level for the zone. -
Page 14: Vauxprotocol Commands & Messages (Rs-232)
VauxProtocol Commands & Messages (RS-232) Connection of a computer or control system to the VC-232 serial port allows you to fully control the system using a selection of Commands, and to obtain immediate feedback on system status by listening to Messages. This Command/Message language is called VauxProtocol. -
Page 15: Control-Command & Status-Message Summary
Control-Command & Status-Message Summary: • For zones 1 to 255, Status-Messages are sent in response to Control-Commands. • Many commands return the same status message – simplifying message parsing programming. • For zone 0 (all zones), no messages returned (multiple switchers would be responding together). •... - Page 16 Routing audio using Route-Audio-Muted command (*CW,14,zon,ssa): 1) Routing a source when zone is currently off: - Routes and places zone in muted state, and sets unmute volume to:. a) Normal (factory setting) unmute level uses programmed "Zone-Initial-Volume." b) Optionally, may configure unmute level to be "Previous" volume. (this was level when zone was last turned off) (the implementation actually updates Zone-Initial-Volume at every zone turn-off, then this route-muted command loads unmute levels from initial).
- Page 17 Control-Cmd Description Absolute-L/R-Vols vvl/vvr (Zone-0 OK) *CW,20,zon,vvl,vvr <cr> !S,50,zon,sta,vvl,vvr <cr> Absolute-Left-Volume vvl *CW,21,zon,vvl <cr> !S,21,zon,vvl <cr> Absolute-Right-Volume vvr *CW,22,zon,vvr <cr> !S,22,zon,vvr <cr> Absolute-Volume vol (Zone-0 OK) *CW,23,zon,vol <cr> !S,50,zon,sta,vvl,vvr <cr> Volume-Up (2-dB/step) (Zone-0 OK) *CW,24,zon <cr> !S,50,zon,sta,vvl,vvr <cr>...
-
Page 18: Configuration-Command And System-Control Command Summary
Configuration-Command and System-Control Command Summary: Coding Tip: In many applications, the factory settings are just right. You may want to adjust zone parameters manually using an RC-8 or RC-16 remote control – see the notes below. Config-Write-Cmd Description Write-Switcher-Class-and-Base-Zone *PW,1,swc,0,0,bzn <cr>... -
Page 19: Request-Command & Status-Message Summary
System-Control-Cmd Description Zone-Restore-Factory-Settings *PW,31,zon <cr> Write-Zone-Volume-Settings *PW,40,zon,cvs <cr> (zone must be on and unmuted to set these) cvs = 1 Set Zone-Initial-Volume-To-Current cvs = 2 Set Zone-Mute-Volume-To-Current cvs = 3 Set Zone-Min-Volume-To-Current cvs = 4 Set Zone-Max-Volume-To-Current Restore-Factory-Settings... -
Page 20: Remote-Control Equivalent Commands And Messages
Remote-Control Equivalent Commands and Messages: Pressing buttons on Vaux remote controls or keypads initiates actions equivalent to the following VauxProtocol Commands. Since these actions result in the same Messages being sent (as they would for the equivalent Command), the control system must only parse one set of Messages. This means that the control system is always up-to-date on zone-routes, volume-levels, and other system parameters, reegardless of whether they were initiated by a VauxProtocol command, or by a remote/keypad button press. -
Page 21: Command/Message Parameter Notes (A/V Routing And Control)
Command/Message Parameter Notes (A/V Routing and Control): zon is zone 0 to 255 (0=all) (or 1 to 255, depending on command) (no !S mssg returned for zon=0 cmds) src is audio/video source 0 to 8 (0=off) (or 0 to 16, depending on controller) ssa is audio source 0 to 8 (0=off) (or 0 to 16, depending on controller) -
Page 22: Command/Message Parameter Notes (Switcher Configuration)
Command/Message Parameter Notes (Switcher Configuration): NOTE: Only connect to one switcher when programming swc/bzn (ie: disconnect RS-232 daisy-chain). The swc parameter is set to 91 (Separate-A/V-Switchers) when both an LE-1600A and LE-1600V are used together, on the same Base-Zone. Both switchers are then configured for swc=91. In this mode, the audio switcher handles all messages for both switchers (routes, etc), while the video switcher acts as a silent slave. -
Page 23: Command/Message Parameter Notes (Aris-Only Ir, X-10, And Macros)
NOTE: Min-Vol and Max-Vol should be set before setting Mute-Volume. Mute always acts upon both L&R channels, even though L&R volume levels may differ; balance is preserved when zone is unmuted. Mute-vol is a ceiling, not an absolute level. If mute-vol set above min-vol, zone volume levels may go below mute-vol level. -
Page 24: Command/Message Parameter Notes (System-Information Message)
Command/Message Parameter Notes (System-Information Message): The SysInfo message is sent at system boot, or in response to a *CR,0,0 Request-Command. !S,0,bzn,ccf,ccm,swc,0,svh,svl <cr> where: bzn is Base-Zone for this switcher (eg: 1, 9, 17,...) ccf/ccm is System-Family/Model 10/1 is Lattis LE800A 10/2 is Lattis LE800AV 10/3 is Lattis LE1600A 10/4 is Lattis LE1600V... -
Page 25: Vc-232 Serial Port (Eia/Rs-232)
VC-232 Serial Port (EIA/RS-232) The VC-232 Port is designed to connect directly to any computer or control system which has a standard RS-232 serial port. For the record, instead of RS-232 (RS stands for Recommended Standard), the proper term is actually EIA-232 or EIA/TIA-232 (for the standards bodies concerned). -
Page 26: Maintenance And Service
This product is to be serviced only by the manufacturer or its authorized service agents. For instructions on how to obtain service, call the Vaux Electronics Service Department. Attach your sales receipt to this manual for future reference, should service be required during the warranty period. Also, record your Serial Number(s) on the cover of this manual. -
Page 27: Limited Warranty
Return Materials Authorization (RMA) Number and ship the Vaux product standard UPS or equivalent to the Vaux Electronics Service Dept. Provide necessary additional shipping insurance. Most shipping companies’ basic insurance coverage is only $100.00. Include in the package a copy of the sales receipt or other evidence of date of original purchase. -
Page 28: Safety Information
Safety Information • As with any product, basic safety precautions should be observed during handling and use of this system. • Before using your system, please follow and adhere to all warnings, safety and operating instructions located on the product and in this owner’s manual. Retain this manual for future reference. •...
