Summary of Contents for Pride Mobility Ranger

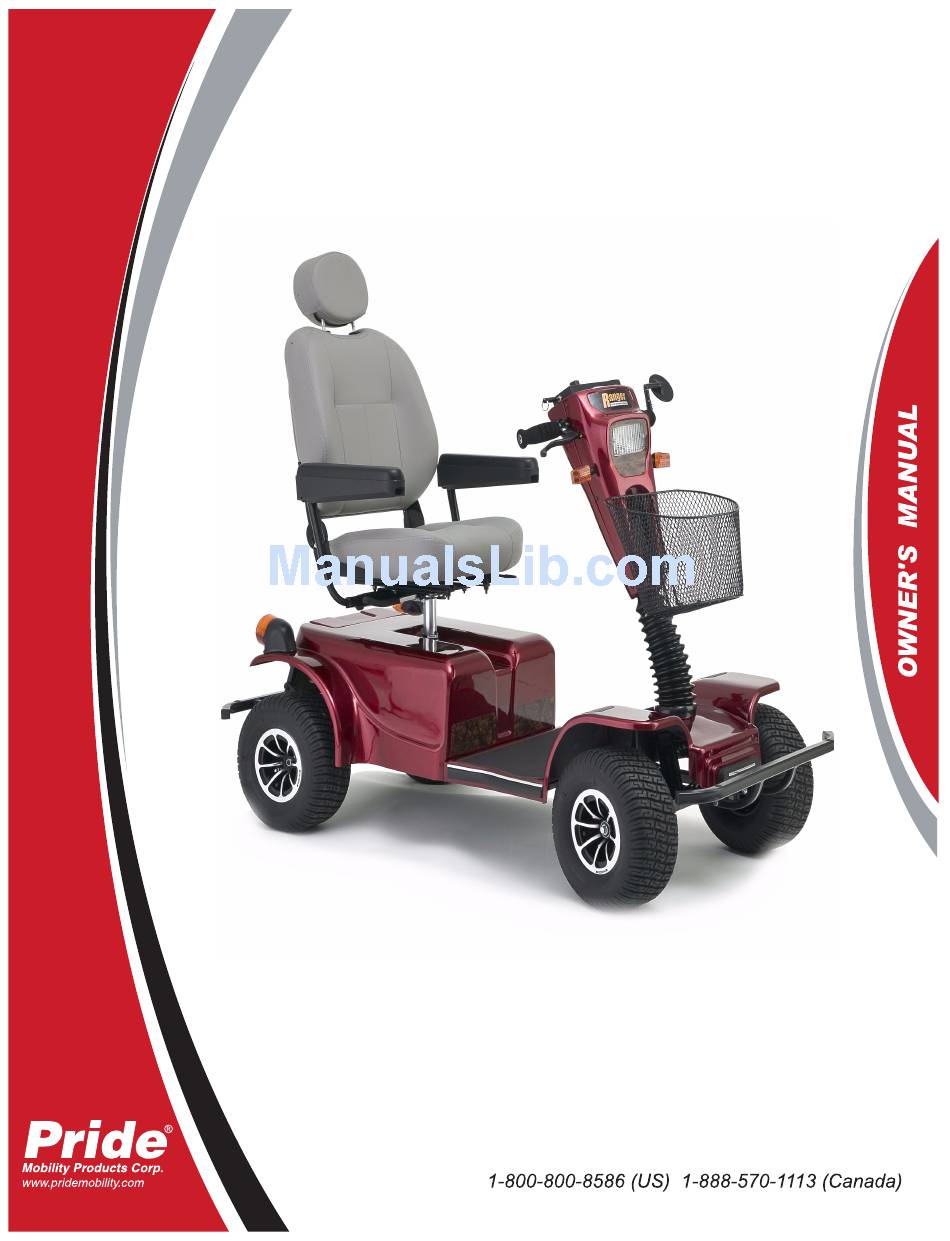

- Page 1 RANGER...
- Page 2 Intended Use The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated position that have the capability of operating a powered scooter.
- Page 3 IV. BATTERIES AND CHARGING ..............23 V. OPERATION ...................... 28 VI. COMFORT ADJUSTMENTS ............... 30 VII. DISASSEMBLY AND ASSEMBLY ............33 VIII. BASIC TROUBLESHOOTING ..............34 IX. CARE AND MAINTENANCE ..............35 X. WARRANTY ....................... 38 APPENDIX I - SPECIFICATIONS ..............39 Ranger www.pridemobility.com...
- Page 4 I N T R O D U C T I O N SAFETY Welcome to Pride Mobility Products Ltd. (Pride). The scooter you have purchased combines state-of the- art components with safety, comfort and styling in mind. We are confident the design features will provide you with the conveniences you expect during your daily activities.
- Page 5 EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m. Do not lift the mobility vehicle while seated in it. Do not lift the mobility vehicle while seated in it. Explosive conditions exist! Read and follow the information in the owner’s manual. Ranger www.pridemobility.com...
- Page 6 Do not place scooter in freewheel mode on an incline. Wear safety goggles. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Do not remove anti-tip wheels. Do not use a cell phone, walkie/talkie, laptop or other radio transmitter while operating. www.pridemobility.com Ranger...
- Page 7 Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new batteries. Always replace both batteries at the same time. Keep your hands away from the tyres when driving. Be aware that loose fitting clothing can become caught in drive tyres. Ranger www.pridemobility.com...
- Page 8 I I . S A F E T Y Battery charger for indoor use only. Disposal and recycling - Contact your authorised Pride Dealer for information on proper disposal and recycling of your Pride product and its packaging. Contains Lead. www.pridemobility.com Ranger...
- Page 9 PRE-RIDE SAFETY CHECK Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check before each use to make sure your scooter operates smoothly and safely. Ranger www.pridemobility.com...
- Page 10 When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. Avoid sudden stops and starts. www.pridemobility.com Ranger...
- Page 11 WARNING! Never carry an oxygen tank weighing more than 6.8 kg (15 lbs.). Never fill the rear basket with contents exceeding 6.8 kg (15 lbs.). 181.4 kg 28.5 stone (400 lbs.) 8.7% (5°) Figure 1. Maximum Recommended Incline Angle Ranger www.pridemobility.com...
- Page 12 Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the centre/stop position. Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop, or when power is removed from the system for any reason. www.pridemobility.com Ranger...
- Page 13 See figures 3 and 4. WARNING! Do not attempt to negotiate a kerb that has a height greater than 5 cm (2 in.). KERB KERB Figure 3. Correct Kerb Approach Figure 4. Incorrect Kerb Approach Ranger www.pridemobility.com...
- Page 14 Use your hand to turn the knob or push the handle or push-bar. Drive your scooter gently and slowly forward to push the door open. Or drive your scooter gently and slowly rearwards to pull the door open. www.pridemobility.com Ranger...
- Page 15 PREVENTING UNINTENDED MOVEMENT WARNING! If you anticipate being seated in a stationary position for an extended period of time, turn off the power. This will prevent unexpected motion from inadvertent throttle control lever contact. Ranger www.pridemobility.com...
- Page 16 PROHIBITED! Keep your hands away from the drive tyres when driving. Be aware that loose fitting clothing can become caught in drive tyres. www.pridemobility.com Ranger...
- Page 17 Every electrically-powered mobility vehicle has an immunity (or resistance) to EMI. The higher the immunity level, the greater the protection against EMI. This product has been tested and has passed at an immunity level of 20 V/M. Ranger www.pridemobility.com...
- Page 18 NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If unintended motion or brake release occurs, turn your scooter off as soon as it is safe to do so. Contact your authorised Pride Dealer to report the incident. www.pridemobility.com Ranger...
- Page 19 Do not hesitate to use the warning horn when doing so may prevent accident or injury. Hazard Light Switch This switch enables you to control your scooter’s front and rear (amber) hazard lights. Toggle this switch to turn the hazard lights on and off. Ranger www.pridemobility.com...
- Page 20 See figures 6 and 6A. Batteries The batteries store the electrical energy that powers your scooter. See IV. “Batteries and Charging” for information on how to charge your scooter’s batteries. www.pridemobility.com Ranger...
- Page 21 The scooter comes with its own off-board battery charger. When the charger is plugged into an electrical outlet, it charges the scooter’s batteries. See IV. “Batteries and Charging.” BATTERY CHARGER MAIN CUIRCUIT BATTERIES BREAKER Figure 6. Rear Section Ranger www.pridemobility.com...
- Page 22 The motor assembly is an electromechanical unit that converts electrical energy from your scooter’s bat- teries into the controlled mechanical energy that drives the scooter’s wheels. UTILITY TRAY COVER LIGHT HARNESS MOTOR/TRANSAXLE ASSEMBLY MOTOR/TRANSAXLE ASSEMBLY MANUAL FREEWHEEL MANUAL FREE- LEVER WHEEL LEVER Figure 6A. Rear Section www.pridemobility.com Ranger...
- Page 23 WARNING! Do not attempt to open the battery charger case. If the battery charger does not appear to be working correctly, contact your authorised Pride Dealer. WARNING! If the battery charger is equipped with cooling slots, then do not attempt to insert objects through these slots. Ranger www.pridemobility.com...
- Page 24 How often must I charge the batteries? Two major factors must be considered when deciding how often to charge your scooter’s batteries: All day scooter use on a daily basis. Infrequent or sporadic scooter use. www.pridemobility.com Ranger...
- Page 25 WARNING! The batteries on your scooter should only be serviced or replaced by an authorised Pride Dealer or a qualified technician. MAIN CIRCUIT BREAKER BATTERY BATTERY TIE-DOWN STRAP REAR RED CABLE REAR BLACK CABLE Figure 8. Placing and Removing Batteries Ranger www.pridemobility.com...
- Page 26 Do not use wet-cell batteries, which have removable caps. WARNING! Corrosive chemicals are contained in batteries. Use only AGM or Gel- Cell batteries to reduce the risk of leakage or explosive conditions. NOTE: Sealed batteries are not serviceable. Do not remove the caps. www.pridemobility.com Ranger...
- Page 27 This reduces the possibility of flat spots developing on the areas of the tyres contacting the ground. What about public transportation? If you intend to use public transportation while using your scooter, you must contact the transportation dealer in advance to determine their specific requirements. Ranger www.pridemobility.com...
- Page 28 Pull on the left handgrip to steer your scooter to the left, or pull on the right handgrip to steer your scooter to the right. www.pridemobility.com Ranger...
- Page 29 20 minutes, the scooter automatically shuts down. If your scooter power down timer feature takes effect, perform the following steps to resume normal operation: Remove the key from the key switch. Reinsert the key to power up your scooter. Ranger www.pridemobility.com...
- Page 30 5. Fully insert the ball detent pin. 6. Replace the seat. Figure 10. Seat Removal LOCATING HOLES UPPER SEAT POST LOWER SEAT POST BALL DETENT PIN Figure 11. Seat Height Adjustment www.pridemobility.com Ranger...
- Page 31 See figure 13. Figure 13. Sliding Seat Adjustment 1. Push down on the seat rotation lever to disengage the seat. 2. Rotate the seat to the desired position. 3. Release the seat rotation lever to secure the seat in place. Ranger www.pridemobility.com...
- Page 32 2. Slide the armrests in or out to the desired width. 3. Tighten the armrest adjustment knobs. HEIGHT ADJUSTMENT TUBE ARMREST ADJUSTMENTS KNOBS ACORN NUT SETSCREW ARMREST ADJUSTMENT KNOB Figure 15. Armrest Height Adjustment Figure 16. Armrest Adjustments www.pridemobility.com Ranger...
- Page 33 To remove the rear shroud: 1. Remove the seat from your scooter. See figure 10. 2. Lift the shroud up and over the seat post. Batteries To remove the batteries from you scooter, see IV. “Batteries and Charging.” Ranger www.pridemobility.com...
- Page 34 Obtain a battery load tester at most automotive parts stores; follow the directions supplied with the load tester. If you experience any problems with your scooter that you are unable to resolve, immediately contact your authorised Pride Dealer for information, maintenance and service. www.pridemobility.com Ranger...
- Page 35 A light application of car wax will help the shrouds retain their high gloss. AXLE BEARINGS AND THE MOTOR/TRANSAXLE ASSEMBLY These items are all prelubricated, sealed and require no subsequent lubrication. Ranger www.pridemobility.com...
- Page 36 Nylon insert lock nuts should not be reused as it may cause damage to the nylon insert, resulting in a less secure fit. Replacement nylon insert lock nuts are available at local hardware stores or through your authorised Pride Dealer. www.pridemobility.com Ranger...
- Page 37 Your scooter must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorised Pride Dealer for information on proper disposal of pack- aging, metal frame components, plastic components, electronics and batteries. Ranger www.pridemobility.com...
- Page 38 Pride Mobility Products Ltd. cannot be deemed responsible. NOTE: Pride Mobility Products Ltd. provides parts only under warranty. Your Pride Dealer is respon- sible for labour and service. Please contact your Pride Dealer for information about these services and for any applicable charges.
- Page 39 - ) 3 %. AGM or Gel-Cell type required. See IV. “Batteries and Charging.” NOTE: This product conforms to all applicable ANSI-RESNA testing requirements and ISO 7176 Series EN12184 standards. All specifications subject to change without notice. Ranger www.pridemobility.com...
- Page 40 63-71 cm (25-28”) 20 cm (8”) 80° 48-58 cm (19-23”) 5 cm (2”) 18 cm (7”) 160 cm (63”) 41 cm (16”) 46 cm (18”) 64 cm (25”) 196 cm (77”) Turning Radius 79 cm (31”) Figure 19. Ranger Dimensions www.pridemobility.com Ranger...
- Page 41 N O T E S Ranger www.pridemobility.com...
- Page 42 N O T E S www.pridemobility.com Ranger...
- Page 43 N O T E S www.pridemobility.com Ranger...
- Page 44 *INFMANU1209...
